Fine Pitch LED Video Wall
High-refresh-rate fine-pitch LED display solution engineered for command centers, broadcast studios, retail windows and commercial environments. Pixel pitch range: P0.9–P2.5.
Products in this Series

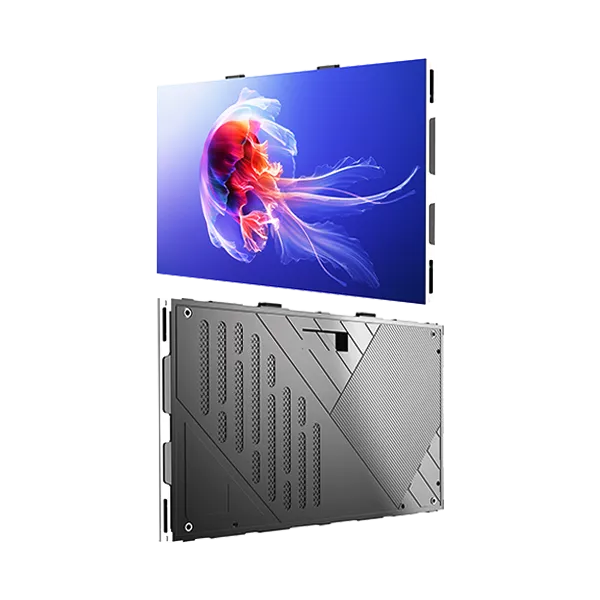

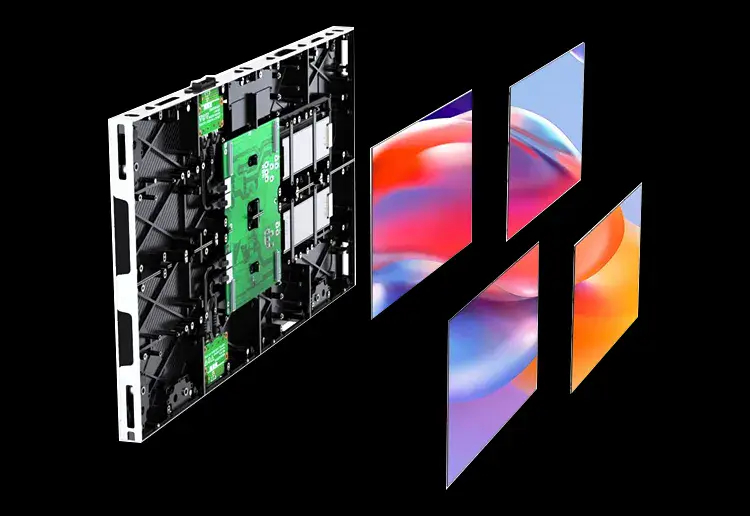

Small Pixel LED Display Screen – IXR-F Series

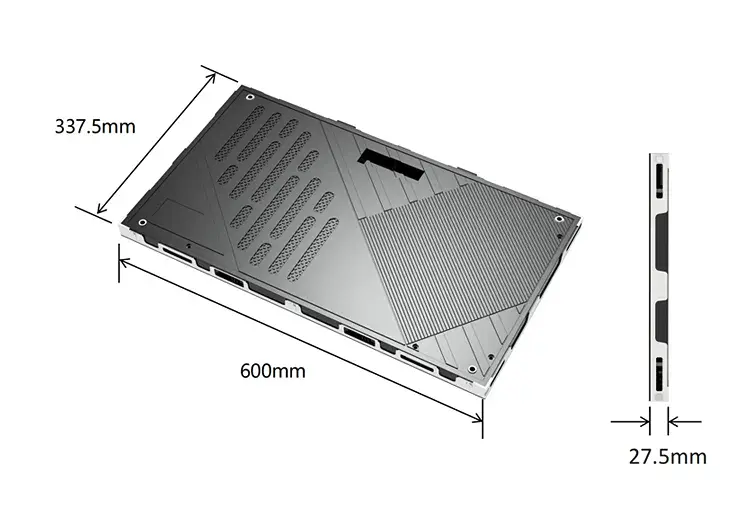

• Cabinet: 600×337.5×27.5mm — 16:9 Golden Ratio • Pixel Pitch: P0.78 / P0.94 / P1.25 / P1.56 / P1.875 • Weight: 4.5kg • Refresh Rate: 3,840Hz / 7,680Hz • Brightness: ≥600 nits • Contrast: 10,000:1 • Viewing Angle: 170°/170° • Maintenance: Front • Material: Die-cast Aluminum • Installation: Wall-mounted / Embedded / Lifted / Floor / Curved

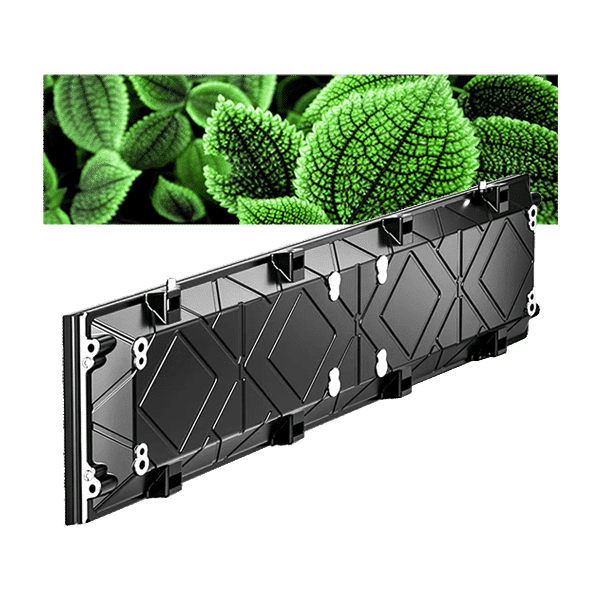

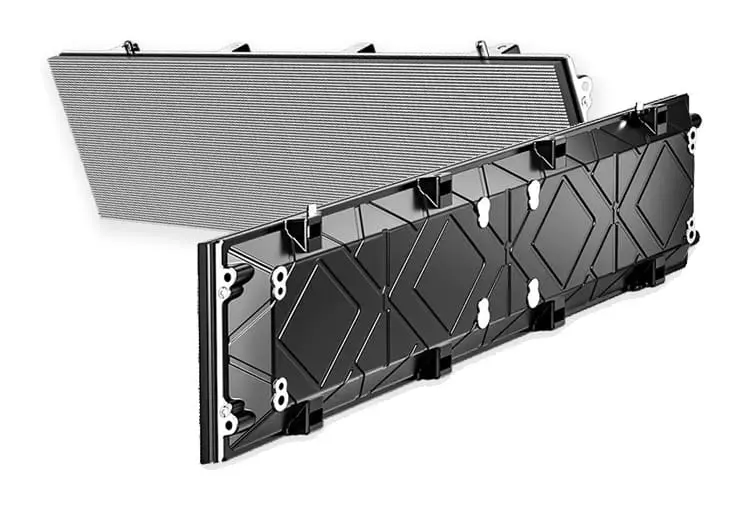

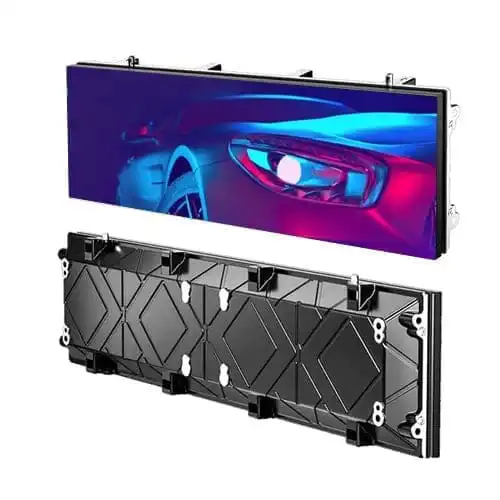

Indoor LED Video Walls – IXR-V Series
• Cabinet Size: 250×500mm / 250×750mm / 250×1000mm / 500×500mm / 500×1000mm
• Module Size: 250×250mm
• Pixel Pitch: P1.9 / P2.6 / P2.9 / P3.91 / P4.81
• Brightness: 800-1500 nits
• Contrast Ratio: 5000:1
• Viewing Angle: 160°/160°
• Refresh Rate: 3,840Hz / 7,680Hz
• Maintenance: Front & Rear
• Material: Die-cast Aluminum
• Installation: Wall-mounted / Hanging / Stack

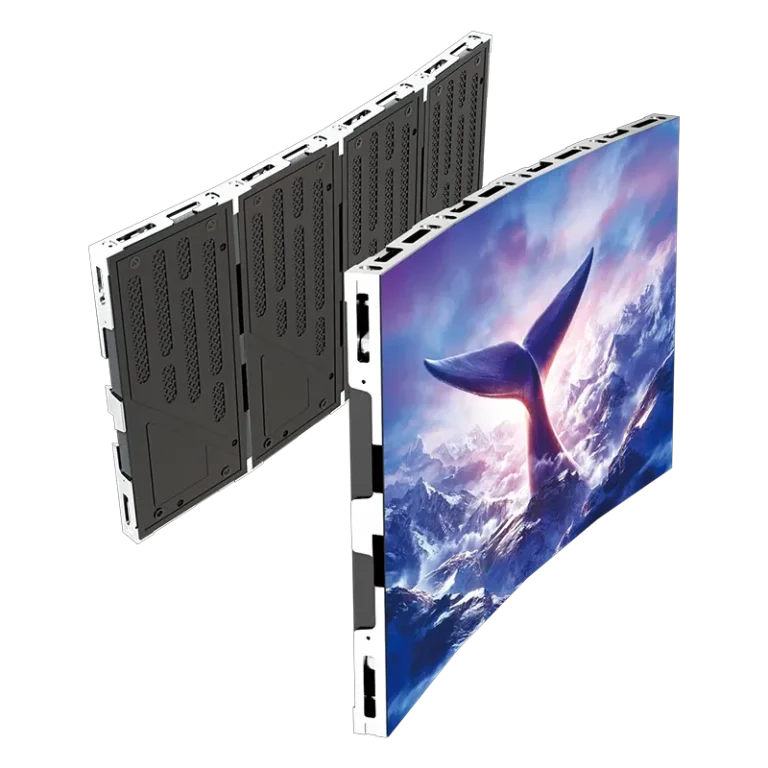

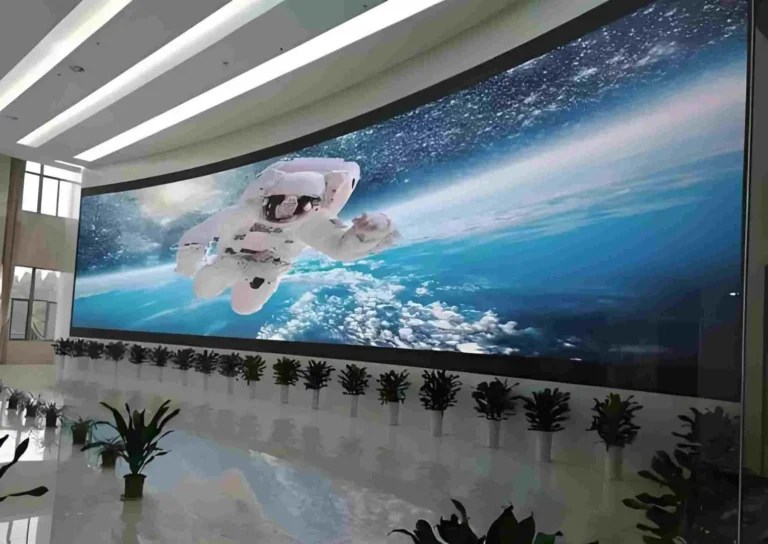

Fine Pitch Curve LED Display IXR – C Series
P0.78/P0.9375/P1.25/P1.56/P1.875 /P2.5
► Ultra-thin, ultra-light;
► Seamless, ultra-high definition, more natural color transition;
► 7680Hz ultra-high refresh rate, no ghosting, enjoy high definition;
► Dual backup design, stable and reliable;
► Full front maintenance, easy and convenient installation and maintenance;
► Support inner arc and outer arc splicing to create a variety of arc shapes.
Key Product Advantages
Every component — from chip encapsulation to image processing — is engineered for industrial-grade reliability

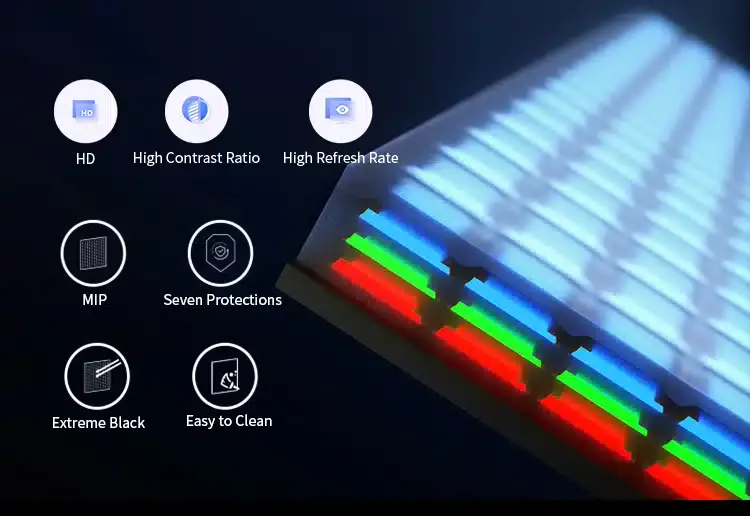

COB Flip-Chip Encapsulation
Moisture-proof, impact-resistant, dead pixel rate <10 PPM
Chip-on-Board flip-chip technology solders LEDs directly onto the PCB with no exposed bonding wires. Superior anti-static, moisture-proof, and impact-resistant performance makes it equally reliable for outdoor and semi-outdoor environments.
3840Hz Ultra-High Refresh Rate
Scan-line-free, moiré-free under camera
Driver ICs support 3840Hz refresh rate with 16-bit grayscale. The image remains perfectly stable and flicker-free even under high-speed broadcast cameras — ideal for TV studios and live event production.

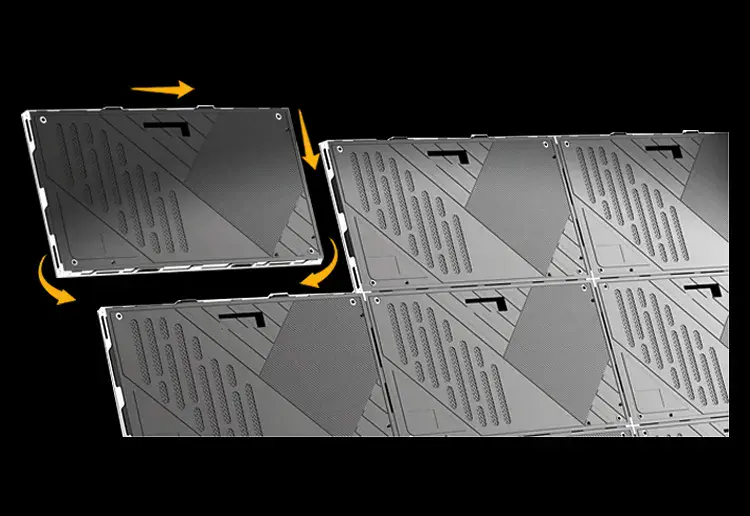

Full Front-Serviceable Design
Flush wall-mount, zero rear clearance

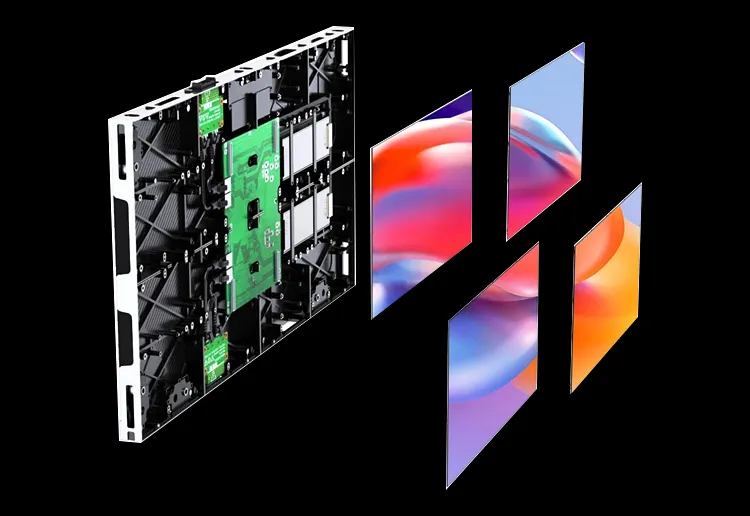

Modules, power supplies, and receiving cards are all accessible from the front. Cabinets can be mounted directly against the wall, saving over 40% of equipment room space. Single-person maintenance, no rear access required.
HDR10 / HLG Dual Format
Wide dynamic range, exceptional detail
Hardware-level support for both HDR10 and HLG standards with peak brightness up to 1000 nits. Deep shadow gradation and highlight detail reproduction meet the demanding requirements of luxury retail and museum display applications.

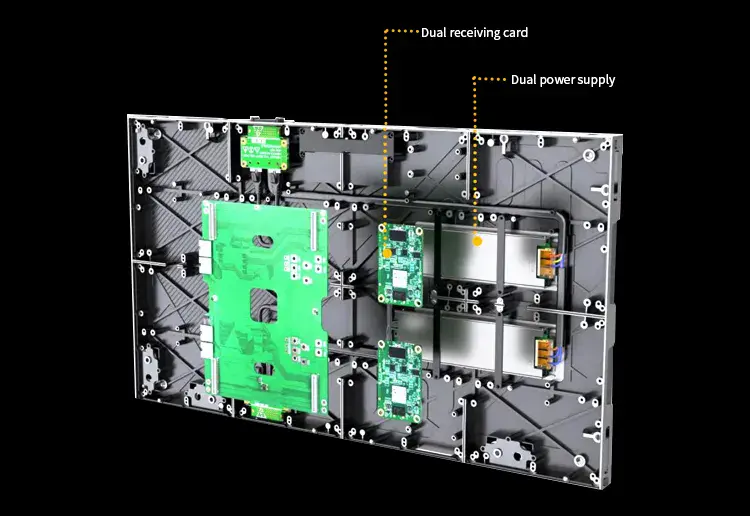

Dual Power & Dual Receiver Redundancy
Mission-critical, zero-blackout reliability
Both PSUs and receiving cards feature N+1 redundant design. Automatic failover upon any single channel failure ensures uninterrupted operation in mission-critical scenarios: command & control, financial monitoring, emergency response.
Per-Pixel Calibration & Hot-Swap Modules
10-year color consistency guarantee
Factory per-pixel luminance and chroma calibration with automatic recalibration after on-site hot-swap module replacement, ensuring seamless visual uniformity across the entire display wall throughout its service life.
Core System Components
Full-chain core modules — from LED chip to control system
LED Display Modules
Three encapsulation options: COB / GOB / SMD. Pixel pitch range P0.9–P2.5, brightness 600–1000 nits, wide 170° viewing angle.
Sender & Receiver Cards
Native 4K@60Hz input support. HDR10/HLG dual-format decoding. Genlock frame synchronization for tear-free multi-cabinet video wall拼接.
Precision Die-Cast Cabinets
ADC12 die-cast aluminum with CNC precision machining. Seam gap ≤0.05mm. Supports 90° corner拼接 and curved arc configurations.
Smart Power Distribution
Remote power on/off control with staggered sequential startup for surge prevention. Independent current monitoring and overload protection per output channel.

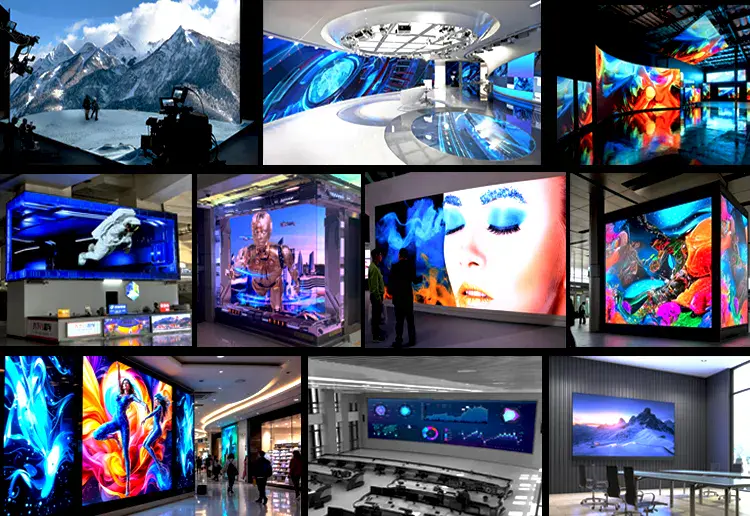

Typical Application Scenarios
Covering the four core verticals: Command & Control, Broadcast, Commercial Retail, and Security Surveillance
Command & Control Centers
24/7 continuous operation with multi-source simultaneous display, preset scene巡更, and GIS map overlay. Designed to meet the mission-critical requirements of public safety, transportation, energy, and emergency management.

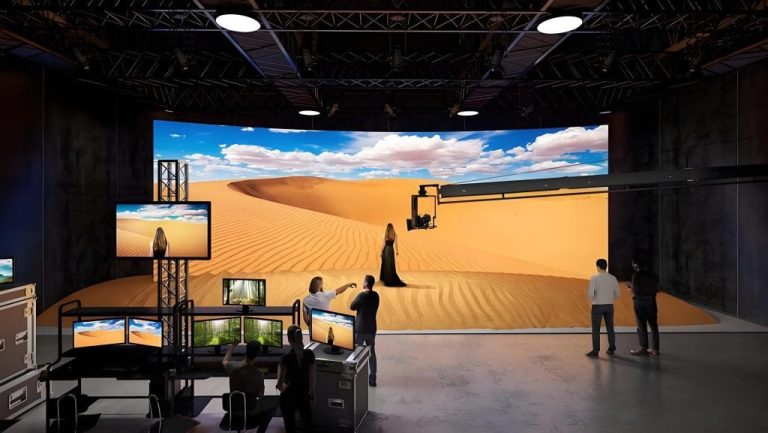

Broadcast & TV Studios
3840Hz refresh rate + Genlock frame sync + HDR ensures scan-line-free, moiré-free broadcast camera capture. Seamless integration with XR virtual production stages for immersive extended-reality filming.
Commercial Retail Windows
High brightness (≥800 nits) + ultra-slim cabinets (≤35mm flush-mount). Supports creative拼接 and transparent display configurations to captivate foot traffic without sacrificing valuable retail floor space.
Detailed Technical Specifications
Comprehensive parameter comparison across all pixel pitch options
| Parameter | P0.9 | P1.2 | P1.5 | P1.9 | P2.5 |
|---|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm | 2.5mm |
| Pixel Density (px/m²) | 1,137,778 | 640,000 | 409,600 | 284,444 | 160,000 |
| Brightness (nit) | 600 | 800 | 800 | 1000 | 1000 |
| Refresh Rate | 1920Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Gray Scale | 14-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Viewing Angle | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Encapsulation | COB | COB/GOB | COB/SMD | SMD | SMD |
| Maintenance | Front | Front | Front | Front/Rear | Front/Rear |
| Cabinet Size (mm) | 600×337.5 | 600×337.5 | 600×337.5 | 600×337.5 | 640×480 |
| Avg. Power (W/m²) | 180 | 160 | 150 | 140 | 120 |
