REISSDISPLAY Ultra-Thin Small-Pitch Curved LED Display Solution
Indoor fine pitch curve LED display – IXR – C series are essential tools for communication, presentation, and entertainment in modern indoor settings. Unlike traditional displays such as LCDs and projection systems, indoor LED displays stand out due to their full-color, high-resolution display capabilities, seamless visuals, and energy efficiency.
Whether it’s displaying dynamic information, showcasing advertisements, or creating an immersive experience, indoor LED display provide the perfect solution with their high greyscale, high contrast ratio, full-color visuals, and suitability for indoor applications in different settings. Various pixel pitch available: P0.78/P0.9375/P1.25/P1.56/P1.875 /P2.5.
Unlike other indoor series LED display screens, IXR – C series is optimized for extremely high requirements.
High resolution, high grayscale
Wide viewing angle. 170 degree visibility
Multiple control methods: WIFI/LAN/4G/USB
High stability driver IC, more uniform color, more realistic image
Using the latest SMD/COB packaging, providing excellent full-color display effect.
High contrast ratio of over 6000:1, more vivid colors.
High refresh rate of over 3840Hz to 7680Hz, flicker-free.
High-definition visual effects.
Supports multiple display formats, such as text, images, videos, documents, etc.

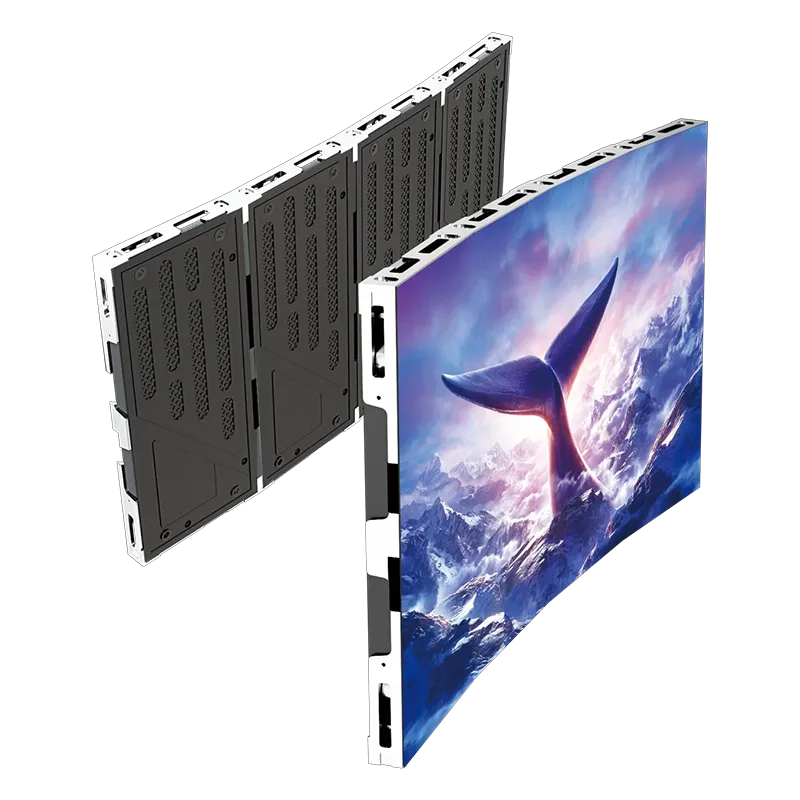

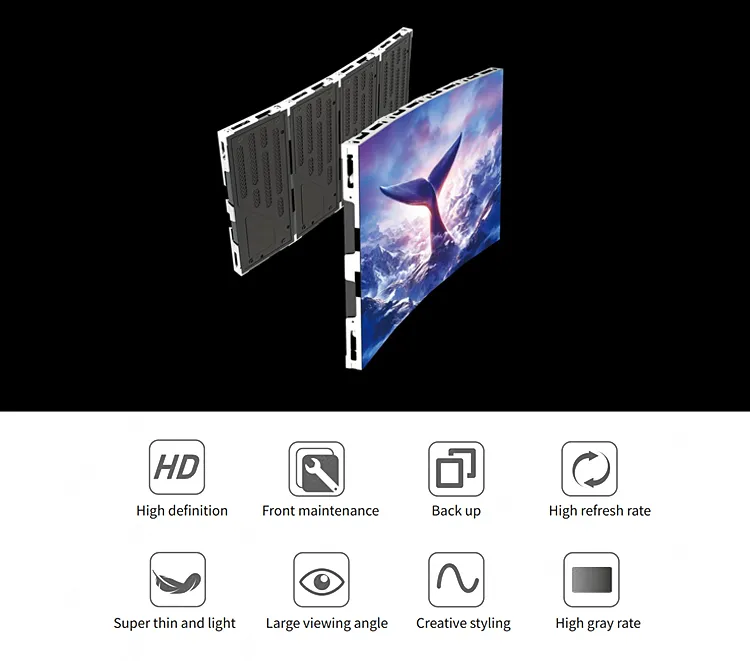

IXR – C Series Ultrathin Fine Pitch Curve LED Display
The ultrathin curve series box has a perfect ratio of 16:9 points, and its powerful refresh is suitable for various high-end scenarios.Compared with similar products on the market, IXR – C series ultrathin curve LED display screen has incomparable outstanding advantages in performance, quality, appearance, etc., and enjoys a good reputation in the market. REISSDISPLAY summarizes the shortcomings of past products and continuously improves them. The specifications of IXR – C series ultrathin curve LED display screen can be customized according to your needs.
Short Description:
✔️ 600×337.5mm Size Cabinet
✔️ 7680HZ High Refresh Rate
✔️ Frontal Service Design for Easy Installation
✔️ High-end Indoor LED Display
✔️ CE, EMC, RoHS, ISO9001 Approved

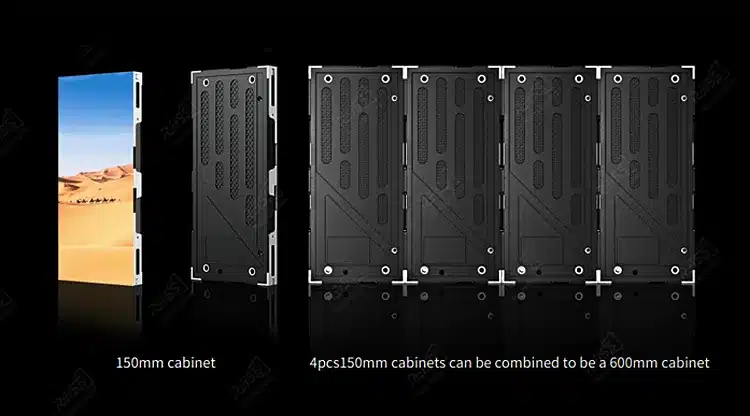

Multifunction
150mm small cabinet, customizable.
4 150mm cabinets can be combined into a 600mm cabinet.

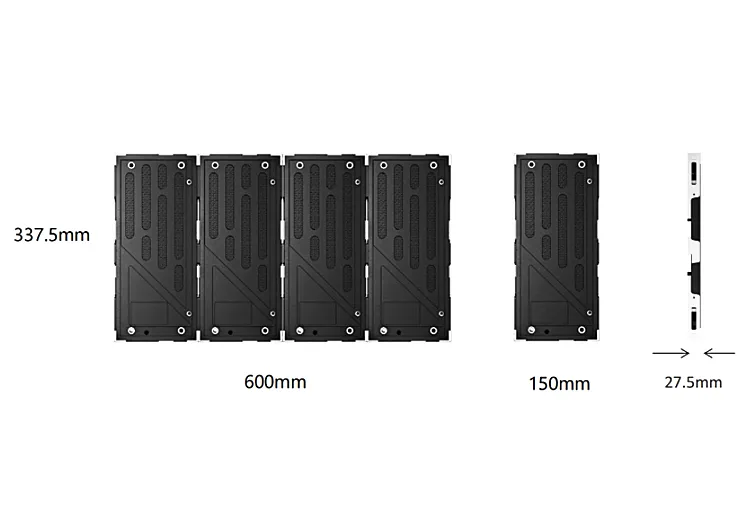

Dimension
One cabinet 150mm*337.5mm/can be combined into 600mm*337.5mm.

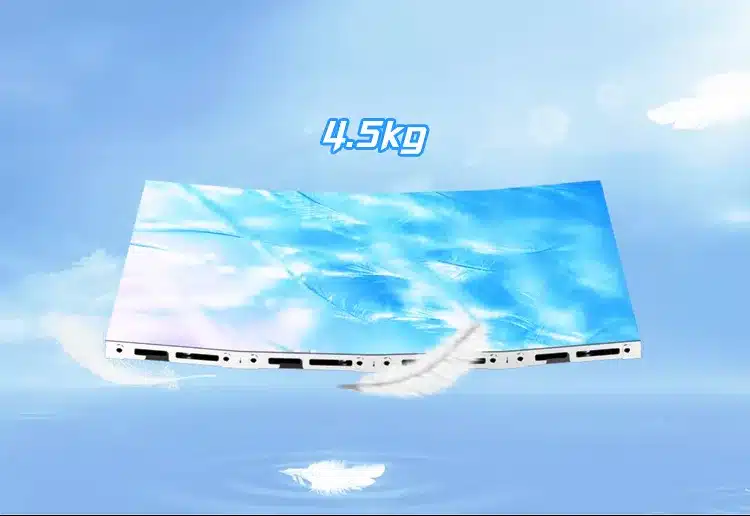

Ultra-Light Cabinet
Each display of the IXR-C series weighs only 4.5 kg, which is ultra-light and easy to transport, assemble and carry.
Wide Color Gamut
Professional color management techniques, rich color lavers and more natural color transitions.
High Brightness and High Gray
High brightness, high grayscale, high refresh rate, no scanning line for taking photos.
170° Super Wide Viewing Angle
Perfect presentation ofimages from any angle.

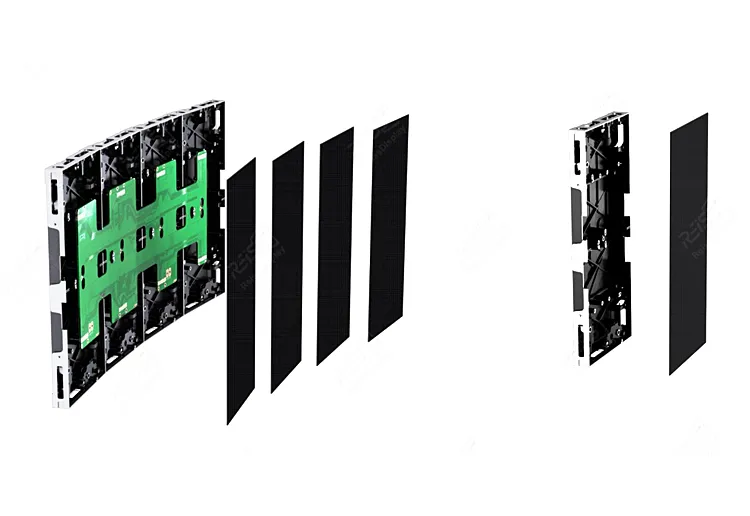

Front Maintenance
IXR-C series and 150mm small cabinet support full front maintenance, easy to install and maintain.

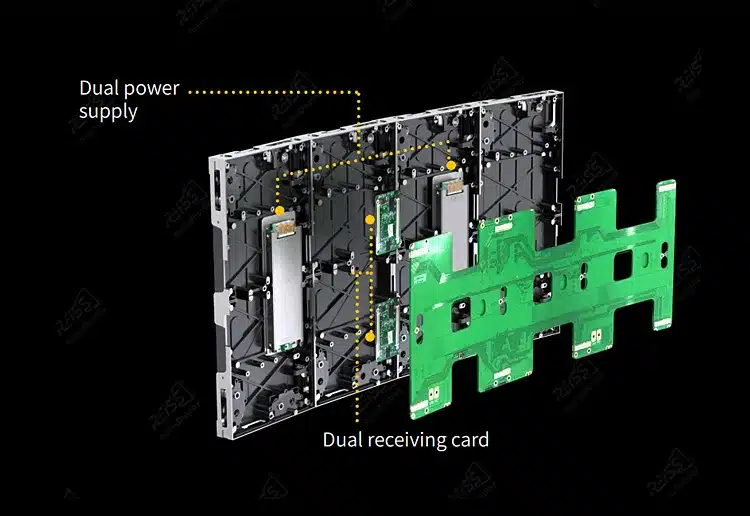

Dual Card Dual Electric
Power supply not interrupted, signal not lost, more stable and reliable.

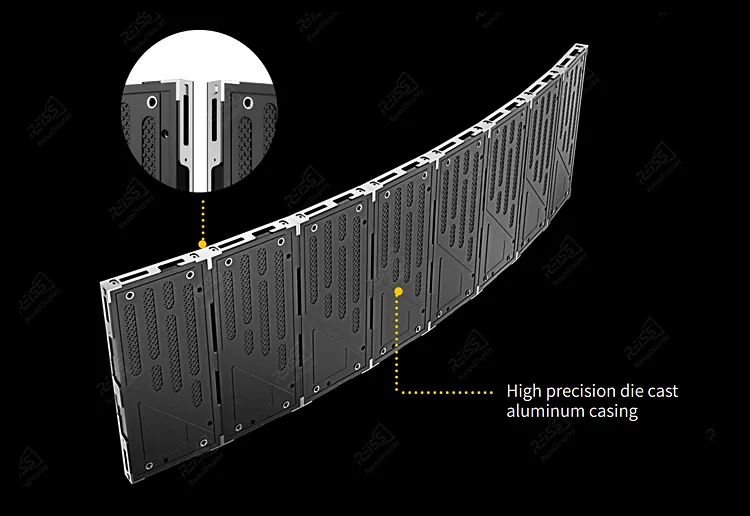

Seamless Splicing
Adopting cNc high-precision die cast aluminum casing, hard link design, anti collision concave and convex platform, multi-dimensional improvement of screen flatness.

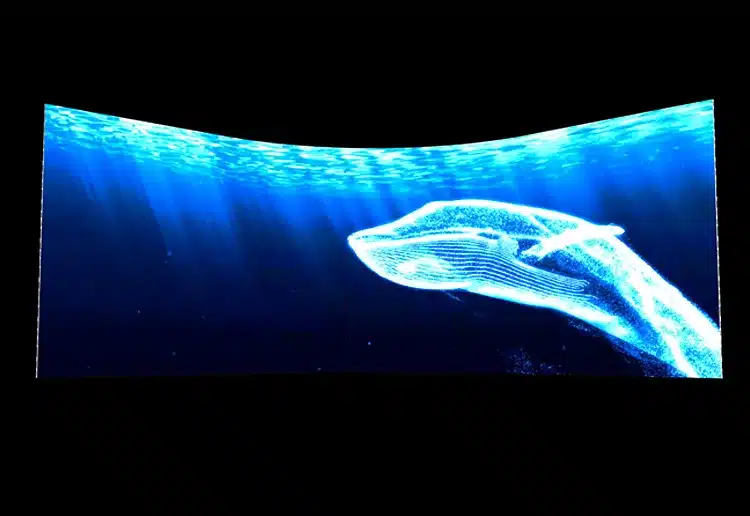

Curve-Shape
Supporting inner and outer arc splicing, creating various curved.

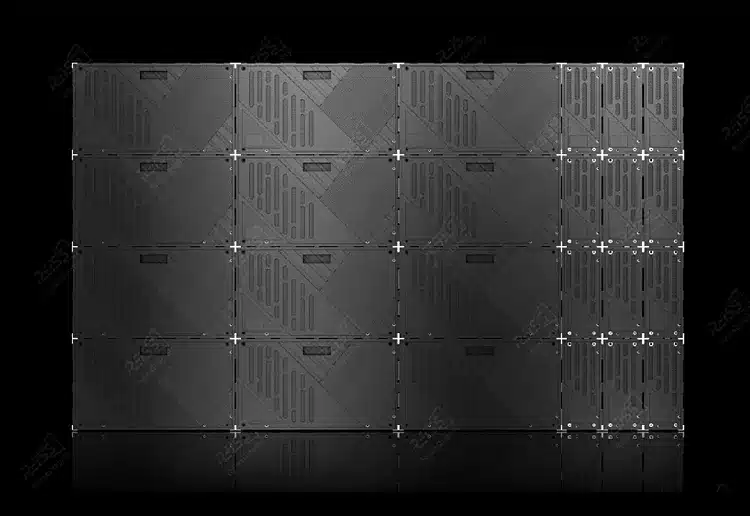

Flat Screen
150mm small cabinet flexibly supplement the size, improve the required size.

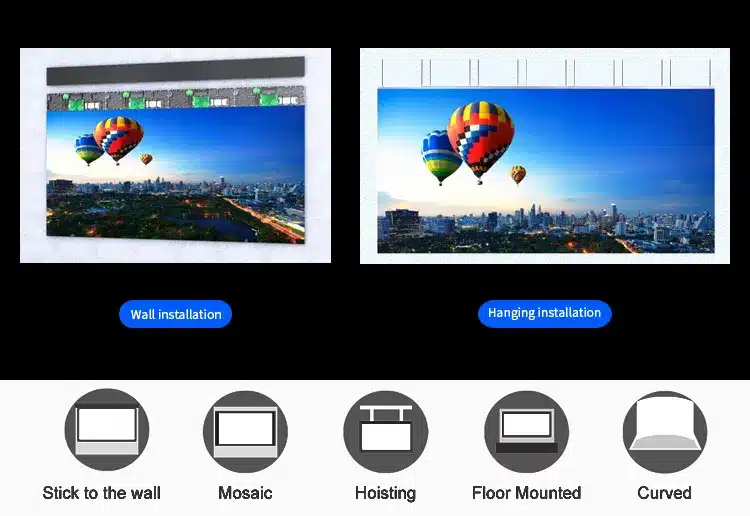

Multiple Installation Modes
Support multiple installation ways such as wall mounted/embedded installation/lifting Floor mounted/curved mounted.

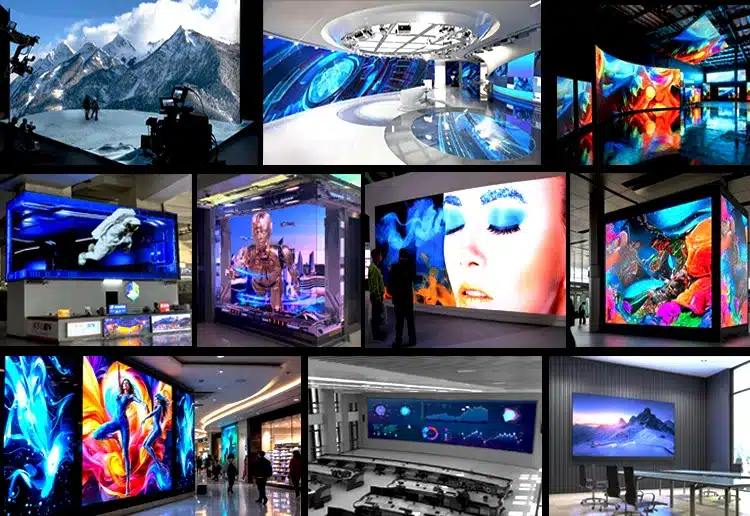

Scene Display
Application place: conference room, command and control center, monitoring room, technology exhibition hall, museum, shopping center, studio, high-end commercial display and other scenarios.
Application Cases
Application and Installation Videos
Specifications
| Specification | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 |
| LED Type | Mini4 in 1 | Mini4 in 1 | SMD1010 | SMD1010/1212 | SMD1010/1515 |
| Physical density (Dot/sqm) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | 284,444 |
| Module resolution | 192×216 | 320×180 | 240×135 | 192×108 | 160×90 |
| Module size (mm) | 150×168.75 | 150×168.75 | 150×168.75 | 150×168.75 | 150×168.75 |
| Panel Dimension (W×H×D/mm) | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 | 600×337.5×27.5 |
| Panel Resolution | 768×432 | 640×360 | 480×270 | 384×216 | 320×180 |
| Module QTY (W×H) | 4×2 | 2×2 | 2×2 | 2×2 | 2×2 |
| Panel weight (kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance Mode | Front | Front | Front | Front | Front |
| Cabinet Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Brightness Calibration | Yes | Yes | Yes | Yes | Yes |
| Brightness (Nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Color temperature (K) | 1000-18500 (Optional) | ||||
| Viewing angle (V/H) | 170°/170° | ||||
| Brightness/Color uniformity | ≥99.8% | ||||
| Contrast ratio | 10000:1 | ||||
| Frame frequency | 50/60 | ||||
| Drive mode | 1/48 scan | 1/46 scan | 1/48 scan | 1/45 scan | 1/45 scan |
| Grey level | 16bit | ||||
| Refresh rate (Hz) | 3840~7680 | ||||
| Max. power consumption (W/sqm) | 350 | ||||
| Avg. power consumption (W/sqm) | 100 | ||||
| Protection level | IP31 | ||||
| Power input | AC90-264V, 47-63Hz | ||||
| Working temperature/humidity (℃/RH) | -20~60℃/10%~85% | ||||
| Storage temperature/humidity (℃/RH) | -20~60℃/10%~85% | ||||
| Certification | CE, EMC, RoHS, ISO9001 | ||||
