What Are Indoor LED Wall Panels?
indoor LED wall panels are modular display units built with high-brightness LED diodes. These panels seamlessly connect to form large, customizable video walls. Unlike traditional LCD screens, LED panels offer brighter visuals, higher refresh rates, and better viewing angles. They’re commonly used in commercial advertising, live events, control rooms, and digital signage.
Indoor vs. Outdoor Indoor LED Wall Panels
Choosing the right LED panel depends on your environment. Indoor panels typically have a smaller pixel pitch for close viewing and use lower brightness levels. Outdoor panels are built to resist weather, include higher brightness levels, and often have IP65+ waterproof ratings.
| Comparison | Indoor LED Panels | Outdoor LED Panels |
|---|---|---|
| Pixel Pitch | 1.25mm – 2.5mm | 3.91mm – 10mm |
| Brightness | 800 – 1500 nits | 3500 – 6000 nits |
| IP Rating | Not necessary | IP65 front, IP54 rear |
| Usage | Retail, stages, conferences | Billboards, stadiums, building facades |

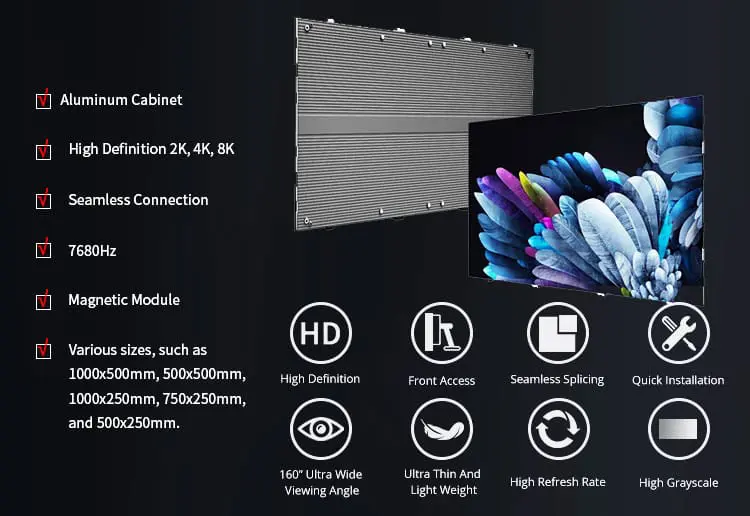

Indoor LED Wall Panels Key Features of (Supports 16K/8K/4K/2K Display)
16:9 Cabinet Design | Die-Cast Aluminum Structure
Our indoor LED wall panels cabinets feature a precise 16:9 aspect ratio and are built with high-quality die-cast aluminum, offering a perfect balance of lightweight design, durability, and excellent heat dissipation. With superior machinability and environmental friendliness, these cabinets are ideal for a wide range of indoor fine-pitch LED display applications. In addition, all cabinet sizes can be mixed and matched freely, providing unmatched flexibility in design and allowing for creative screen configurations without compromising on alignment or visual quality.
Ultra-HD Display with Seamless Splicing
The fine pixel pitch LED display delivers ultra-high-definition visuals, perfect image quality, and seamless splicing, creating an immersive and exclusive visual experience. Built with advanced die-cast aluminum cabinets, the display supports 2K, 4K, 8K, and even 16K resolutions with exceptional energy efficiency.

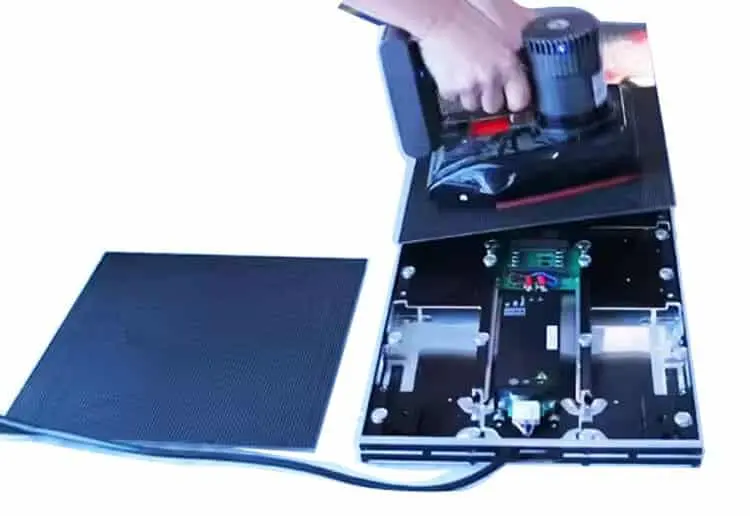

Easy Front Maintenance
The cabinet design supports 250mm × 250mm modules with magnetic attachment, allowing direct signal and power connections to each module. You can easily access and replace modules or internal components from the front, significantly reducing maintenance time and cost.
Excellent Visual Performance
With a 7680Hz high refresh rate, advanced 24-bit grayscale, high resolution, and HDR support, this LED panel wall offers vivid colors and smooth motion, making it ideal for high-end viewing and live shooting environments.

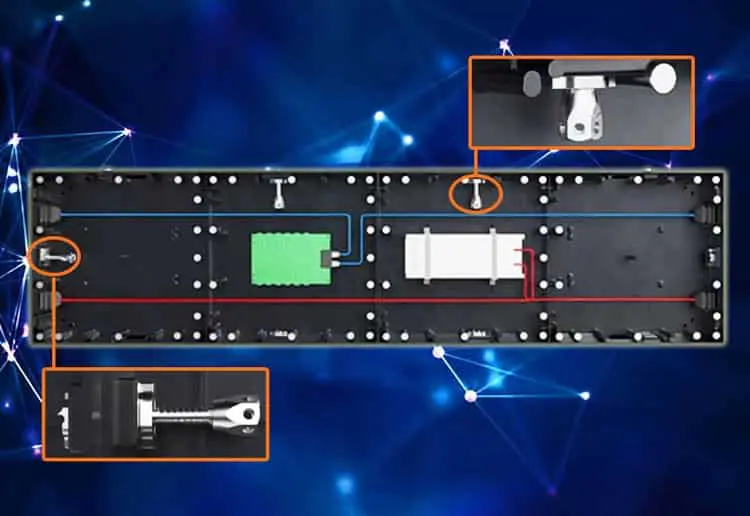

Fast and Flexible Installation
Thanks to a well-engineered cabinet structure and quick-lock mechanisms, installation is fast and efficient. The flexible design adapts to a wide range of indoor project needs and supports rapid on-site assembly.

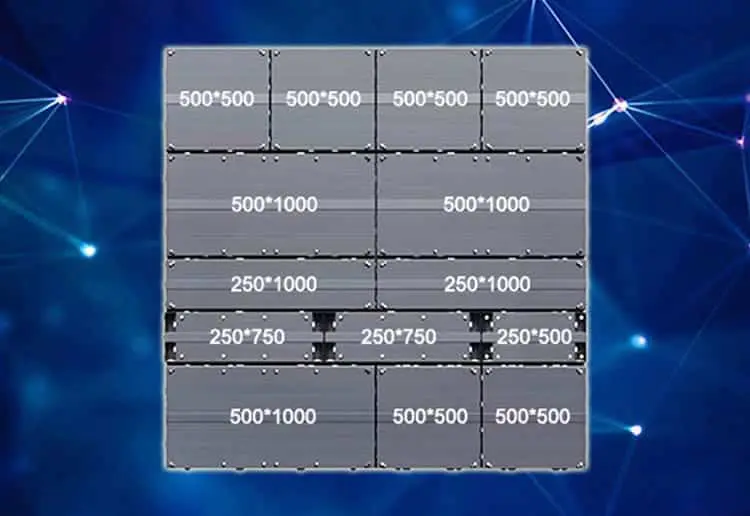

Multiple Cabinet Size Options
We offer a variety of cabinet sizes to support different screen configurations, including:
- 1000×500mm (standard)
- 500×500mm
- 500×250mm
- 1000×250mm
- 750×250mm
These modules can be mixed and matched to build custom screen sizes.

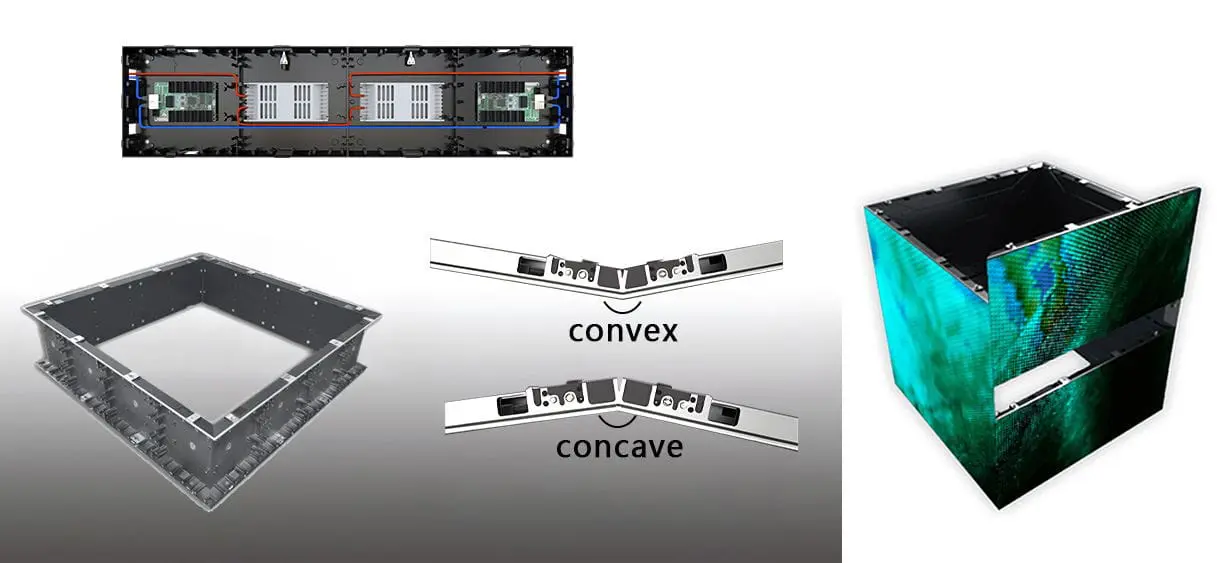

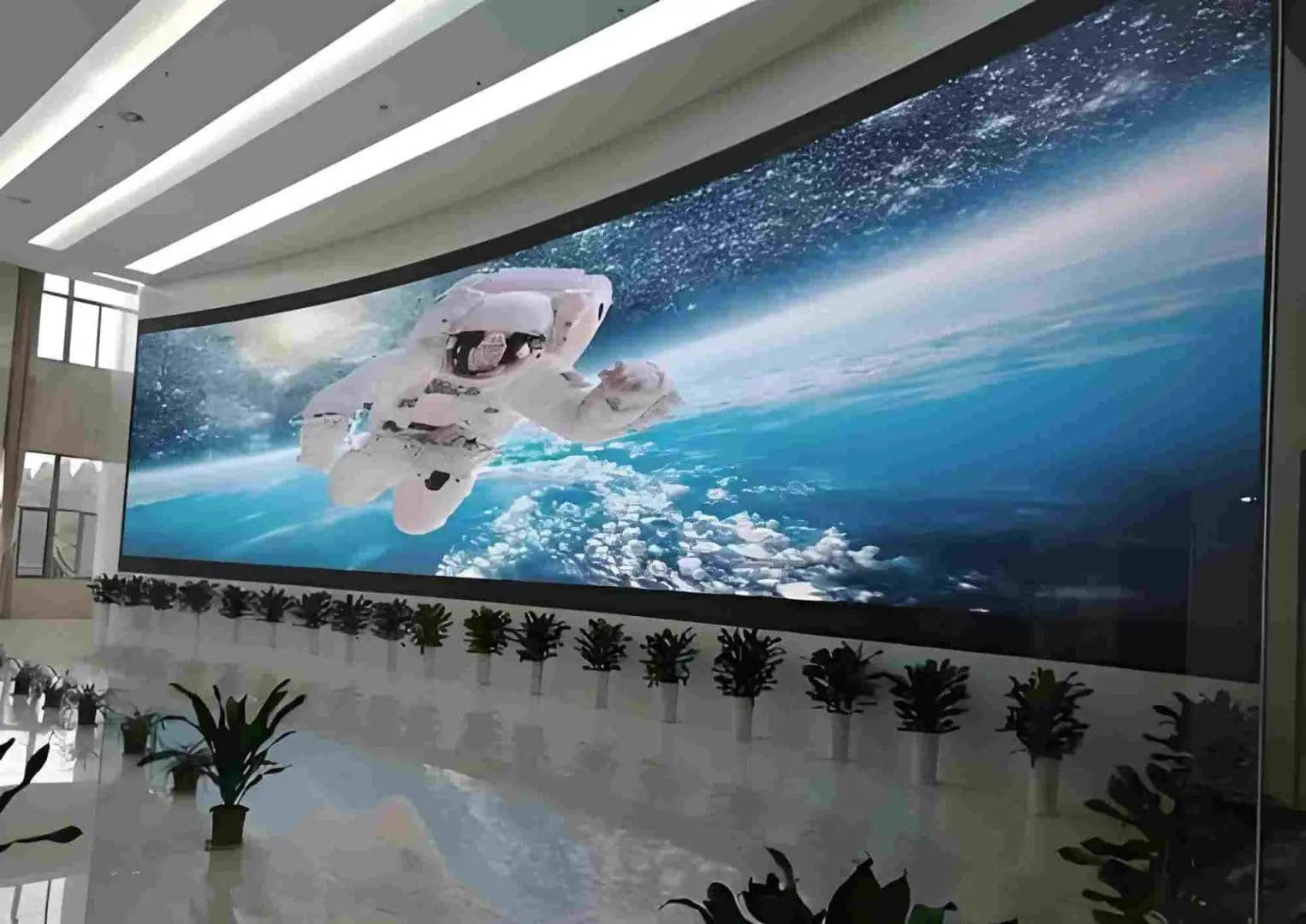

Versatile Shape Adaptation
The panel supports 90° corner installation after cutting, enabling concave and convex screen shapes. Whether you’re designing a creative display or a curved video wall, these cabinets provide the flexibility you need.

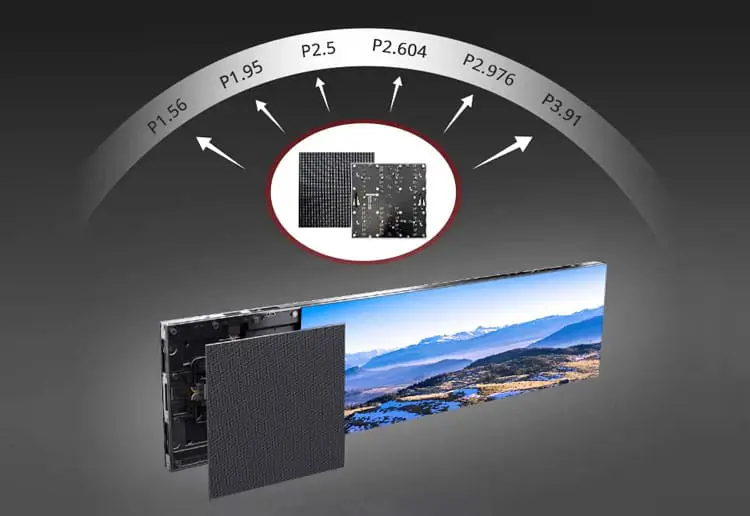

Strong Pixel Compatibility & Upgradeability
The system supports multiple pixel pitches from P1.56 to P3.91. You can easily upgrade image quality by replacing the modules, allowing cost-effective transitions to higher resolution displays without changing the entire cabinet.

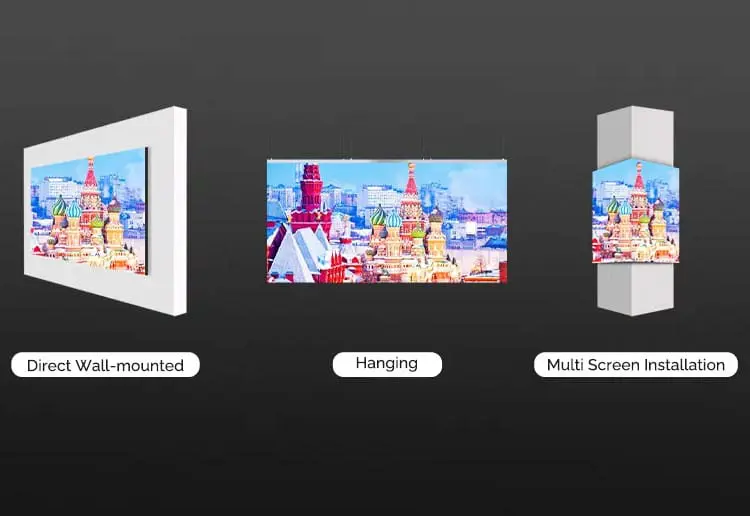

LED Panels Wall Installation Ways
Supports multiple installation methods, including wall mounting, frame mounting, hanging mounting, right-angle mounting and Floor Standing Installation.
How to Choose the Right Indoor LED Wall Panels?
Consider the following when selecting your indoor LED Video wall:
- Viewing Distance – Closer viewing requires smaller pixel pitch.
- Brightness Needs – Outdoor usage requires higher nits.
- Installation Type – Wall-mounted, freestanding, or hanging.
- Budget & Longevity – Higher quality panels offer lower maintenance costs over time.
Need expert help? Our team is ready to provide recommendations tailored to your project.
FAQs About Indoor LED Wall Panels
Q1: Are LED wall panels waterproof?
Outdoor models come with waterproof ratings (IP65+). Indoor panels are not waterproof but moisture-resistant.
Q2: Can I customize the size?
Yes! Modular panels allow full customization based on your space and layout.
Q3: How long do LED wall panels last?
Most panels have a lifespan of 50,000 to 100,000 hours with proper care.
Q4: What’s the lead time for delivery?
We typically ship within 7–15 days, depending on customization and location.

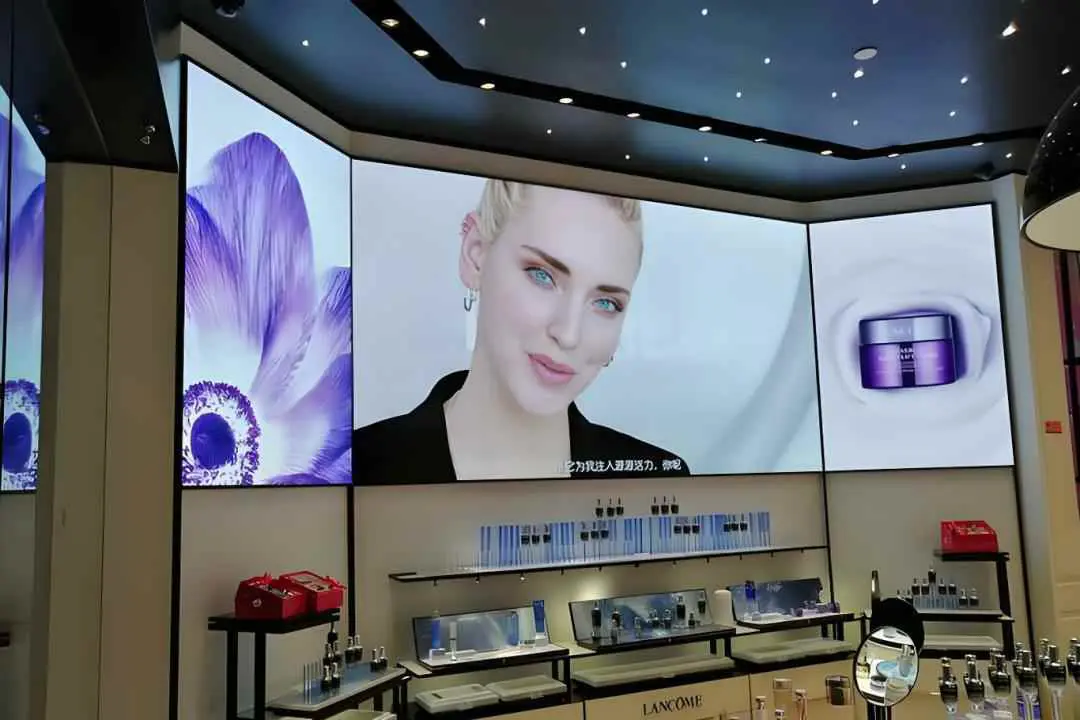

Application Cases
Application and Installation Videos
Specifications
| Item | P1.56 | P1.953 | P2.604 | P2.976 | P3.91 |
| Pixel Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| LED Encapsulation | SMD1212 | SMD1515 | SMD1921 | SMD1921 | SMD1921 |
| Density (pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| Brightness (cd/m²) | 200-800 | 800-1200 | 800-1200 | 800-1200 | 800-1200 |
| Color Temperature | 6500-9500k | ||||
| Scan Mode | 1/32san | 1/32san | 1/32san | 1/21san | 1/16san |
| Module Size (L×W×D) | 250mm×250mm | ||||
| Module Resolution (L×W) | 160 × 160 | 128 × 128 | 96×96 | 84×84 | 64×64 |
| Cabinet Size (L×W×D) | 1000*500mm,750*500mm, 500*500mm, 1000*250mm, 750*250mm, 500*250mm | ||||
| Cabinet Material | Die casting Aluminum | ||||
| Working Voltage | AC：110V~240V，50~60Hz | ||||
| MAX Power Consumption | ≤600W/ m² | ||||
| AVG Power Consumption | 200W/ m²～300W/ m² | ||||
| Viewing Angle | H：170° V：160° | ||||
| Refresh Rate | 7680Hz/3840Hz | ||||
| Gray Scale | 16-24bit | ||||
| Highest Contrast Ratio | 8000:1 | ||||
| Control Method | synchronous Control System | ||||
| IP Grade | IP33 | ||||
| Working Temperature | -20℃～+60℃ | ||||
| Working Humidity (RH) | 10％～60％ | ||||
| LED Life Span | 100000H | ||||
| Certificate | CE, EMC, RoHS, ISO9001 | ||||
