Application Scenarios
Indoor fixed LED displays with fine pixel pitches (0.9mm–2.5mm) are ideal for high-definition, permanent installations in environments where image quality, reliability, and sleek design are essential. Common application scenarios include:
- Corporate Meeting Rooms & Boardrooms
Deliver crystal-clear visuals for video conferencing, presentations, and corporate communication. - Retail Stores & Showrooms
Attract customer attention with dynamic advertising and product showcases. - Broadcast Studios & Control Rooms
Provide seamless video walls for real-time monitoring, broadcasting, or editing with zero bezel interruptions. - Airports, Train Stations & Transport Hubs
Deliver real-time passenger information and directional signage with vivid clarity. - Exhibition Halls & Museums
Enhance interactive experiences and educational content with immersive visuals. - Hospitality Venues & Event Halls
Offer dynamic backdrops or information panels for events, conferences, or live shows. - Security & Command Centers
Monitor complex data streams with high precision and continuous 24/7 stability.
These LED displays are designed for long-term, low-maintenance operation, ensuring consistent performance and brilliant image quality in demanding indoor environments.
Product Features
640x480mm Frontal Service Indoor LED Display
4 : 3 Cabinet Design, Die – casting Aluminum Indoor LED Screen
1: Frontal service design
2: Ultra light & thin efficient heat dissipation, only 6.5kg
3: Vivid visual experience
4: Anti-collision design
5: High – flatness screen
6: Easy to install and disassemble
High Grayscale At Low Brightness
Exceptional Contrast and Grayscale Performance
Contrast ratio exceeding 6000:1
24-bit grayscale depth
Reveals details even in low brightness conditions
This indoor LED display offers exceptional contrast ratio of over 6000:1 and 24-bit grayscale depth, delivering exceptional image quality even in low brightness.
The advanced technology maintains fine details, making it ideal for applications requiring visual quality and visibility, such as conference rooms and museums.
The high contrast and deep grayscale provide a visually immersive and comfortable experience, regardless of ambient lighting. This versatility and performance make this indoor LED display a standout choice for discerning indoor applications.
Full Front Maintenance Indoor Led Screen
Indoor LED Screen Offers Exceptional Front – Facing Maintenance
Supporting full front maintenance with vacuum tools, reach easy operation and assembly, no need special maintenance channels.
Energy Savings Indoor LED Screen
High – Efficiency Indoor LED Display – Balanced Brightness and Energy Savings
High brightness and low energy-consumption, it can increase 30 % brightness or decrease 30 % consumption for better heat dissipation and better contrast.
LED Display Installation
Precise Positioning and Effortless Installation
With positioning spring plunger piston design, can reach accurate positioning and convenient installation, save installation time.

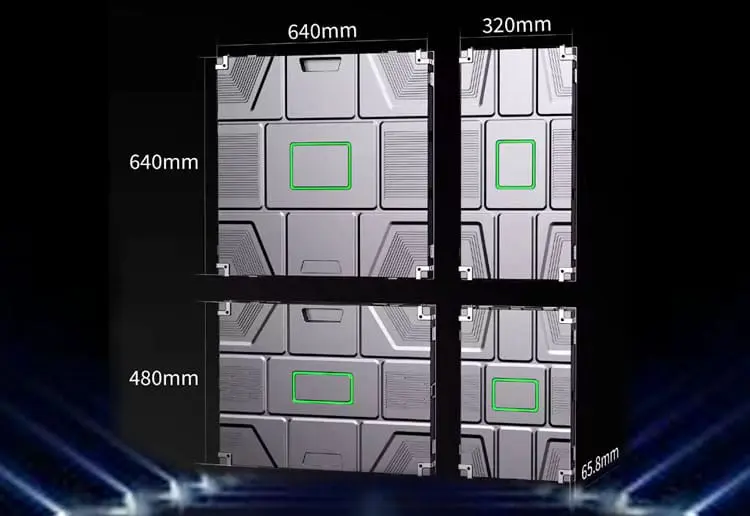

Panels Size Customization
Flexible Panel Configurations with Durable Construction
Based on standard 640*480mm panel size, there are more panel sizes 640*640mm, 320*640mm, 320*480mm for option, which can meet the needs of flexible sizes splicing.
The panel is designed with high-strength alloy material.

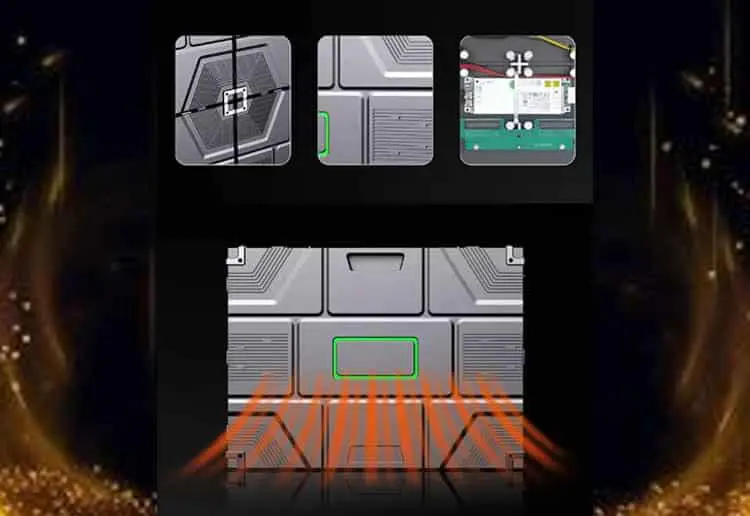

Efficient Heat Dissipation
Advanced Thermal Management for Optimal Performance
Multiple unique heat dissipation designs, which is 5C lower than conventional LED display;
Contact thermal conductance accelerates heat dissipation; hollowed & wave design for bigger heat dissipation area, Textured Heat dissipation rib.
LED Screen Seamless Cabling
Seamless Cabling for Stability and Aesthetics
There are no cables between panels and no apparent cables outside the panel. Inner cable connection will make the transmission of signal and power more stable, and the whole wil look more neat and simple.

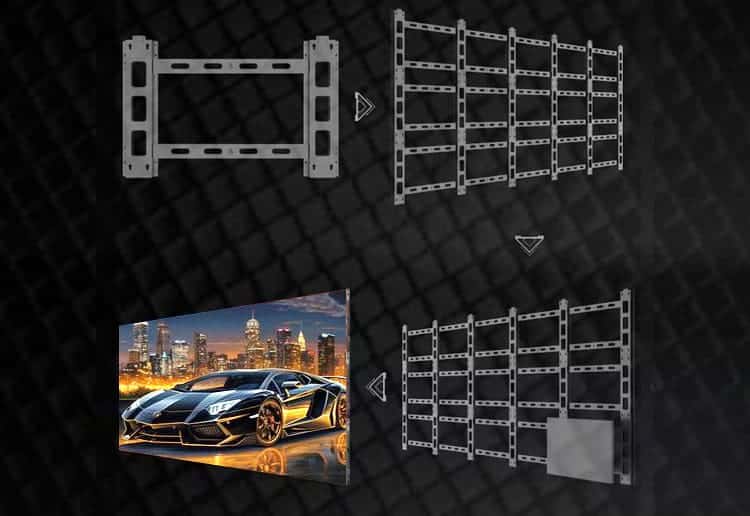

Complete Package Available LED Wall
Seamless Splicing, Excellent display experience
Ready-made brackets, ensuring the wholescreen flat and seamless, Just 4 steps can finish the installation.
Installation Videos
Specifications
| Pixel Pitch (mm) | 0.937 | 1.25 | 1.538 | 1.86 | 2 | 2.5 |
| Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Cabinet Size | 640mm*480mm / 640mm*640mm / 320mm*640mm*65.8mm | 640mm*480mm / 640mm*640mm / 320mm*640mm*65.8mm | 640mm*480mm / 640mm*640mm / 320mm*640mm*65.8mm | 640mm*480mm / 640mm*640mm / 320mm*640mm*65.8mm | 640mm*480mm / 640mm*640mm / 320mm*640mm*65.8mm | 640mm*480mm / 640mm*640mm / 320mm*640mm*65.8mm |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| IP Grade | COB GOB IP65 / SMD IP33 | COB GOB IP65 / SMD IP33 | COB GOB IP65 / SMD IP33 | COB GOB IP65 / SMD IP33 | GOB IP65 / SMD IP33 | GOB IP65 / SMD IP33 |
| Weight (kg/cabinet) | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
| White Balance Brightness (nit) | 600-1000 | 600-1200 | 600-1000 | 600-1200 | 800-1200 | 800-1200 |
| Horizontal / Vertical Viewing Angle | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 160°/160° | 160°/160° |
| Power Consumption(W/㎡) | 400±15%/120±15% | 450±15%/150±15% | 400±15%/120±15% | 450±15%/150±15% | 450±15%/150±15% | 450±15%/150±15% |
| Refresh Rate(Hz) | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 |
| Control System | Novastar/Linsn/Colorlight | Novastar/Linsn/Colorlight | Novastar/Linsn/Colorlight | Novastar/Linsn/Colorlight | Novastar/Linsn/Colorlight | Novastar/Linsn/Colorlight |
| Certification | CE, EMC, ROHS, ISO9001 | CE, EMC, ROHS, ISO9001 | CE, EMC, ROHS, ISO9001 | CE, EMC, ROHS, ISO9001 | CE, EMC, ROHS, ISO9001 | CE, EMC, ROHS, ISO9001 |
