3D Screen LED Display Solutions

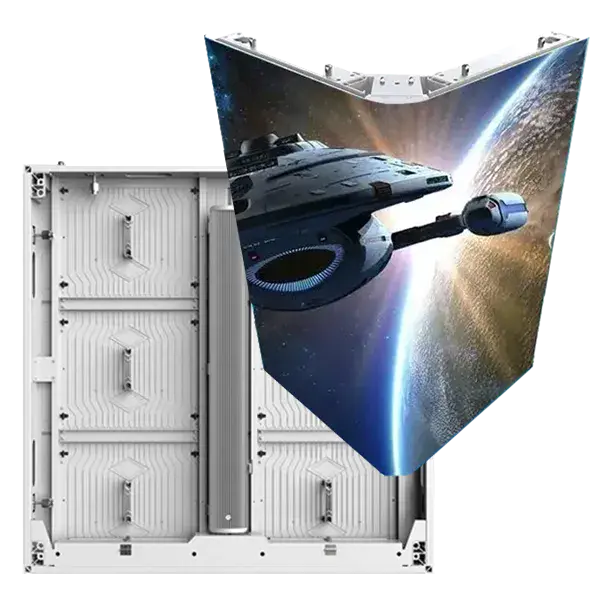

REISSDISPLAY crafts its 3D-FA series LED display cabinets from all-aluminum alloy, delivering versatile high performance for dynamic environments. With standard sizes of 960 x 640 mm and 960 x 960 mm, these cabinets provide optimal solutions for various outdoor LED advertising screens, even in adverse weather conditions.
In today’s age of rapid technological development, revolutionary innovations continue to emerge in the field of visual media and communications. One of these innovations is 3D screen LED display. REISSDISPLAY has extensive experience in the manufacture of LED displays and LED billboards, and we are very happy to share with you the benefits and applications of 3D LED displays. In this article, we will explore what 3D LED displays are, how they work, and their common applications.
Perfect Dimension Of 3D Outdoor Screen LED Display
1: 960*960mm and 480*960mm cabinet design, aluminum material
2: Magnesium alloy material, the lightest, the module shell is also made of aluminum alloy material
3: High precision, seamless connection
4: Quick and easy installation, saving manpower
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP68

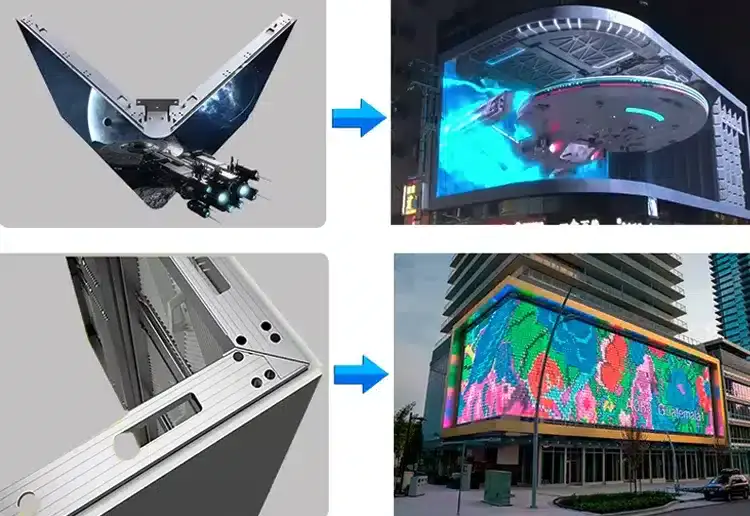

Arc Splicing and Right-Angle Splicing
D display screens can be configured using two primary splicing methods: arc splicing and right-angle splicing. Each method offers unique advantages and is suited for different applications and environments.
Front Maintenance

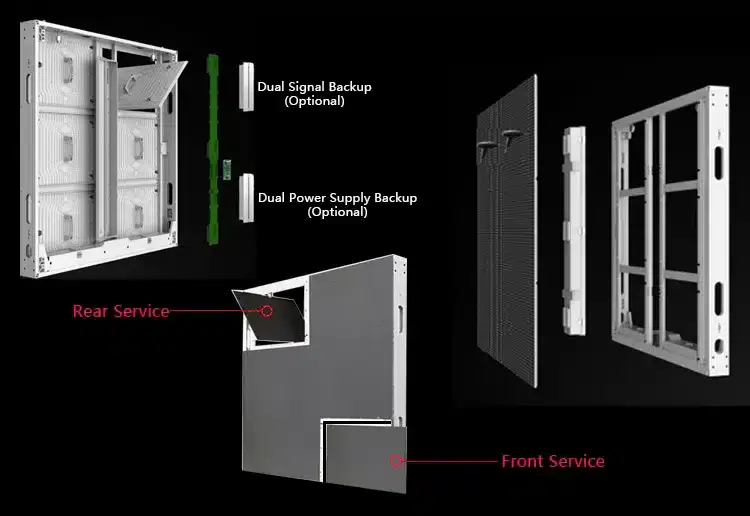

Benefits of Front and Rear Maintenance
Outdoor LED advertising signs are engineered to endure harsh environmental conditions, whether in high or low temperatures. These displays are designed with superior accessibility and maintenance efficiency in mind, making them ideal for various advertising applications.

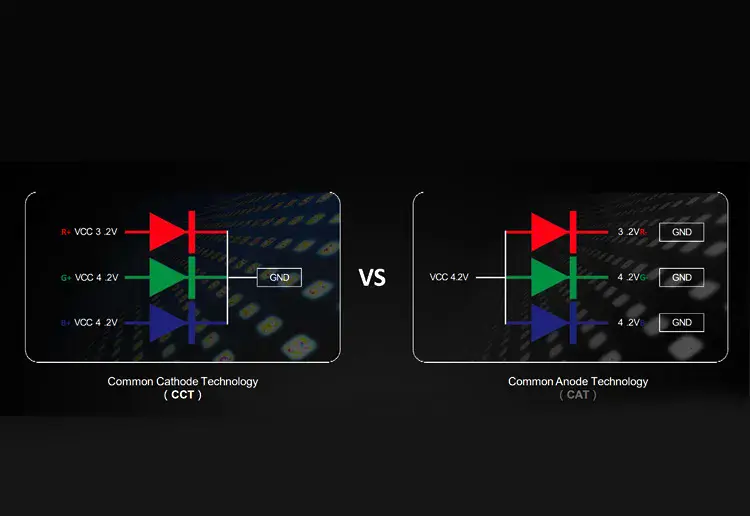

Energy-Saving Screens: Common Cathode vs. Common Anode
Energy-saving screens are primarily categorized into two configurations: common cathode and common anode. Among these, the common cathode design is recognized as the most energy-efficient and effective solution for LED displays.

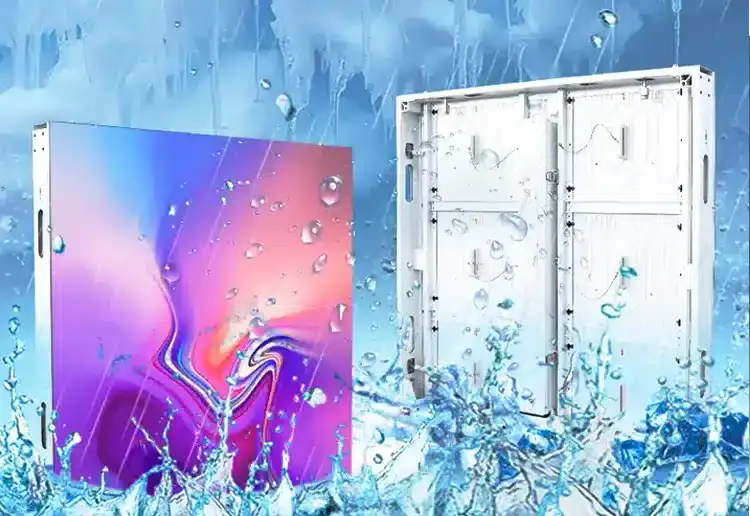

Fully Waterproof Design Function in Outdoor Displays
Ensuring its durability and reliability in a variety of environmental conditions is critical. This feature protects internal components from water ingress, dust, and other environmental factors, making it ideal for outdoor applications.

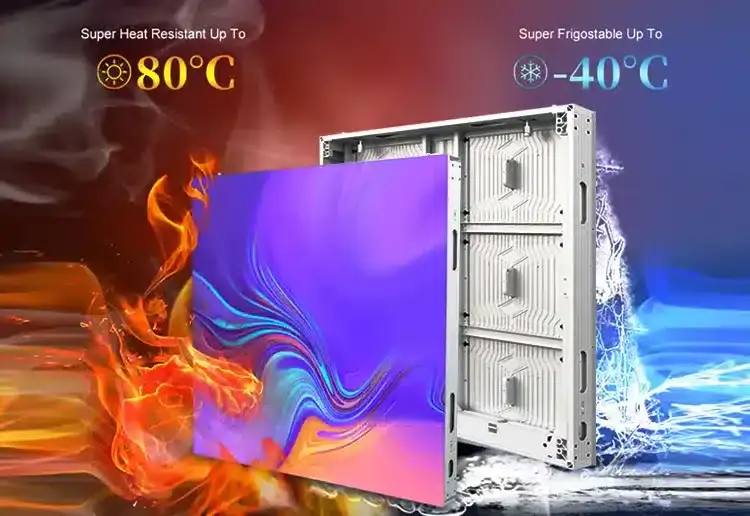

Super Cold and Heat Resistant
Outdoor application products, lP68 protection grade, integrated all-aluminum design, with corrosion resistance, high melting point, flame retardant and fire resistance, moisture resistance and salt spray resistance working temperature -40°C -80°C, can operate normally in the seaside environment for a long time, The ability to adapt to the environment is very strong, and it can work outdoors all day long.

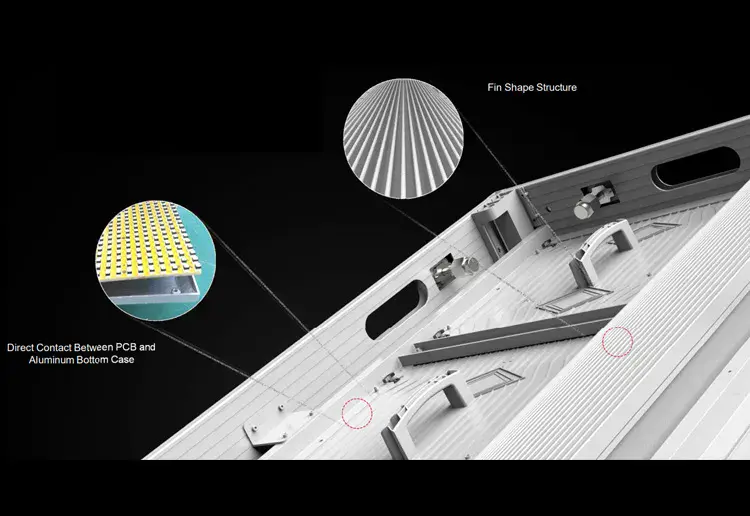

Excellent Heat Dissipation
Multiple unique heat dissipation designs; Contact thermal conductance accelerates heat dissipation; Fin Shape Structure for bigger heat dissipation area.

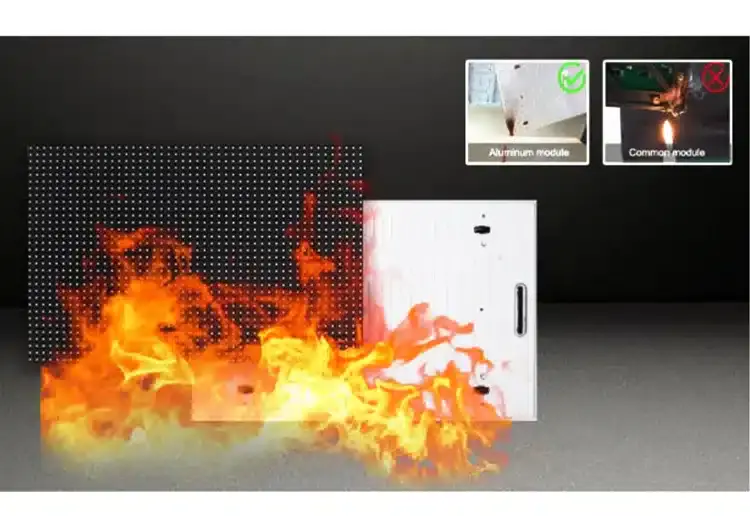

All-Aluminum Bottom Shell LED Display Module
all-aluminum chassis led billboard module is expertly designed for durability, lightweight construction, and enhanced thermal management. This design is particularly effective in outdoor and high-performance applications, where reliability is critical, especially in challenging conditions such as snowy and ultra-high temperature environments.

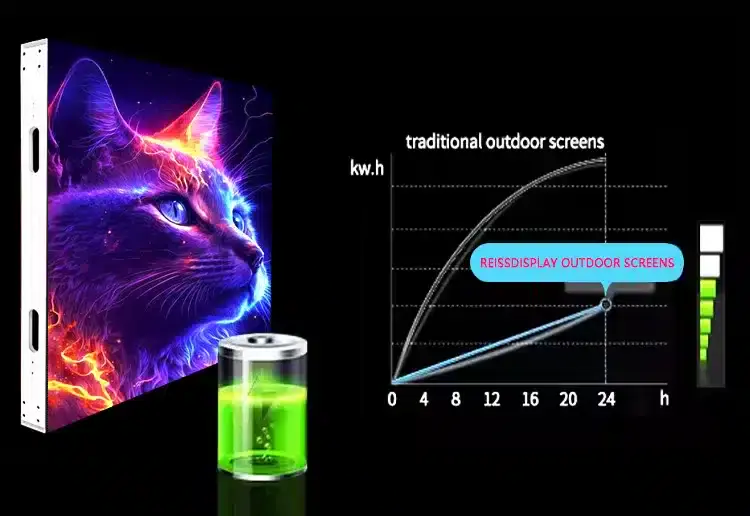

Energy-Saving 30-60%
Outdoor energy-saving LED Billboards are designed to provide high-quality visual output while minimizing energy consumption. These displays are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.
Super Brightness in 3D Screen LED Display
High brightness outdoor screen visible for a wide range of audience under strong direct sunlight.
Various Installation Methods for 3D Screen LED Display
3D screen led display offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.
Application Cases
Application and Installation Videos
Specifications
| 3D-FA Series Specification | |||||
|---|---|---|---|---|---|
| Model | P4.4 | P5.7 | P6.6 | P8 | P10 |
| Pitch(mm) | 4.4mm | 5.7mm | 6.6mm | 8mm | 10mm |
| Type | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD3535 |
| Density(dots) | 50625(dots/㎡) | 30628(dots/㎡) | 22500(dots/㎡) | 15625(dots/㎡) | 10000(dots/㎡) |
| Module Size(mm) | 480mm X 320mm | 480mm X 320mm | 480mm X 320mm | 480mm X 320mm | 480mm X 320mm |
| Module Resolution(dots) | 108*72=7776 | 84*56=4704 | 72*48=3456 | 60*40=2400 | 48*32=1536 |
| Module Weight(Kg) | 2Kg | 2Kg | 2Kg | 2Kg | 2Kg |
| Cabinet Size(mm) | 960×960×75 | 960×960×75 | 960×960×75 | 960×960×75 | 960×960×75 |
| Cabinet Resolution(dots) | 216×216 | 168×168 | 144×144 | 96×96 | 96×96 |
| Cabinet Weight(Kg) | 26Kg Aluminum Frame | 26Kg Aluminum Frame | 26Kg Aluminum Frame | 26Kg Aluminum Frame | 26Kg Aluminum Frame |
| Modules Qty/ Cabinet （W×H） | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 |
| Installation Way | Fixed Installation | Fixed Installation | Fixed Installation | Fixed Installation | Fixed Installation |
| Got Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
| Cabinet Material | Aluminum Frame | Aluminum Frame | Aluminum Frame | Aluminum Frame | Aluminum Frame |
| Cabinet Evenness(mm) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| IC Driver | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
| Scan | 1/9 | 1/7 | 1/6 | 1/4 | 1/2 |
| Brightness | ≥5500-10000（cd/㎡) | ≥6000-10000（cd/㎡) | ≥6000-8000（cd/㎡) | ≥6000-10000（cd/㎡) | ≥5000-10000（cd/㎡) |
| Ave.Power Comsumption | ≤700(W/㎡) | ≤680(W/㎡) | ≤700(W/㎡) | ≤650(W/㎡) | ≤650(W/㎡) |
| Max.Power Comsumption | ≤250(W/㎡) | ≤250(W/㎡) | ≤235(W/㎡) | ≤200(W/㎡) | ≤200(W/㎡) |
| Viewing Angle | Hor. 140°&Vert. 140° | Hor. 140°&Vert. 140° | Hor. 140°&Vert. 140° | Hor. 140°&Vert. 140° | Hor. 140°&Vert. 140° |
| Single Dot brightness adjustment | YES | ||||
| Single Dot Colorful adjustment | YES | ||||
| Input Voltage | 200~240 V | ||||
| Waterproof Level | IP68 waterproof | ||||
| Maintenance Way | Front and Rear | ||||
| LED Module Gap | < 0.3mm | ||||
| Greyscale | > 65536 grayscale | ||||
| Colorful Process Bit | 14bit-18bit | ||||
| Weight | ≤28.5kg/㎡ | ||||
| Frame Rate | ≥60Hz | ||||
| Lifespan（hrs） | 100,000hours | ||||
| Contrast Ratio | 3000:1 | ||||
| Control System | NOVA/LINSN/MOOCELL/COLORLIGHT | ||||
| Work Temperature/ Humidity （℃/RH） | -10℃～50℃ / 10%RH～98%RH | ||||
| Storage Temperature / Humidity（℃/RH） | -40℃～85℃ / 10%RH～98%RH | ||||
