RF Series — Professional Rental Stage LED Displays
The touring professional's choice — lightweight, road-tough stage LED built for the world's biggest productions
Products in this Series

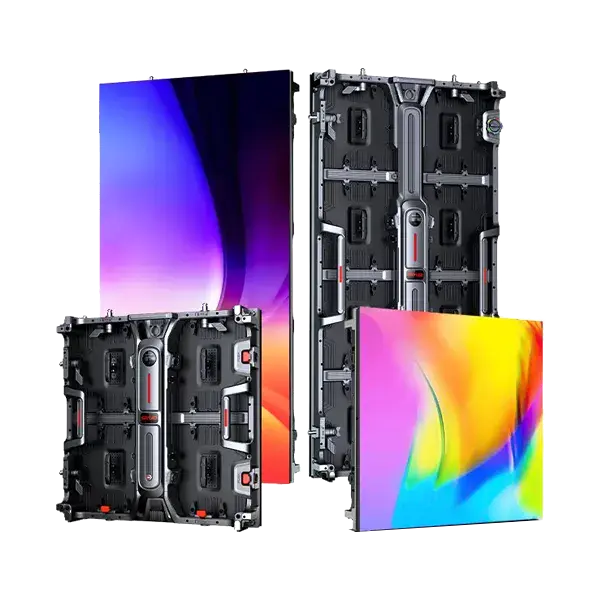

Rental LED Board RF-RR Series
RF-RR Series

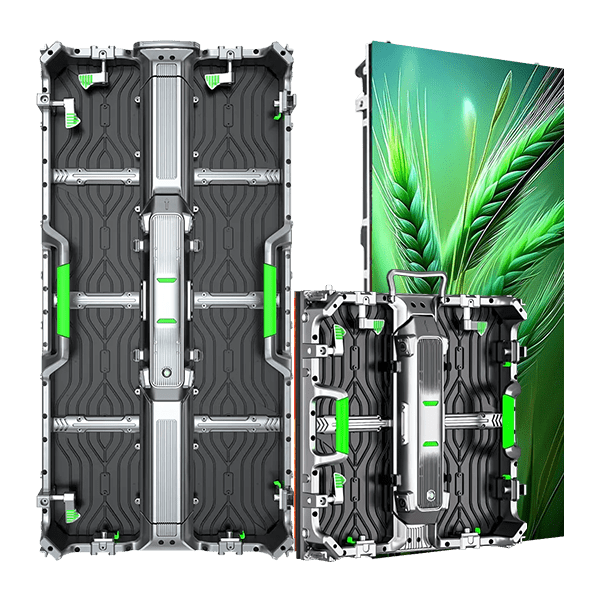

Rental LED Stage Screen RF-RH Series
The latest rental LED stage screen features an ultra-lightweight, space-saving design that integrates advanced core technologies. Its innovative structural design enables seamless displays and delivers excellent visual effects, ensuring vivid and realistic presentations. The screen also supports both right-angle and curved (arc) installations, offering outstanding versatility for creative stage setups and event environments.

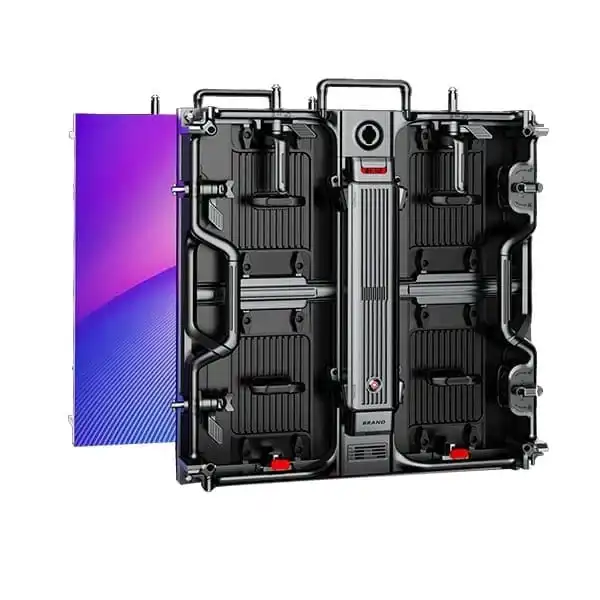

Rental Outdoor LED Screens RF-RI Series
RF-RI series rental outdoor LED screens epitomize cutting-edge innovation with advanced technology.Usually designed to be lightweight and stackable, making them easy to transport and deploy. Utilizing high-quality LED lamp beads, they ensure both brightness and color accuracy, delivering exceptional display effects.

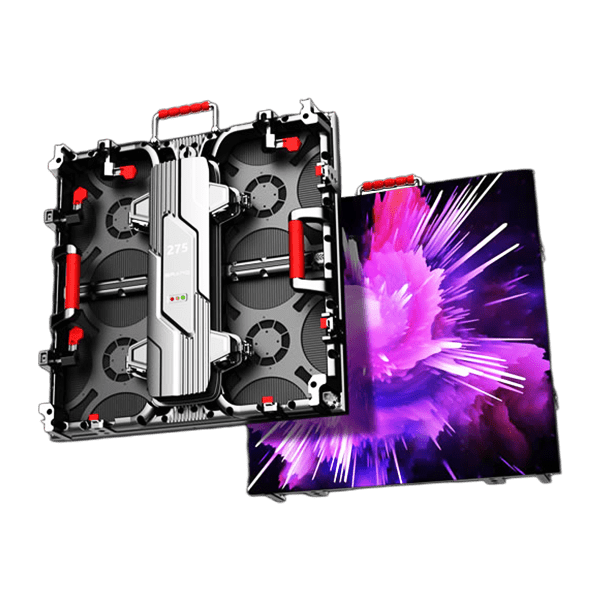

Stage Background LED Display RF-GK Series
RF-GK series stage background LED display solutions deliver cutting-edge, modular systems tailored for dynamic stage, event, and commercial environments. Featuring ultra-HD visuals with 65,536 gray levels and a 7,680Hz refresh rate, these displays use lightweight die-cast aluminum cabinets for easy, single-person handling. With seamless customization options—including curved, flexible, or 90° angled configurations—the RF-GK series provides unmatched adaptability and durability for any creative vision.

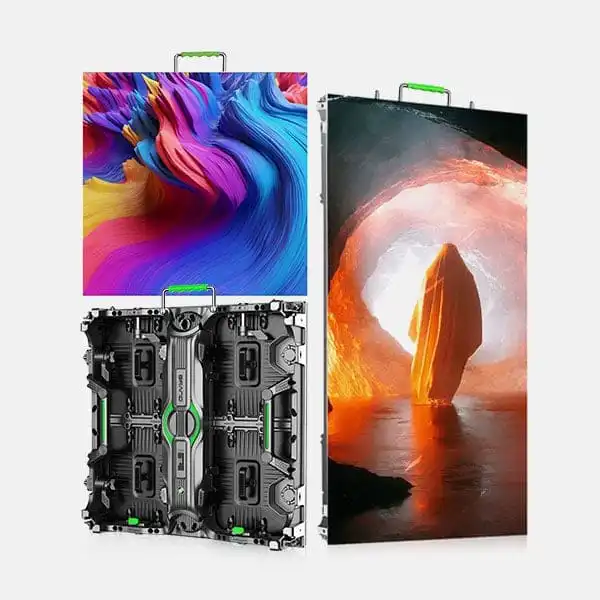

Stage LED Displays RF-PRO+ Series
RF-PRO+ series innovative LED technology improves stage LED displays effect and enhances customer engagement; The connection line is all integrated in the box in the installation does not need to be connected, only need to plug the box in accordance with the interface can reduce the bondage of the line, installation is also faster, the beauty increased a lot.
Why Choose RF Series?
When the show must go on — RF Series delivers the reliability, speed, and visual brilliance that the world's top touring productions demand
Carbon Fiber Lightweight Construction
RF-PRO+ and RF-RH cabinets weigh as little as 6.5 kg — 40% lighter than aluminum equivalents. Single-person handling reduces crew size, truck space, and setup time. Less weight = more profit per tour.
5-Model Rental Product Family
RF-GK for stage backgrounds, RF-PRO+ for premium touring, RF-RI for outdoor rental, RF-RH for high-res indoor, RF-RR for creative configurations. One rental platform, every show requirement.
Sub-10-Minute Panel-to-Pixel Setup
Proprietary quick-lock mechanism with integrated power/data pass-through. Cabinets connect in seconds. A 50m² wall assembles in under 10 minutes with a 4-person crew.
±15° Curved Cabinet Locking

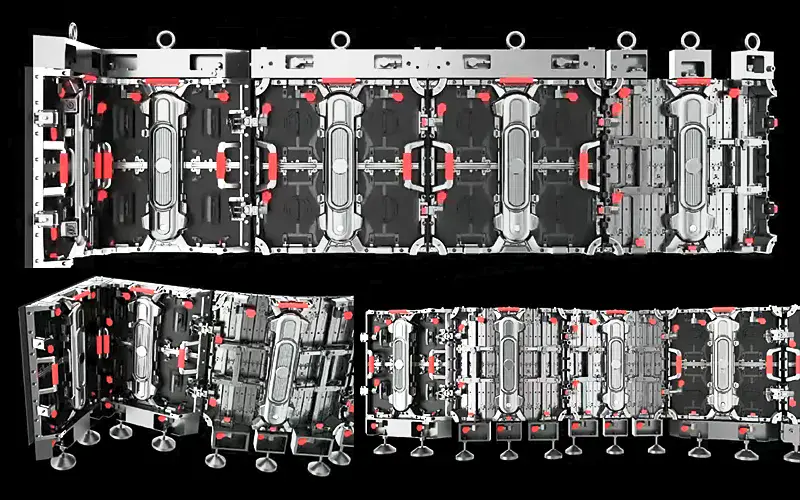

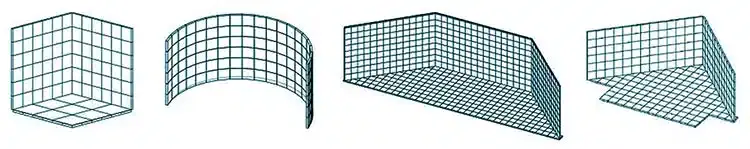

Integrated curve locks on RF-GK, RF-PRO+, and RF-RH enable concave and convex curves at ±15° per cabinet. Create immersive curved backdrops without separate curved cabinets.
Tour-Ready Flight Case System
Custom road cases hold 6, 8, or 10 cabinets with pre-terminated loom storage. Stackable design, 100mm casters, forklift channels. Designed by touring crew for touring efficiency.
Single-Person Serviceable Design
Every component accessible from the rear with the cabinet still rigged. Magnetic module removal, hot-swap power supplies, and tool-free receiving card access. Fix it in the air — no derigging required.
Touring-Grade Engineering
Every RF cabinet is built to survive the road — and perform flawlessly show after show
Carbon Fiber / Magnesium Cabinet
RF-PRO+ and RF-RH use carbon fiber composite with magnesium corner castings. 6.5 kg weight at full structural integrity. Shock-mounted LED modules for vibration isolation during transport.

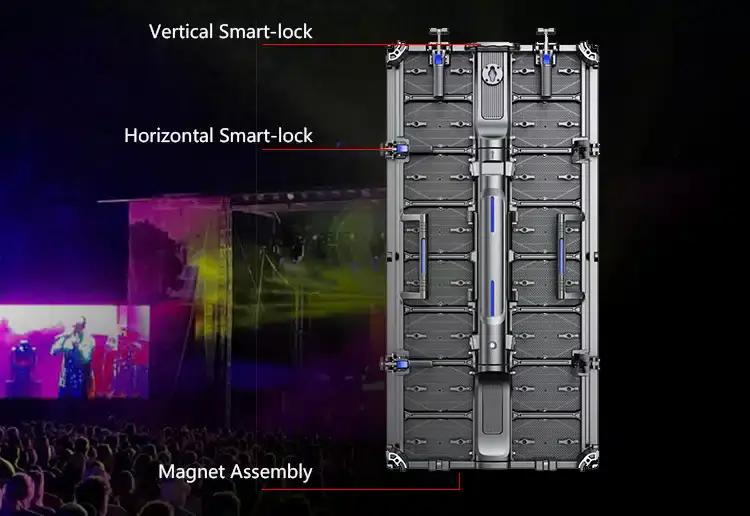

Integrated Quick-Lock System
Single-action cam-lock with visual engagement indicator. Integrated 48V power and Gigabit data pass-through — one connection links power, video, and mechanical lock. Rated for 100,000+ cycles.
Pre-Terminated Touring Loom Kit
Neutrik powerCON TRUE1 and etherCON looms in 1m/2m/5m/10m lengths. All connections accessible from rear — no reaching through cabinet gaps. Color-coded for foolproof night-setup crew operation.
Redundant Power & Data Architecture
Dual power inputs with auto-failover on every cabinet. Dual-link signal with automatic bypass. A single power or data failure will not take down a pixel of your show.
Where RF Series Excels
Powering the world's most watched live productions — from stadium tours to televised award shows
Stadium & Arena Concert Tours
RF-PRO+ and RF-RH power headline tours in 50,000-seat venues. Lightweight design reduces truck count; quick-lock reduces crew hours. Both translate directly to tour profitability.
TV Award Shows & Broadcast Events
RF-GK and RF-PRO+ deliver camera-perfect visuals for globally televised productions. ≥3840Hz refresh eliminates scan artifacts. Per-panel calibration ensures color uniformity across massive walls.
Corporate Events & Product Launches
RF-RH high-res panels for premium corporate presentations. P1.9–P2.5 pitch delivers 4K at sensible stage sizes. Quick setup respects tight venue load-in windows.
Music Festivals & Multi-Stage Events
RF-RI outdoor-rated panels for festival main stages, second stages, and activation zones. IP65-rated for weather resilience without compromising rental-friendly weight and setup speed.
Esports Tournaments & Gaming Events
RF-RH high-refresh panels at ≥3840Hz for flicker-free gaming content. Low-latency input processing for real-time gameplay display. Curve-lock enables immersive wraparound arena designs.
Theatre & Performing Arts Productions
RF-GK and RF-PRO+ integrate with theatrical rigging, lighting, and automation systems. Silent operation (fanless design) respects acoustic requirements for drama, opera, and ballet.
Technical Specifications
Complete performance parameters for RF Series rental stage displays
| Parameter | RF-GK P3.9 | RF-PRO+ P2.6 | RF-RI P3.9 | RF-RH P1.9 | RF-RR P3.9 |
|---|---|---|---|---|---|
| Cabinet Material — Carbon fiber composite + magnesium corners (PRO+/RH), aluminum alloy (GK/RI/RR) | |||||
| Quick-Lock — Single-action cam-lock, integrated 48V power + Gigabit data, 100K cycle rating | |||||
| Curve Range — ±15° per cabinet (GK, PRO+, RH); flat only (RI, RR) | |||||
| Flight Cases — 6/8/10-cabinet custom road cases, 100mm casters, forklift channels, loom compartments | |||||
| Serviceability — All components accessible from rear while rigged; magnetic module removal; hot-swap PSU | |||||
| Redundancy — Dual power input auto-failover + dual-link signal auto-bypass on all models | |||||
| Operating Temp — 0°C to +40°C (indoor); -10°C to +45°C (RI outdoor) | |||||
| Warranty — 2-year standard (optional extension to 5 years) | |||||
