IFM Series — Micro LED Fine-Pitch Display Panels
Next-generation Micro LED technology for uncompromising visual performance | COB & MIP from P0.4mm to P1.5mm
Products in this Series
MIP LED Display Screen Technology IFM-MIP Series
MIP LED display screen technology is suitable for smaller chips and has greater room for reducing spacing and costs in the future.
Micro COB LED Display – IFM-COB Series
Explore the micro COB LED display for outstanding image quality and eco-friendly technology. Upgrade your display experience today. P0.78 P0.9375 P1.25 P1.5625 No color eviation,front service design for easy install and disassemble, High definition quality image with excellent visual performance.
Why Choose IFM Series?
Cutting-edge Micro LED technology engineered for the most demanding indoor visualization environments
COB & MIP Dual-Technology Platform
Choose COB for ultimate contrast (10000:1) and durability, or MIP for superior cost-efficiency at scale. Both deliver pixel pitches as fine as P0.4mm for truly seamless close-range viewing.
Flawless Surface with Chip-on-Board
COB encapsulation eliminates exposed LED lamp beads — creating a smooth, impact-resistant surface with zero dead pixels. IP54-rated front protection resists dust, moisture, and electrostatic discharge.
Infinite Contrast & Deep Blacks
COB achieves 10000:1 native contrast with near-OLED black levels. MIP delivers 5000:1. Both support HDR10+ and 16-bit grayscale for stunning HDR content reproduction.
Ultra-Low Power Consumption
Flip-chip COB and dynamic energy-saving drivers reduce power by 30-40% versus traditional SMD displays. Cooler operation extends component lifespan and reduces HVAC load.
100% Front-Access Maintenance
Magnetic module attachment enables complete front servicing in under 60 seconds per module. Perfect for flush wall installations where rear access is impossible.
Sub-1mm Pixel Pitch Leadership
P0.4mm to P1.5mm pixel pitches with Micro LED precision. Ideal for command centers, luxury retail, broadcast studios, and premium corporate environments where every pixel counts.
Premium Components, Micro LED Precision
Each IFM Series display leverages the most advanced Micro LED components available in the industry today

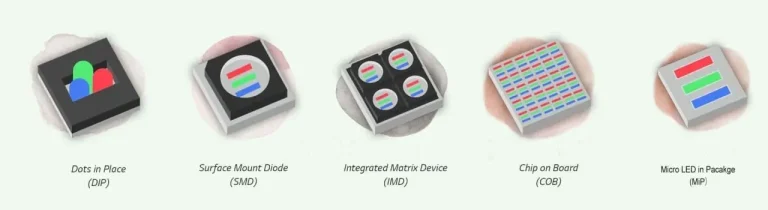

COB / MIP LED Package
COB: Flip-chip Micro LEDs directly bonded to PCB with epoxy encapsulation for seamless, impact-resistant surface. MIP: Pre-packaged Micro LEDs on BT substrate with individual lens for optimal light extraction and brightness.
Driving IC & Receiving Card
Macroblock 5254/5954 ICs with dynamic energy-saving and ghost-elimination. NovaStar A8s/A10s receiving card with HDR support, per-pixel 16-bit calibration, and dual-link signal backup for fail-safe operation.
Advanced Thermal Management
Flip-chip COB LEDs conduct heat directly through PCB vias into the cabinet frame — eliminating wire bonds as thermal bottlenecks. Die-cast aluminum cabinet doubles as a full-panel heatsink for silent fanless operation.
Precision Cabinet Frame
ADC12 die-cast aluminum with 5-axis CNC machining, hard anodized finish, and integrated quick-lock alignment pins. Module-level calibration data stored on each panel enables color-consistent hot-swap replacement.

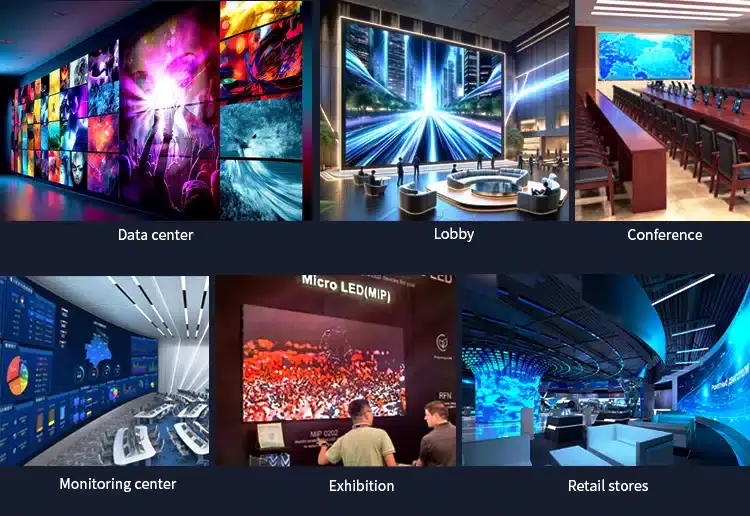

Where IFM Series Excels
Purpose-built for environments that demand the absolute best in resolution, reliability, and visual impact
Command & Control Centers
24/7 mission-critical operation with dual-redundant power and signal backup. Flicker-free, low-blue-light panels ensure operator comfort during extended shifts monitoring critical national infrastructure.

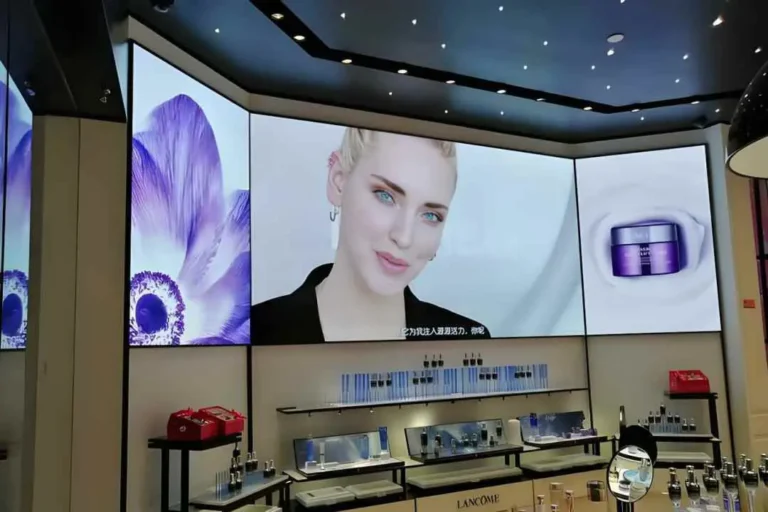

Luxury Retail & Brand Flagships
Near-OLED visual quality at any size with P0.6mm Micro LED. Create immersive brand experiences that captivate customers with true-to-life colors, infinite contrast, and ultra-slim flush-mount profiles.
Broadcast & Virtual Production
>=3840Hz refresh eliminates camera scan-line artifacts. HDR10+, Rec.2020 color space, and Genlock synchronization for professional broadcast studios and XR virtual production workflows.
Executive Boardrooms & Conference Centers
Crystal-clear 4K/8K presentations at close viewing distances. Anti-glare COB surface ensures perfect legibility under bright meeting-room lighting with whisper-quiet passive cooling.
Museums & Cultural Institutions
COB and MIP deliver artifact-grade color accuracy with 16-bit grayscale processing. Silent fanless operation preserves gallery ambiance for uninterrupted immersive visitor experiences.
Premium Airports & Transportation Hubs
High-brightness COB panels maintain crystal-clear visibility in naturally lit terminal environments. 24/7 reliability with IP54 front protection against dust and passenger traffic wear.
Technical Specifications
Complete performance parameters for IFM-COB and IFM-MIP product lines
| Parameter | IFM-COB P0.6 | IFM-COB P0.9 | IFM-COB P1.2 | IFM-MIP P0.7 | IFM-MIP P0.9 | IFM-MIP P1.5 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 0.625mm | 0.9375mm | 1.25mm | 0.78mm | 0.9375mm | 1.5625mm |
| LED Technology | Flip-Chip COB | Flip-Chip COB | Flip-Chip COB | MIP (Micro LED) | MIP (Micro LED) | MIP (Micro LED) |
| Pixel Density | 2,560,000/m2 | 1,137,778/m2 | 640,000/m2 | 1,638,400/m2 | 1,137,778/m2 | 409,600/m2 |
| Module Size | 300×168.75mm | 300×168.75mm | 300×168.75mm | 300×168.75mm | 300×168.75mm | 300×168.75mm |
| Cabinet Size | 600×337.5x38mm | 600×337.5x38mm | 600×337.5x38mm | 600×337.5x38mm | 600×337.5x38mm | 600×337.5x38mm |
| Brightness | 600 nits | 800 nits | 800 nits | 600 nits | 800 nits | 1000 nits |
| Refresh Rate | >=3840 Hz | >=3840 Hz | >=3840 Hz | >=3840 Hz | >=3840 Hz | >=3840 Hz |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | 170/170 | 170/170 | 170/170 | 160/160 | 160/160 | 160/160 |
| Gray Scale | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit | 16-bit |
| Max Power | 480W/m2 | 550W/m2 | 550W/m2 | 550W/m2 | 600W/m2 | 550W/m2 |
| Avg Power | 160W/m2 | 180W/m2 | 180W/m2 | 180W/m2 | 200W/m2 | 180W/m2 |
| Weight | 22 kg/m2 | 24 kg/m2 | 24 kg/m2 | 25 kg/m2 | 25 kg/m2 | 25 kg/m2 |
| Front IP Rating | IP54 | IP54 | IP54 | IP30 | IP30 | IP30 |
| Cabinet Material | Die-cast Aluminum ADC12 – CNC precision machined, hard anodized | |||||
| Maintenance | 100% Front-access, magnetic module attachment, hot-swap under 60 seconds | |||||
| Operating Temp | -10C to +45C | |||||
| Lifespan | >=100,000 hours (50% brightness) | |||||
| Warranty | 3-year standard (optional extension to 5 years) | |||||
