LED Display Module Solutions
The core building blocks of every LED display — COB, MIP, and SMD modules for indoor and outdoor applications | From P0.6mm Micro LED to P10mm outdoor SMD
✓ Pixel Pitch: P0.6–P10mm
✓ Configurations: Indoor & Outdoor
✓ Contrast: Up to 10000:1 (COB)
✓ Protection: IP30–IP65
✓ Compatibility: Standard HUB interfaces, universal cabinets
LED Module Application Scenarios
The foundation of every professional LED display — modules engineered for reliability across every deployment environment

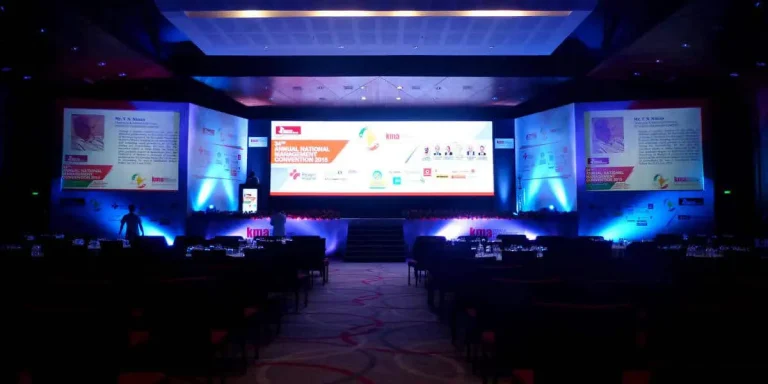

Fine-Pitch Meeting Rooms & Executive Boardrooms
Mall & Retail — Atrium Screens to Digital Directories
Stadium Scoreboards & Outdoor Perimeter Advertising
Airport Terminals & Railway Station Display Systems
Who Relies on Our LED Modules?
Our LED modules serve display manufacturers, system integrators, and professional installers worldwide
LED Display Manufacturers & OEMs
Source high-quality LED modules for in-house display assembly. Need consistent quality across large volumes, competitive pricing, and reliable supply chain with predictable lead times.

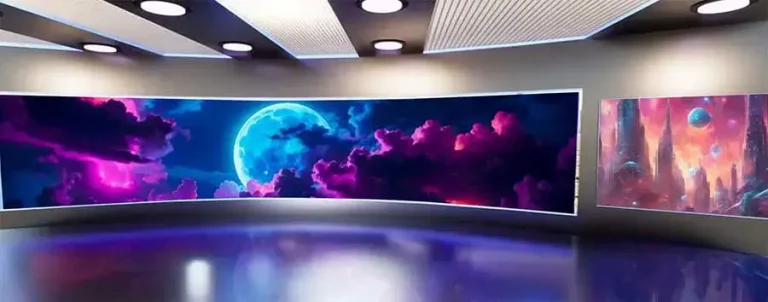

AV System Integrators & Installers
Select the right module technology for each project's requirements. Value expert guidance on COB vs MIP vs SMD trade-offs and compatibility with existing cabinet and controller investments.

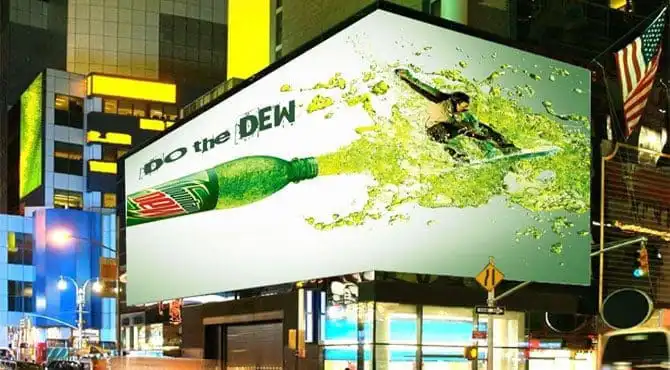

Maintenance & Service Providers
Stock replacement modules for multi-site service contracts. Need standard interfaces, global availability, and backward compatibility to support displays installed years apart.
Our LED Module Technologies
Three complementary technologies — each optimized for different performance, protection, and budget requirements

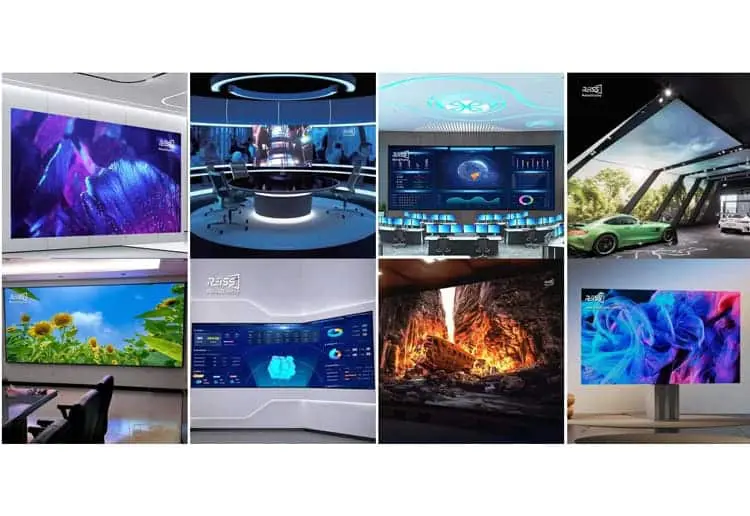

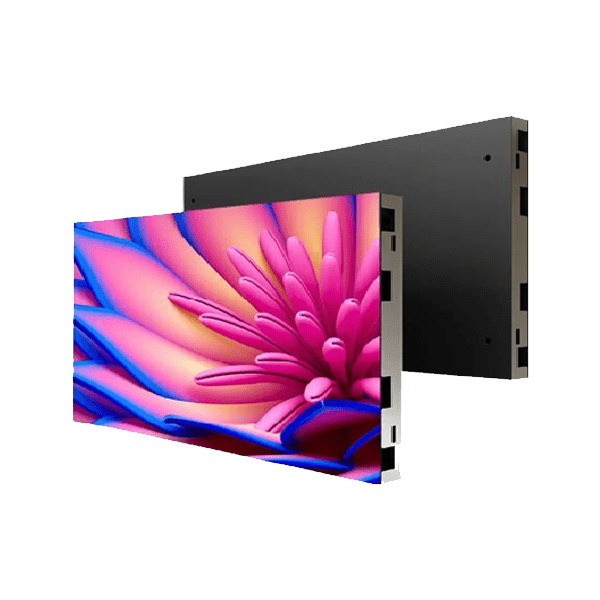

COB Series — Chip-on-Board LED Modules
Premium encapsulation technology. 10000:1 contrast, IP54 front, ultra-low dead pixel rate. The definitive choice for mission-critical fine-pitch applications.

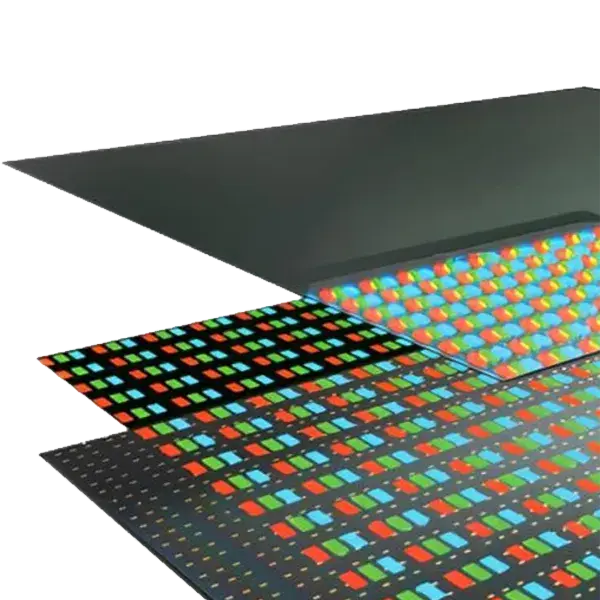

MIP Series — Micro LED in Package Modules
Next-gen Micro LED packaging. P0.7–P1.5mm with individual pixel replaceability and SMT-compatible manufacturing. The smart balance of performance and cost.
SMD Series — Surface-Mount Device Modules
The industry workhorse. Indoor and outdoor configurations from P1.5 to P10mm. Universal compatibility, easy field service, lowest total cost of ownership.
China’s LED Display Manufacturers. Ship Globally.
LED Module Technology Comparison
COB vs MIP vs SMD — understand the differences to select the right technology for your application
| Feature | COB Series | MIP Series | SMD Series |
|---|---|---|---|
| Technology | Chip-on-Board (Encapsulated) | Micro LED in Package | Surface-Mount Device |
| Pixel Pitch Range | P0.6–P1.5mm | P0.7–P1.5mm | P1.5–P10mm (Indoor + Outdoor) |
| Native Contrast | 10000:1 | 5000:1 | 3000–5000:1 |
| Front Protection | IP54 (Epoxy Encapsulated) | IP30 (Individual Package) | IP30 (Indoor) / IP65 (Outdoor) |
| Dead Pixel Rate | <1 per million | <5 per million | <10 per million |
| Field Repair | Module-level replacement | Individual pixel replacement | Individual LED replacement |
| Cost (Relative) | Premium (100%) | Mid-Range (60–70%) | Economy (40–50%) |
| Best Application | Mission-Critical / Luxury / 24/7 | Corporate / Retail / Education | General Purpose / Outdoor / Rental |
How to Select the Right LED Module Technology
A practical framework for choosing between COB, MIP, and SMD for your specific project
1. Start with Your Pixel Pitch Requirement
Need P0.6–P0.9mm? COB is the only option at these ultra-fine pitches. Need P0.9–P1.5mm? COB and MIP both available — compare contrast, protection, and budget. Need P1.5mm+? SMD offers the best value.
2. Evaluate Environmental Conditions
Uncontrolled environments (dust, moisture, public contact) favor COB with IP54 encapsulation. Controlled indoor environments (offices, studios) work well with all three technologies. Outdoor requires SMD with IP65 sealing.
3. Consider Operational Criticality
24/7 control rooms and mission-critical displays justify COB's premium for ultra-low dead pixel rate and extended lifespan. 16/7 retail and corporate displays work well with MIP or SMD at lower total cost.
4. Factor Total Service & Maintenance Costs
SMD offers the lowest per-LED repair cost with standard tools. MIP allows individual pixel replacement. COB requires module-level replacement — faster but higher per-incident cost. Match service strategy to your maintenance model.
LED Module Case Studies
See how manufacturers and integrators deploy our LED modules in projects worldwide
Indoor vs. Outdoor LED Screens: Key Differences You Must Know
In today’s digital age, LED screens play a cr […]
Indoor vs Outdoor: Pixel Pitch Requirements Are Very Different
Viewing distance establishes the foundation of any pixe […]
Common Pixel Pitch Selection Mistakes — And Their Long-Term Cost Consequences
Every pixel pitch mistake has an immediate symptom and […]
LED Display Screen for Sports Events: A Complete Guide
LED display screens are an essential part of modern&nbs […]
Why Choose Our LED Modules?
Manufacturing precision, rigorous quality control, and technology leadership — the LED module partner you can build your business on
Technology Leadership Across All Platforms
COB for ultimate performance, MIP for the smart middle ground, SMD for proven cost-effectiveness. We manufacture all three — get objective advice on which technology fits your application.
Standard Interfaces, Universal Compatibility
HUB75/HUB320 standard interfaces across all modules. Compatible with NovaStar, Colorlight, Linsn, and all major controller brands. No vendor lock-in, no proprietary restrictions.
Rigorous Quality Control

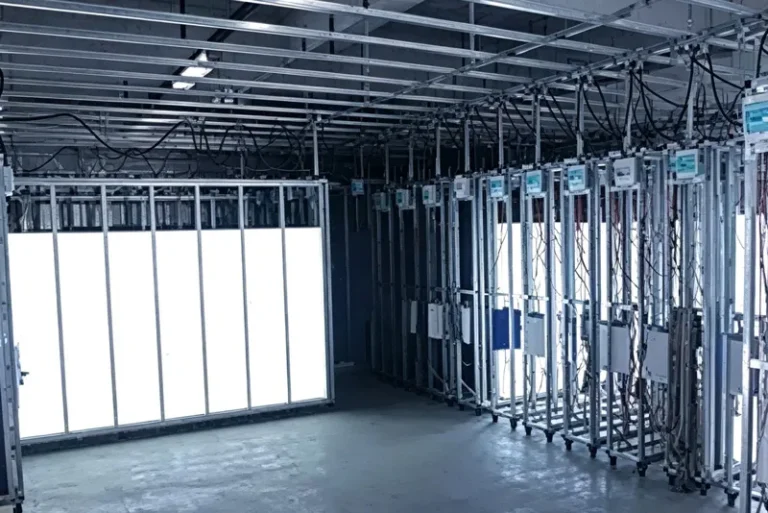

72-hour burn-in on every COB module. Automated optical inspection on every SMD and MIP module. Per-pixel brightness and chromaticity calibration. Less than 0.01% field failure rate.
LED Module FAQs
Common questions about COB, MIP, and SMD module selection and compatibility
From indoor fine-pitch to outdoor high-brightness, we offer a complete range of LED display solutions tailored to your project requirements.
Request a Quote
