IDF Series — Interactive LED Dance Floor Displays
Responsive floor-level LED experiences for nightclubs, events, and immersive venues | Load-rated, slip-resistant, and sensor-equipped
Products in this Series
Interactive Floor LED Display IDF-IFD Series
Interactive floor LED display manufacturers provide you with a variety of customized designs in different shapes. Solving all your needs.
Why Choose IDF Series?
Transform floors from passive surfaces into active, interactive canvases that respond to movement in real time
Real-Time Interactive Floor Display
Built-in pressure sensors or IR touch grid detect foot position, movement direction, and gesture patterns. LED content responds instantly — creating ripples, trails, and interactive games underfoot.
Heavy-Duty Load-Rated Construction
2000 kg/m² static load capacity with 800 kg point-load rating. Tempered anti-slip glass surface withstands high heels, heavy foot traffic, and event equipment without deflection or damage.
IP65 Fully Sealed Design
Each floor tile is individually sealed against liquid spills, cleaning chemicals, and moisture. IP65 rating ensures reliable operation even with drink spills, rain, or wet-cleaning maintenance.
Anti-Slip Tempered Glass Surface
12mm tempered glass with R10 anti-slip texture. Meets international safety standards for public flooring. Available in clear, black, or custom-printed interlayer glass for non-display integration.
Modular Tile System
Standard 500×500mm or 600×600mm tiles interlock to create floors of any size. Individual tile replacement takes under 2 minutes — no need to dismantle the entire floor for maintenance.
Interactive Content SDK Included
Pre-built interactive effects library (ripple, particle, trail, game templates) plus an SDK for custom interactive applications. Integrate with DMX, MIDI, OSC, and UDP for advanced show control.
Engineered for the Floor
Every IDF tile is built to withstand the unique demands of floor-level installation — weight, impact, liquids, and constant interaction
Reinforced LED Floor Tile
Die-cast aluminum chassis with internal rib structure supports 2000 kg/m². LED modules are mounted below 12mm tempered glass with optical bonding for zero parallax and maximum light transmission.
Sensor Matrix & Processor
120Hz IR touch grid (2mm resolution) or pressure sensor matrix (256 levels per tile). Dedicated sensor processor with <5ms latency — movement feels instantaneous to users.
Sealed Power & Data Interconnects
IP67-rated military-spec bayonet connectors link tiles. Each tile passes power and data to neighbors in a redundant ring topology — a single tile failure does not affect the rest of the floor.

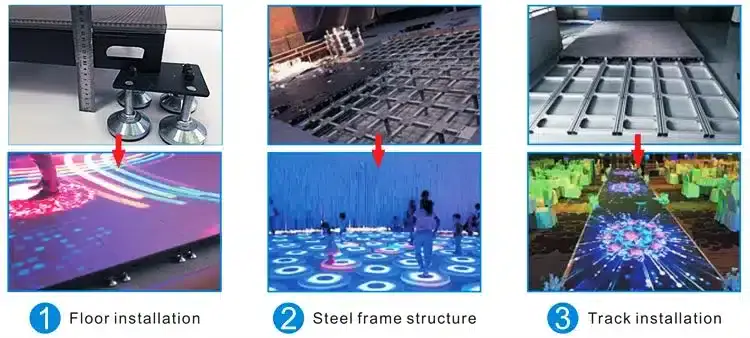

Leveling Base & Cable Management
Adjustable-height base frame (50–200mm) compensates for uneven subfloors. All cabling routes through base channels — zero trip hazards. Compatible with raised access flooring systems.
Where IDF Series Excels
Creating unforgettable interactive floor experiences in the world's most demanding entertainment venues
Nightclubs & Premium Lounges
An interactive LED dance floor that responds to DJ beats and dancer movement transforms the club into an immersive sensory experience. DMX integration synchronizes floor, walls, and ceiling displays.
Corporate Events & Gala Dinners
Interactive floor displays guide guests through brand experiences, display dynamic table assignments, and create wow-factor first impressions at high-end corporate galas and award ceremonies.
Museums & Science Centers
Interactive floor exhibits engage visitors of all ages with educational games, simulations, and responsive environments. The SDK enables custom educational content development for permanent installations.
Wedding & Event Venues
Customizable interactive dance floors with personalized effects — first dance ripples, monogram projections, and color themes that match event decor. Creates unforgettable moments for life celebrations.
Shopping Malls & Retail Experiences
Interactive floor displays in mall atriums engage families and drive dwell time. Branded interactive games and seasonal content refresh keep the experience fresh and shareable on social media.
Theme Parks & Immersive Attractions
IDF floors integrated into queue lines, ride exits, and themed zones enhance the guest journey with responsive, story-driven floor interactions that extend immersion beyond the main attraction.
Technical Specifications
Complete performance parameters for IDF-IFD Interactive Floor Display tiles
| Parameter | IDF-IFD P3.9 | IDF-IFD P4.8 | IDF-IFD P5.2 |
|---|---|---|---|
| Surface Material — 12mm tempered glass, R10 anti-slip, optically bonded (clear/black/custom) | |||
| Sensor System — IR touch grid (120Hz, 2mm resolution) or pressure matrix (256-level) | |||
| Interaction Latency — <5ms sensor-to-display, instant user perception | |||
| Software — Pre-built effects library + SDK (C++, Unity, TouchDesigner, Notch) | |||
| Tile Interconnect — IP67 bayonet connectors, redundant ring topology | |||
| Operating Temp — 0°C to +45°C (indoor), -10°C to +40°C (covered outdoor) | |||
| Lifespan — ≥100,000 hours LED; glass surface replaceable after wear | |||
| Warranty — 2-year standard (optional extension to 5 years) | |||

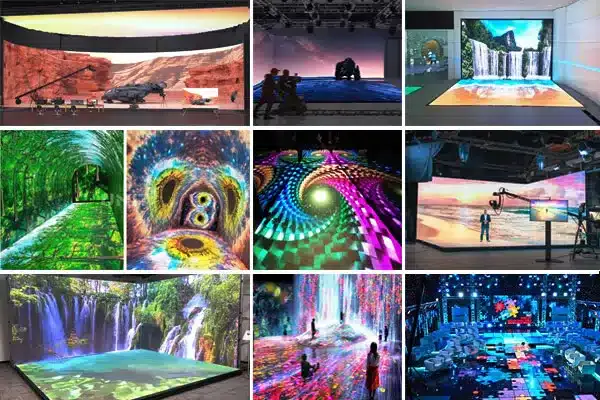

Explore Other Dance Floor LED Solutions
