SMD Series — Surface-Mount Device LED Display Modules
The industry-standard LED module platform — proven, versatile, and cost-effective | Indoor and outdoor configurations available
Products in this Series
Indoor LED Display Module
Indoor LED screen modules rely on highly stable driver ICs to deliver consistent performance and exceptional color uniformity across the entire display. These driver ICs precisely regulate the current supplied to each individual LED, which offers several key benefits: Consistent Color Uniformity: By maintaining accurate and stable current, driver ICs prevent visible color differences between LEDs, ensuring a seamless display surface. Clear, Lifelike Images: Stable current regulation results in sharp, vibrant, and natural-looking images, enhancing the overall visual experience. Reliable Performance: High-quality driver ICs improve the stability and longevity of the LED screen, reducing issues such as flickering or dimming over time.
Outdoor LED Display Module
Enhance your outdoor visual experience with our premium LED display panels, designed to deliver: High Brightness: Exceptional visibility even in direct sunlight Superb Color Uniformity: Consistent, vibrant images across the entire screen Durability & Reliability: Engineered for outdoor environments with robust construction Peace of Mind: Backed by a comprehensive 5-year warranty
Why Choose SMD Series?
Billions of pixels deployed worldwide — SMD remains the most versatile, cost-effective, and widely-supported LED module platform in the industry
Proven Technology at Scale
SMD LED modules are the most mature and widely-deployed display technology in the world. Massive manufacturing scale means consistent quality, competitive pricing, and guaranteed availability.

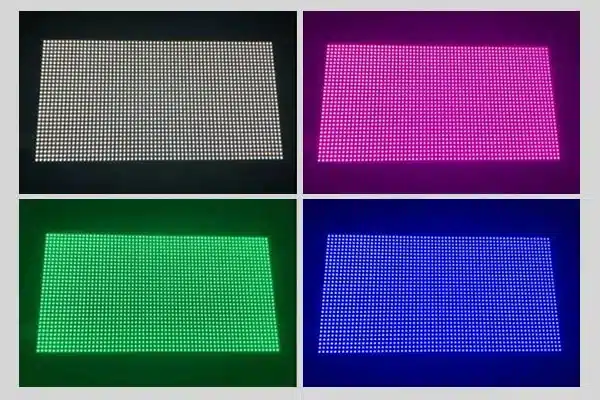

Excellent Color Consistency
Mature LED binning processes ensure tight chromaticity matching across batches. Indoor SMD modules achieve <ΔE3 color uniformity — professional-grade visual quality at accessible pricing.
Indoor & Outdoor Versatility
One platform, two configurations. Indoor SMD for fine-pitch corporate and retail displays up to P1.5. Outdoor SMD with IP65 sealing for high-brightness billboards and building wraps up to 10000 nits.

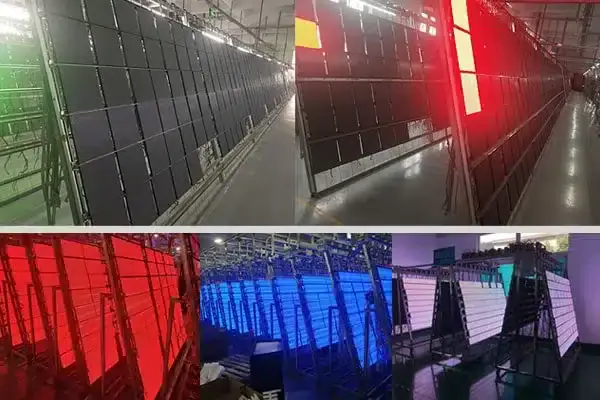

Industry-Standard Module Interface
Standardized 320×160mm, 250×250mm, and 192×192mm module sizes with universal hub connectors. Compatible with cabinets, controllers, and accessories from all major manufacturers.

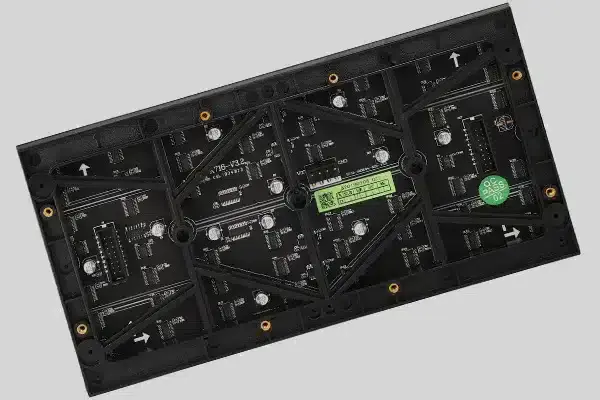

Easy Field Service & Repair
Individual LED replacement with standard soldering tools. Every technician worldwide knows how to service SMD modules — no specialized training, no proprietary equipment, minimal downtime.
Lowest Total Cost of Ownership
Massive global manufacturing capacity, universal compatibility, and widespread service expertise combine to deliver the lowest purchase price, maintenance cost, and upgrade expense in the industry.
Reliable Module Engineering
SMD technology refined over decades of continuous improvement for professional display applications
Indoor SMD LED Module
SMD 1515/2121 LEDs on 4-layer FR4 PCB with black mask for contrast. Available from P1.5 to P5.2 with universal 320×160mm or 250×250mm form factors.
Outdoor SMD LED Module
SMD 2727/3535 LEDs with IP65 front silicone sealing. Luminance up to 10000 nits for direct-sunlight visibility. UV-stabilized encapsulation prevents yellowing over years of outdoor exposure.
Universal Hub Interface
Standard HUB75/HUB320 pinout with locking connectors. Plug-and-play compatibility with receiving cards from NovaStar, Colorlight, Linsn, and all major controller brands.
Consistent Batch-to-Batch Quality
Automated SMT lines with AOI (Automated Optical Inspection) at every stage. LED binning within 2nm dominant wavelength and 15% brightness tolerance — color consistency you can count on.
Where SMD Series Excels
From retail signage to stadium screens — the versatile workhorse powering the world's LED displays
Retail & Commercial Signage
Indoor SMD modules from P1.8 to P3.0 deliver crisp promotional content at storefront viewing distances. Cost-effective enough for multi-location retail networks.
Corporate & Education Facilities
P1.5–P2.5 SMD modules provide 1080p/4K resolution for conference rooms, lecture halls, and corporate lobbies at the industry's most competitive price point.
Outdoor Advertising Billboards
Outdoor SMD modules at P5.2–P10 deliver 8000+ nits for direct-sunlight visibility. IP65 sealing and UV-stabilized encapsulation ensure years of reliable roadside operation.
Stadiums & Sports Venues
Large-format outdoor SMD displays for scoreboards, perimeter advertising, and fan engagement. High brightness cuts through stadium lighting for clear visibility from every seat.
Events & Temporary Installations
SMD modules are universally available for rental and staging companies. Quick replacement, standard interfaces, and global parts availability keep productions running.
Transportation & Public Information
SMD displays in transit hubs, airports, and public spaces deliver reliable 24/7 information display with easy field serviceability — critical when downtime impacts passenger experience.
Technical Specifications
Complete performance parameters for SMD Series LED modules
| Parameter | SMD Indoor P1.5 | SMD Indoor P2.0 | SMD Indoor P2.5 | SMD Outdoor P3.9 | SMD Outdoor P5.2 | SMD Outdoor P8.0 |
|---|---|---|---|---|---|---|
| Module Size — 320×160mm / 250×250mm / 192×192mm (model dependent) | ||||||
| Interface — HUB75/HUB320 universal, locking connectors, all major controller brands supported | ||||||
| Manufacturing — Automated SMT with AOI, LED binning <2nm wavelength / <15% brightness tolerance | ||||||
| Field Service — Individual LED replacement with standard soldering tools, global technician availability | ||||||
| Compatibility — Universal cabinet fit, all major receiving card and controller brands | ||||||
| Operating Temp — -20°C to +50°C (Outdoor) / -10°C to +40°C (Indoor) | ||||||
| Lifespan — ≥100,000 hours (50% brightness) | ||||||
| Warranty — 2-year standard (optional extension to 5 years) | ||||||
