IF Series — Fixed Indoor LED Display Panels
Engineered for pixel-perfect visualization in corporate, broadcast, and command-center environments | Pixel pitches from P0.9mm to P2.5mm
Products in this Series

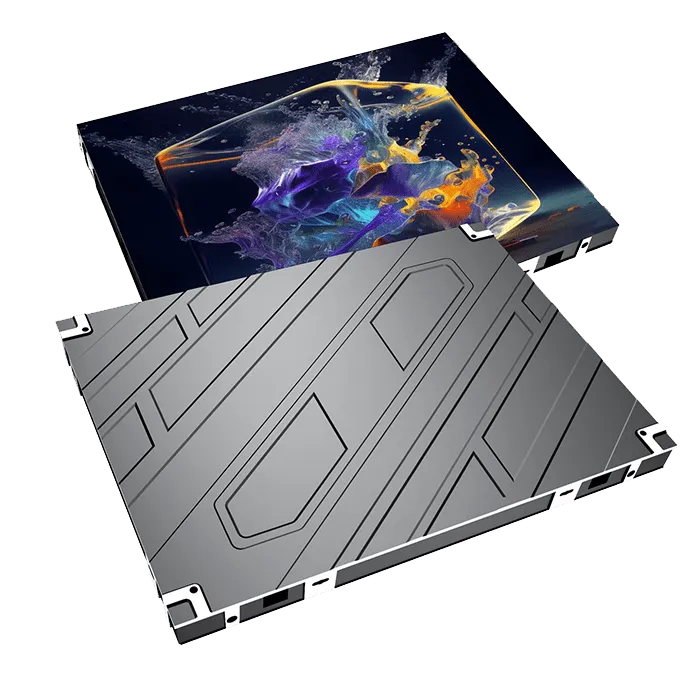

LED Display Indoor IF-B Series
The IF-B series Indoor LED display features a die-cast aluminum cabinet, CNC machined for precision. It offers low brightness, high grayscale, and detailed image quality with high contrast, reproducing true colors.

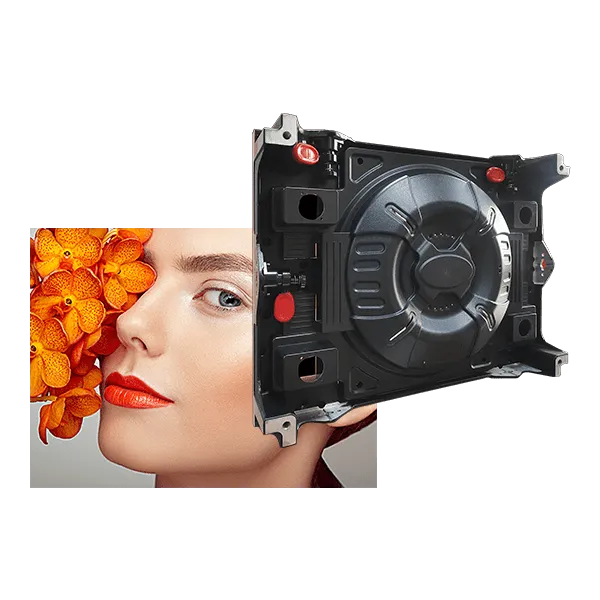

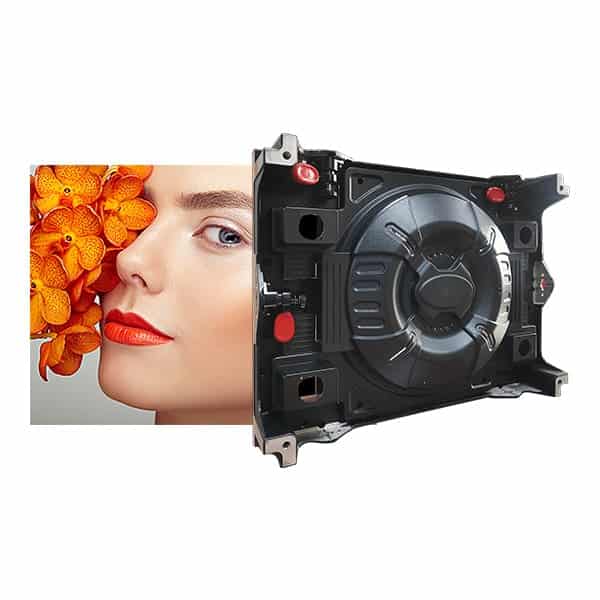

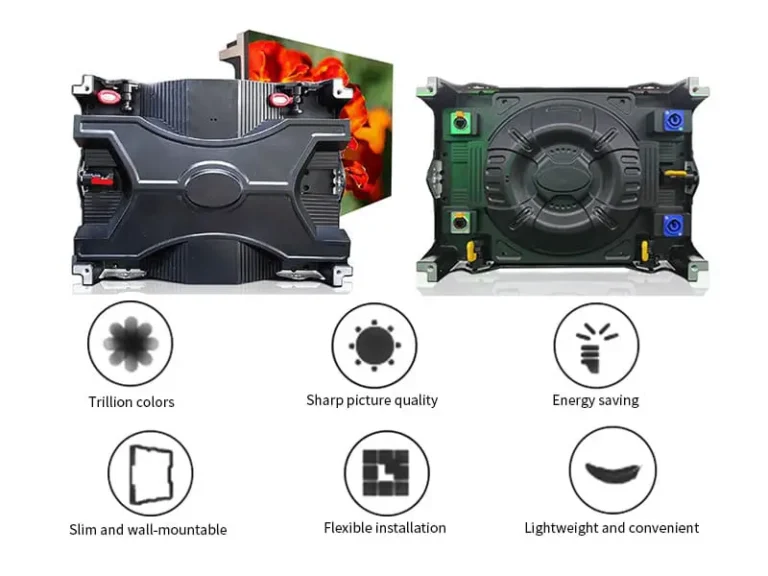

Indoor Small Pitch LED Screen IF-A Series
Indoor small pitch LED screen is widely used in public transportation,fire stations,metro stations, police safety supervision room, TV station and related areas. Seamless assembly on the whole screen, dot-to-dot fine display, ensuring accurate display of digital signals,graphic signals and text information.

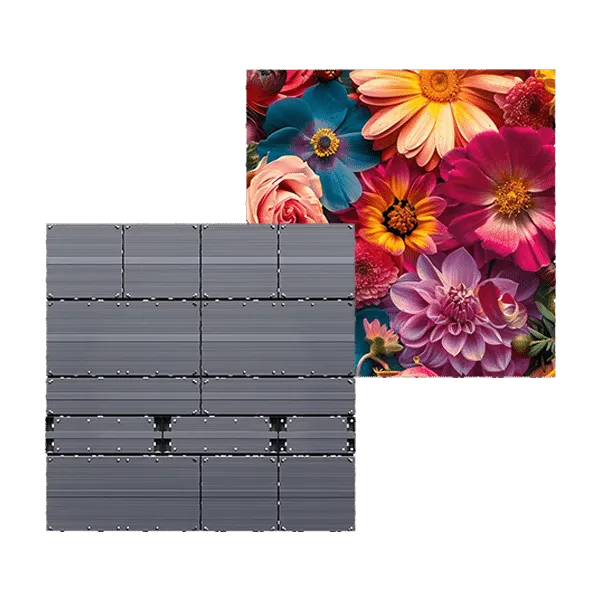

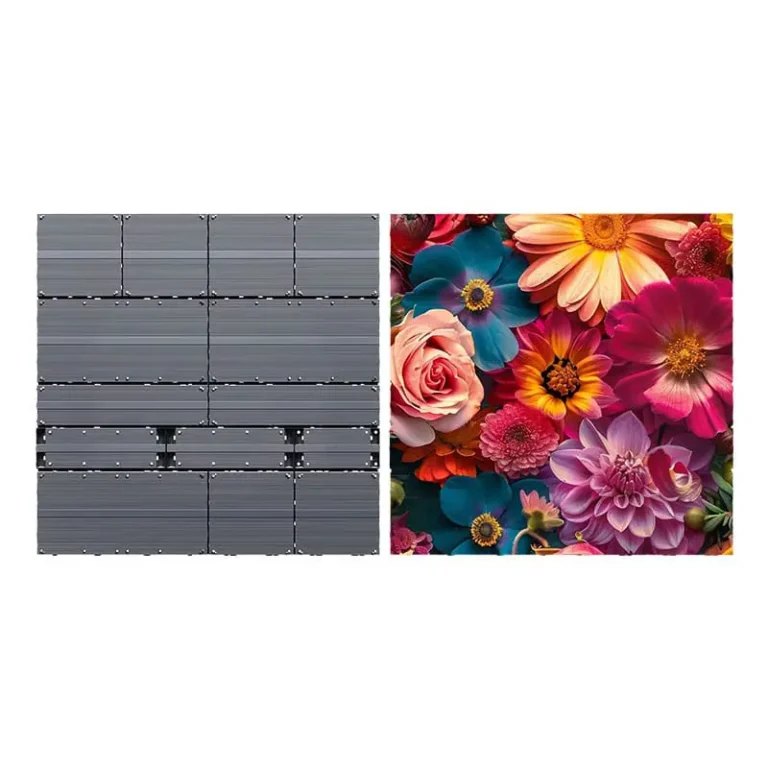

Indoor LED Wall Panels IF-Z Series
Looking for vibrant, high-resolution indoor LED wall panels for your next project? Whether it’s for indoor advertising, outdoor events, or control room displays, LED panels offer the flexibility and clarity that traditional displays can’t match. In this guide, we’ll walk you through everything you need to know about choosing the right LED wall panel.

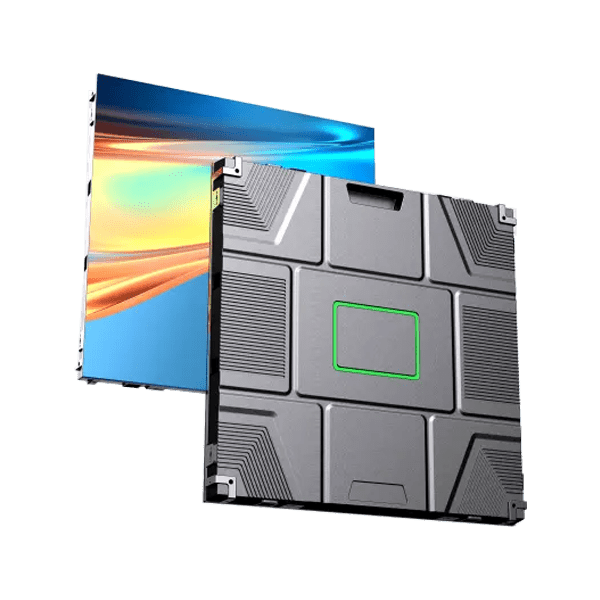

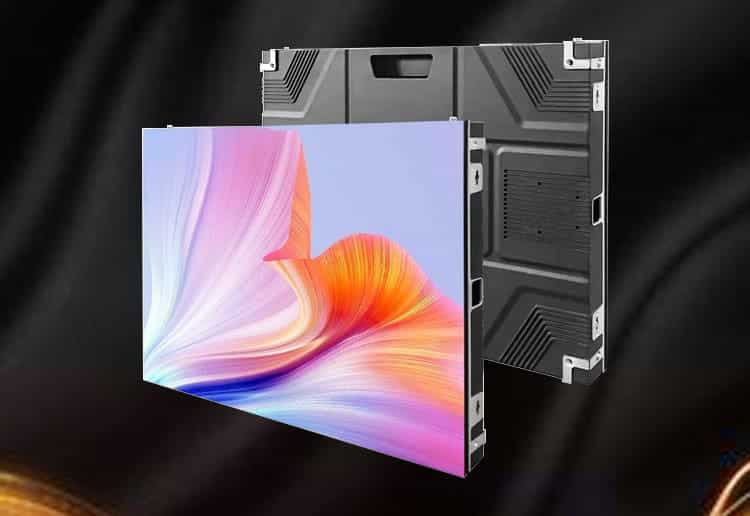

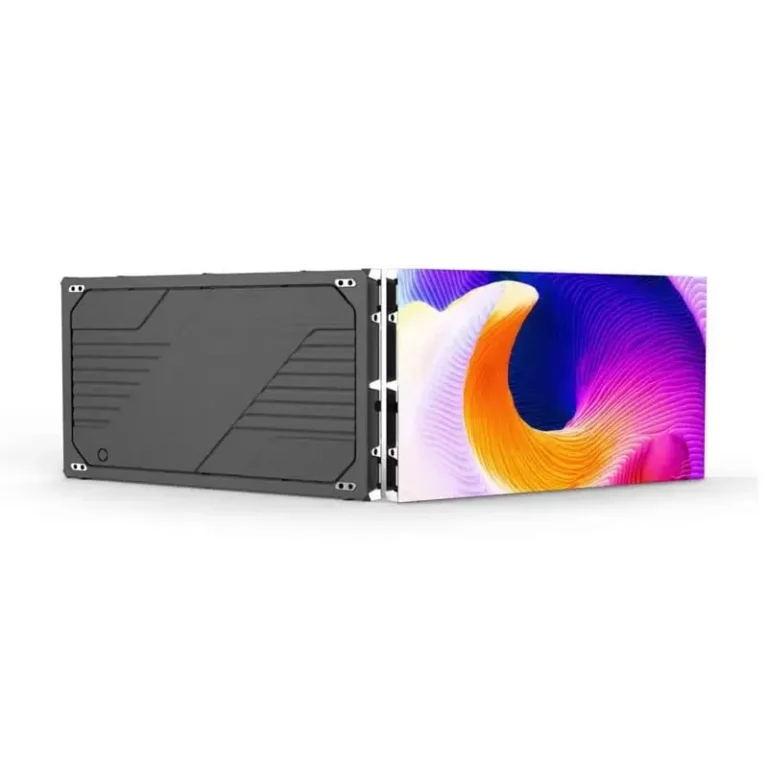

Indoor Fixed LED Display | P0.9mm to P2.5mm IF-H Series
Typical applications include corporate meeting rooms and boardrooms, retail stores and showrooms, broadcast studios and command centers, airports and train stations, museums and exhibition halls, as well as hotel ballrooms and event venues.
Why Choose IF Series?
Industry-leading technology for mission-critical indoor display applications — trusted by Fortune 500 companies and government agencies worldwide
Ultra-Fine Pixel Pitch for Seamless Viewing
Available from P0.9mm, the IF Series delivers stunning clarity even at arm's length viewing distances. Ideal for executive briefing centers, broadcast studios, and luxury retail where every pixel matters.
HDR10+ & Wide Color Gamut
Covers 110% NTSC color space with 16-bit grayscale processing. HDR10+ support ensures deep blacks, brilliant highlights, and lifelike image reproduction that exceeds broadcast standards.
Tool-Free Front-Access Maintenance
Magnetic module attachment and quick-release mechanisms enable front-access servicing — reducing downtime by 60% compared to rear-access-only designs. Perfect for space-constrained installations.
Intelligent Real-Time Monitoring
Built-in sensors continuously track temperature, voltage, humidity, and individual LED failure status. Automatic SMS/email alerts notify your team before issues affect display performance.

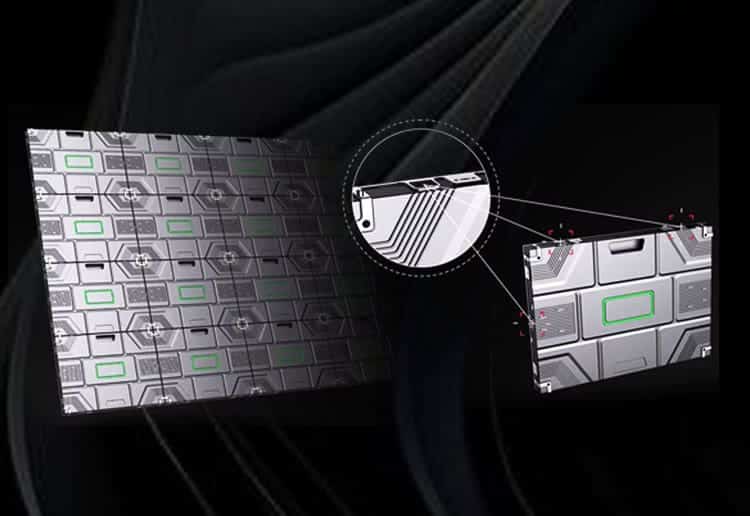

Dual Redundant Power & Signal Backup
Hot-swappable N+1 power supplies with seamless millisecond failover and dual-link signal redundancy ensure zero-downtime operation for 24/7 mission-critical control rooms.

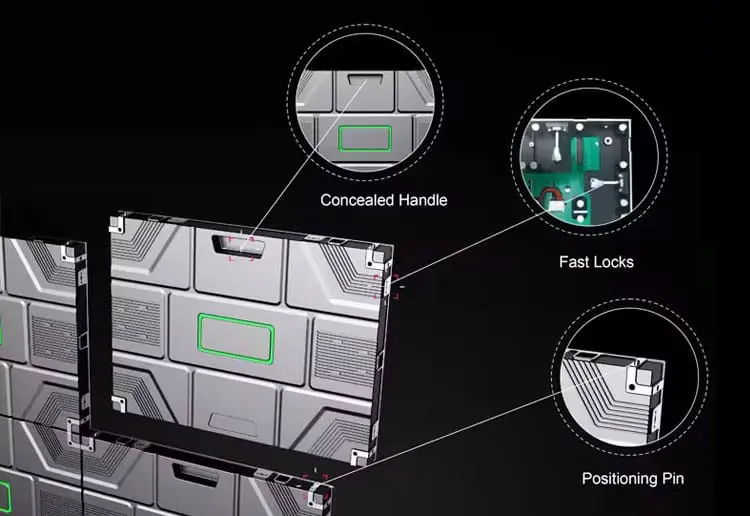

Precision Seamless Splicing ≤0.1mm
CNC-machined die-cast aluminum cabinets with integrated alignment pins achieve module gaps of ≤0.1mm — creating a truly gapless canvas indistinguishable from a single panel.
Premium Components, Reliable Performance
Every IF Series display is built with industry-leading components sourced from trusted global suppliers for unmatched long-term reliability
LED Lamp Beads
Nationstar / Kinglight SMD 3-in-1 black-face LEDs with 99.99% gold wire bonding. Black-face packaging delivers 5000:1 native contrast ratio with superior heat dissipation for 100,000-hour lifespan.
Driving IC
Macroblock 5252/5954 series with dynamic energy-saving algorithm, ghost-elimination circuitry, and built-in PWM refresh enhancement. Supports up to 14-bit grayscale with exceptional low-brightness performance.
Receiving Card
NovaStar A5s/A8s with HDR support, per-pixel calibration, dual-link signal backup, and frame-multiplying technology. Compatible with NovaStar H-series and MCTRL series controllers.
Power Supply
Meanwell RSP-320 series with 90%+ efficiency rating, active PFC (0.98), comprehensive protections (OVP, OCP, SCP, OTP), and UL/CE/CB global safety certifications.
Cabinet Frame
Precision die-cast aluminum alloy (ADC12) with CNC five-axis machining, hard anodized surface finish, and integrated quick-lock alignment pins. Weight-optimized design at just 24-28 kg/m².
Where IF Series Excels
From corporate headquarters to broadcast studios — discover how IF Series transforms spaces with industry-leading visual technology
Corporate Lobbies & Experience Centers
Make an unforgettable first impression with floor-to-ceiling LED video walls that showcase brand stories, product launches, and corporate milestones in stunning 4K+ resolution.
TV Broadcast Studios
Ultra-high refresh rates (≥3840Hz) eliminate scan-line artifacts on broadcast cameras. Calibrated color accuracy and HDR support meet strict SMPTE and EBU broadcast compliance standards.
Command & Control Centers
24/7 continuous operation with dual redundant power & signal backup. Flicker-free, low-blue-light emission ensures operator comfort during extended shifts monitoring critical infrastructure.

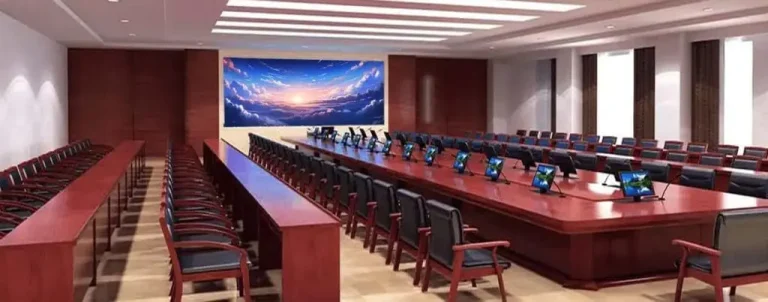

Conference Rooms & Boardrooms
Crystal-clear presentations with 160° ultra-wide viewing angles and anti-glare surface treatment. Seamless integration with Cisco, Polycom, and Zoom Room conferencing systems.

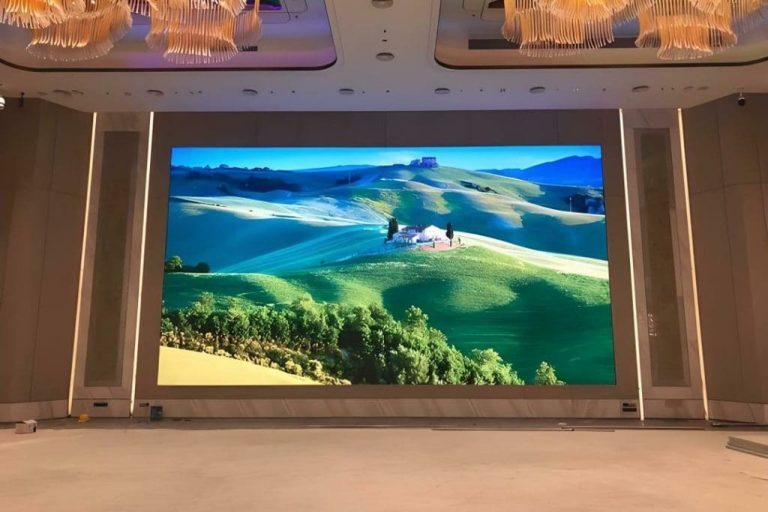

Higher Education & Auditoriums
Large-format visualization for lectures, commencements, and campus-wide events. Easy content management via NovaStar control software with multi-user permission settings.
Technical Specifications
Detailed performance parameters for the complete IF Series lineup — IF-H, IF-A, IF-B, and IF-Z models
| Parameter | IF-H P0.9 | IF-H P1.2 | IF-A P1.5 | IF-B P1.8 | IF-Z P2.0 | IF-Z P2.5 |
|---|---|---|---|---|---|---|
| Pixel Pitch | 0.9375 mm | 1.25 mm | 1.5625 mm | 1.875 mm | 2.0 mm | 2.5 mm |
| LED Configuration | SMD 1010 | SMD 1010 | SMD 1515 | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density (px/m²) | 1,137,778 | 640,000 | 409,600 | 284,444 | 250,000 | 160,000 |
| Module Size (mm) | 300×168.75 | 300×168.75 | 250×250 | 240×240 | 320×160 | 320×160 |
| Module Resolution | 320×180 | 240×135 | 160×160 | 128×128 | 160×80 | 128×64 |
| Cabinet Size (mm) | 600×337.5×55 | 600×337.5×55 | 500×500×55 | 480×480×55 | 640×480×55 | 640×480×55 |
| Cabinet Material | Die-cast Aluminum (ADC12) — CNC precision machined, hard anodized | |||||
| Brightness (nits) | 600 | 800 | 800 | 1000 | 1000 | 1200 |
| Refresh Rate | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥1920 Hz | ≥1920 Hz |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 4000:1 | 4000:1 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 140°/140° | 140°/140° |
| Gray Scale | 16-bit | 16-bit | 16-bit | 16-bit | 14-bit | 14-bit |
| Color Temperature | 3000K — 10000K (adjustable) | |||||
| Max Power (W/m²) | 600 | 600 | 550 | 500 | 500 | 450 |
| Avg Power (W/m²) | 200 | 200 | 180 | 170 | 170 | 150 |
| Input Voltage | AC 100–240V, 50/60Hz | |||||
| Weight (kg/m²) | 28 | 28 | 26 | 25 | 24 | 24 |
| IP Rating (Front/Rear) | IP30/IP30 | IP30/IP30 | IP30/IP30 | IP30/IP30 | IP30/IP30 | IP30/IP30 |
| Operating Temp | -10°C to +40°C | |||||
| Service Life | ≥100,000 hours (50% brightness) | |||||
| Warranty | 2-year standard warranty with optional extension to 5 years | |||||
