IH Series — Commercial LED Poster Displays
High-performance indoor digital signage for retail, hospitality, and financial environments | Single & double-sided configurations
Products in this Series

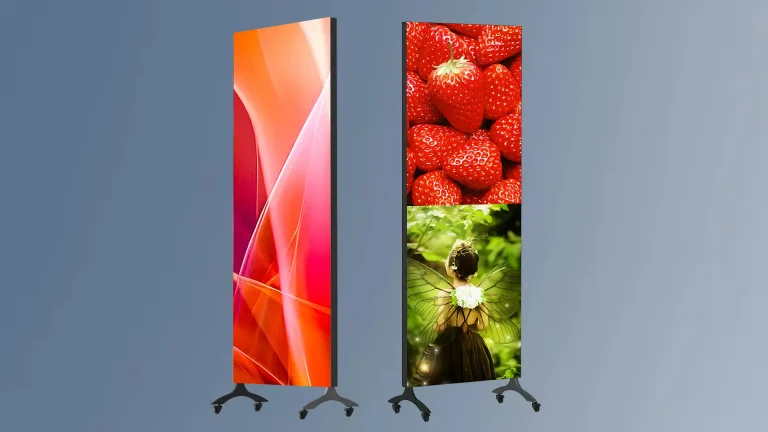

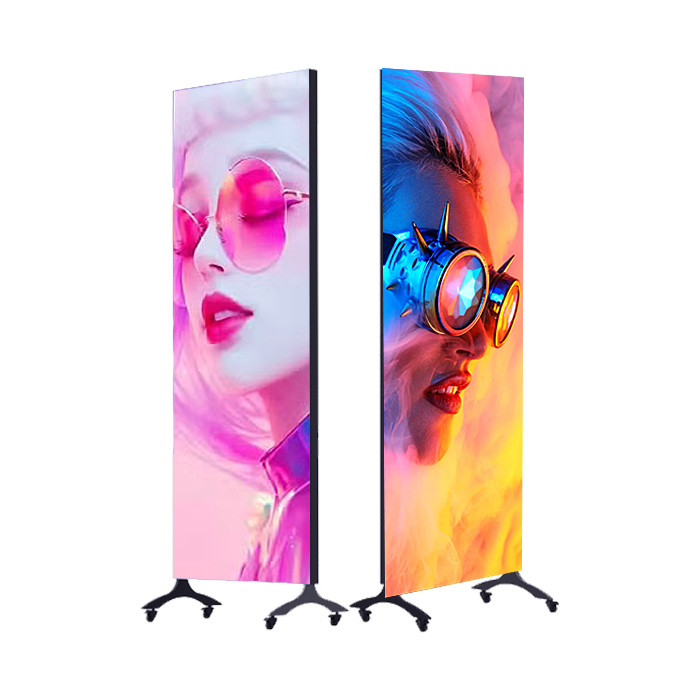

Double-sided Digital LED Poster IH-T5 Series
Installing double-sided digital LED poster screen in stores, shopping malls, halls, and events will make your advertisements or information very eye-catching. The LED poster display has single-side, double-side, and foldable versions. And it can be customized to different sizes It features Plug & Play, Ultra-thin, and Super-light.

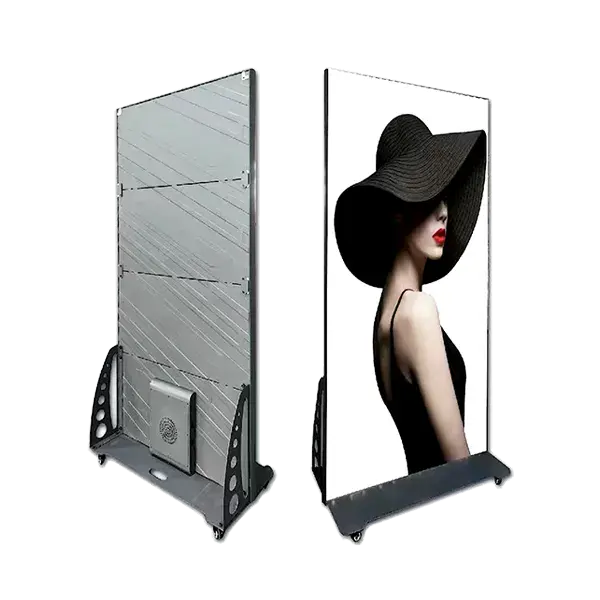

LED Poster Display Screen IH-B Series
The foldable poster LED display is a compact, portable screen with an ultra-thin design featuring high-definition images, vibrant visuals and seamless content control, controlled via HDMI, Wi-Fi or USB. Ideal for advertising, events and retail, it combines the durability of SMD, COB and GOB technologies with easy installation and flexible multi-screen connectivity.

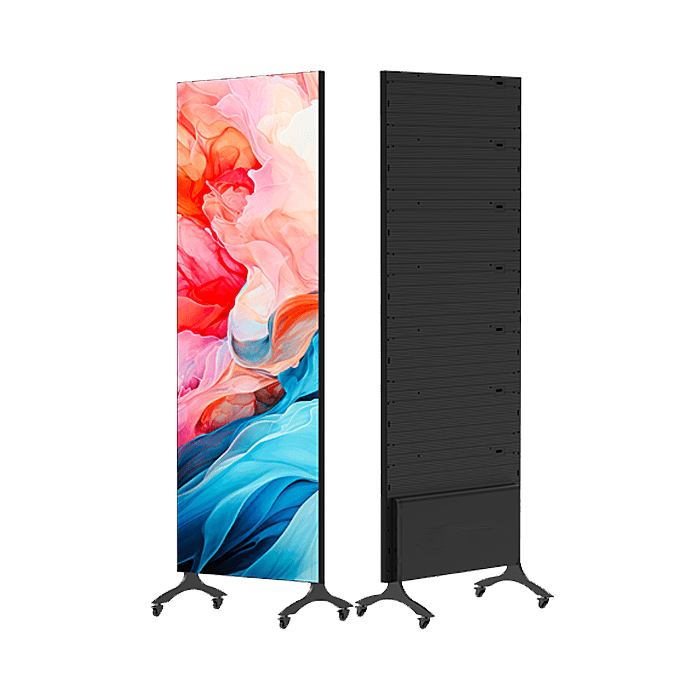

Single Side LED Poster IH-T3 Series
Explore the single side LED poster - IH-T3 series products offered by ReissDisplay! Whether you need single side LED poster for advertising, events, or indoor displays, the IH-T3 series offers the perfect solution.

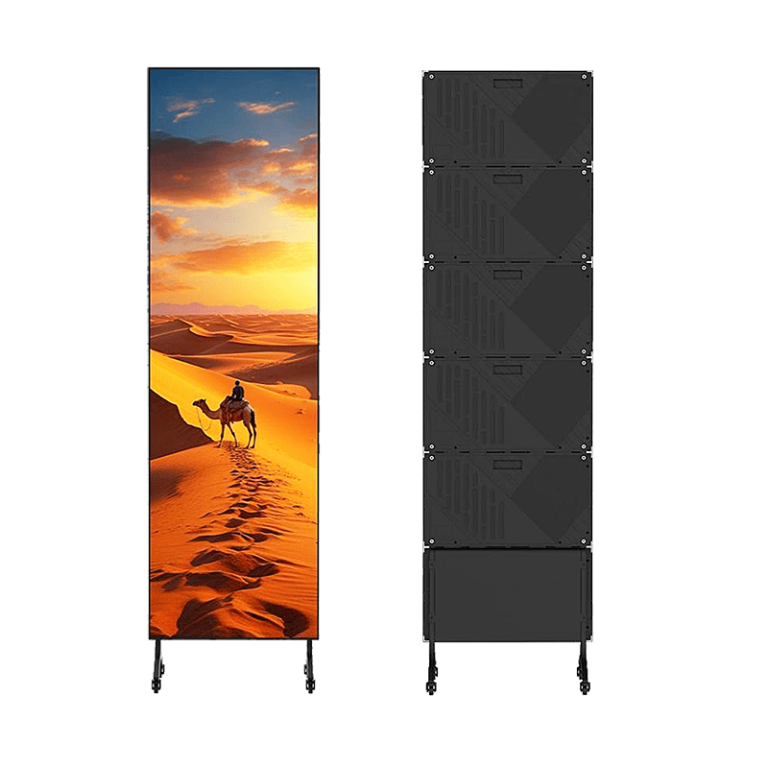

Single Side Poster IH-X3 Series
ReissDisplay Single Side Poster - IH-X3 Series LED screens are used in various places, such as auditoriums, hotels, exhibition rooms, public squares, signs, buildings and TV stage backgrounds.
Why Choose IH Series?
Professional-grade commercial LED posters engineered for high-impact indoor advertising and digital signage
Single & Double-Sided Flexibility
Choose IH-T5 double-sided for aisle and corridor dominance, or IH-T3/IH-X3 single-sided for wall and window displays. One platform, multiple form factors — consistent quality across your entire signage network.
Commercial-Grade 24/7 Reliability
Industrial-rated power supplies, fanless passive cooling, and GOB surface protection ensure uninterrupted operation in high-traffic retail and hospitality environments. Built to run continuously without degradation.
Tool-Free Front-Access Maintenance
Magnetic front panel removal enables module-level servicing in seconds without removing the display from its mount. Critical for ceiling-suspended IH-T5 units where rear access is impossible.

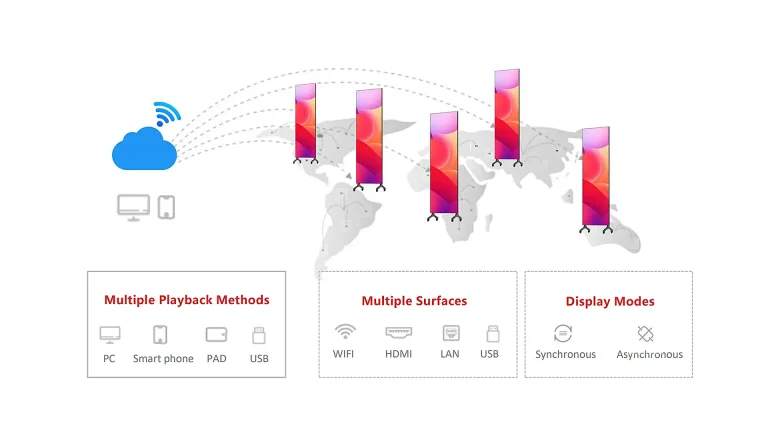

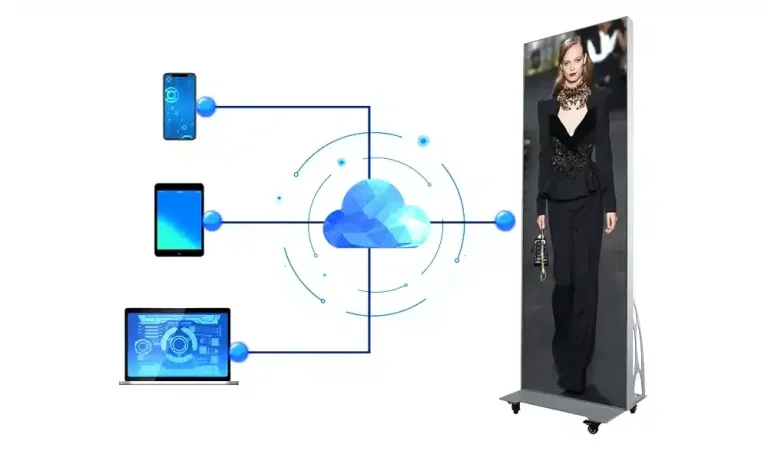

Cloud CMS with Intelligent Scheduling
Manage content across hundreds of IH displays from a single dashboard. Daypart scheduling automatically switches promos from breakfast to lunch to dinner menus. Real-time health monitoring flags issues before they impact customers.
Auto-Brightness & Smart Power Saving
Built-in ambient light sensor adjusts brightness from 150 to 1500 nits automatically. Scheduled power on/off reduces energy consumption by up to 40% during off-hours without manual intervention.
Slim Profile, Premium Aesthetic
Aluminum alloy frame under 45mm thick with edge-to-edge glass front. Available in silver, black, and white finishes to complement retail interiors, hotel lobbies, and corporate banking environments.
Commercial-Grade Engineering
Every IH Series display is purpose-built for reliable, low-maintenance commercial operation
GOB-Protected LED Display Module
SMD LED configuration with Glue-on-Board surface protection. Resists dust, moisture, impact, and ESD in customer-facing environments. Available across all IH models — T5, B, T3, and X3.
Integrated Android Media System
Android 12 platform with 4GB RAM and 64GB storage. Native 4K playback, HTML5 widget support, and API connectivity for POS integration. Wi-Fi 6, Ethernet, and optional 4G/LTE for always-on connectivity.
Quick-Release Mounting System
VESA-compatible quick-release plates across all IH models. Swap displays in under 30 seconds — no tools needed. Ceiling suspension (IH-T5), floor stand, and wall-mount brackets all share the same interface.
Modular Control & Power Architecture
Hot-swappable power supply and control modules accessible from the front panel. Field-replaceable in minutes without returning the unit for service — maximizing uptime for revenue-critical digital signage networks.

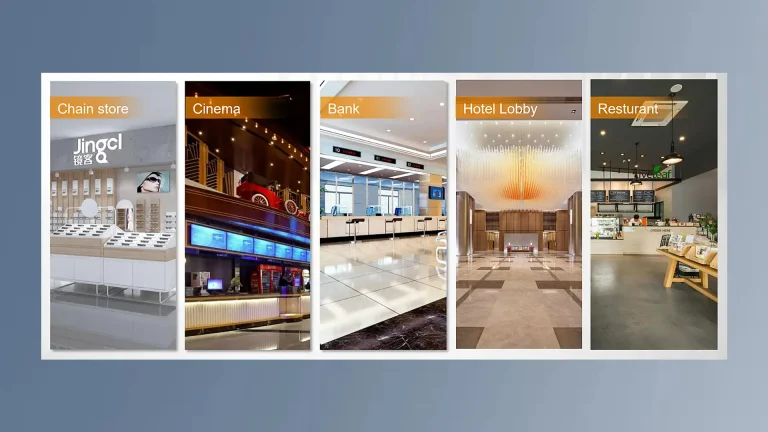

Where IH Series Excels
Deployed by leading retail chains, hotel groups, and financial institutions worldwide for high-impact commercial messaging
Shopping Malls & Retail Chains
IH-T5 double-sided displays suspended above mall corridors capture shopper attention from both flow directions. Centralized CMS updates promotions across hundreds of stores simultaneously.

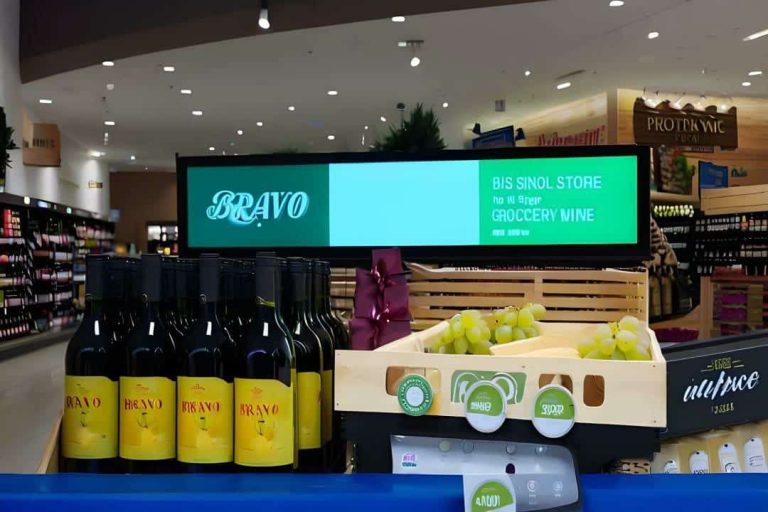

Supermarkets & Grocery Chains
IH-B and IH-T3 displays at aisle ends, deli counters, and checkout lanes drive impulse purchases with dynamic pricing and promotional content synced to POS inventory in real time.
Hotels & Hospitality Venues
IH-X3 displays in lobbies, elevator banks, and conference floors provide wayfinding, event schedules, and amenity promotions. Auto-brightness ensures comfortable viewing day and night without disturbing guest ambiance.
Banks & Financial Institutions
IH-T3 and IH-B displays in branch windows and waiting areas showcase financial products, exchange rates, and queue management. Professional aesthetic with 24/7 reliability for trust-critical environments.
Restaurants & Quick-Service Chains
IH-T3 digital menu boards with daypart scheduling switch from breakfast to lunch to dinner automatically. API integration with POS ensures pricing and availability are always accurate across all locations.
Corporate Campuses & Exhibition Halls
IH Series displays serve as dynamic directory boards, event schedules, and brand storytelling walls. Floor-stand, wall-mount, and ceiling-suspend options adapt to any architectural space.
Technical Specifications
Complete performance parameters for the full IH Series lineup
| Parameter | IH-T5 P1.8 | IH-T5 P2.5 | IH-B P1.8 | IH-T3 P2.0 | IH-X3 P2.5 |
|---|---|---|---|---|---|
| Form Factor | Double-Sided Poster | Double-Sided Poster | Single-Sided Poster | Single-Sided Pro | Single-Sided Value |
| Pixel Pitch | 1.875mm | 2.5mm | 1.875mm | 2.0mm | 2.5mm |
| LED Type | SMD 1515 | SMD 2121 | SMD 1515 | SMD 2121 | SMD 2121 |
| Display Sides | 2 (Front + Rear) | 2 (Front + Rear) | 1 | 1 | 1 |
| Brightness | 800 nits (per side) | 1000 nits (per side) | 800 nits | 1000 nits | 1500 nits |
| Resolution (WxH) | 1080×1920 | 1080×1920 | 1080×1920 | 1080×1920 | 1080×1920 |
| Refresh Rate | >=3840 Hz | >=1920 Hz | >=3840 Hz | >=1920 Hz | >=1920 Hz |
| Contrast Ratio | 5000:1 | 4000:1 | 5000:1 | 4000:1 | 4000:1 |
| Viewing Angle | 178/178 | 160/160 | 178/178 | 160/160 | 140/140 |
| Cabinet Thickness | 45mm | 45mm | 38mm | 42mm | 48mm |
| Weight | 28 kg | 32 kg | 22 kg | 25 kg | 30 kg |
| Surface Protection | GOB Coating | GOB Coating | GOB Coating | GOB Coating | Standard |
| Media Player | Android 12 | Android 12 | Android 12 | Android 12 | Android 12 |
| Connectivity | Wi-Fi 6/LAN/4G | Wi-Fi 6/LAN/4G | Wi-Fi 6/LAN | Wi-Fi 6/LAN | Wi-Fi/LAN |
| Auto-Brightness | Yes | Yes | Yes | Yes | No |
| Max Power | 350W | 400W | 250W | 300W | 350W |
| Avg Power | 120W | 140W | 85W | 100W | 120W |
| Mounting Options | Ceiling/Floor | Ceiling/Floor | Floor/Wall | Floor/Wall | Floor |
| Maintenance | Front-Access | Front-Access | Front-Access | Front-Access | Rear-Access |
| Frame Material | 6063 Aluminum Alloy – CNC machined, anodized (silver/black/white) | ||||
| Content Management | Cloud CMS — playlist scheduling, multi-device management, real-time monitoring, API integration | ||||
| Power Saving | Scheduled on/off + auto-brightness | Scheduled on/off | |||
| Operating Temp | -10C to +45C | ||||
| Lifespan | >=100,000 hours (50% brightness) | ||||
| Warranty | 2-year standard (optional extension to 5 years) | ||||
