RTF Series — Rental Transparent LED Displays
Lightweight transparent LED for touring productions | See-through visuals that preserve sightlines while delivering stunning content
Products in this Series
Transparent Rental LED Display Screen RTF-RX Series
Discover the benefits of rental transparent screens for events and installations, combining technology with stunning design.
Why Choose RTF Series?
Transparent LED that tours — lightweight enough for arena rigging, transparent enough to preserve venue sightlines, and tough enough for the road
Ultra-Light Transparent Touring Design
At just 5 kg/m², RTF-RX panels are 50%+ lighter than conventional rental LED. Rig more panels on existing truss, reduce ballast requirements, and save on truck space — all while delivering a unique transparent visual effect.
50–65% Transparency Preserves Sightlines
Transparent LED allows audiences to see through the display to performers, scenic elements, and venue architecture behind. Content appears to float in space — a visual effect impossible with solid LED walls.
Single-Person Setup & Strike
5 kg panels with integrated quick-lock enable true single-person handling. A 20m² transparent wall deploys in under 10 minutes. Less crew, less truck, less cost — more creative possibilities per budget.
Curved Transparent Configurations
±15° per-panel curve locking enables concave and convex transparent displays. Wrap performers in floating content that follows the stage architecture without blocking audience views.
Rigging-Friendly Lightweight Design
5 kg/m² panel weight dramatically reduces rigging point loads. Hang transparent displays where solid LED walls would require structural reinforcement — creative freedom without engineering constraints.
Custom Flight Cases for Transparent Panels
Slim-profile road cases designed specifically for transparent panel geometry. 12+ panels per case with protective dividers. Ultra-light cases match the ultra-light panels for maximum truck efficiency.
Transparent Rental Engineering
Every RTF panel is designed to be light, fast, and reliable — the rental trifecta

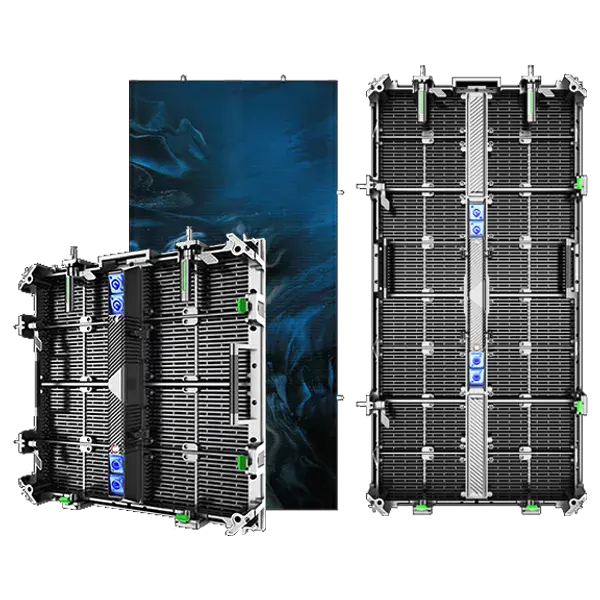

Transparent LED Grid Panel
SMD LEDs mounted on ultra-thin PCB strips with 50–65% open area. Aluminum alloy frame with integrated quick-lock connectors. Standard 500×500mm or 1000×500mm panel sizes.
Lightweight Quick-Lock Frame
Extruded aluminum frame with carbon-fiber reinforced polymer corner connectors. Total panel weight 5 kg. Integrated power/data pass-through — one connection links everything.
Transparent-Optimized Power Distribution
48V DC power distribution with slim-profile cables that minimize visual obstruction. Daisy-chain topology reduces cable count — fewer visible wires through the transparent display.
Slim Road Case System
Custom flight cases with ultra-slim profile (200mm per case). 12+ panels per case vs 6–8 for solid LED. More panels per truck = lower transport cost per square meter.
Where RTF Series Excels
Creating floating visual magic for the world's most innovative touring productions and live events

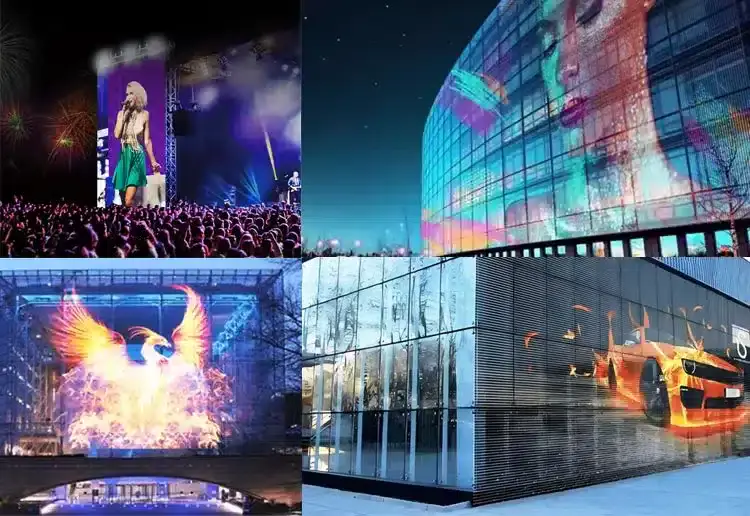

Concert Tour Backdrops
RTF transparent backdrops create layered visual depth — performers visible through floating content. The signature look that differentiates headline tours from standard LED wall productions.
TV Studio & Broadcast Set Design
Transparent LED integrated into broadcast set design creates depth and dimension on camera. Content appears to float in space while cameras shoot through the display to talent and scenic elements.
Award Shows & Special Events
RTF curtains and scenic elements create magical reveal moments — content materializes from transparent to solid as performers emerge through the display. Unforgettable theatrical entrance effects.
Corporate Event Stage Design
Transparent LED behind executive presenters allows audiences to see the speaker while key messages and visuals float around them. The premium production value that elevates Fortune 500 events.
Fashion Shows & Creative Productions
RTF transparent runways and backdrops create immersive fashion presentation environments. Models walk through floating content — the LED enhances rather than obstructs the fashion.
Festival & Outdoor Event Stages
Transparent LED on outdoor festival stages preserves views of pyrotechnics, lighting, and venue architecture behind the display. The lightweight design survives outdoor wind loads that challenge solid walls.
Technical Specifications
Complete performance parameters for RTF-RX Rental Transparent LED
| Parameter | RTF-RX P3.9 | RTF-RX P5.2 | RTF-RX P6.2 | RTF-RX P7.8 |
|---|---|---|---|---|
| Panel Material — Extruded aluminum + carbon-fiber reinforced polymer corners, 5 kg/m² weight | ||||
| Transparency — 50–65% open area (pitch-dependent), see-through to performers/scenery | ||||
| Curve — ±15° per panel locking detents | ||||
| Flight Cases — Ultra-slim 200mm profile, 12+ panels per case, lightweight construction | ||||
| Rigging — Integrated M8 points, 5 kg/m² point load (1/3 of solid LED equivalent) | ||||
| Power/Data — 48V DC distribution, daisy-chain topology, slim-profile cabling | ||||
| Operating Temp — 0°C to +40°C (indoor); -10°C to +40°C (covered outdoor) | ||||
| Warranty — 2-year standard (optional extension to 5 years) | ||||
