The kinetic LED matrix wave screen enhances the viewing experience by adding dynamic motion to the content, providing a three-dimensional and lifelike interactive experience.
A Standalone Art Installation

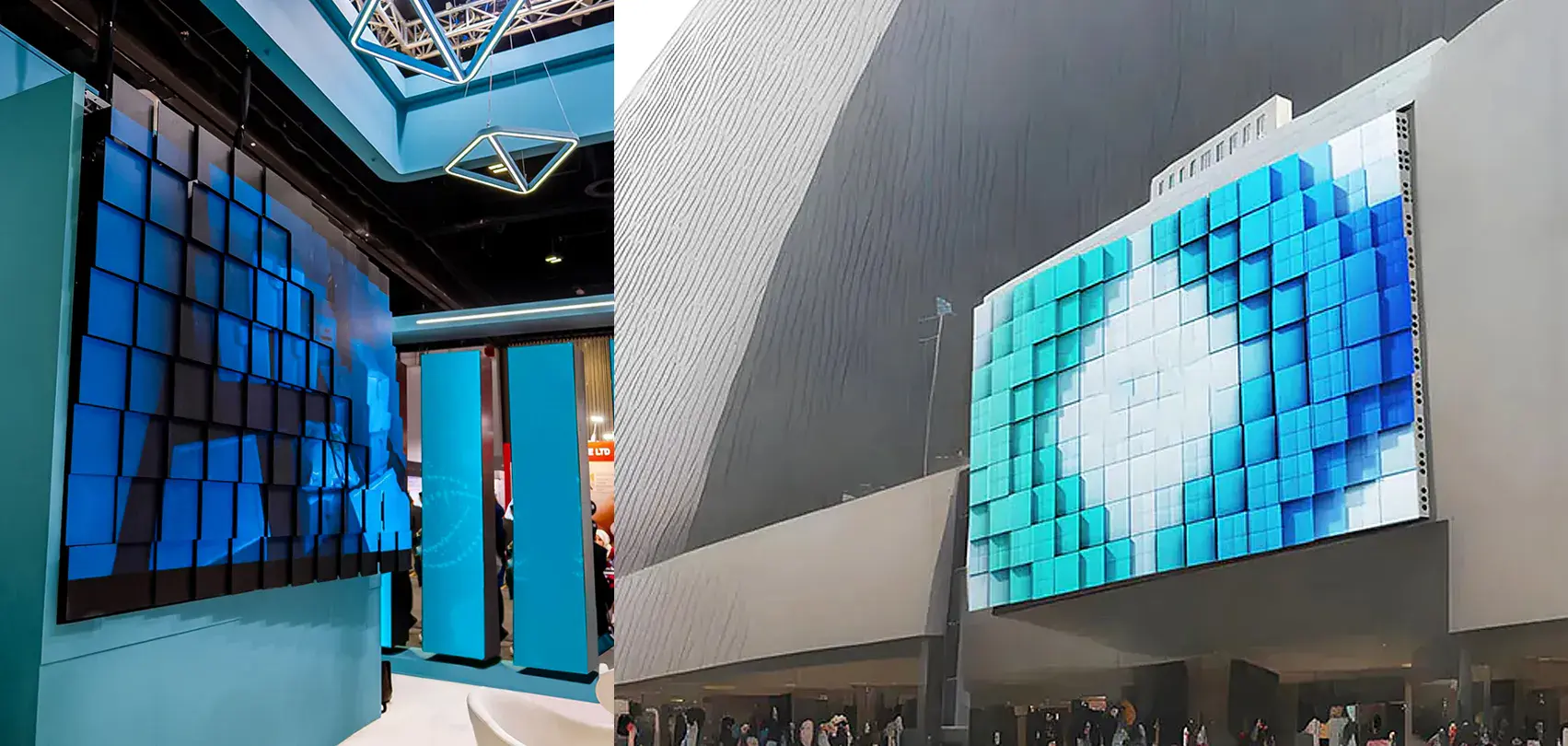

The kinetic LED matrix wave screen, blending movement, content, and sound, is a true work of art. Whether in lobbies, museums, airports, or large shopping malls, it captivates audiences with its immersive experience, perfectly combining technology and art.
A New Form of Advertising
Dynamic LED media art surpasses the performance limits of traditional digital displays, presenting visual effects previously unimaginable. With this eye-catching presentation, space owners can create premium 3D advertising spaces, maximizing advertising revenue. The dynamic screen provides a unique platform for dynamic advertising.
Mechanical Kinetic LED Matrix Wave Screen, Dynamic, Customizable Digital Display Solution
The FR-KM Series advanced custom kinetic LED matrix wave screen system comprises hundreds of modular LED units, capable of controlling up to 5,000 individual display elements. Each unit is equipped with an independent sliding mechanism, allowing it to move back and forth precisely in sync with the video content, creating dynamic 3D visual effects. This system provides users with unparalleled creative freedom, enabling them to design and present breathtaking, highly immersive visual displays, while offering limitless artistic possibilities.

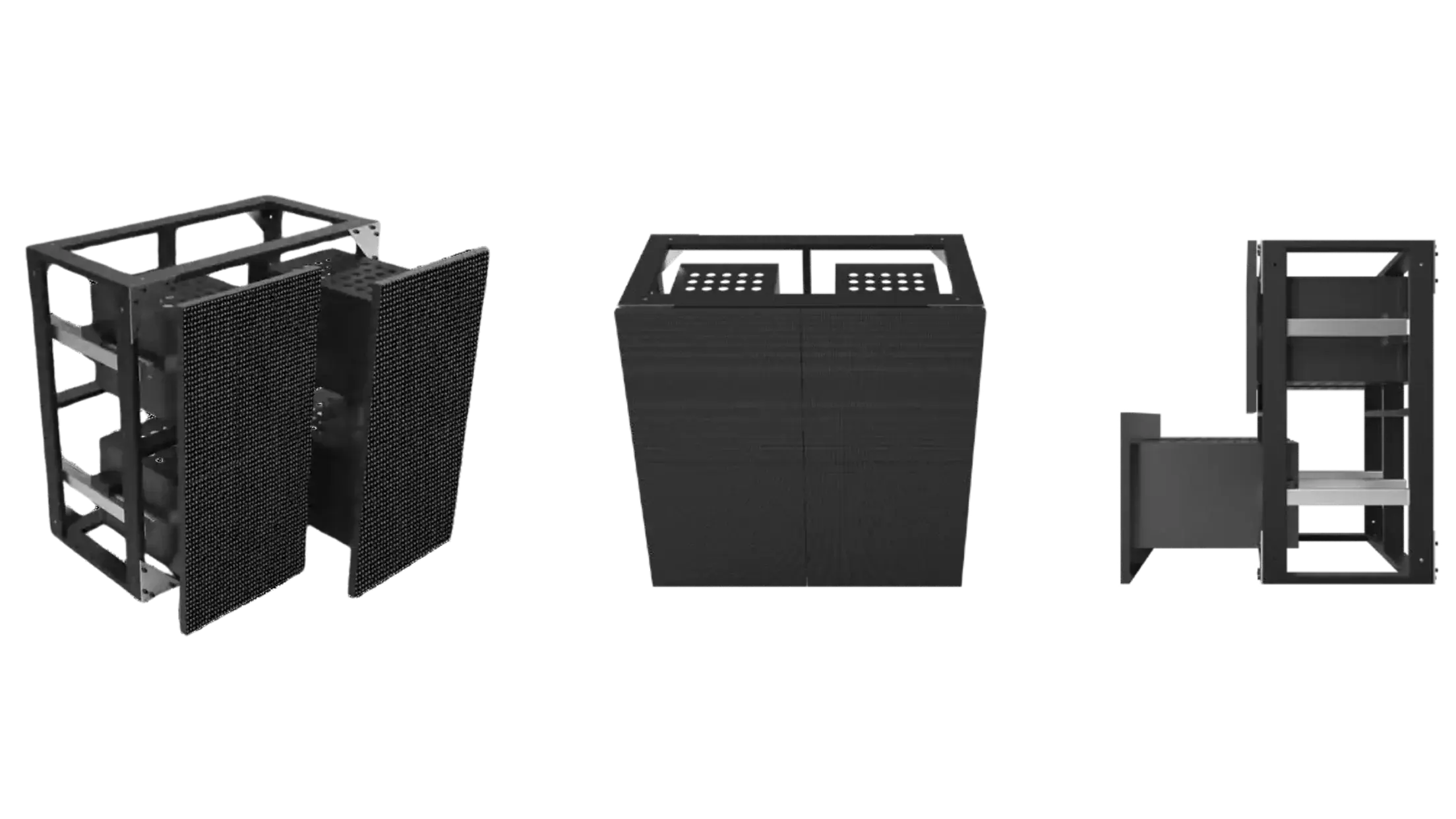

3D Dynamic Screen, Die-Cast Aluminum Housing Design
Quick-install and remove die-cast aluminum housing, suitable for exhibitions, events, and rentals.

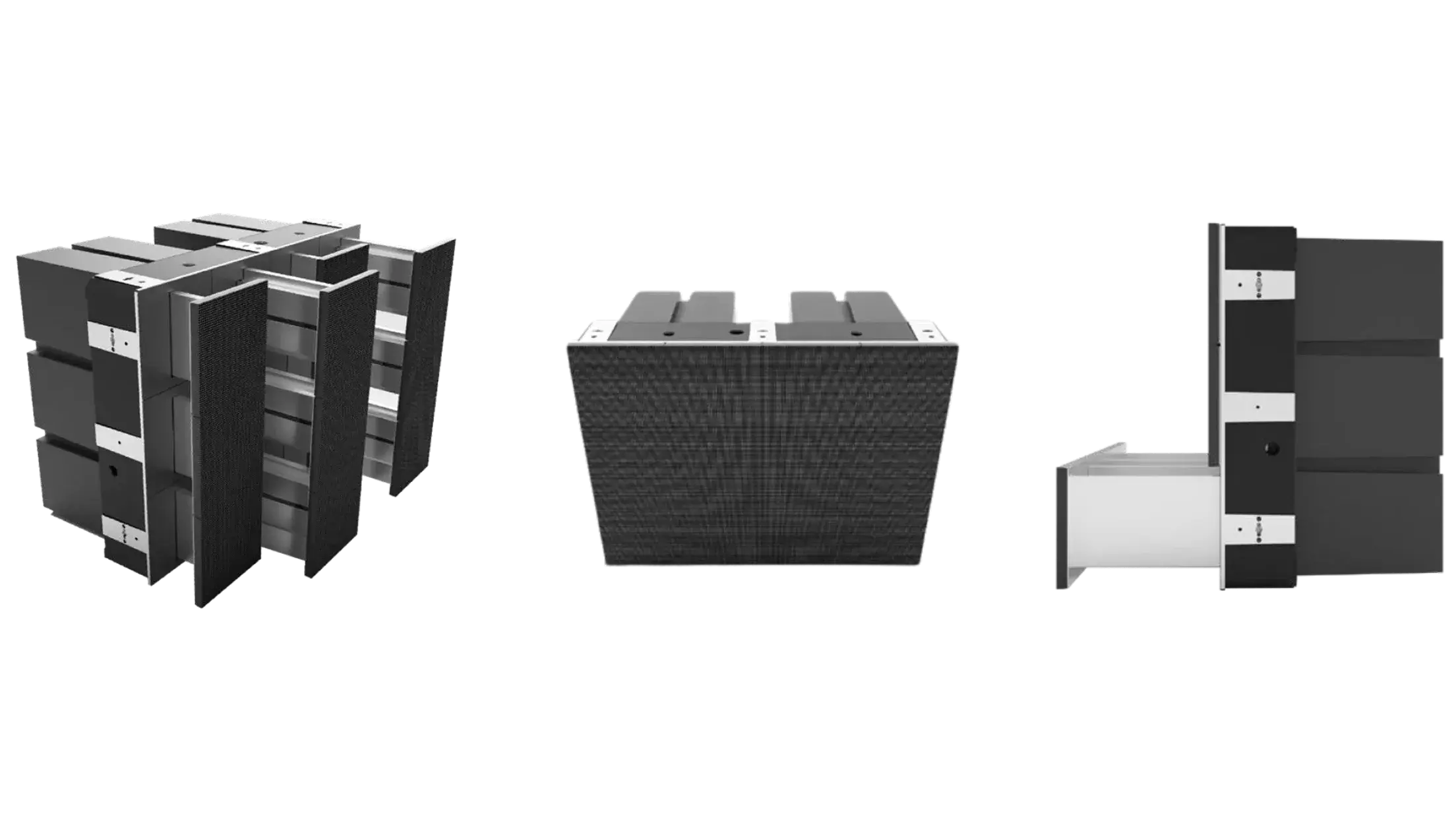

Indoor Iron Cabinet

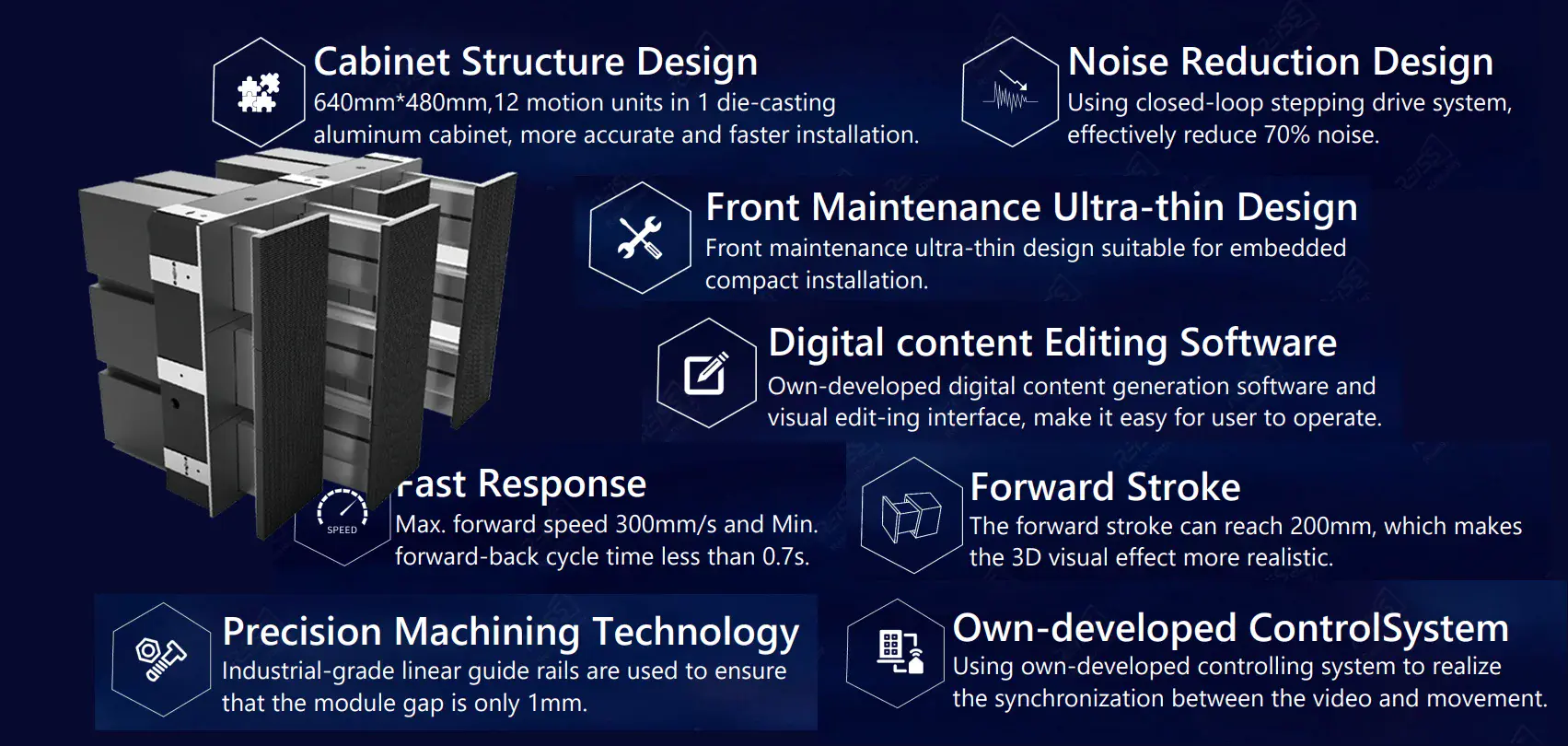

High-precision machining technology
High-quality industrial-grade linear guides maintain a precise 0.5mm module clearance.
Extended forward motion
300mm of forward travel enables our system to produce a more immersive and realistic 3D visual experience.
Die-Cut Aluminum Sheet (Suitable for Rental)
High-Precision Machining Technology
High-quality industrial-grade linear guides maintain a precise 1mm module clearance.
Extended Forward Motion
200mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.

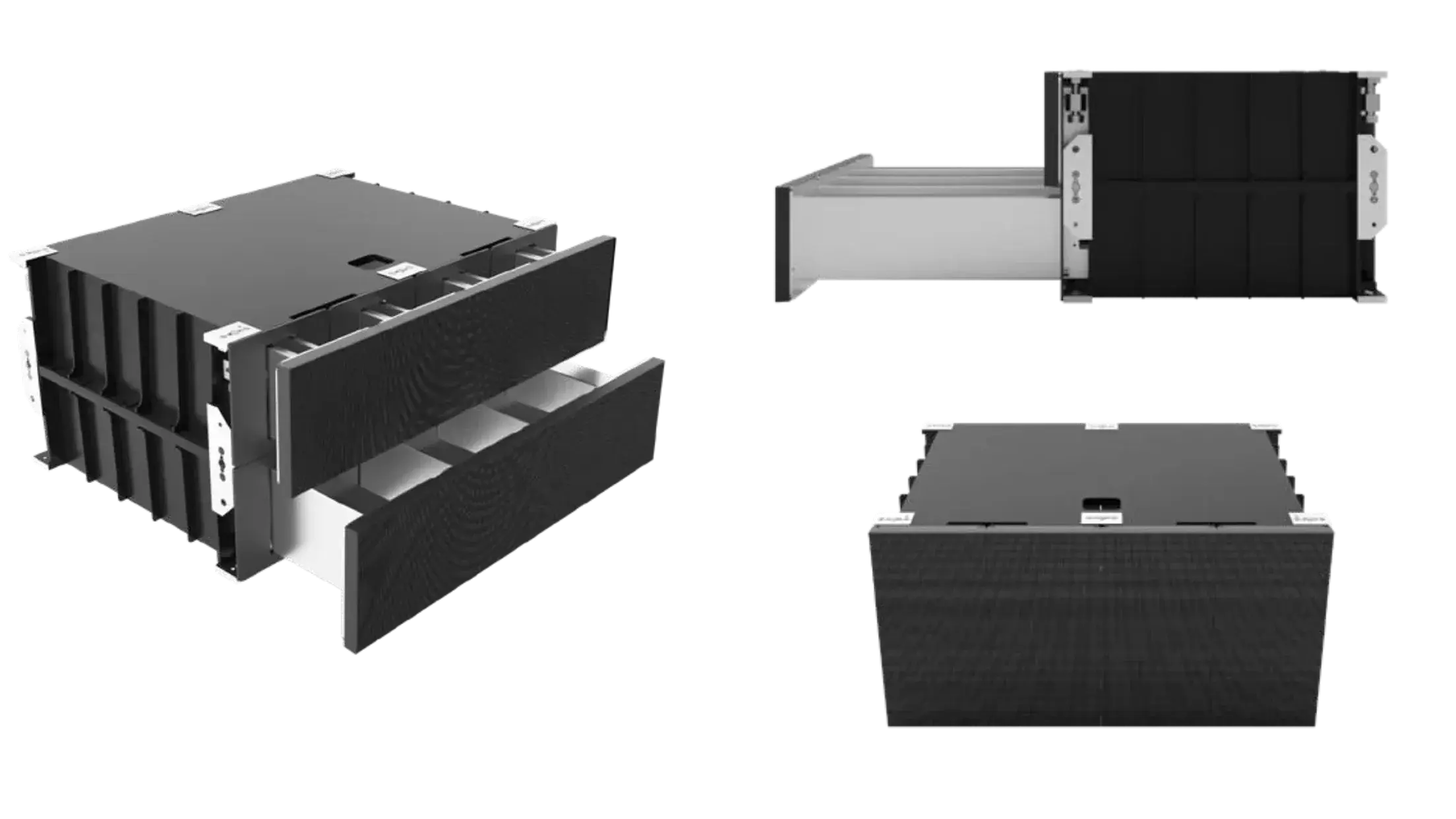

Structural Cabinet (Indoor)
High-Precision Machining Technology
300mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.
Extended Forward Motion
300mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.
Structural Cabinet (Outdoor)
High-Precision Machining Technology
High-quality industrial-grade linear guides maintain a precise 5mm module clearance.
Extended Forward Motion
A 600mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.

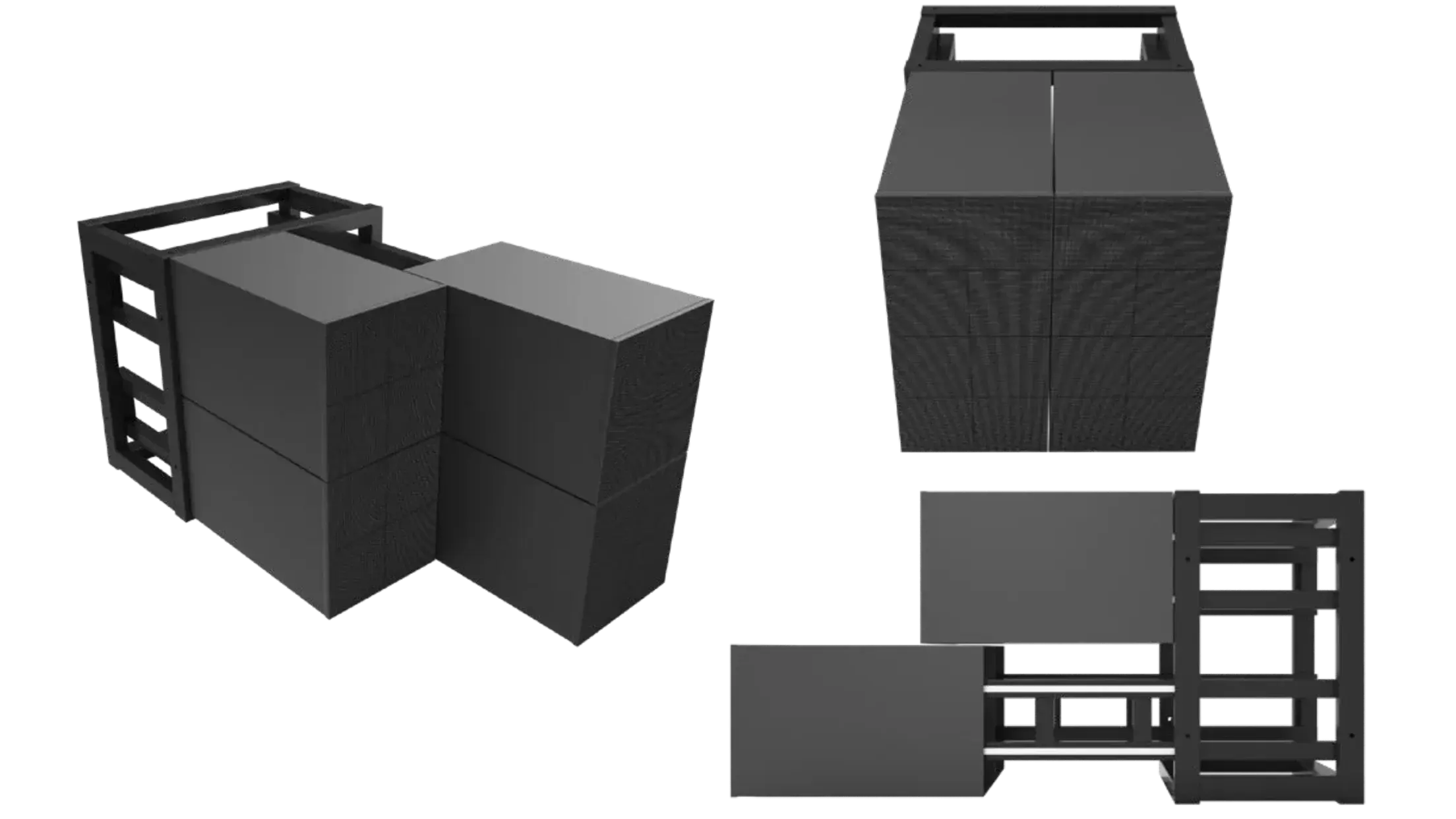

Cabinet Movement

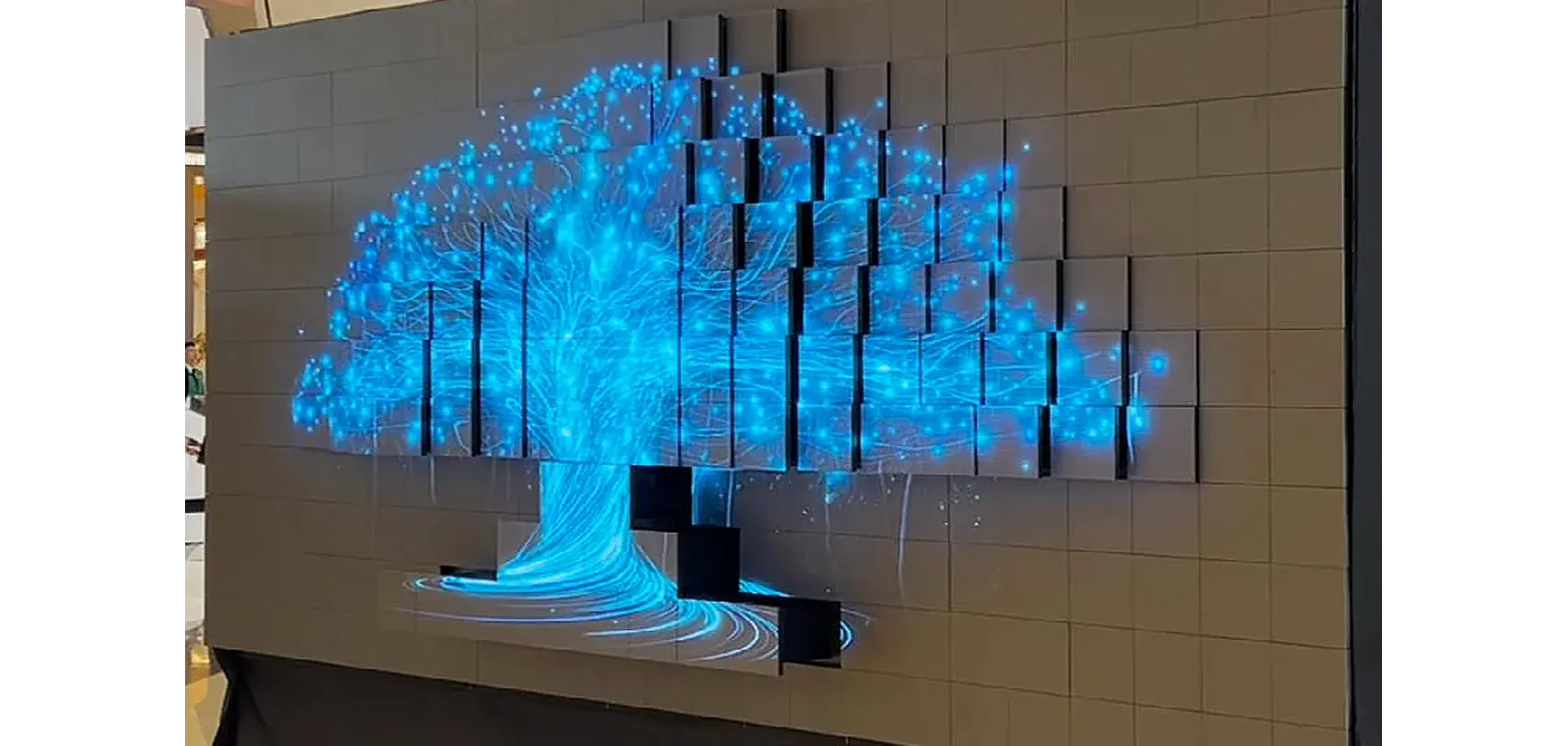

Each cabinet can slide forward and backward sequentially according to the video content. Any creative design can be perfectly presented through the dynamic LED matrix screen, delivering a superior 3D visual effect.
Slim and Space-saving Design

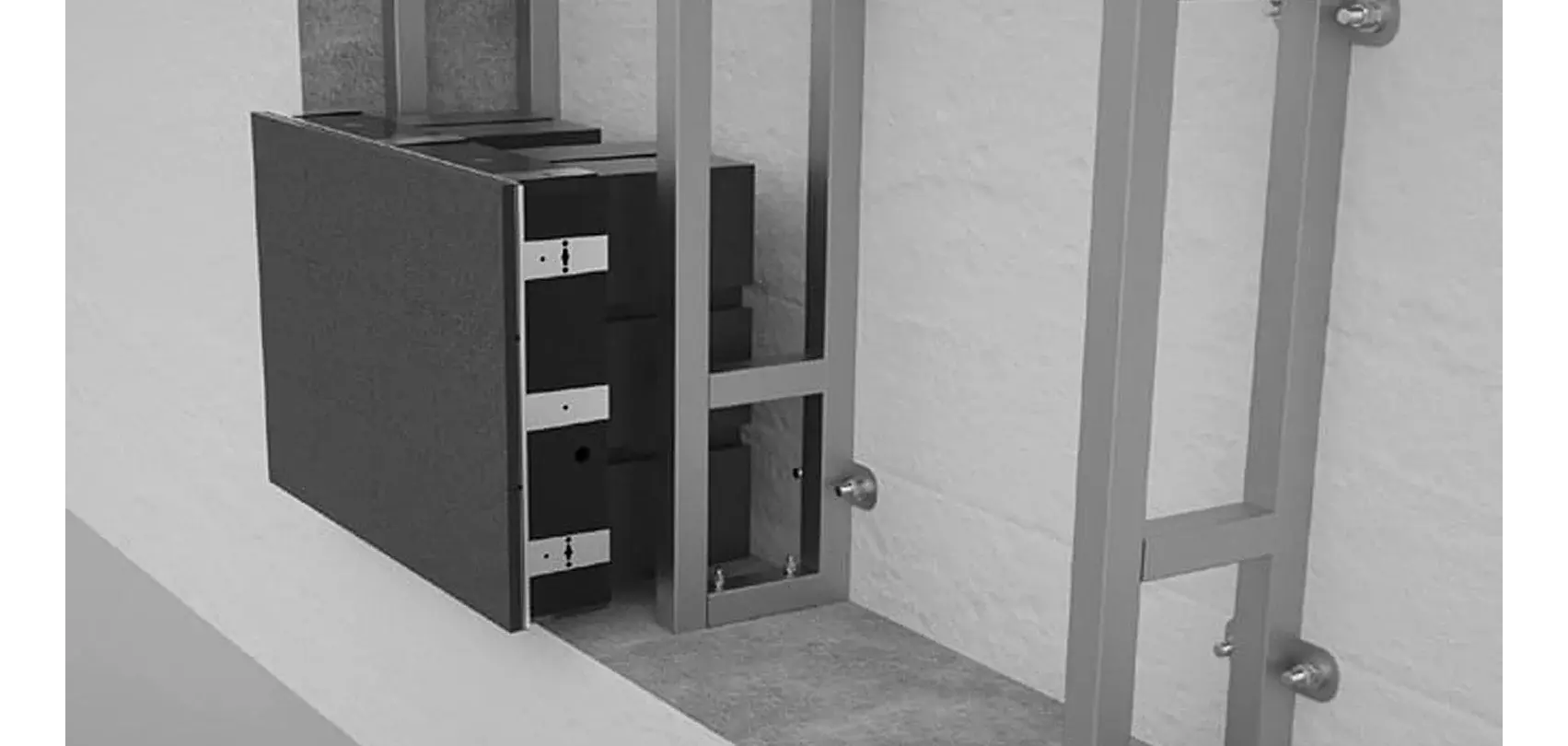

The ultra-thin dynamic LED display is only 32 cm thick and features recessed installation, saving valuable floor space in both indoor and outdoor environments.

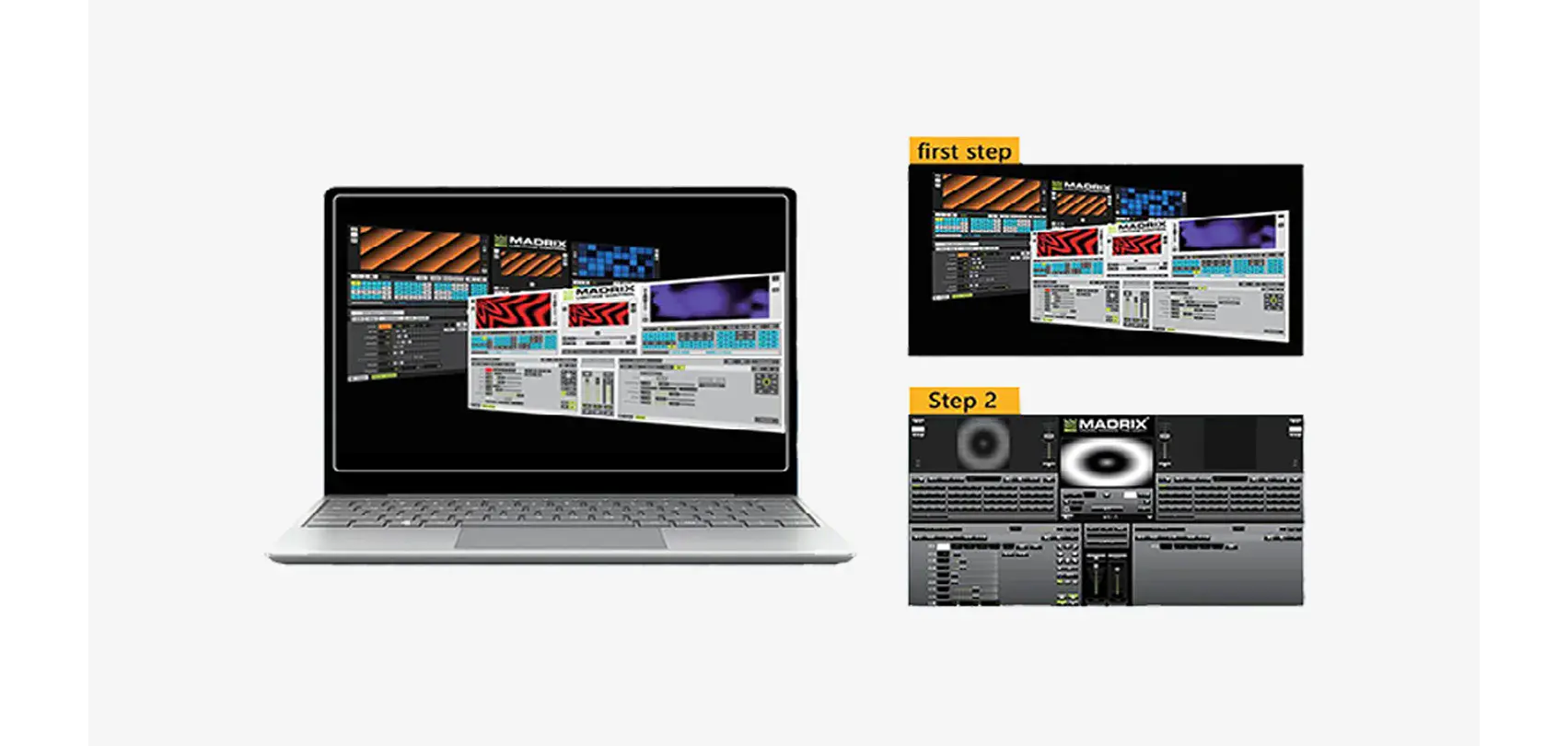

Advanced Control System for Real-time Updates
Equipped with an advanced control system, this display enables real-time updates and diverse content display, ensuring your information is always up-to-date and adaptable to various needs.

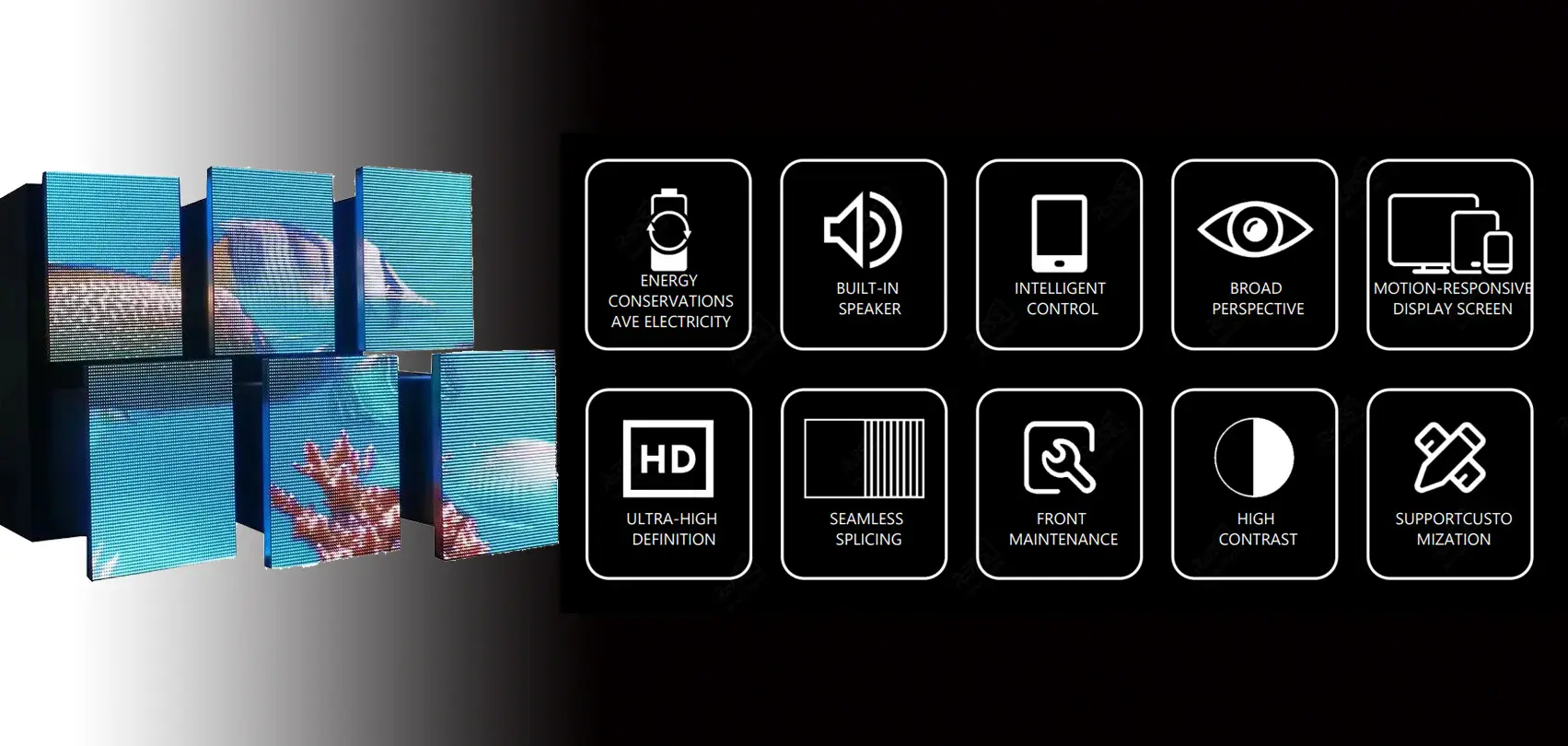

Superior Static and Dynamic Image Quality, Minimal Gaps, Ultra-Clear Image Quality
Through precise synchronization, these units deliver smooth 3D dynamic images when in motion and clear, complete images when stationary. This innovative combination of motion and stillness provides a novel and captivating viewing experience.
Module gaps ≤1mm; a precise sliding structure and minimal screen spacing effectively prevent image fragmentation, presenting more complete and clearer content.

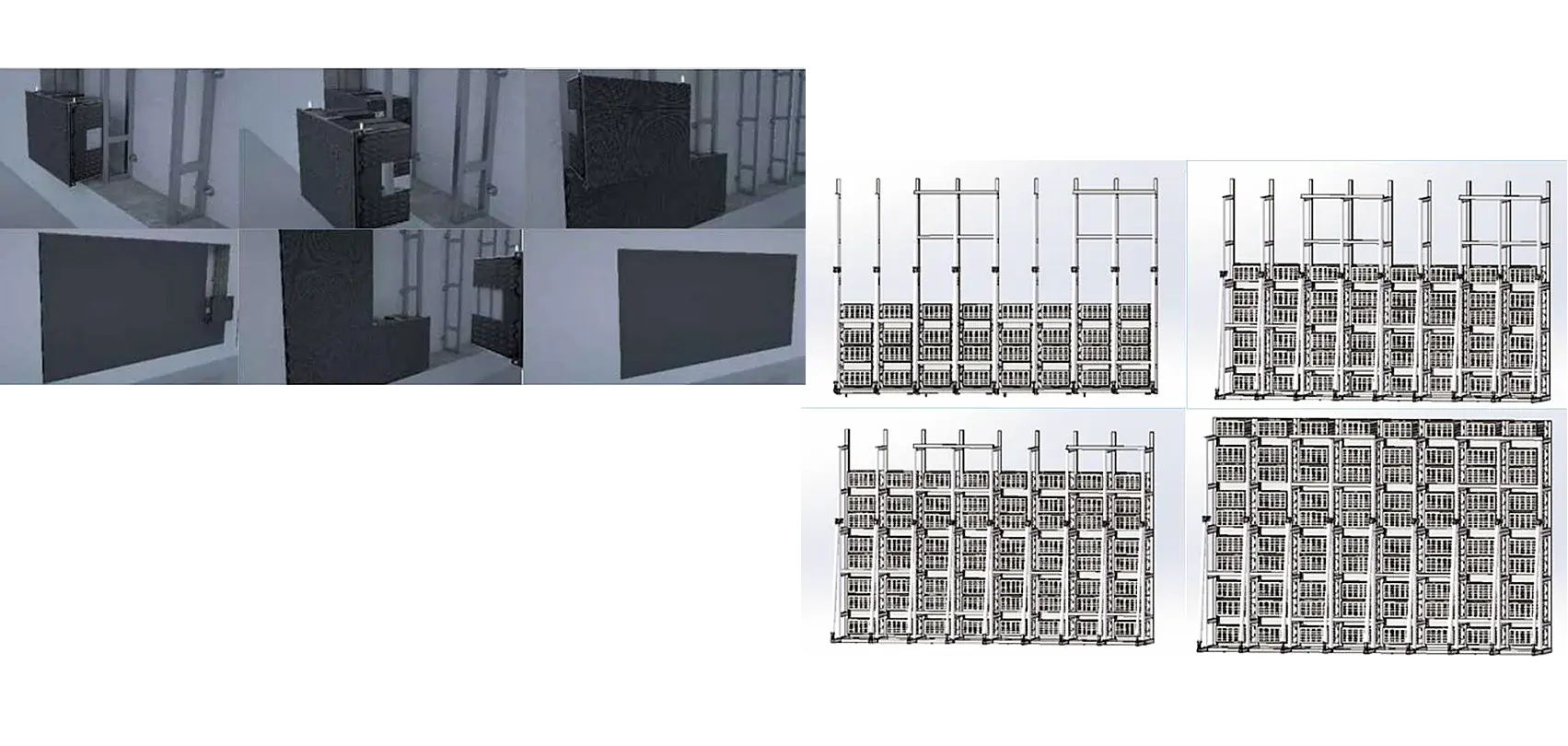

2 Type Installation
Fixed Kinetic LED matrix screenRental Kinetic LED matrix screen
Application Cases
Application and Installation Videos
Specifications
| Application | Indoor | Outdoor | |||
| Model | 160x160mm | 250x250mm | 495x495mm | ||
| Pixel Pitch | 1.98mm | 1.5625mm | 1.94mm | 2.604mm | 10mm |
| LED Module Dimension(WxH) | 160 × 160mm | 248.5 x 248.5 mm | 495×245 mm | ||
| Gap between Units | 1 (0.5～1.5) mm | 1.5 (1.0~2.0) mm | 5(3.5～6.5) mm | ||
| Motion Unit Dimension(WxH) | 160×160mm (0.0256m²) | 248.5 x 248.5mm (0.0618m²) | 495×495 (0.25m²) | ||
| Resolution of Unit | 80×80 | 160×160 | 128×128 | 96×96 | 48×48 |
| Cabinet Dimension(Motion Units Qty) | 640×480mm (4×3) | 500x500mm (2×2) | 1000×1000mm (2×2) | ||
| Cabinet Thickness (Standby mode) | 320mm | 320mm | 1400mm | ||
| Max. Forward Stroke | 200mm | 200mm | 600mm | ||
| Max. Forward Speed | 300mm/s | 500mm/s | 800mm/s | ||
| Min. Forward-back Cycle Time | ＜0.7s | 0.5s | ＜1.5s | ||
| Motion Qty per Sqm | 39 | 16 | 4 | ||
| Weight per Sqm | 80Kg/m² | 52Kg/m² | 180Kg/m² | ||
| Max. Power Capacity | 900W/m² | 720W/m² | 1,500W/m² | ||
| Power Supply Requirement | ≤3KW:220V Single phase | ≤3KW:220V Single phase | ≤3KW:220V Single phase | ||
| ≥3KW:380V Three phases/Five wires | ≥3KW:380V Three phases/Five wires | ≥3KW:380V Three phases/Five wires | |||
| Screen Brightness | ≥700 nits | ≥600 nits | ≥7,000 nits | ||
| Ambient Temperature | 0～40℃ | 0～40℃ | -10～60℃ | ||
| IP Rating | IP40 | IP40 | IP65 | ||
| Environmental Attentions | Indoor use, no corrosive gases, no flammable gases, no oil mist and dust | Indoor use, no corrosive gases, no flammable gases, no oil mist and dust | Outdoor use | ||
| Heat Dissipation | Open self-cooling (with fan cooling) | Open self-cooling (with fan cooling) | Semi-closed Self-cooling (with fan cooling) | ||
