The IH-X3 series single-sided poster LED display supports multiple signal inputs, allowing connection to a variety of devices, including computers, smartphones, and tablets, ensuring compatibility with diverse content formats and signal sources for your convenience.
The IH-X3 series LED poster displays can be assembled to create larger displays. Because each LED poster has a narrow bezel, they can be seamlessly joined together, ensuring uninterrupted image quality on the larger screen. This method, also known as cascading or split-screen mode, allows the same video content to be split and displayed simultaneously on two or more poster screens.

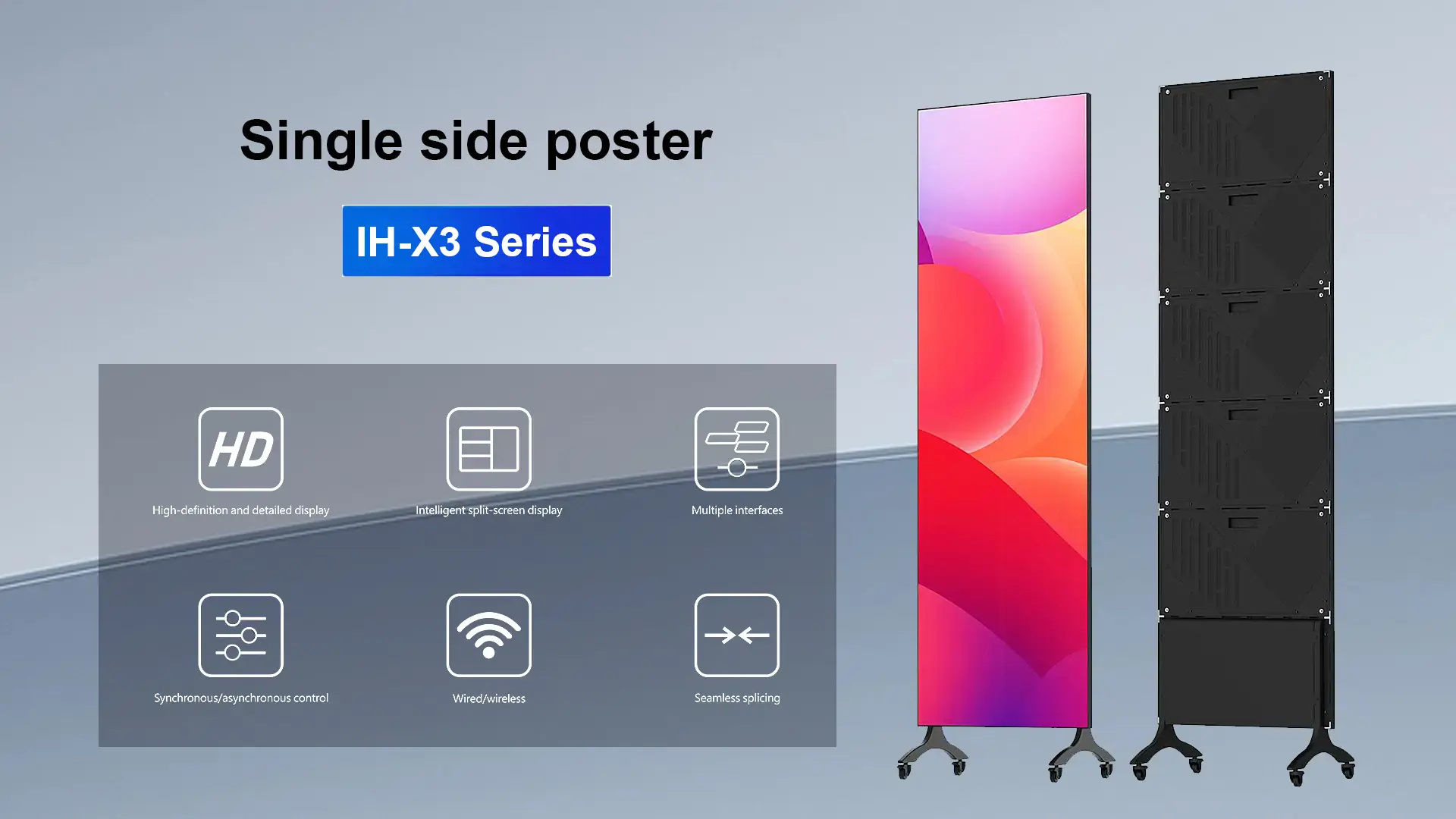

IH-X3 Series LED Display Poster Screen
The Single-Side Poster – IH-X3 Series can be placed on the floor or mounted on the wall. It can be easily controlled via various modes including USB, Wi-Fi, 4G, app, and HDMI.
– Ultra Slim and Lightweight Design
– Multiple Control Modes
– Intelligent Split Display Window
– Intelligent Cluster Management and Control
– Multi-screen Seamless Splicing
– Various Types of Installation

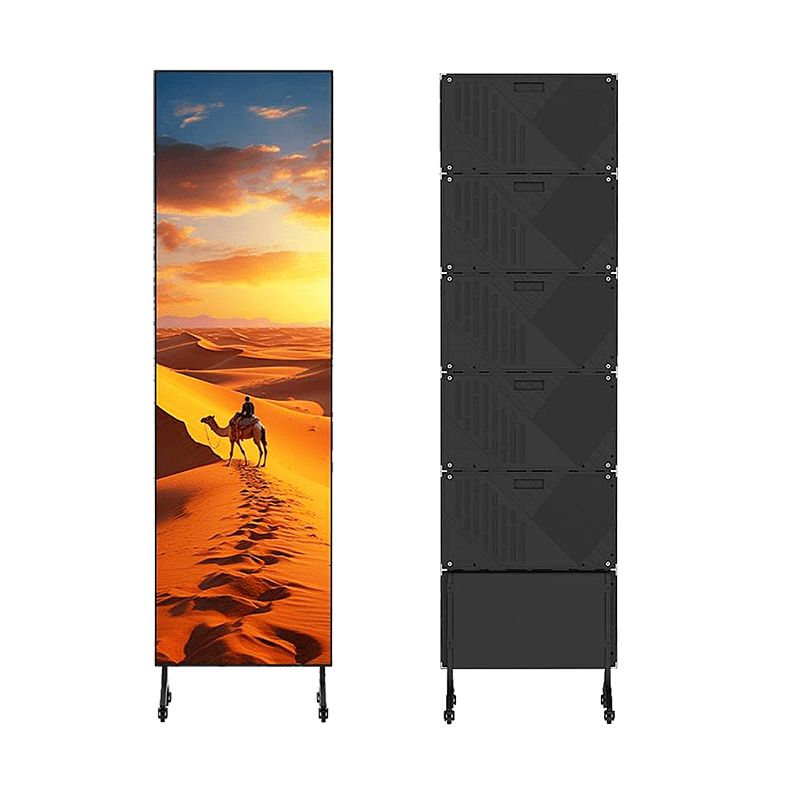

IH-X3 Series LED Poster

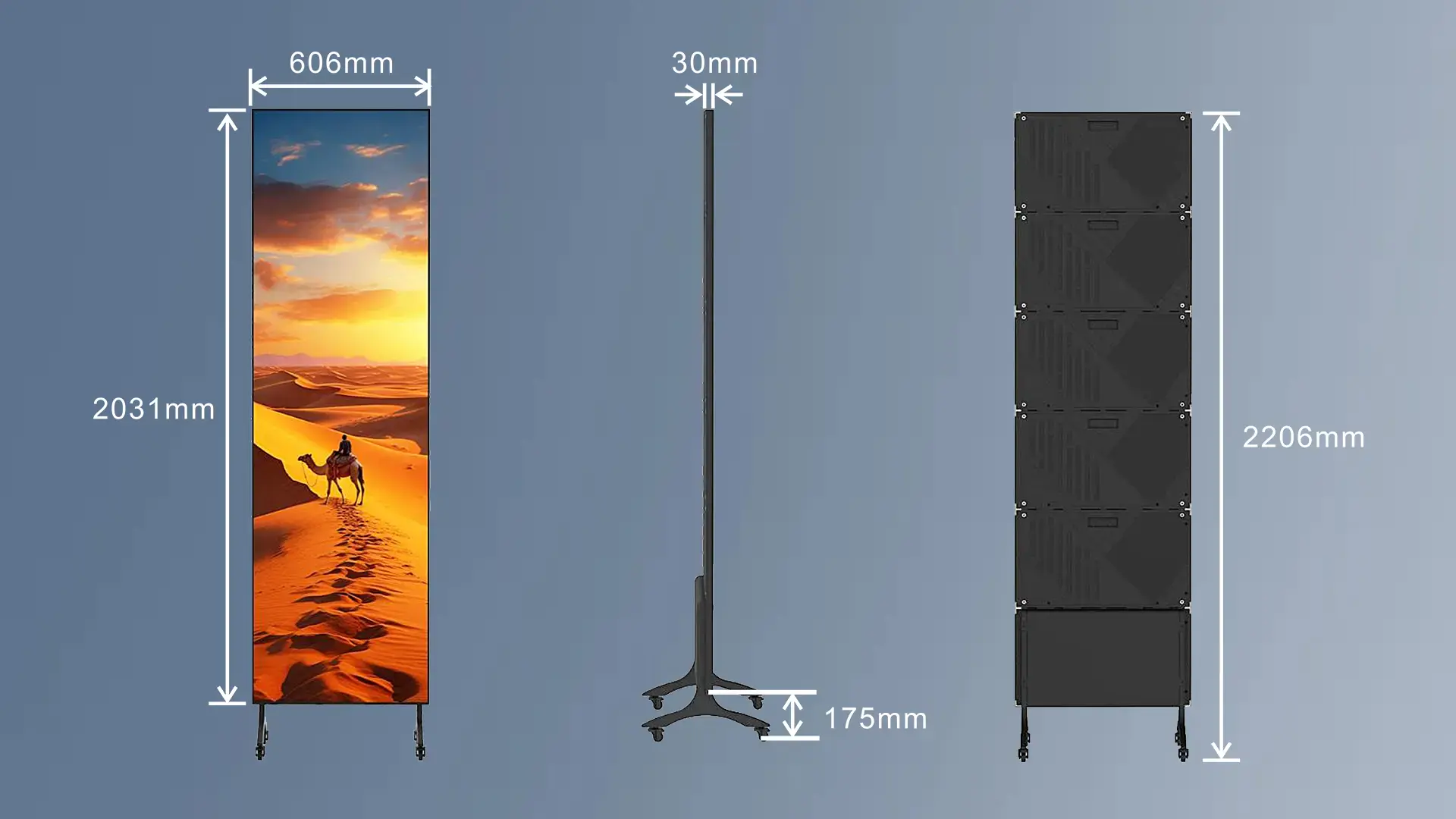

The screen size of the IH-X3 series high-definition LED display poster is 606*2206mm. The base height is 175mm.
Stylish and simple cabinet, simple and convenient control method, high-definition, and delicate display effect.

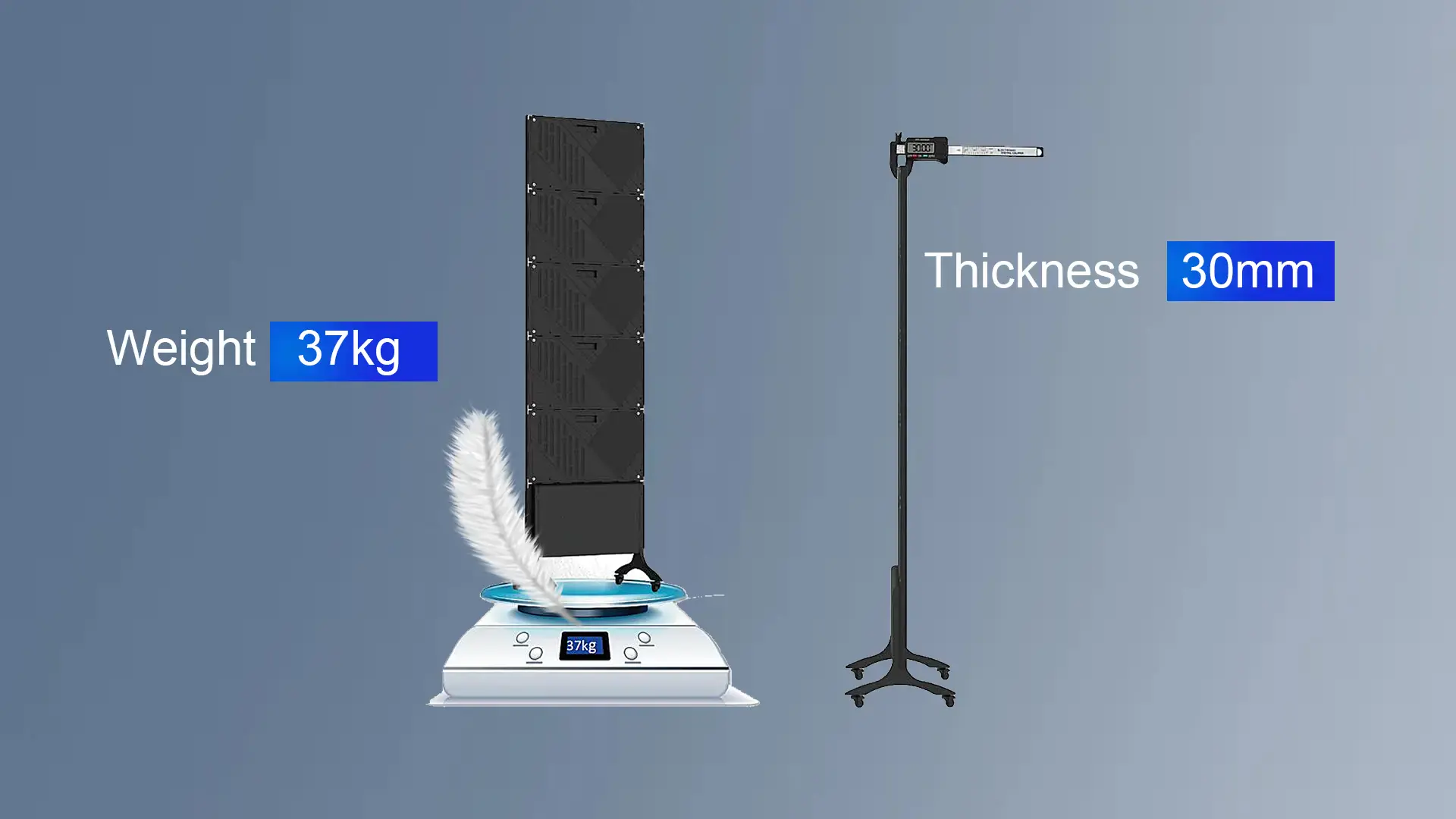

Thin & Lightweight Cabinet
The cabinet design is both thin and lightweight, weighing only 37kg with a thickness of 30mm. Additionally, the base is equipped with wheels, allowing for easy mobility and repositioning.
Wide Color Gamut
Professional color management techniques, rich color layers and more natural color transitions.
High Brightness and High Gray
High brightness, high grayscale, high refresh rate, no scanning line for taking photos.
170° Super Wide Viewing Angle
Perfect performance from different viewing angle.

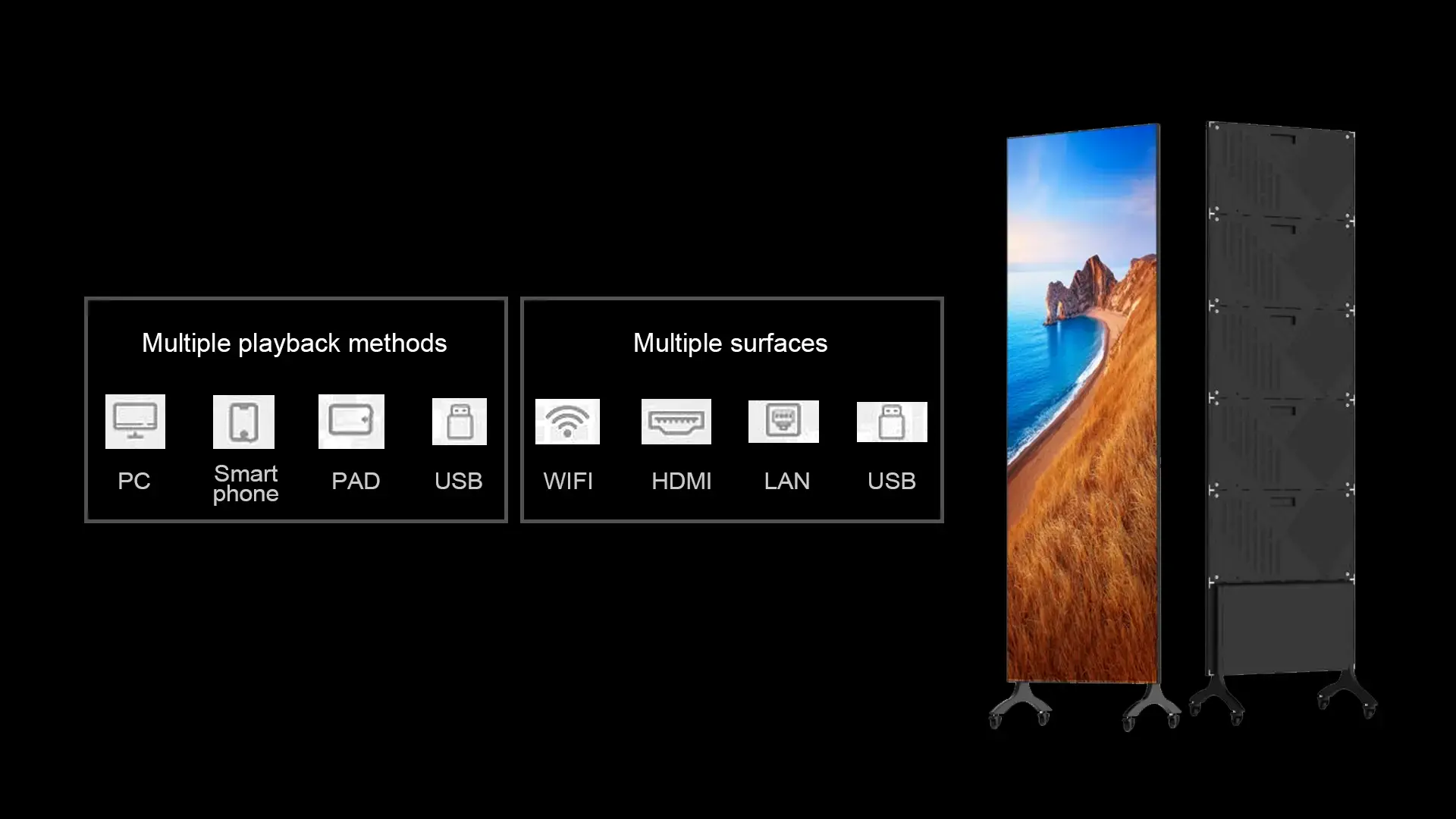

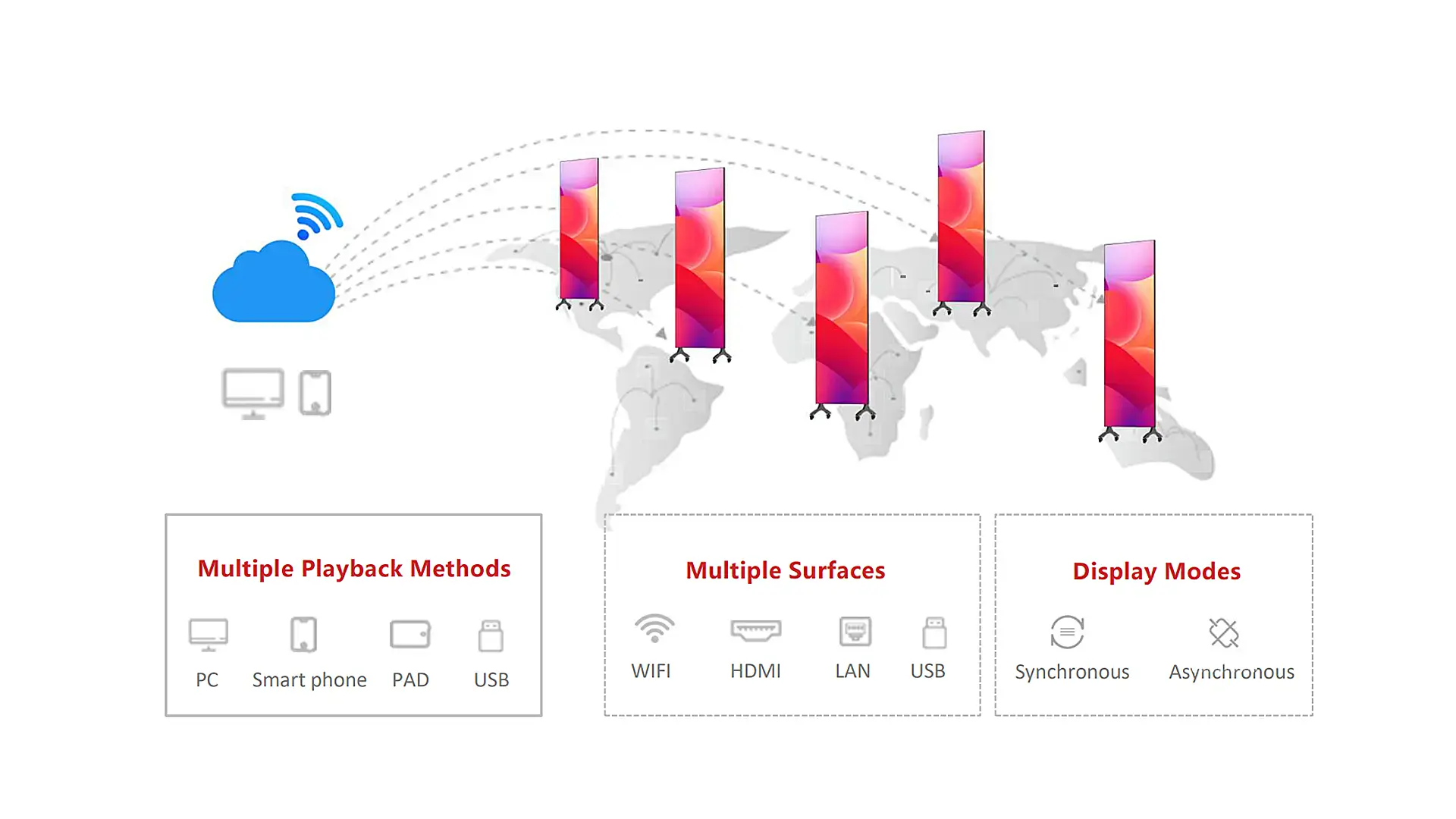

Multiple Control Modes
· Support multiple playback methods to adapt to different scenes.
· Support Sync and Async play.
· Multiple surfaces.

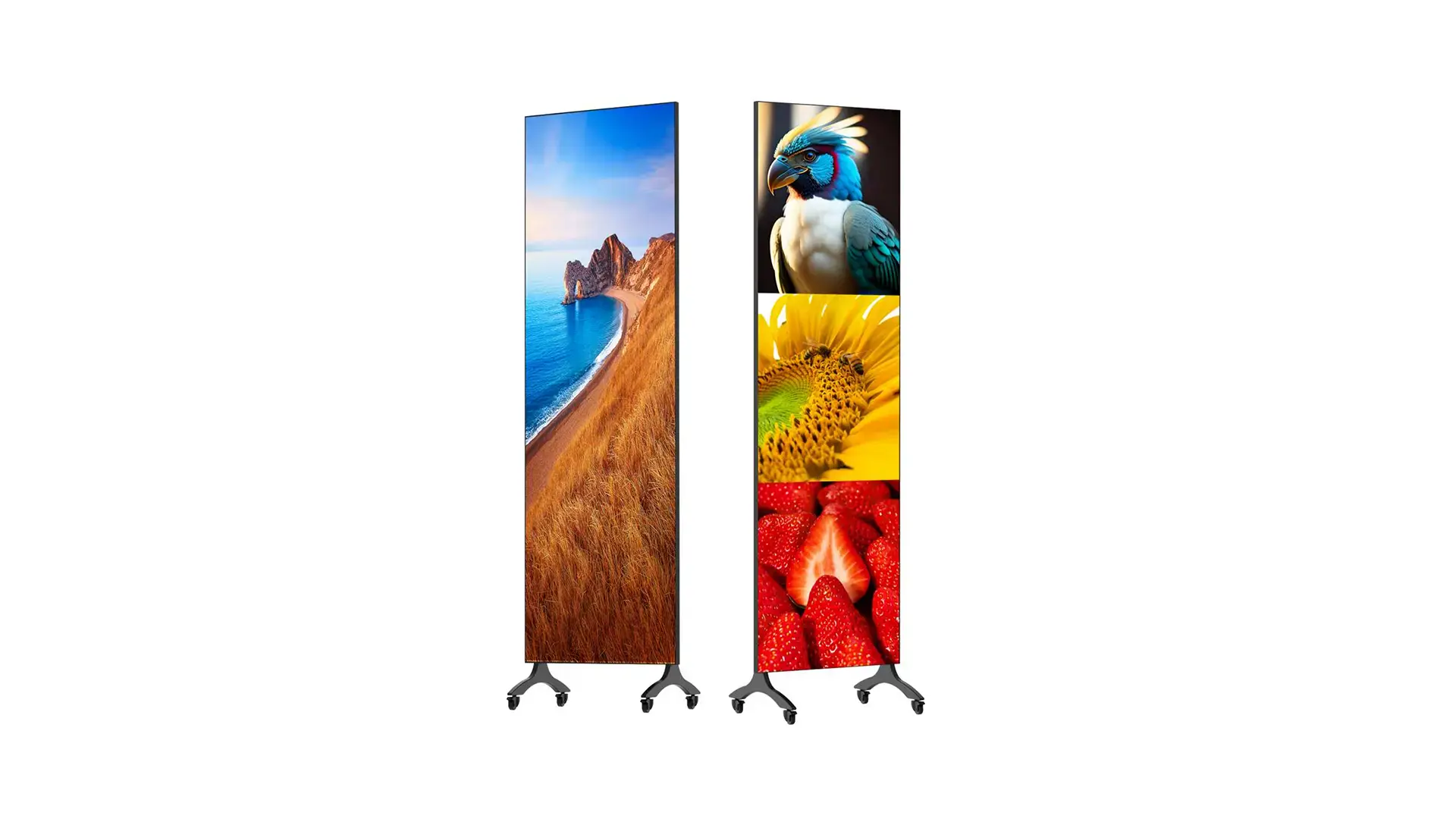

Intelligent Split Display Window
Support multi-window to display differnt contents at the same time.

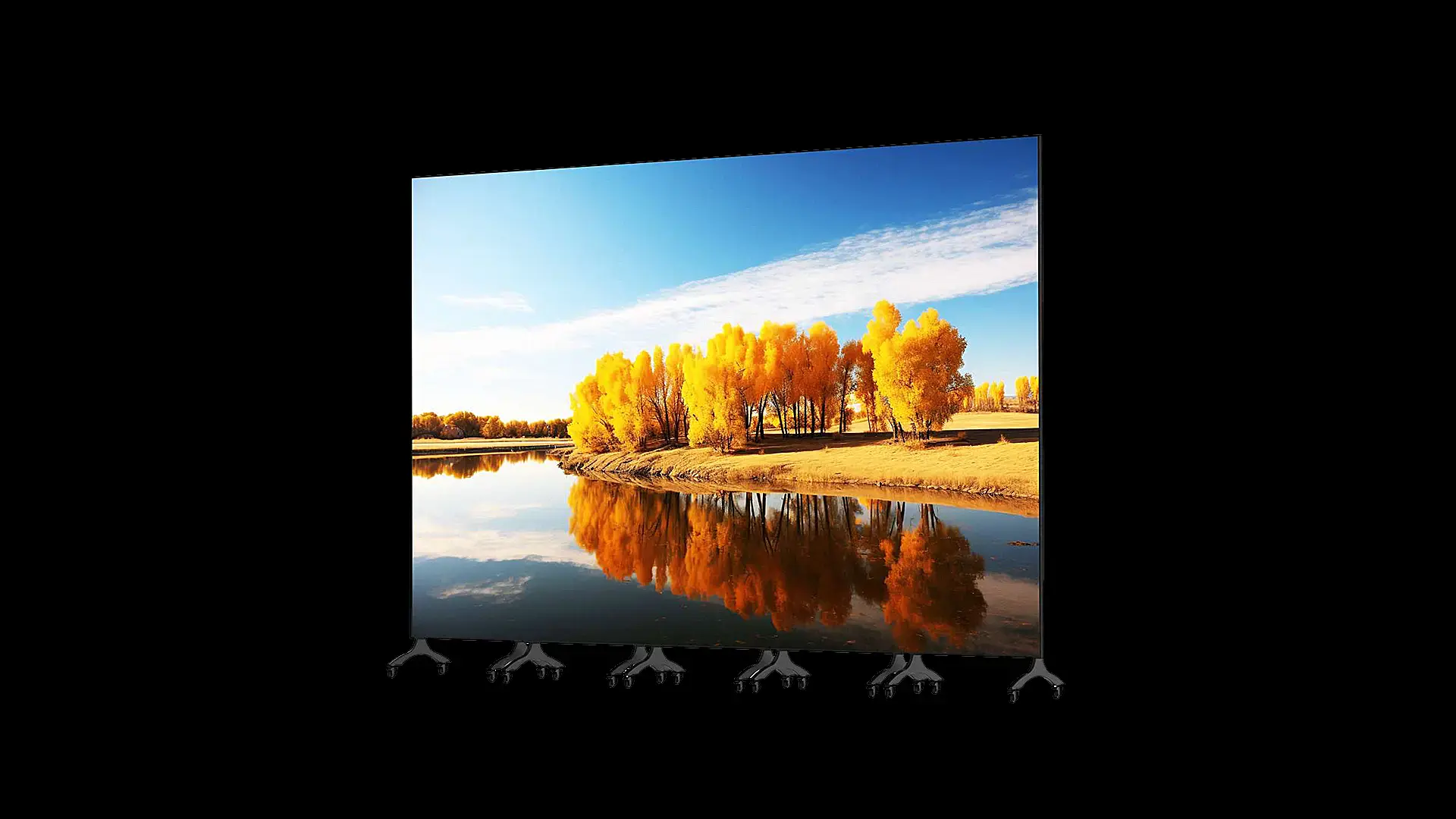

Multi-screen Seamless Splicing
Support multile screens splicing without gap.
Smart Cluster Management
Supports remote smart monitoring, remote and scheduled on/off control, and wireless remote interaction via mobile phones and smart devices, offering ultimate control anytime, anywhere.

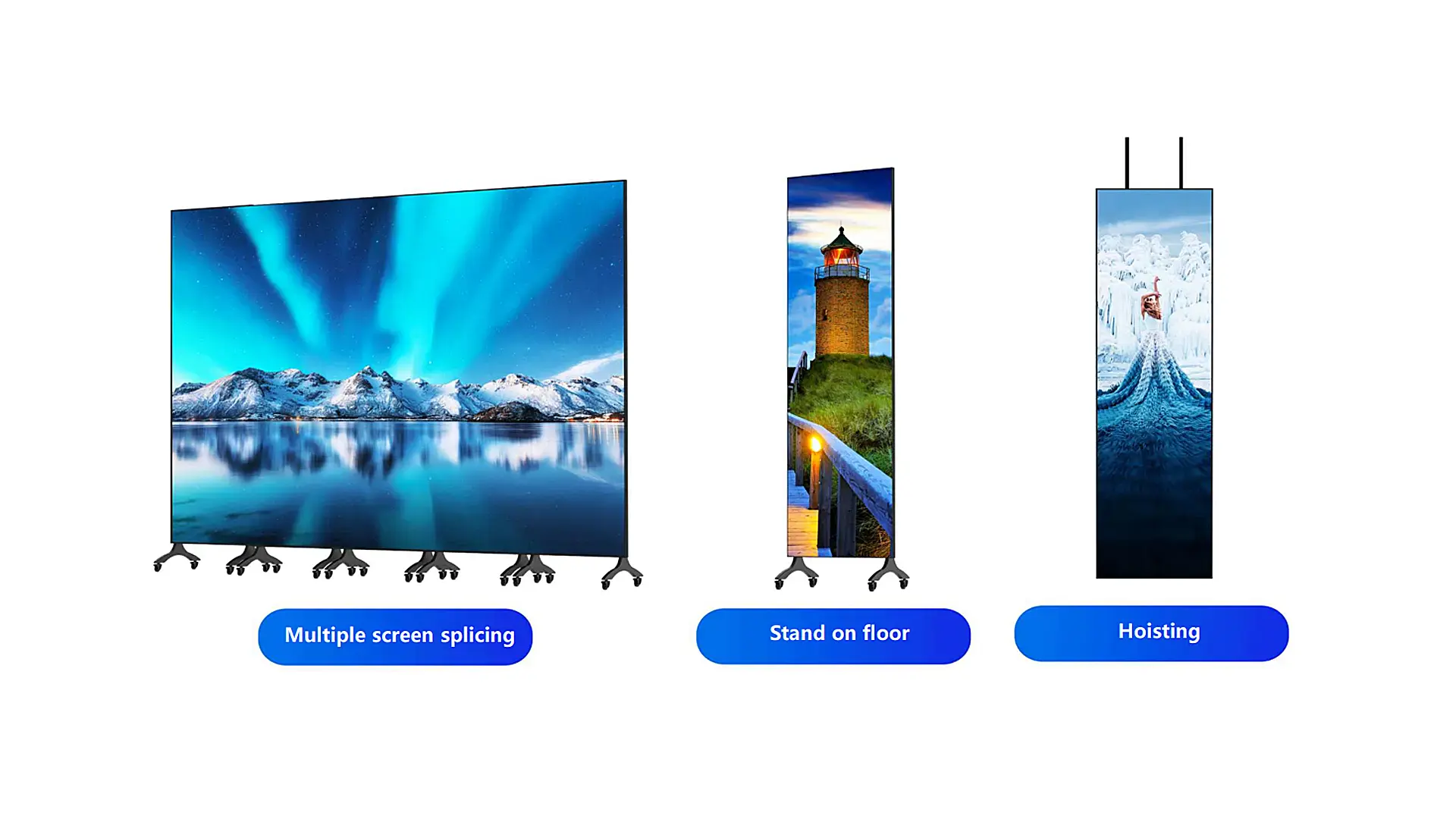

Multiple Installation Modes
The IH-X3 series offers versatile installation options, including multi-screen splicing, floor-standing, and hanging installations, making it adaptable to various environments and needs.
Application Scenarios
To be adapted for every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:
· Stores
· Cinemas
· Banks
· Hotels
· Restaurants
Application Cases
Application and Installation Videos
No videos available.
Specifications
| Pixel Pitch | P1.25 | P1.5625 | P1.875 | P2.5 |
| LED type | SMD1010(GOB)(COB) | SMD1212(GOB)(COB) | SMD1515(GOB)(COB) | SMD1515 |
| Physical Density(Dots/㎡) | 640000 | 409600 | 284444 | 160000 |
| Screen dimension (mm) | 600X2025X30 | 600X2025X30 | 600X2025X30 | 600X2025X30 |
| Dimensions (mm) | 606X2206X30 | 606X2206X30 | 606X2206X30 | 606X2206X30 |
| Physical Density（dots） | 480X1620 | 384X1296 | 320X1080 | 240X810 |
| Weight(kg) | 37 | 37 | 37 | 37 |
| Maintenance mode | Front | Front | Front | Front |
| Materials | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(Nits) | ≥600 | ≥600 | ≥600 | ≥600 |
| Color temp(K) | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional |
| Viewing angle(V/H) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Frequency | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan mode | Constant,1/45Scan | Constant ,1/48scan | Constant，1/45scan | Constant,1/45scan |
| Gray scale(bit) | 14/16 optional | 14/16 optional | 14/16 optional | 14/16 optional |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| Max consumption(W/㎡) | 420 | 420 | 420 | 420 |
| Average consumption(W/㎡) | 100-200 | 100-200 | 100-200 | 100-200 |
| Power voltage range | AC90-264V,47-63Hz | |||
| Working temp/humidity(℃/RH) | -20~60℃/10%~85% | |||
| Stock temp/humidity(℃/RH) | -20~60℃/10%~85% | |||
| Ceitificates | CE/RoHS/EMC/ISO9001 | |||
