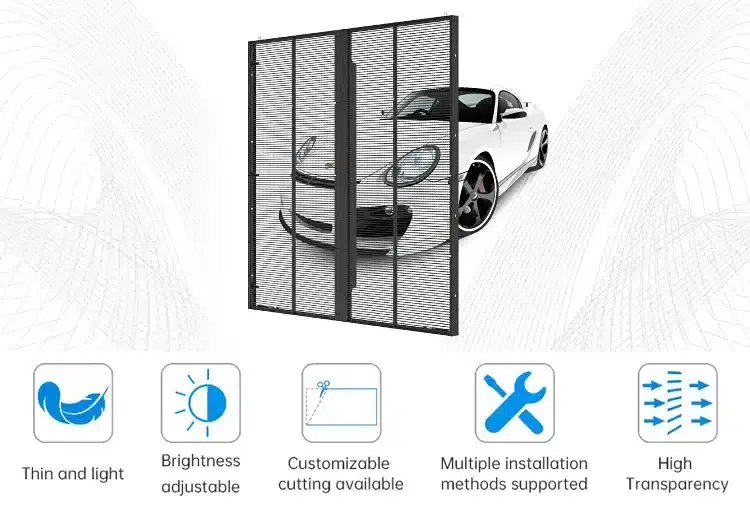

REISSDISPLAY TIT-TF series flexible LED transparent screen is a cutting-edge display solution, often referred to as a see-through flexible LED transparent screen display, offering high transparency and brightness. creating transparent LED video walls, making it a powerful tool for transparent glass window advertising, blending digital content seamlessly with the physical space. This allows for dynamic, eye-catching displays while maintaining visibility through the screen.
These screens serve multiple fields, including shopping mall displays, information screens, smart homes, car dashboards, and electronic products. Its unique transparency allows it to blend seamlessly into the environment, providing a more immersive visual experience.
TIT-TF series products have a light transmittance of over 85%, which greatly reduces the blocking of sunlight. This excellent light transmittance enhances the customer’s visual experience and constantly brings positive feedback to our products.
Flexible LED Transparent Screen High Transparency
The high transmittance of 80%+ is one of the main features of the TF series, which takes transparency to the extreme.
Wider Color Range Flexible LED Transparent Screen
The wider color range ensures accurate color reproduction and rich colors, making the picture more vivid and the video playback more moving.
Quick Heat Dissipation and Energy Saving
The TIT-TF series is designed with energy-efficient LED technology, consuming less power while still delivering high brightness and excellent visual quality.
30%-50% lower in power consumption than traditional led displays.

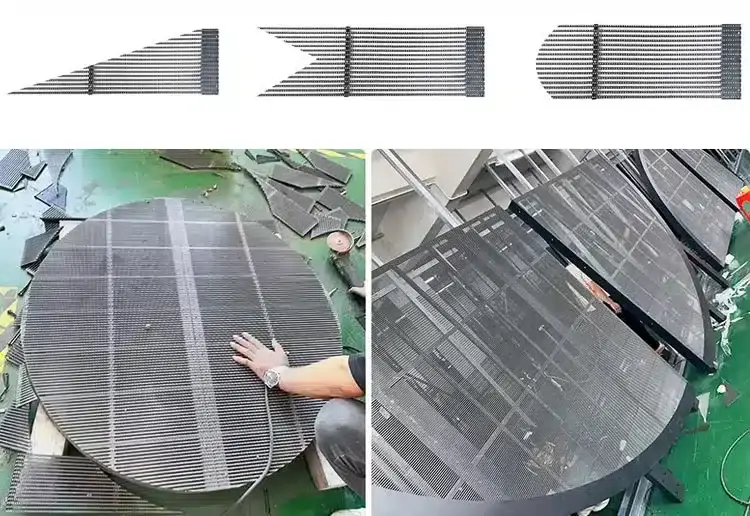

Arbitrary Customization Flexible LED Display Transparent
Customized into square, triangle, circle, cylinder(allow bending into arc) and other irregular shapes.

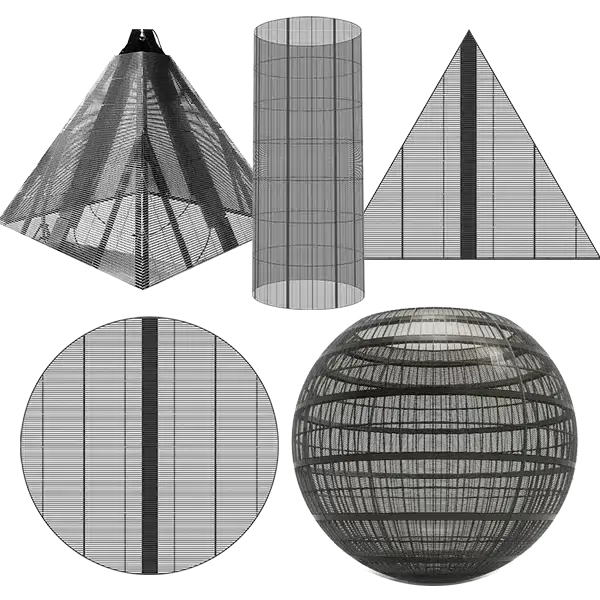

Creative Shapes and Flexible Sizes
The REISSDISPLAY TIT-TF series transparent LED display offers custom shapes and flexible sizes (0.8m, 1m, 1.4m, 1.5m, 2m, 6m diameter for round shapes). Its versatility makes it ideal for creative designs in retail, building facades, and events, allowing seamless integration into any space.

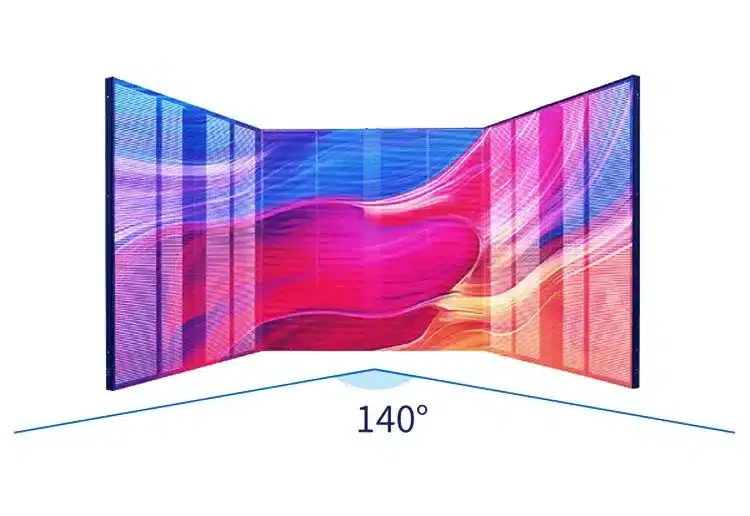

Ultra-wide Viewing Angle
The REISSDISPLAY TIT-TF series features a H140°V140° viewing angle, ensuring clear and vibrant displays from all perspectives, perfect for see-through video in high-traffic areas.

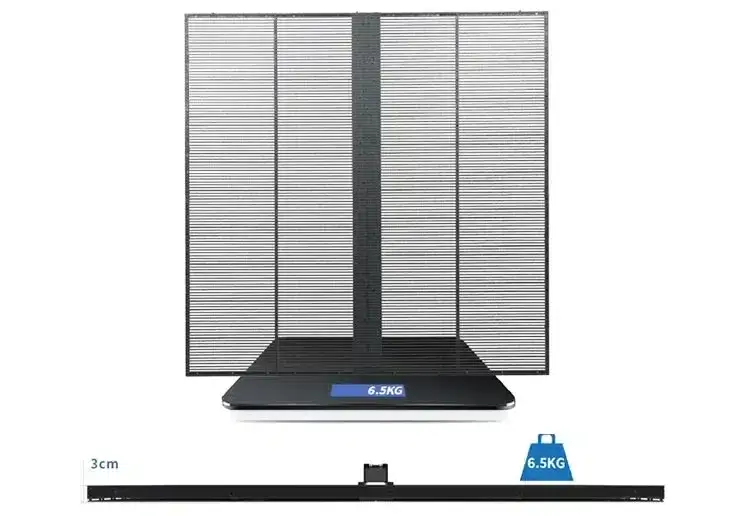

Super Lightweight and Thin LED Transparent Screen
500*500mm approx.6.5KG/㎡ and thinnest part is only 3cm, optimal packed to save shipping cost.

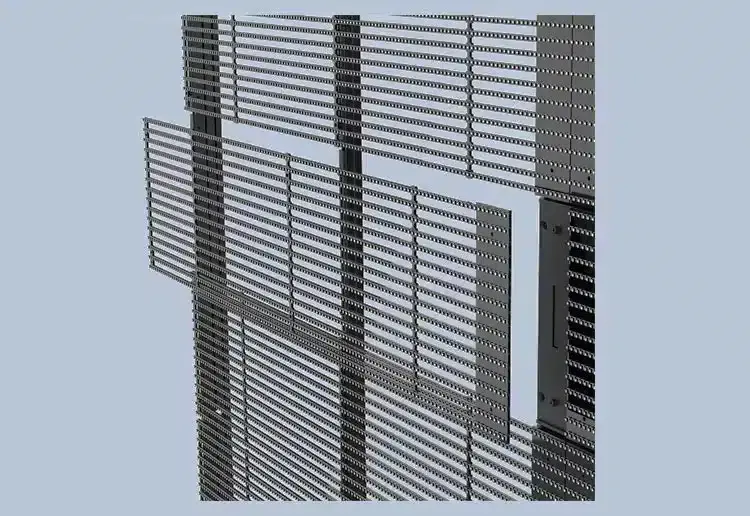

Maintenance Convenient LED Transparent Screen
Modular design, replace only defective lamp modules, fast and cheap.

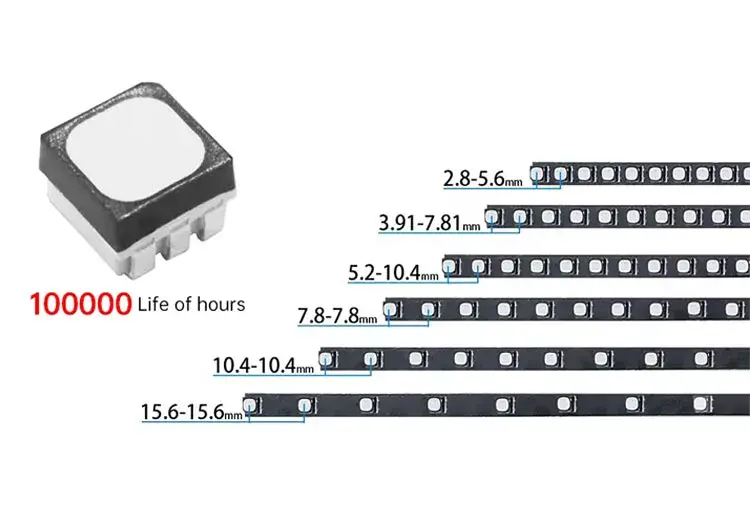

High Quality LED Lamp Beads
The REISSDISPLAY TIT-TF series features high-quality LED lamp beads for superior brightness and clarity. It also offers diversified pixel pitch options, allowing for flexible spacing to meet different resolution and viewing distance needs. This ensures optimal performance in various settings, from close-up displays to large-scale installations.

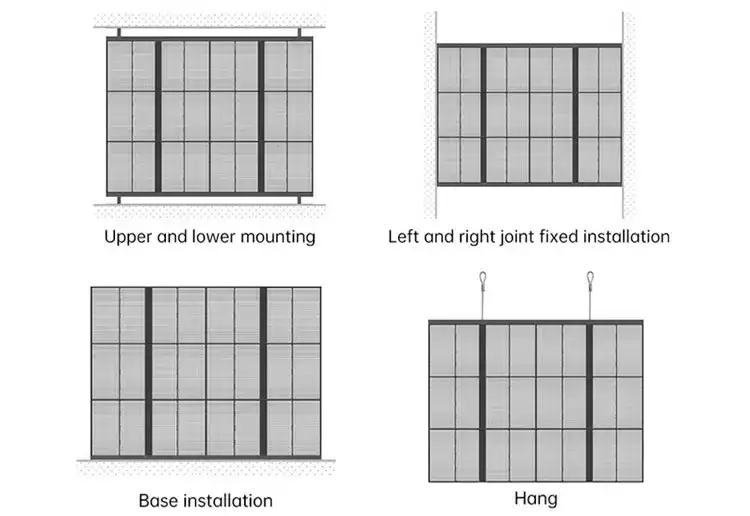

Transparent LED Display Installation Mode
The REISSDISPLAY TIT-TF series offers customizable installation options to suit any space, including wall-mounted, suspended, or freestanding setups.
Flexible LED Transparent Screen Is Suitable For Various Occasions
The flexible LED transparent screen is ideal for various settings, including shopping malls, waiting rooms, car showrooms, office building glass curtain walls, and more, offering a sleek and modern solution for dynamic displays in both indoor and outdoor environments.
Application Cases
Application and Installation Videos
Specifications
| Part No. | P31/P31-Pro | P39/P39-Pro | P3 | P3-Pro |
| Pixel Pitch | 3.125/3.125mm | 3.9/3.9mm | 3.91/7.8mm | 3.91/7.8mm |
| Pixel Density/㎡ | 102,400 | 65,536 | 32,768 | 32,768 |
| LED Configuration | SMD1515/SMD1415 | SMD2020/SMD1921 | SMD2121 | SMD1921 |
| Brightness | 1,000nits/4,000nits | 1,000nits/4,200nits | 800nits | 4,200nits |
| Transparency Rate | 65% | 70% | 75% | 80% |
| Power Consumption/㎡ | Max/Avg 600w/150w | Max/Avg 600w/150w | Max/Avg 600w/150w | Max/Avg 600w/150w |
| Module Dimension | 500mm x 75mm | 500mm x 125mm | 500mm x 125mm | 500mm x 125mm |
| Module Resolution | 160 x 24 | 128 x 32 | 128 x 16 | 128 x 16 |
| Panel Dimension | 1000mm x 750mm | 1000mm x 1000mm | 1000mm x 1000mm | 1000mm x 1000mm |
| Panel Resolution | 320 x 240 | 256 x 256 | 256 x 128 | 256 x 128 |
| Panel Weight | 12kg | 15kg | 15kg | 15kg |
| Refresh Rate | 3,840Hz | 3,840Hz | 3,840Hz | 3,840Hz |
| Viewing Angle | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| IP Rate | IP31 / IP31 | IP31 / IP31 | IP31 / IP31 | IP31 / IP31 |
| Input Voltage(AC) | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ | 110V / 240V, 50/60 HZ |
| Operating Temperature | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° | -20° ~ 60 ° |
| Grayscale(bit) | 14-22 | 14-22 | 14-22 | 14-22 |
| Lifespan(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) | >100,000(hrs) |
| Service Access | Rear | Rear | Rear | Rear |
| Data Sheet(pdf) |
*All specifications subject to change without notice. other pixel pitchs available.
