Indoor LED Video Wall: Meticulously Crafted for Visual Excellence
ReissDisplay’s Indoor LED Video Wall is a masterpiece of precision engineering and innovative design, crafted to deliver superior performance and captivating visuals
– Cabinet Size：250*500mm/250*750mm/250*1000mm/500*500mm/500*1000mm
– Module size: 250x250mm
– Pixel Pitch:1.9mm;2.6mm;2.9mm;3.91mm;4.81mm
– High Video Contrast
– Wide Viewing Angle
– Vhite balance brightness: 800-1500 nits
– Input AC100-240V 50/60HZ
– Maintenance Method: Front maintenance
– Material:Die-cast aluminum
– Usage:Indoor
– Fast Installation
– Wall-mounted/Hanging/Stack Installation
Key Features of the Indoor Fixed Frontal Service LED Display
1. High Video Contrast and Wide Viewing Angle
- White Balance Brightness: Adjustable between 800-1500 nits for vibrant visuals in various lighting conditions.
- High Contrast Ratio: Ensures rich colors and vivid imagery with a 5000:1 contrast ratio.
- Wide Viewing Angle: Enjoy clear visuals from 160 degrees horizontally and vertically, perfect for large audiences.
2. Maintenance and Installation
- Front Maintenance: All components—cables, power supplies, control cards, and hub cards—can be accessed from the front or back, simplifying maintenance and saving time.
- Fast Installation: Choose from wall-mounted, hanging, or stacking options, making it adaptable to any indoor space.

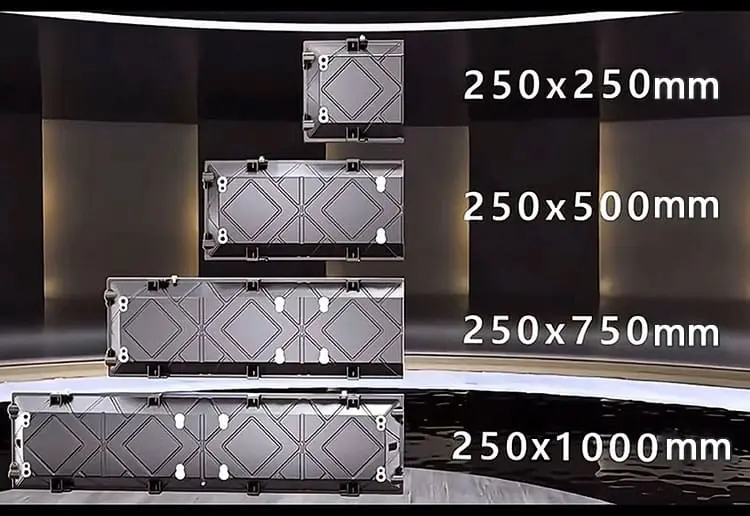

Flexible Cabinet Options
- Available cabinet sizes: 250x500mm, 250x750mm, 250x1000mm, 500x500mm, 500x1000mm.
- Module size: 250x250mm.
- Pixel Pitch Options: Choose from 1.9mm, 2.6mm, 2.9mm, 3.91mm, and 4.81mm to match resolution needs.
High Definition Indoor LED Video Walls
ReissDisplay common cathode technology, improved brightness and better heat dissipation
· Uses high brightness matte black LEDs, guaranteeing low
attenuation, high reliability, good consistency and superior
weather resistance.
· With a high contrast ratio 5000:1, provides exceptionally vivid
images.
Multiple Creative Installations

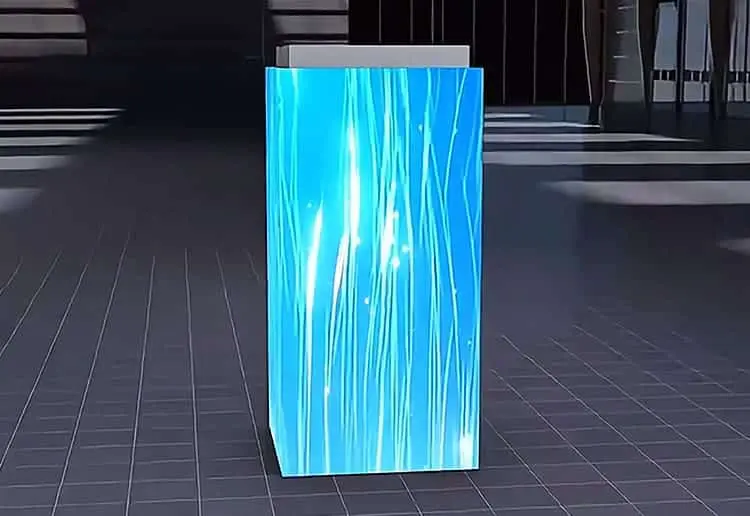

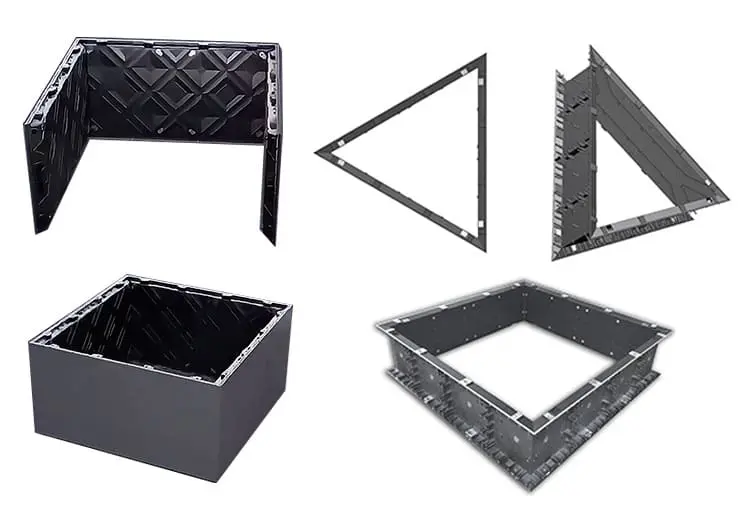

Customized cut-edge panels, which can be connected into creative shapes such as triangles and squares, help create memorable and effective LED display projects.
Best Image Quality
- High Gray Level (Up to 16-bit): Ensures smooth gradients and vivid colors.
- HDR Image Algorithm: Optimizes brightness and contrast for realistic visuals and stunning effects.
- Pixel-to-Pixel 4K, 8K, and FHD Resolution: Delivers sharp, high-definition images.
2. Reliable and Consistent Display
- No Ghosting or Trailing: Eliminates afterimage shadows, ensuring flawless dynamic content playback.
- Seamless Splicing: Cabinets connect flawlessly, creating a uniform and immersive display.
3. Efficient Heat Dissipation
- Common Cathode Technology: Improves brightness, reduces energy consumption, and enhances heat dissipation for long-lasting performance.

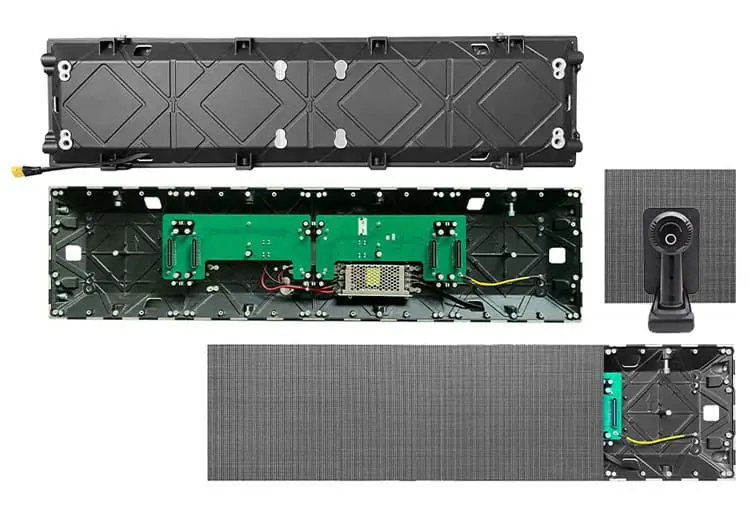

Convenient Installation
Front maintenance LED modules can be fixed to the cabinet structure with simple tools.
There are no screws between the LED module and the cabinet, making the disassembly and assembly process very simple.
It only takes a few seconds to remove the LED module from the cabinet, greatly improving work efficiency

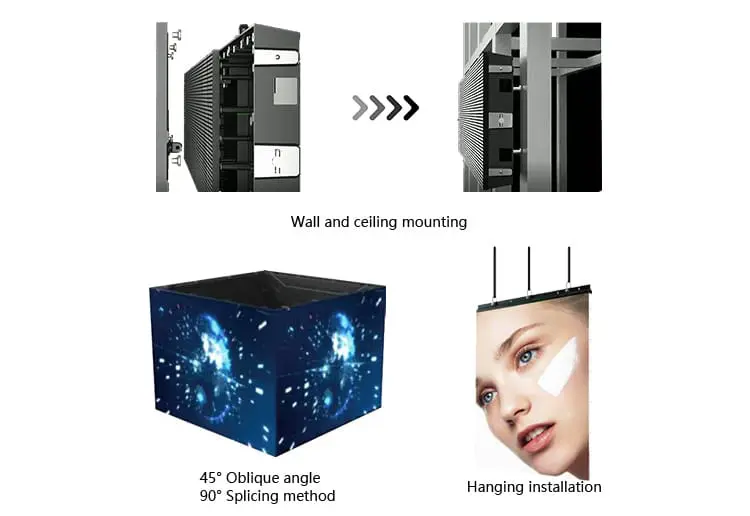

Various installation methods; optional applications; wall-mounted, suspended and ceiling mounted; seamless right-angle installation.
Typical Applications
Seamless Cabling for Stability and Aesthetics
The ultra-thin 4K/8K LED display is usually installed in: conference rooms; TV studios; convention centers; shopping malls; airports.

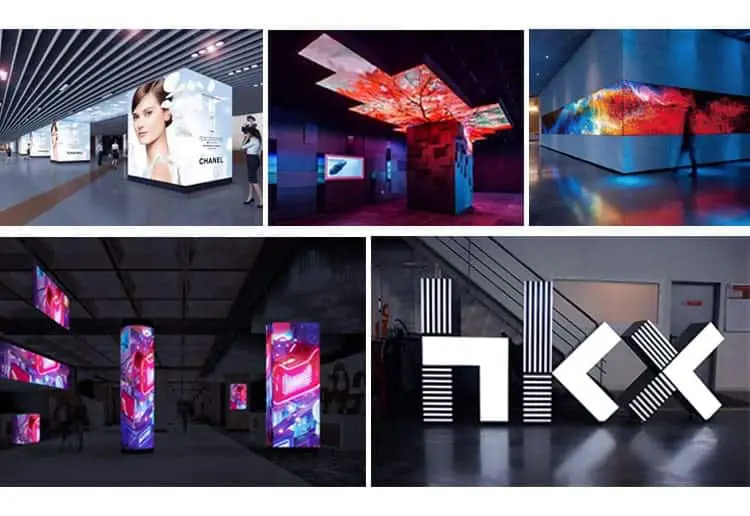

Application Cases
Application and Installation Videos
Specifications
| Pixel Pitch(mm) | P1.953 | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Density(dot/m2) | 262,144 | 147,456 | 112,896 | 65,536 | 43,264 |
| LED Type | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 1,000*250*40mm 750*250*40mm | 1,000*250*40mm 750*250*40mm | 1,000*250*40mm 750*250*40mm | 1,000*250*40mm 750*250*40mm | 1,000*250*40mm 750*250*40mm |
| Cabinet Weight(kg) | 5.2kgs 4kgs | 5.2kgs 4kgs | 5.2kgs 4kgs | 5.2kgs 4kgs | 5.2kgs 4kgs |
| Cabinet Resolution(px*px) | 512*128 384*128 | 384*96 288*96 | 336*84 252*84 | 256*64 192*64 | 208*52 156*52 |
| Maintenance way | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Horizontal/Vertical Viewing Angle | 140 °/140 ° | 140 °/140 ° | 140 °/140 ° | 140 °/140 ° | 140 °/140 ° |
| Brightness(cd/m2) | 1,000nits | 1,000nits | 1,000nits | 1,000nits | 1,000nits |
| Gray Scale | 16-22bit | 16-22bit | 16-22bit | 1622-bit | 16-22bit |
| Refresh Rate | 3,840hz/7680hz | 3,840hz/7680hz | 3,840hz/7680hz | 3,840hz/7680hz | 3,840hz/7680hz |
| Scan Way | 1/32 | 1/32 | 1/28 | 1/16 | 1/13 |
| Max/Ave Power Consumption Consumption | 680/230w/m2 | 680/230w/m2 | 680/230w/m2 | 680/230w/m2 | 680/230w/m2 |
| Input Voltage(AC) | 100-240V | 100-240V | 100-240V | 100-240V | 100-240V |
| Ingress Protection | IP33 | IP33 | IP33 | IP33 | IP33 |
| Working Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| Life Span | >100,000hours | >100,000hours | >100,000hours | >100,000hours | >100,000hours |
| MTBF | >10,000hours | >10,000hours | >10,000hours | >10,000hours | >10,000hours |
