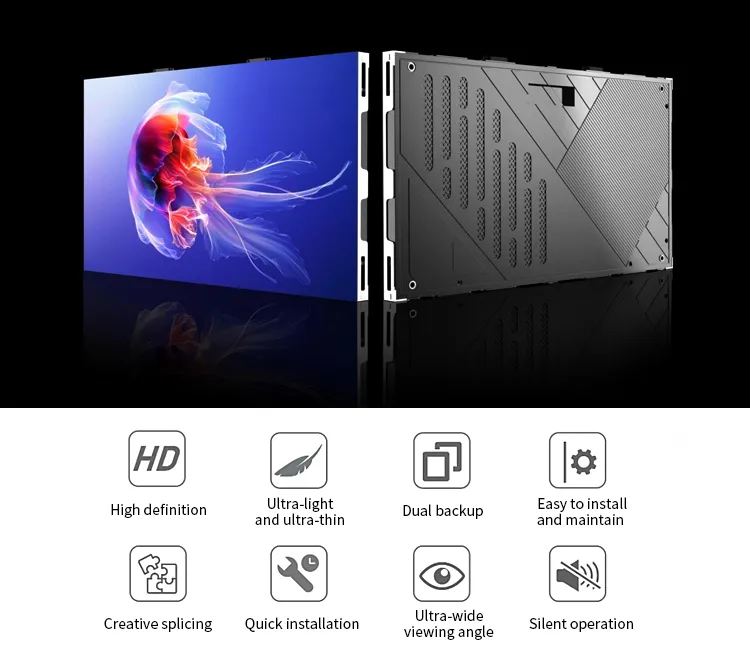

The IXR-F Series Small Pixel LED Display Screen, 16:9 Design, Clear And Flexible, Meets Indoor Visual Needs
16:9 design for clear indoor visual experience and versatile functions
The IXR-F series LED display represents a cutting-edge leap forward in fine pixel indoor display technology. This series offers a sleek 600×337.5mm small pixel 16:9 LED display screen cabinet, engineered for crystal-clear HD visuals. Designed for exceptional clarity, it combines a compact pixel LED display with exquisite design and high-definition performance.
The seamless splicing function of the IXR-F series can create ultra-high-definition screens with 2K, 4K, 8K and 16K resolutions. HDR technology enhances picture quality with peak brightness, delivering high dynamic range and deeper visual details. Lightweight (4.5 kg) and ultra-slim (2.75 mm), its front-access design (removable card, power, LED module) allows quick maintenance and setup. Fanless for silence, with a 7680Hz+ refresh rate and precision CNC aluminum chassis for flawless visuals.
Small Pixel 16:9 LED Display Screen
Fine pixel LED display optimized for high-definition indoor use.
Cabinet dimensions of 600*337.5*27.5mm utilizing a 16:9 golden ratio design.
Seamless splicing capability for ultra-high 2K, 4K, 8K, and 16K resolution screens.
High color coverage and precise reproduction of lifelike natural colors.
HDR technology enhances High Dynamic Range imaging for detailed displays.
Ultra-lightweight at just 4.5kg and ultra-thin at 27.5mm for streamlined installation.
Front service design for convenient maintenance and fast installation.
Fanless design ensures super silent operation.
High refresh rate greater than 7680Hz for smooth, fluid visuals.
Die-casting aluminum cabinet with CNC high-precision processing ensures flatness and durability.
Screwless design allows for faster and more secure installations.
Configurable dual backup version ensures uninterrupted power supply and signal reliability.
Supports multiple installation methods including wall-mounted, embedded, lifted, floor-mounted, and curved configurations.

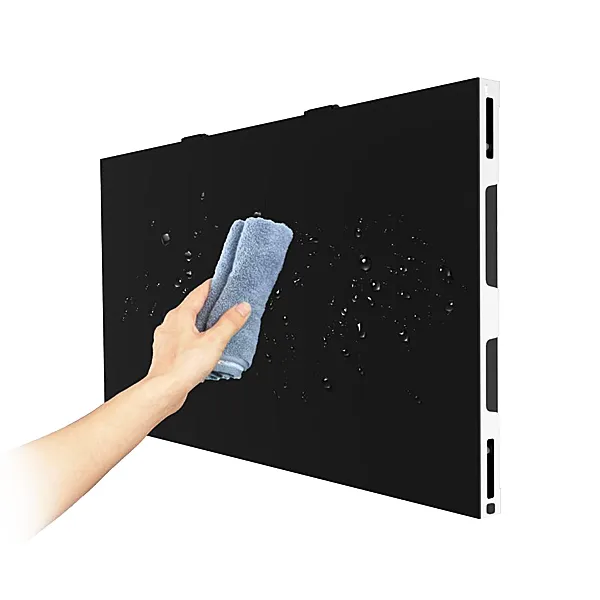

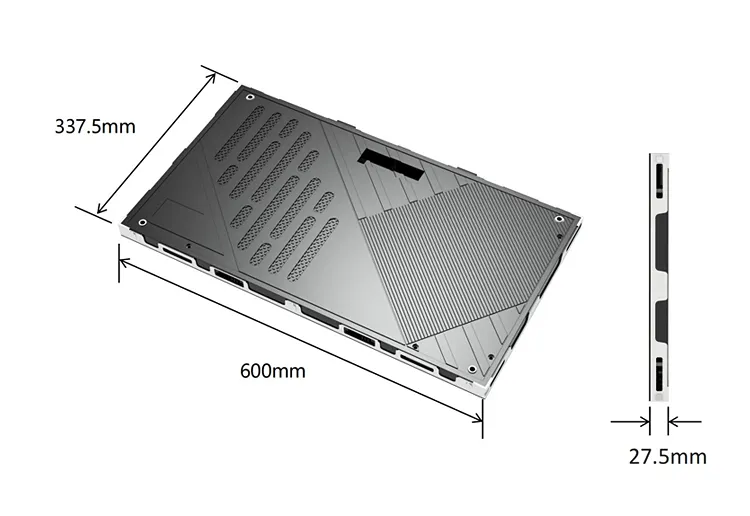

Golden Ratio
The chassis adopts a 16:9 aspect ratio design with a size of 600*337.5 mm, which is better in design and more beautiful in appearance.
GOB Waterproof, Dustproof and Impact-Resistant (Optional)
Due to the small pitch of the traditional SMD small pitch display, the display unit cannot be realized by gluing or installing a mask, resulting in the LED being exposed, thus achieving waterproof, dustproof and anti-collision, providing barrier-free access conditions for a dust-free environment. Even during transportation, the light beads are easily knocked off.
COB integrated packaging technology completely overcomes the difficulties that SMD cannot overcome in the case of small pitch, and truly achieves waterproof, dustproof and impact-resistant performance.

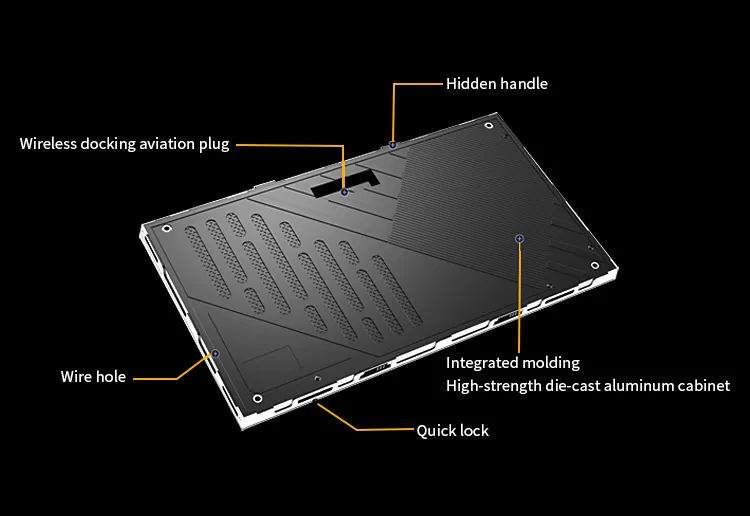

Perfect Cabinet Design
The perfect cabinet design uses a die-cast aluminum box body, hidden handles, indicator light test button, wire hole, lock and latch.

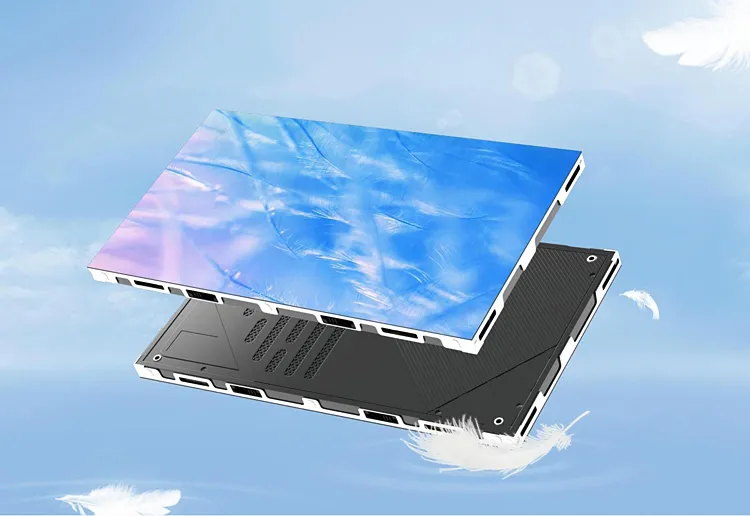

Ultra-Light Cabinet
Each display of the IXR-F series weighs only 4.5 kg, which is ultra-light and easy to transport, assemble and carry.
Wide Color Gamut
Professional color management techniques, rich color lavers and more natural color transitions.
IXR-F Series Ultra HD
Cabinets seamless splicing to make 2k, 4k, 8 and 16k ultra high definition LED screen.
HUB Connection and Hot-Swappable Features
Designed for enhanced functionality and ease of maintenance, outdoor screens featuring hub connectivity and hot – swappable capabilities represent the latest in cost – effective outdoor solutions. These innovations ensure that displays remain operational and efficient, making them ideal for a variety of dynamic environments.
170° Super Wide Viewing Angle
Perfect presentation ofimages from any angle.
Front Maintenance
The IXR-F series LED display is designed with front service for easy access and can be applied to different installation environments.

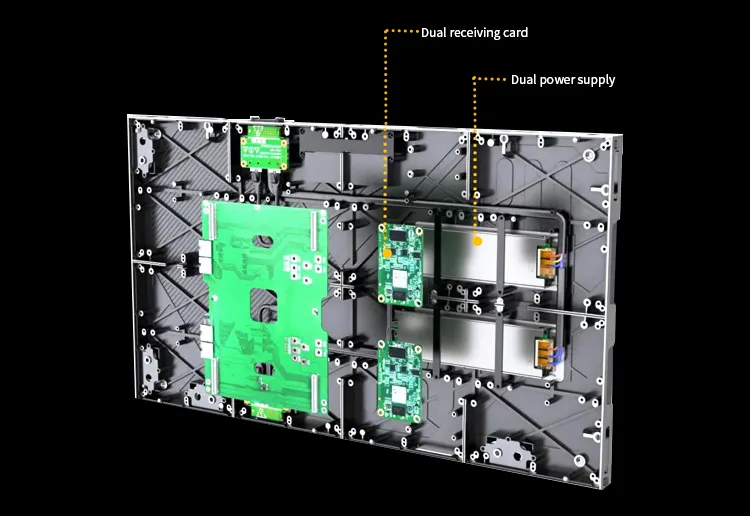

Dual Card Dual Electric
Confiqurable dual backup version to ensure uninterrupted power supply. Sianal not lost, more stable and reliable.

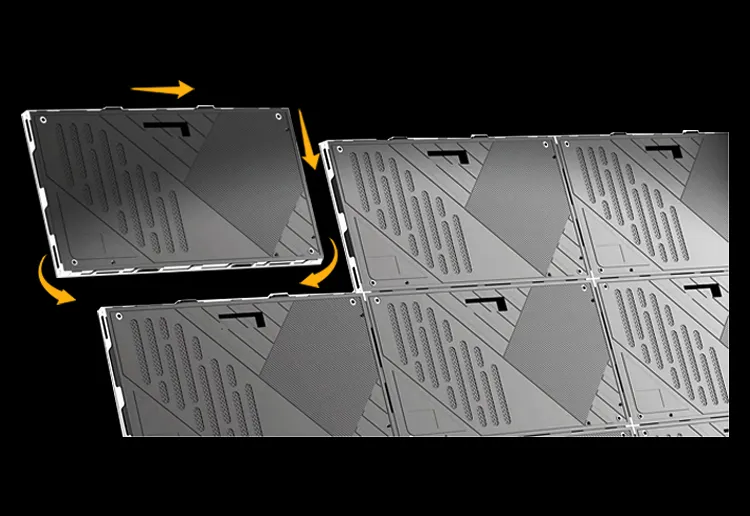

Seamless Splicing
Die-casting alumium cabinet sctructure with CNC high-precision processing
(Flatness of Cabinet ≤0.1mm)
Screwless design for faster and more secure installation, Super silent fanless design.

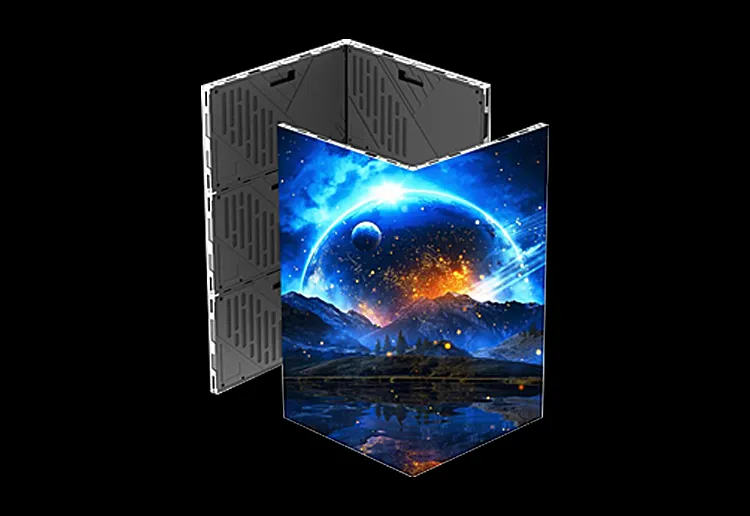

Creative Splicing
Supports shapes such as right angles and arcs to meet various creative splicing needs.

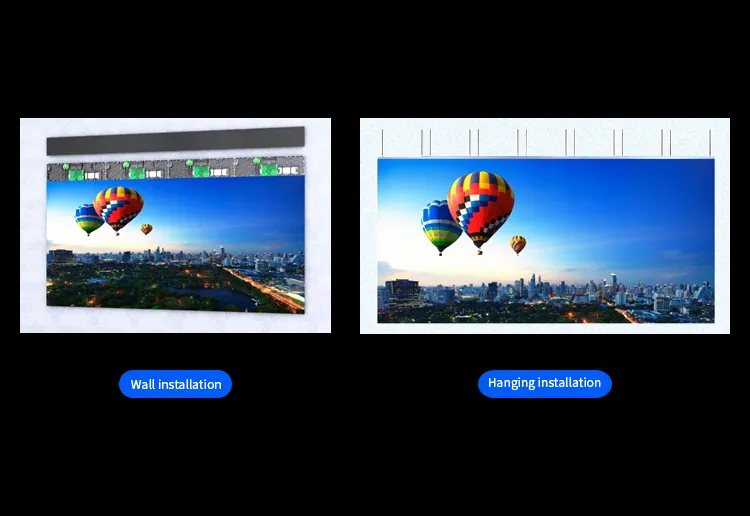

Installation Method
Support multiple installation methods such as lifting, wall mounted installation, and embedded installation, suitable for more scenarios.

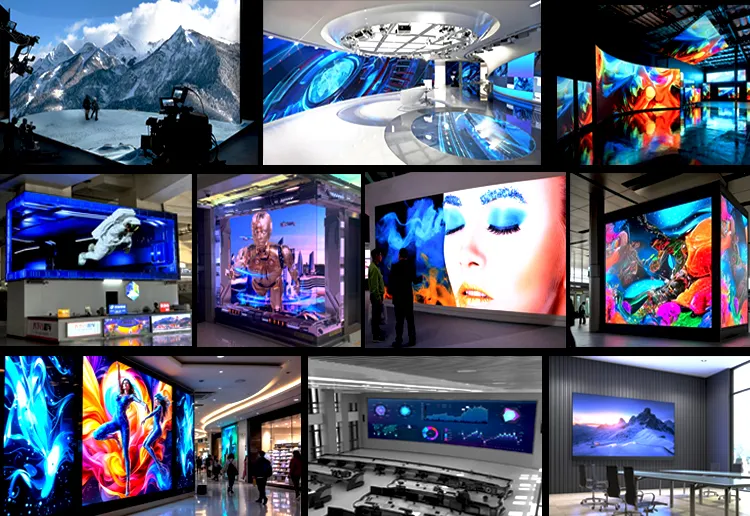

Application Fields
Meeting room ; TV studio; exhibition center; dhopping mall
Application Cases
Application and Installation Videos
Specifications
| Pixel Pitch | P0.78125 | P0.9375 | P1.25 | P1.5625 | P1.875 |
| LED Type | Mini4in1 | Mini4in1 | SMD1010 | SMD1010/1212 | SMD1010/1515 |
| Density(dots/㎡) | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Module Resolution | 192X216 | 320X180 | 240X135 | 192X108 | 1608X90 |
| Module Size(wXh) | 150X168.75 | 300X168.75 | 300X168.75 | 300X168.75 | 300X168.75 |
| Cabinet Size(mm) | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 |
| Cabinet Resolution | 768X512 | 640X360 | 480X270 | 384X216 | 320X180 |
| Module Quantity | 4X2 | 2X2 | 2X2 | 2X2 | 2X2 |
| Cabinet Weight(kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance | Front | Front | Front | Front | Front |
| Cabinet Materials | Diecasting Aluminum | Diecasting Aluminum | Diecasting Aluminum | Diecasting Aluminum | Diecasting Aluminum |
| Brightness(Nits) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Color Temperature(K) | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 | 1000-18500 |
| Viewing Angle(H/V) | 170°/170° | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Brightness Uniformity | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% | ≥99.8% |
| Contrast | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive Mode | 1/48 Scan | 1/46 Scan | 1/45 Scan | 1/48 Scan | 1/45 Scan |
| Gray Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Refresh Rate(Hz) | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 |
| Max Power Consum(W/㎡) | 350 | 350 | 350 | 350 | 350 |
| Aver Power Consum(W/㎡) | 100 | 100 | 100 | 100 | 100 |
| Waterproof Level | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Voltate | AC90-264V,47-63Hz | ||||
| Working Temp(℃/RH) | -20~60℃/10%~85% | ||||
| Storage Temp(℃/RH) | -20~60℃/10%~85% | ||||
| Applicable standard | CE, EMC, RoHS, ISO9001 |
