Outdoor Fixed LED Display Transform Your Space With Dynamic Visuals Tthat Captivate and Inspire

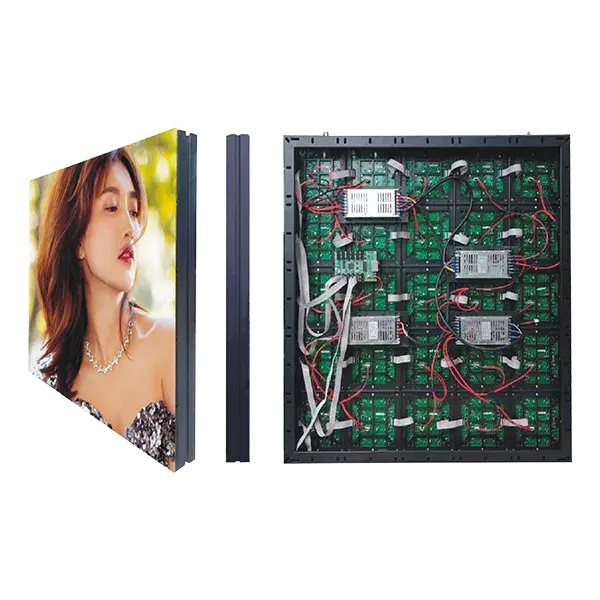

OF-SW series semi-waterproof outdoor fixed LED display is a fixed installation P2.5, P3, P4, P3.91, P4.81, P5, P6, P8, P10, P16 pixel pitch. High definition and high refresh output, very low price. Adopting simple style iron cabinet, extremely thin thickness is only 100mm, screen weight is less than 28 KG/m2. Fully maintainable, its brightness is very high, more than 6500 nits. Iron or aluminum cabinet for your choice; strong and solid material, suitable for outdoor permanent installation, wall installation project is very cost-effective!
Outdoor advertising LED display screens boast excellent advantages, attracting visitors from afar with its high contrast ratio ensuring natural colors and perfect image and video presentation at all times.
Outdoor Fixed LED Display Product Advantages
1. High Definition: Sharp and detailed visuals for crystal-clear clarity.

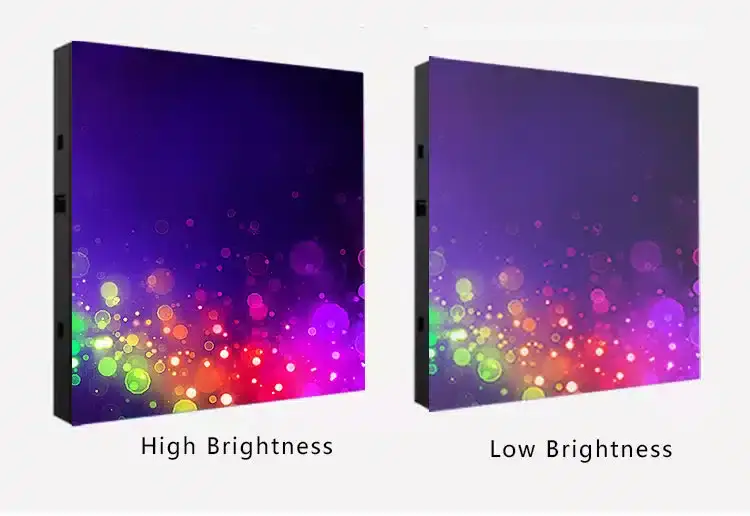

2. High Brightness: Vibrant and visible even in bright environments.
3. Image Vividness: Lifelike colors and deep contrasts for immersive experiences.
– 960mm×960mm cabinet standard size, support customized size.
– Front or rear maintenance optional
– Support cabinet internal wiring, beautiful and practical, with simple wiring.
– High-precision iron cabinet, high protection IP65
– SMD 3-in-1 full-color LED package.
– High brightness, good heat dissipation.
– Energy-saving design.
– Seamless splicing, better flatness.

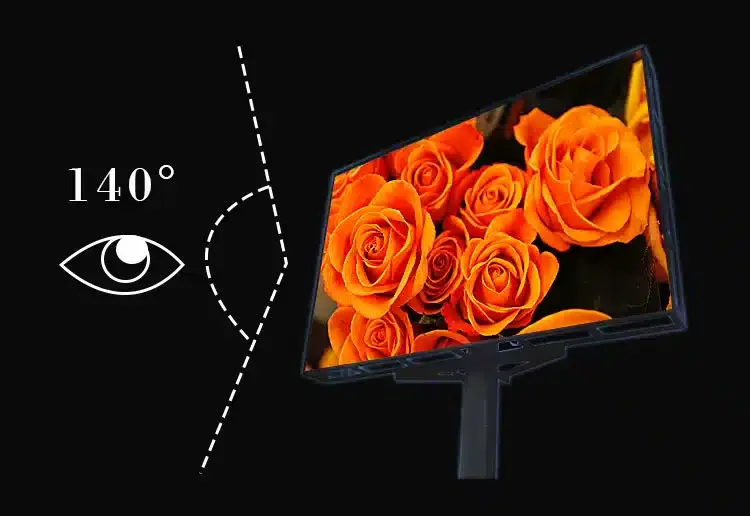

140-degree Wide Viewing Angle
The viewing angle is up to 140° vertically and horizontally, providing a wide viewing angle.
The ultra-wide viewing angle provides you with the largest screen viewing area. It provides you with a clear and natural image.
50% Energy Saving, Safe and Reliable
The LED screen module uses high-quality lamp beads, precision packaging, waterproof and dustproof. When installed in outdoor areas, protection is important. Special protective devices can protect it from environmental hazards. At the same time, it saves energy by 50% and consumes less electricity.
Outdoor LED Screen Panel Structures
· Material: usually made of aluminum profiles or steel, lightweight and durable.
· Power module: built-in high-efficiency switching power supply, supporting wide voltage input.
· Power redundancy: some designs support dual power backup to improve reliability.
· Receiving card: built-in receiving card, supporting multiple signal inputs.
· Sending card: external sending card, connected to a computer or video source.
· Control software: matching software, supporting content editing and playback control.

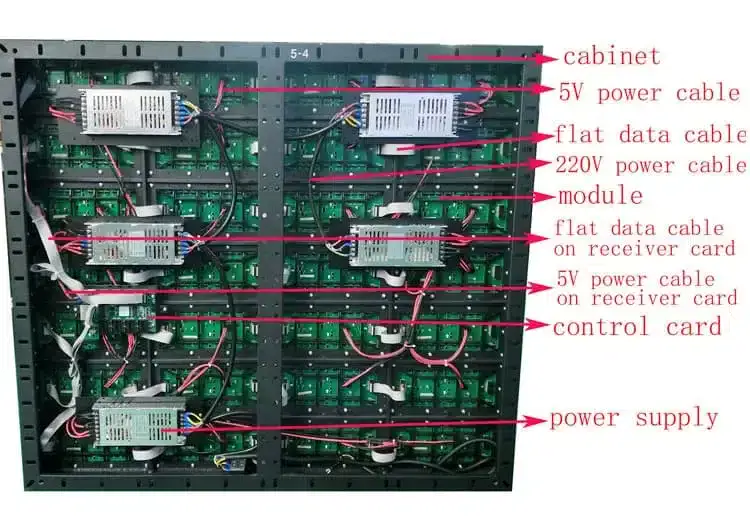

Outdoor Fixed LED Display Power System, Control System

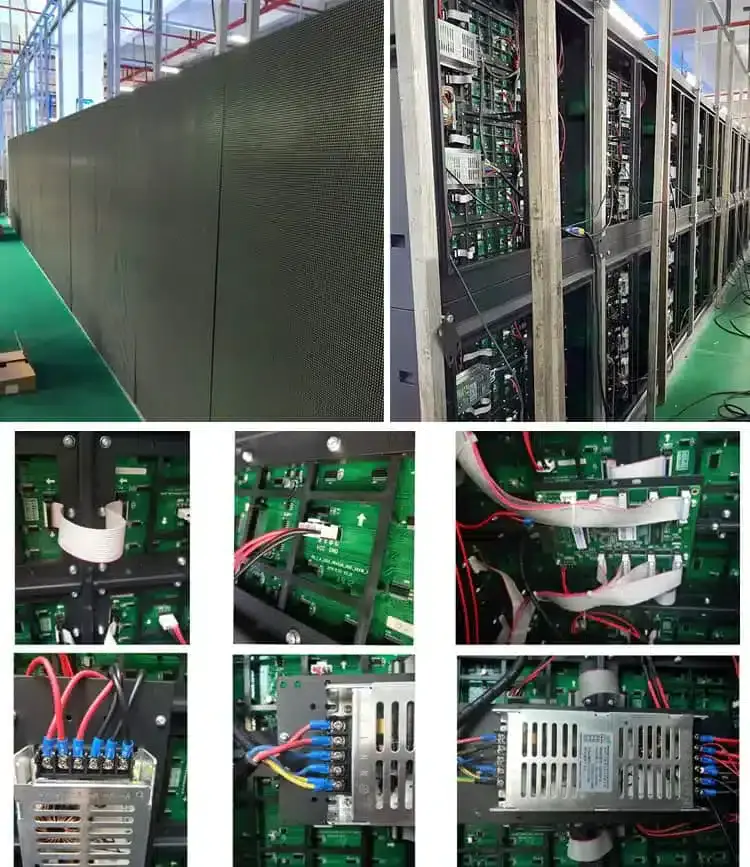

Get every detail in the picture
Data line: used to connect the control card and LED unit board wiring.
Transmission line: used to connect the control card with the computer.
Power line: used to connect the power supply and control card with the LED unit board, the copper core diameter of the power line connecting the unit board is not less than 1mm

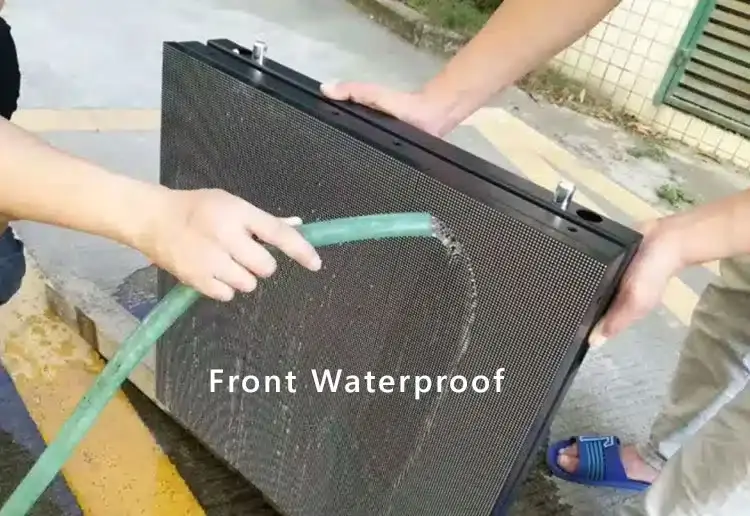

Outdoor Fixed LED Display Waterproof Design
Protection level: IP65 on the front, IP45 on the back, dustproof and splashproof, waterproof on the front, but not completely waterproof on the back.
Sealing strip: There is a waterproof sealing strip at the cabinet joint to prevent water vapor fro
Outdoor Fixed LED Display Cabinet

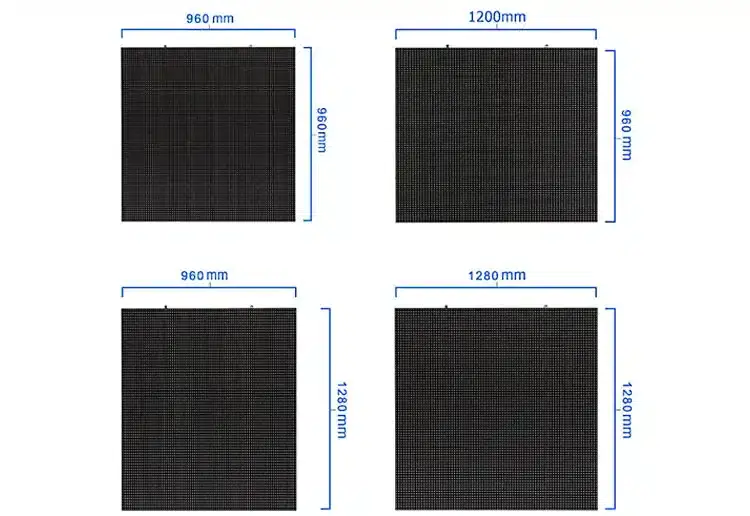

Cabinet dimensions: 960*960mm/1200*960mm/960*1280mm/1280*1280mm and Customizable
LED module size：
Based on 320×160mm 256×128mm192 ×192mm 256 ×256mm module design
LED module: High-brightness LED lamp beads, with common spacing of P4, P5, P6, P8, and P10.
Driver IC: Built-in constant current driver IC to ensure stable display.
PCB board: High-precision PCB board to improve display effect.
Excellent Display Effect
OF-SW series provides vivid display effect and realistic color performance with SMD technology, high brightness, high refresh rate and high contrast.

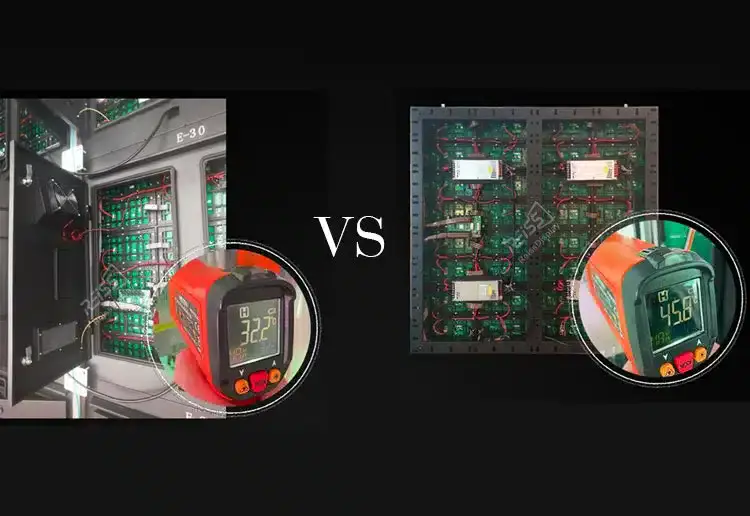

Low Temperature Technology
LED display adopts the core technology of low-temperature energy saving to reduce the heat value of key electronic components inside the LED display, which can improve the reliability and prolong the service life of LED display.

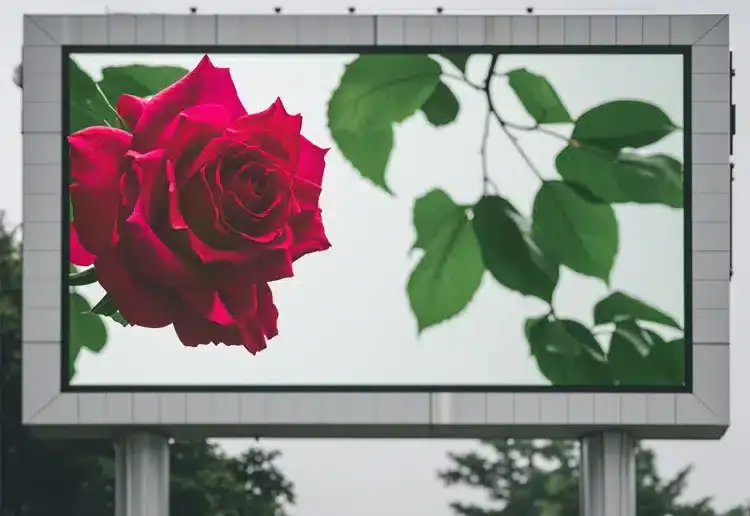

High Definition
Good Color Consistency, High contrast, Clear picture. The picture quality and the audience are faced with a whole new sensory experience.

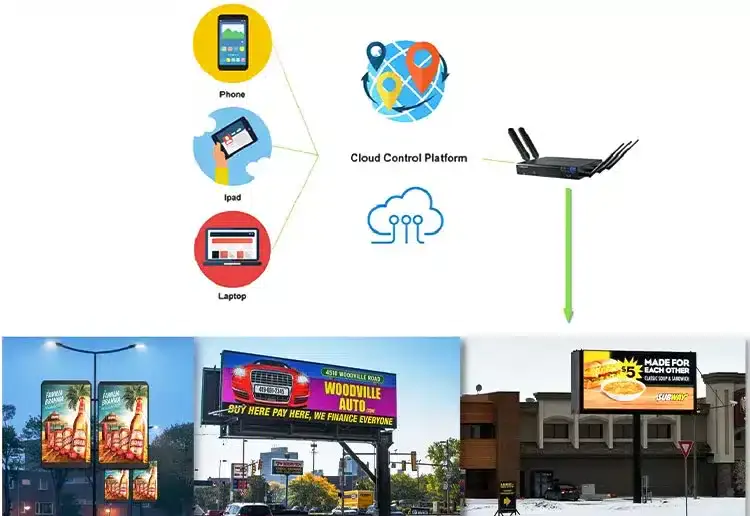

Cloud Server Content UUpdate and Management
When there are many outdoor LED displays, it will be very troublesome to update them one by one. Therefore, each outdoor LED display has a built-in LED control system that can receive signals from the cloud.
The advantage of this is that we only need to set the instructions in the cloud to update the screen content to receive signals in batches.

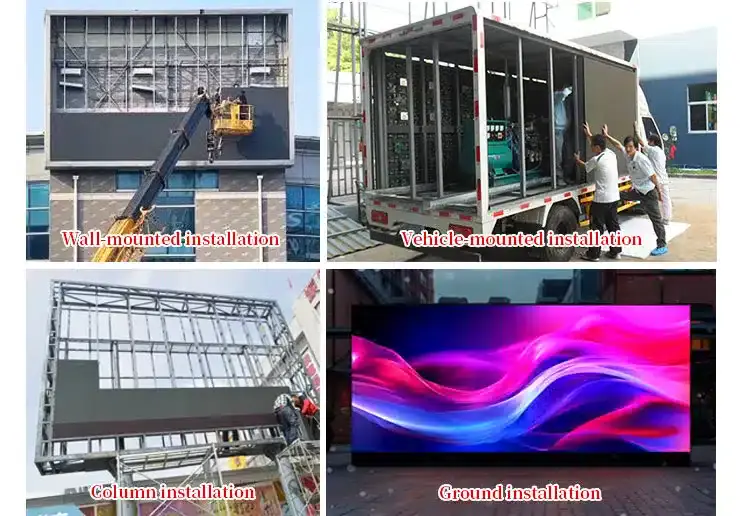

Outdoor LED Video Wall Displays Multiple Installation Types
There are 5 main installation methods for outdoor LED displays, namely:
· Wall mounting
· Column mounting
· Ground mounting
· Suspension mounting
· Vehicle mounting

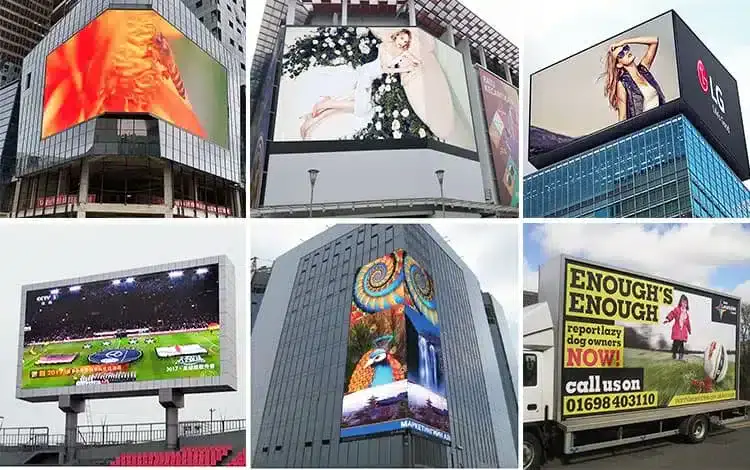

Outdoor Fixed LED Display for Different Scenes
In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. This product is usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.
Application and Installation Videos
Specifications
| Model | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 2.5 | 3.076 | 4 | 5 | 6.67 | 8 | 10 |
| Color | Full Color / 1R1G1B | ||||||
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Scan | 1/16 | 1/13 | 1/10 | 1/8 | 1/6 | 1/4 | 1/2 |
| Pixel Density(dots/㎡) | 160,000 | 105,625 | 62,500 | 40,000 | 22,500 | 15,625 | 10,000 |
| Module Size(mm) | 320*160*18 | ||||||
| Cabinet Size(mm) | 960*960*110 （customized） | ||||||
| Cabinet Resolution(dots) | 384*384 | 312*312 | 240*240 | 192*192 | 144*144 | 120*120 | 96*96 |
| Cabinet Weight(Kg) | 28 | ||||||
| Cabinet Material | Waterproof Iron | ||||||
| Grey Scale | 14 Bit-18 Bit | ||||||
| Refresh Rate(Hz) | 1920 / 3840 optional | ||||||
| Brightness(cd/㎡) | ≥6000 | ||||||
| Viewing Angle(H/V) | 140°/140° | ||||||
| Maintenance Method | Rear/Front | ||||||
| Life Span | 100,000 Hours | ||||||
| Waterproof | IP65/IP45 | ||||||
| Max. Power Consumption | ≤700W/㎡ | ||||||
| Average Power | ≤235W/㎡ | ||||||
| Working Temperature | -20-60℃ | ||||||
| Working Humidity | 10%-98%PH | ||||||
