Outdoor LED Video Wall: Revolutionizing Outdoor Advertising and Signage
OF-FC series outdoor LED video wall represents a new benchmark in outdoor advertising and signage. The OF-FC series common cathode LED display redefines outdoor advertising with its exceptional performance, energy efficiency, and versatility. This display boasts an IP68 waterproof rating, seamless splicing capabilities, and a unique energy-saving design, a high-precision aluminum profile cabinet, full-sealed design, making it ideal for outdoor display applications.
Higher structural strength, higher flatness, strongly dissipate heat, corrosion resistance, long service life.
The outdoor LED displays are used to meet the diverse needs of outdoor environments. They are perfect for advertising, displaying traffic information, and attracting a large audience. With their high brightness and full-color visual capabilities, they ensure that your content stands out even in bright sunlight.

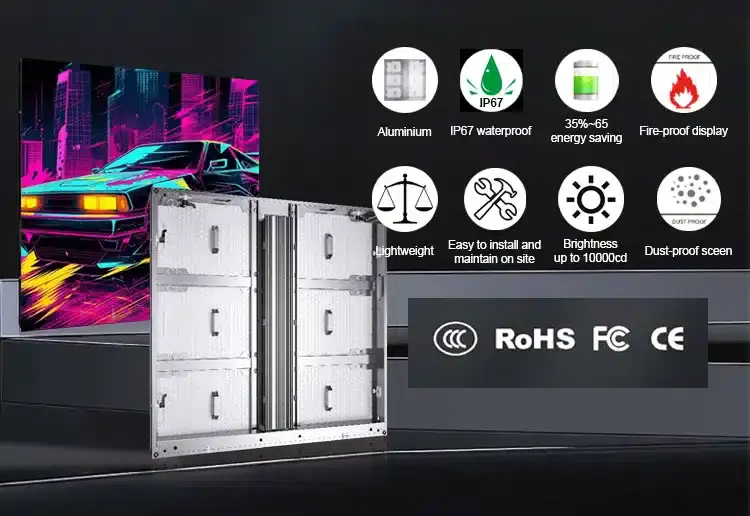

FC Series LED Display Highlights:
✓ Ultra-light 23kg cabinet (960×960×75mm) with wireless connectivity for easy installation
✓ 35-65% energy savings through advanced power-efficient design
✓ All-weather durability featuring IP68 waterproofing and 5VB fireproof aluminum construction
Perfect for demanding outdoor displays.
140-degree Wide Viewing Angle
The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.
Outdoor LED Video Wall Super Energy Saving Cabinet
Considering the energy consumption of outdoor advertising LED video wall, thanks to the latest PCB, lCS and power supply design, it is 35%~65 more energy-efficient than traditional outdoor screens. The design of outdoor advertising display screens focuses on energy saving and environmental protection. They have low power consumption, reduce energy costs and minimize carbon footprint.
Self-Cooling Technology
The fan has strong heat dissipation, no noise, and low power. Both the front and back sides have reached IP68 waterproof level. Full aluminum module chassis and Power box with heat sink.

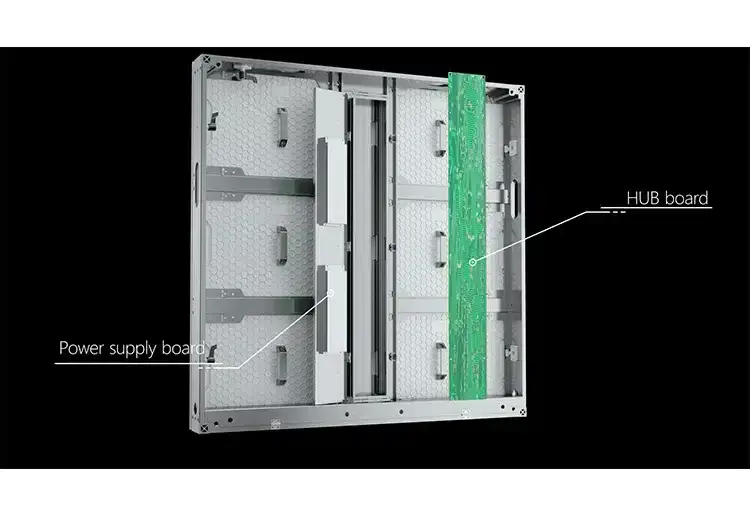

HUB Design Safe And Stable

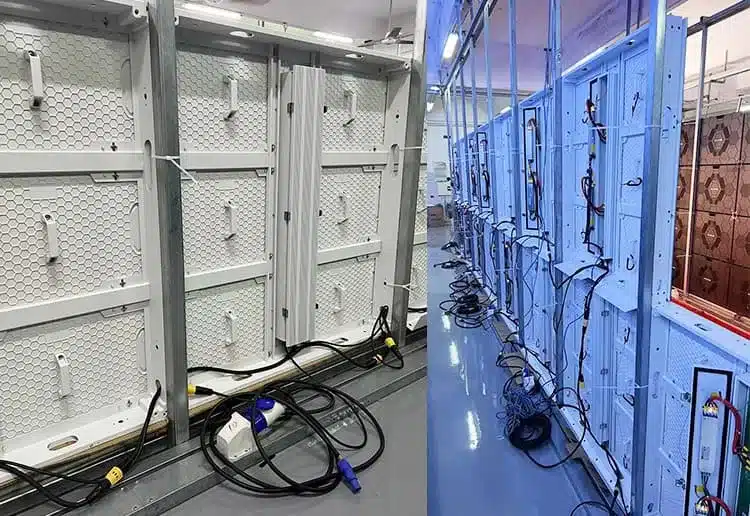

Full rear power box easy maintenance
REISSDISPLAY outdoor LED video wall reduces the possibility of cable-induced failures and also makes the entire screen neat and beautiful. The modules and power boxes can be quickly assembled and maintained from the front.

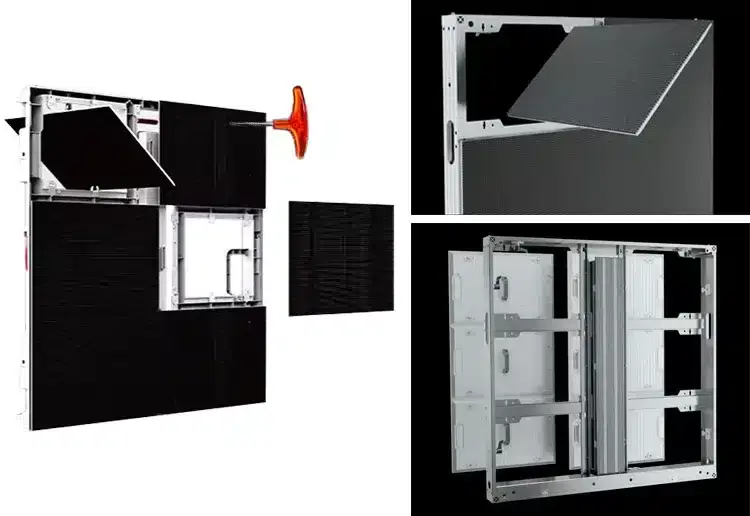

Front and Rear Double Maintenance Outdoor LED Video Wall
In order to help customers better maintain outdoor LED display billboards, the dual service mode designed on the front and back can save you maintenance costs. The LED panels can be assembled and disassembled easily and quickly.
Front or Rear Maintenance Is Optional

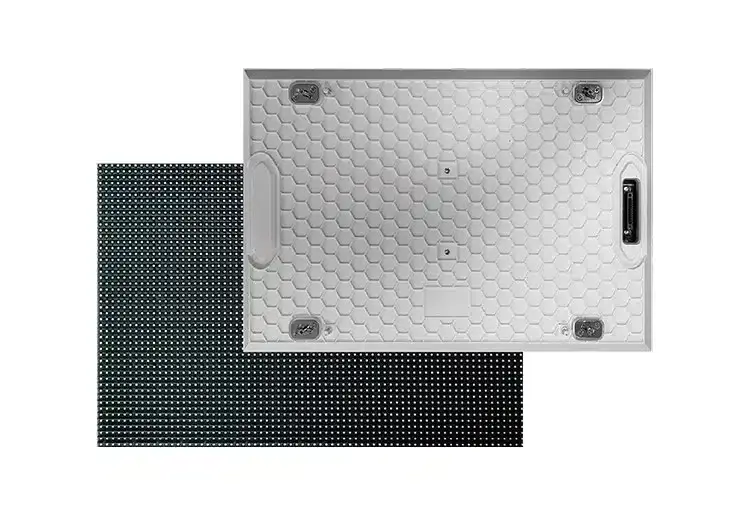

High modular design, easy maintenance
This design does not require ribbon cables, so the signal connection of the module is much better than the common designs on the market. In addition, we use single-row pin sockets, which are characterized by: High precision: precise pin spacing ensures stable connection between electronic components and improves the overall performance of the circuit board. High reliability: Made of high-quality materials, it has good conductivity and corrosion resistance, which can ensure the stable operation of the circuit.

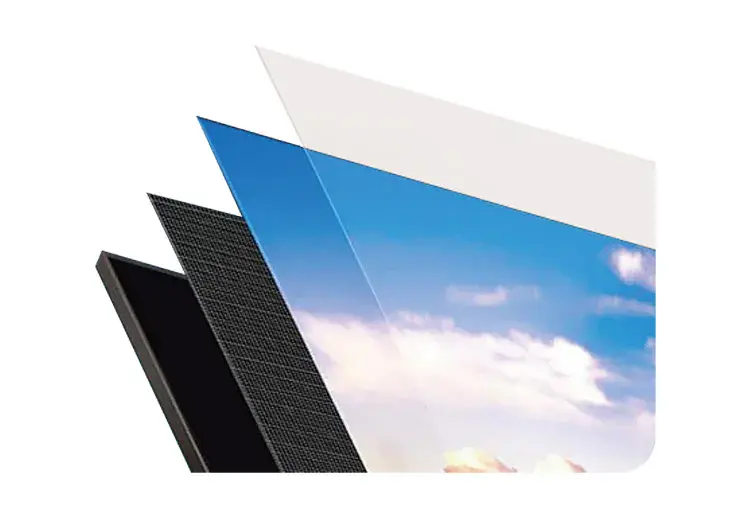

Anti Reflective SMD Mask.
It is worth noting that the pixels and internal components of the LED display must always be protected. This involves a lot of content, especially for outdoor displays. This is extremely important for outdoor equipment, adding a mask to the module to help better protect the pixels and components.
Outdoor LED Video Wall High Protective Performance

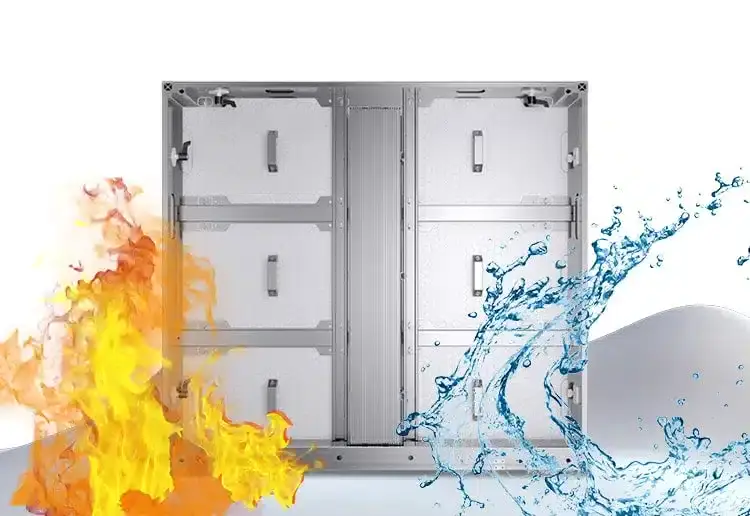

Full waterproof, fully-sealed design and die-casting aluminum module chassis, offering high protecting Rating (front and rear) lP68. Aluminum material LED module, high temperature durability, fast heat-dissipation. The whole product can Reach 5VB fireproofing level.
Outdoor LED Video Wall Seamless Splicing

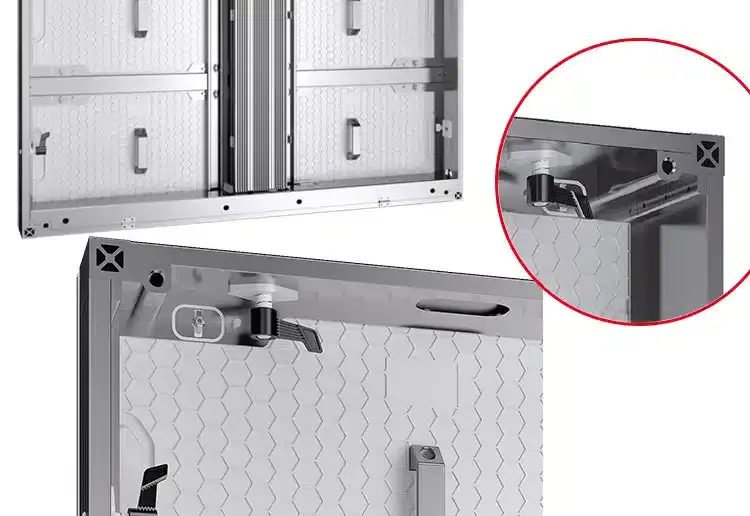

The installation is fast, convenient and flexible, and supports multiple installation methods to achieve seamless splicing.

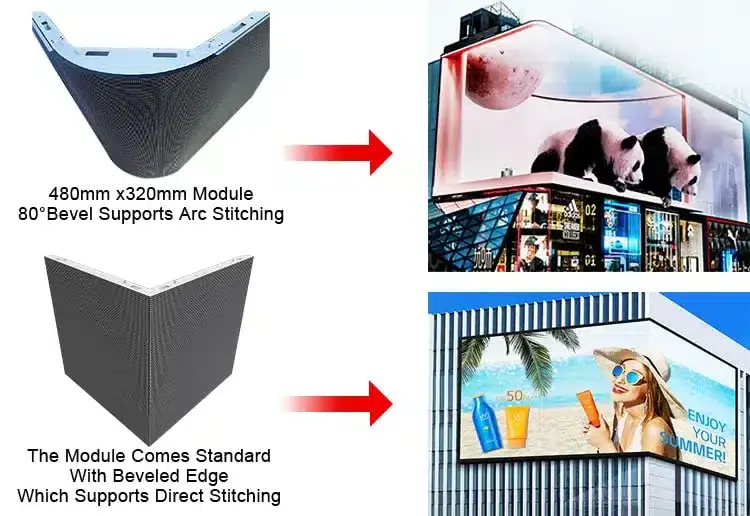

Curved Splicing and Right-angle Splicing
OF-FC series supports right angles and curved angles, the best choice for creating 3D large screens

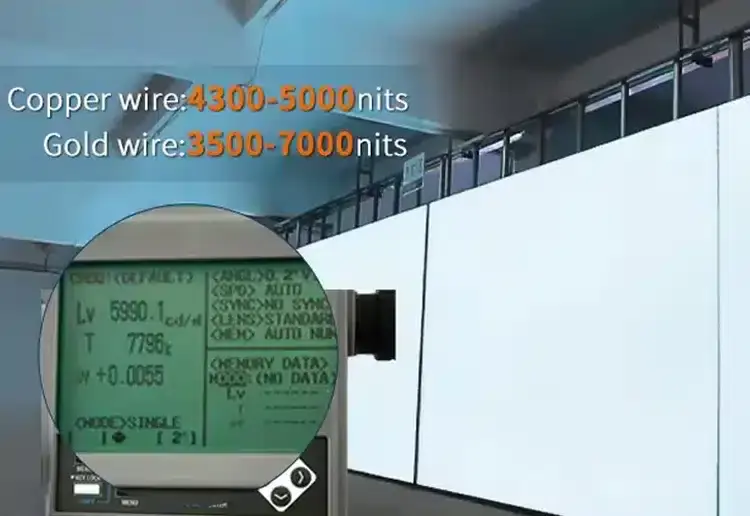

High Brightness Outdoor LED Video Panels
The brightness reaches up to 6000~10000nits, can instantly captivateattention & deliver content even under strong light.

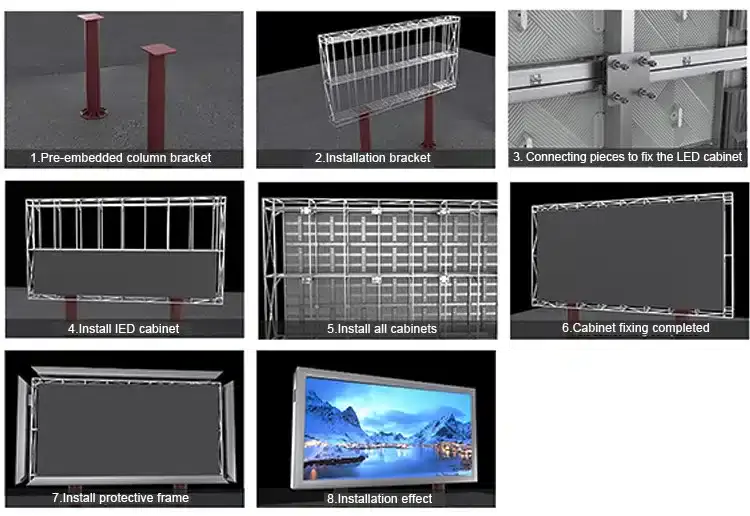

Outdoor LED Video Walls Multiple Installation Methods
OF-FC series LED display screens offer a variety of installation methods to suit different venues and event requirements. Choosing the right installation method is essential to maximize visual impact and ensure stability and safety.

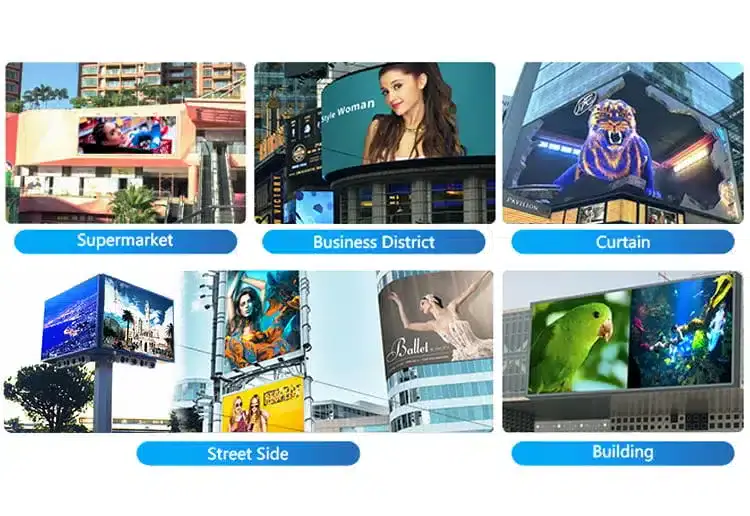

Application Fields
In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. This product is usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.
Application Cases
Application and Installation Videos
Specifications
| ITEM | P4.4 | P5.7 | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 4.4 | 5.7 | 6.67 | 8 | 10 |
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 / 3535 |
| Module Resolution (pixels) | 108×72 | 84×56 | 72×48 | 60×40 | 48×32 |
| Module Size (mm) | 480x320x25 | ||||
| Cabinet Resolution (pixels) | 216×216 | 168×168 | 144×144 | 120×120 | 96×96 |
| Cabinet Weight (kg/pcs) | 23 | ||||
| Physical Density (pixels/㎡) | 50625 | 30625 | 22500 | 15625 | 10000 |
| Optimum Viewing Angle | H:140° V:140° | ||||
| Optimum Viewing Distance (m) | >4.4 | >5.7 | >6.67 | >8 | >10 |
| Input Voltage | 110-220V AC±10% | ||||
| Max. Power Consumption (W/㎡） | 500-720 | ||||
| Avg. Power Consumption (W/㎡） | 230-360 | ||||
| Brightness (cd/㎡) | ≥5000 | ≥5500 | ≥6500 | ≥6000 | ≥6000 |
| Refresh Frequency (Hz) | 1920 / 3840 optional | ||||
| Frame Frequency (Hz) | 50-60 | ||||
| Grayscale (bit) | 14-18 | ||||
| Operating Tempreture/Humidity(℃/RH) | -10℃~60℃ / 10~98%RH | ||||
