High-performance, Weather-resistant Outdoor Screen Solutions
P2.9 P3.9 P4.8 P6.2 P7.8 P10.4 OF-BF series outdoor screen ultra-light cabinet, dual service and IP68 design isolates electronic components from moisture and dust, so the screen is more reliable. Straight, square LED screens offer a variety of pixel pitches from P2.9 to P10.42. The cable-free HUB design makes the display neat and clutter-free, making viewing more friendly and smooth, fast front and rear dual maintenance, worry-free rear maintenance, and its six-rear locker system can easily realize the disassembly of each module, saving time and convenience. The all-aluminum material is more durable and more stable than traditional steel. It has no fan, has excellent heat dissipation, and does not require air conditioning. It is available in silver and black.
Perfect Dimension Of Outdoor Screen
1: 1000x1000mm / 1000x500mm / 1500x1000mm / 1500x500mm cabinet design, aluminum
2: Magnesium alloy material, the lightest, only 23kg
3: High precision, seamless connection
4: Quick and easy installation, saving labor
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP68
Wide Viewing Angle
The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

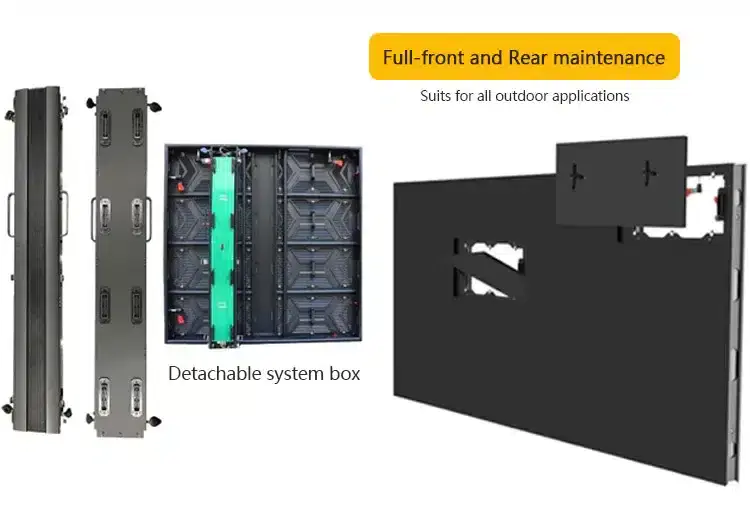

Outdoor LED Screen Front Maintenance
Benefits of Front and Rear Maintenance
The power supply, hub card, and receiving card are all integrated within a modular system enclosure, guaranteeing safeguarding against water infiltration. This enclosure is designed to be removable, facilitating ease of replacement and maintenance for enhanced operational efficiency.

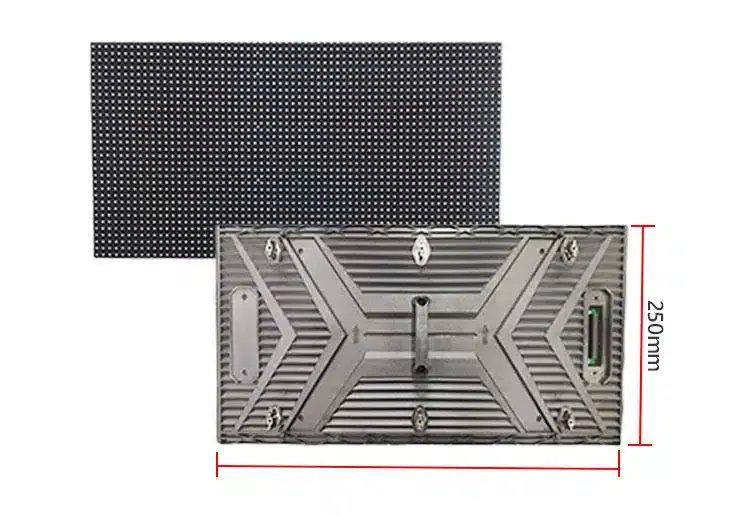

500*250mm LED Module Panel
OF-BF series outdoor front desk service LED display screen adopts 500*250mm LED module panel. Humanized handle design, module lock, waterproof rubber and high-quality LED module panel ensure excellent display quality.

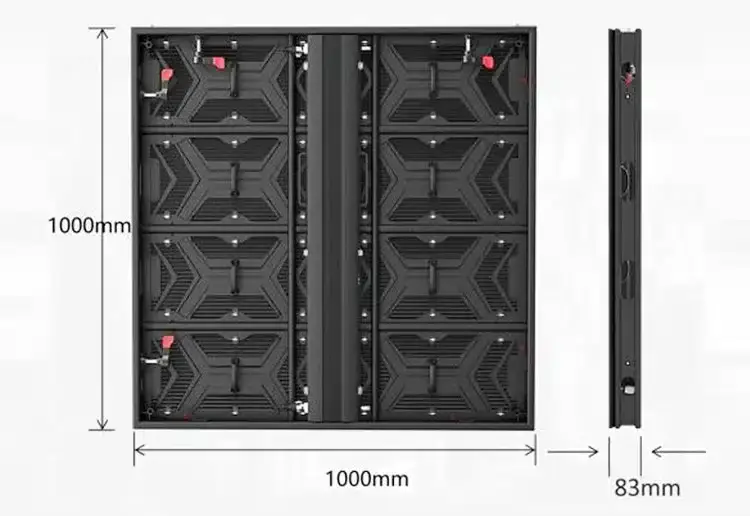

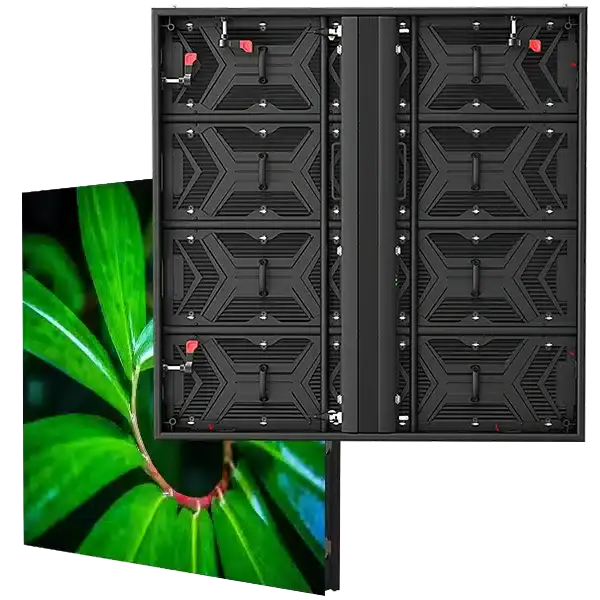

Standard 1000*1000mm Outdoor Screen Cabinet
Standard size: 1000x1000mm
Other sizes: 1000x500mm / 1500x1000mm / 1500x500mm
The ultra-thin and lightweight design of outdoor LED displays significantly enhances their usability in various applications, particularly for outdoor advertising screens. These features facilitate convenient installation methods and improve overall performance, making them ideal for dynamic advertising environments.
Perfect Cabinet Design

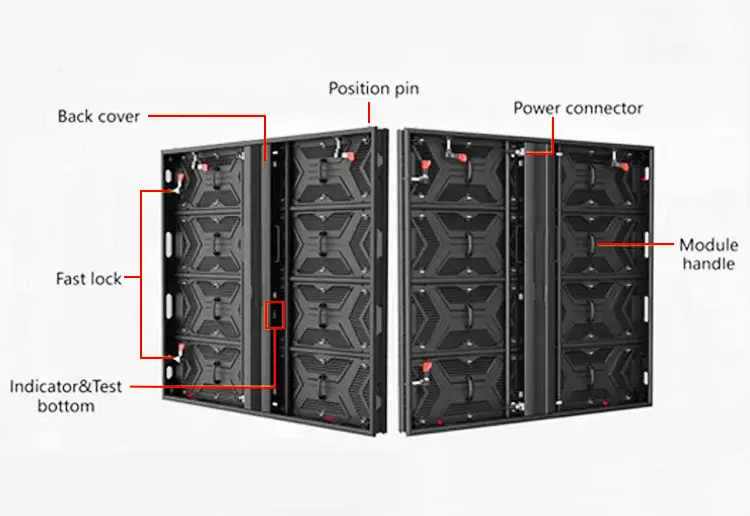

Perfect cabinet with simple and humanized design including signal connector, installation hole, up/down fast lock, left/right fast lock, power/signal connector, module handle, position pin, signal indicator, and cabinet back cover.

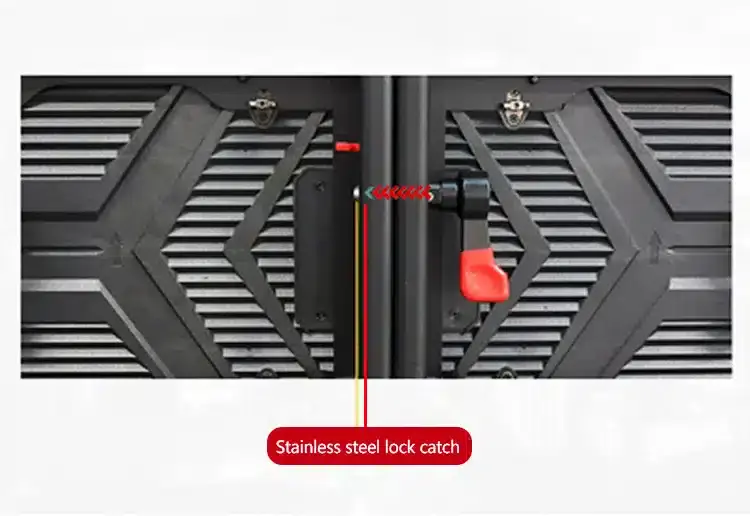

Quick Lock Installation Function
Quick lock design, one person can easily complete installation.

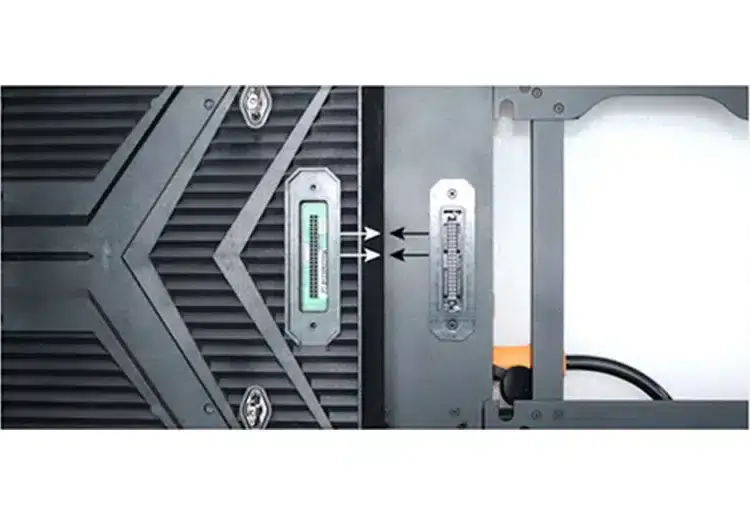

HUB Connection and Hot-Swappable Features
Designed for enhanced functionality and ease of maintenance, outdoor screens featuring hub connectivity and hot – swappable capabilities represent the latest in cost – effective outdoor solutions. These innovations ensure that displays remain operational and efficient, making them ideal for a variety of dynamic environments.
Energy-Saving 30-60% Outdoor Screen
Outdoor energy – saving LED displays are designed to provide high – quality visual output while minimizing energy consumption. These displays are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.
High Grayscale in LED Displays
High grayscale capability in LED outdoor displays refers to the ability to render a wide range of shades between black and white, enhancing the overall quality and realism of the images displayed. This feature is particularly important for applications that require detailed visual performance, such as photography, video production, and artistic installations.

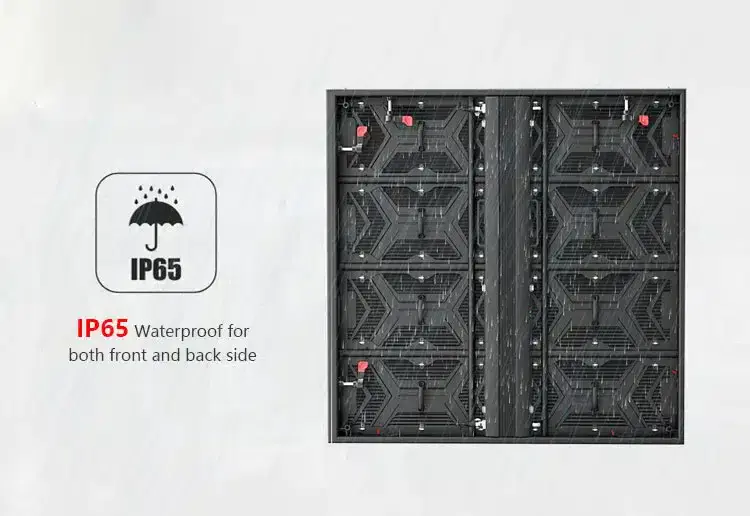

IP68/IP65 Protection Grade Double-sided
LED screens in outdoor scenes face more challenges than indoor scenes, such as dust and water damage caused by long-term work. In order to make the LED screen work safely and stably in outdoor scenes, we use advanced protection methods that can withstand heavy rain and strong winds for a long time. The IP68 double-sided design can isolate electronic components from moisture and dust, so the screen is more reliable.

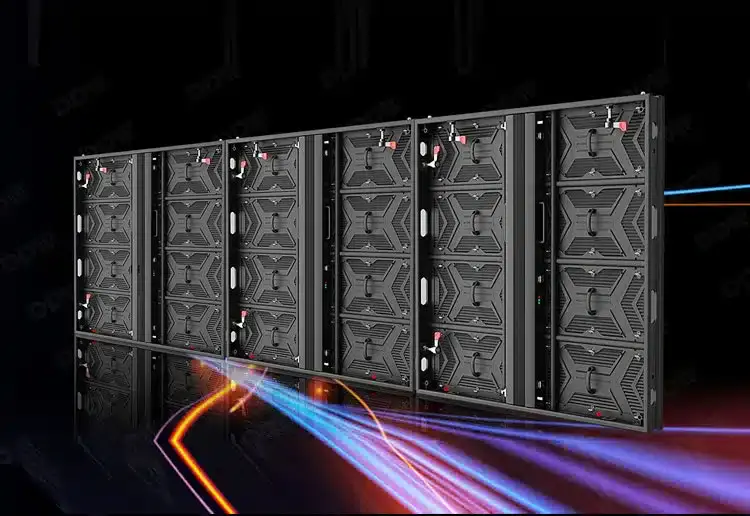

Quick and Perfect Splicing Function for LED Outdoor Screens
The fast, flawless splicing feature in outdoor screens is specifically designed to create a seamless viewing experience. This functionality ensures that multiple panels connect perfectly, providing a cohesive visual surface that enhances the overall display quality.

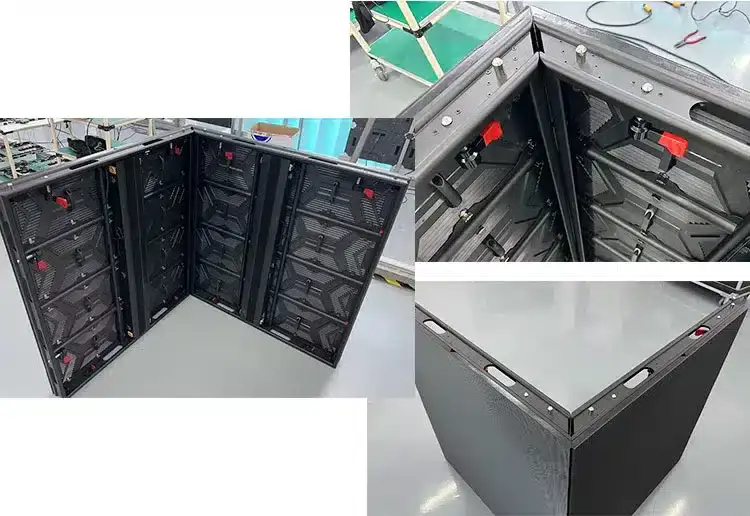

90° Right Angle Splicing Outdoor Screen Technology
OF-BF series supports 90° seamless right-angle splicing, easily creating a three-dimensional corner structure and enhancing visual impact.

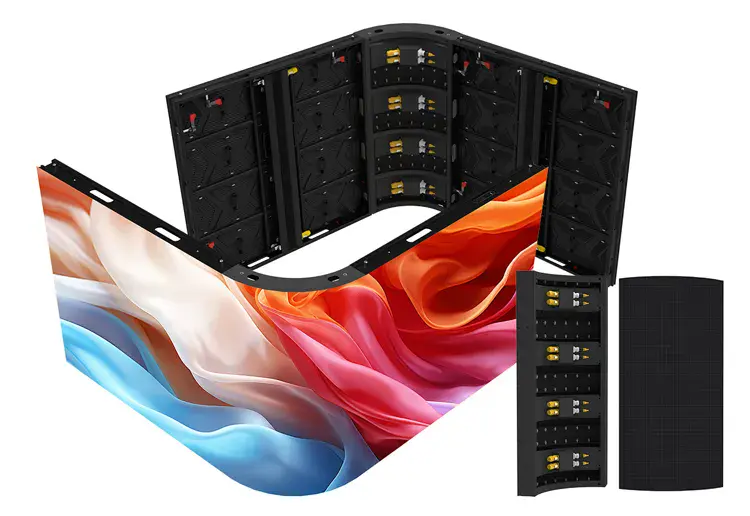

90° Arc Splicing Outdoor Screen Technology
The OF-BF series LED advertising screen supports 90° curved tiling, creating smooth three-dimensional shapes and achieving creative 3D display effects. High-quality screens continue to help new technologies come true and shine for the public.

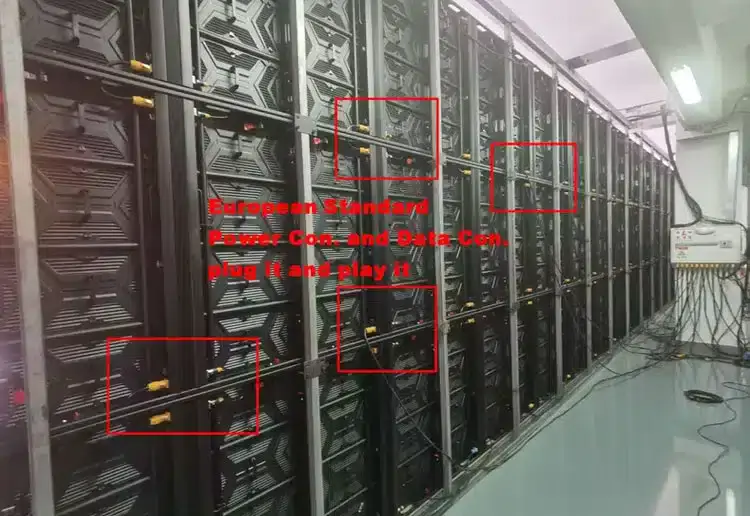

Power Con. and Data Con. Plug It and Play It
The cabinet design with lock and aviation plug can be easily and quickly assembled in a short time without tools, and can be fixedly installed or hung on the truss by the boom.
Various Installation Methods For LED Outdoor Screens
LED outdoor Screens offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.
Application Cases
Application and Installation Videos
Specifications
| Item | P3.91 | P4.84 | P6.25 | P7.81 | P10.4 |
| Pixel pitch | 3.91 mm | 4.81 mm | 6.25 mm | 7.81 mm | 10.41 mm |
| LED type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Module size | 500x250mm | 500x250mm | 500x250mm | 500x250mm | 500x250mm |
| Module resolution | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 |
| Cabinet resolution | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 |
| Cabinet size(W x H) | 1000x1000mm / 1000x500mm / 1500x1000mm / 1500x500mm | ||||
| Density | 65,536 dots/㎡ | 43,264 dots/㎡ | 25,600 dots/㎡ | 16,384 dots/㎡ | 9,216 dots/㎡ |
| Brightness | ≥5000 NIT | ≥5000 NIT | ≥5500 NIT | ≥5500 NIT | ≥6500 NIT |
| Scan | 1/16 | 1/13 | 1/8 | 1/4 | 1/2 |
| Max power consumption | 600~800 W/㎡ | 600~800 W/㎡ | 600~800 W/㎡ | 600~800 W/㎡ | 600~800 W/㎡ |
| Ave power consumption | 100~200W/㎡ | 100~200W/㎡ | 100~200W/㎡ | 100~200W/㎡ | 100~200W/㎡ |
| Weight(1000×1000) | 23KG | 23KG | 23KG | 23KG | 23KG |
| Refresh rate | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| View angle(Horizontal/Vertical) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Working voltage | AC 210v~240v 50-60Hz | AC 210v~240v 50-60Hz | AC 210v~240v 50-60Hz | AC 210v~240v 50-60Hz | AC 210v~240v 50-60Hz |
| Operation temperature | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C |
| Operation Humdity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Protection level | IP68/IP65 | IP68/IP65 | IP68/IP65 | IP68/IP65 | IP68/IP65 |
