Street Pole LED Display Solution: Innovative Technology for Smarter Cities
This smart street light pole LED display solution integrates advanced WiFi, power line communication and sensor technology to lead the development of smart city infrastructure.
In urban development, street pole LED screen are emerging as a model that integrates information and communication technology with traditional urban public infrastructure, making them the most promising new public infrastructure in this domain.
There are many functions of smart LED pole such as smart lighting controlling system, weather station, broadcasting speaker, emergency call system, mini base station, wireless Wifi, cameras and surveillance system, and high-quality LED display!
Street Pole LED Display Solution: Innovative Technology for Smarter Cities
The street light pole LED display system is a revolutionary technology transforming the way information is delivered and managed in urban environments. By integrating advanced WiFi, power line communication, and sensing capabilities, this smart LED solution is leading the charge in smart city infrastructure development.

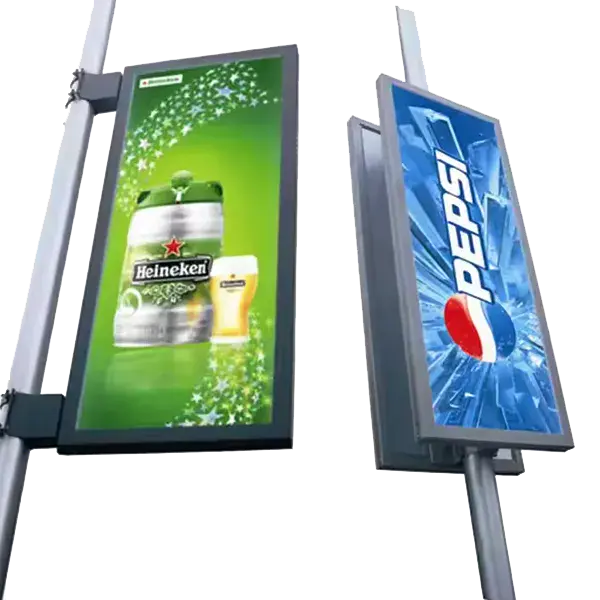

Street Pole LED Display Cabinet
The street pole LED display cabinet is a versatile and innovative solution available in multiple configurations to meet various needs. With options for P2.5, P3, P4, P5, P6, P8, and P10 pixel pitches, this display can be configured as single-sided or double-sided, offering flexibility for different applications.
Cabinet Material: Made from aluminum or steel for durability and lightweight construction.
Customizable Size: Tailored to specific project requirements.
Remote Cluster Control: Manage multiple displays from a single, centralized platform.
High Brightness: Ensures visibility even in bright outdoor conditions.
Easy Installation: Designed for quick and hassle-free setup.
Optional Synchronous Stereo: Enhances multimedia experiences with synchronized audio.
Automatic Brightness Adjustment: Adapts to ambient light for optimal viewing and energy efficiency.
Remote Power Control (Optional): Conveniently turn displays on/off via remote access.
Multiple Control Options: Supports 3G, 4G, 5G, USB, Cloud, and WiFi for flexible and reliable content management.
140-degree Wide Viewing Angle
The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

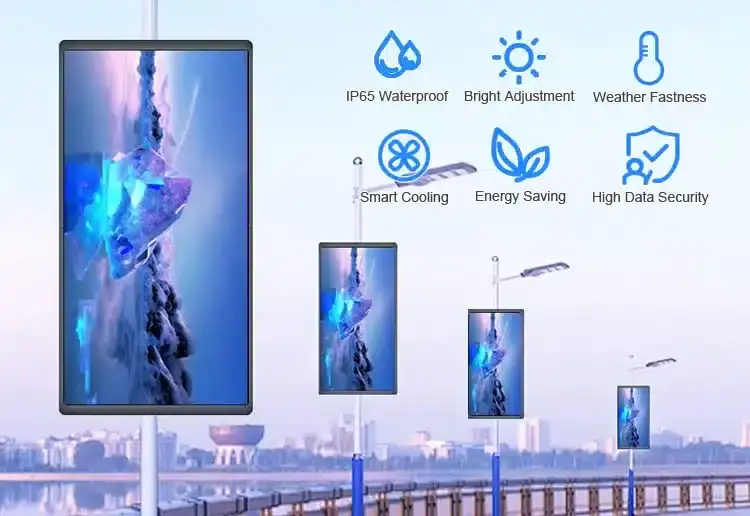

Outdoor Waterproof LED Screen Cabinet
The outdoor smart light rod LED screen Cabinet is designed with exceptional structural strength and outstanding waterproof performance, achieving an IP65 waterproof rating.
This robust design allows the screen to:
- Perform reliably in outdoor environments, even under harsh weather conditions.
- Function normally in rain, snow, and extreme temperatures, both high and low.
High Refresh Rate, High Contrast For Street Pole LED Display
High brightness, good flatness, stable performance, and uniform color.

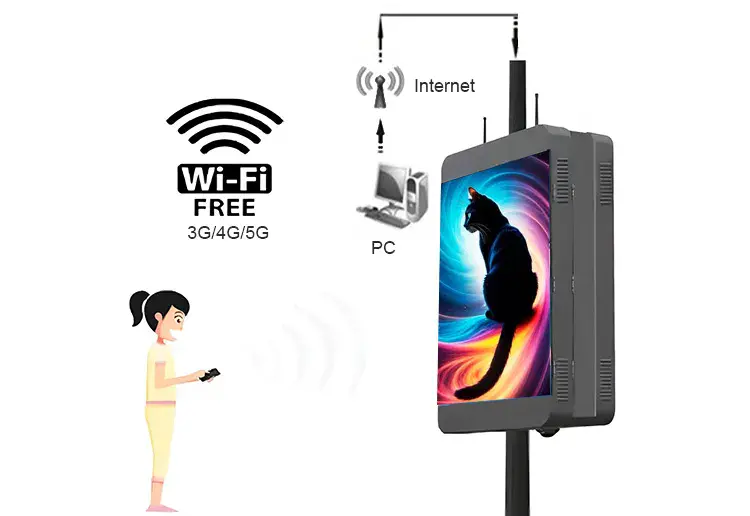

Netwok Remote Control
Street light pole LED display has a variety of control methods, supporting 3G, 4G, 5G, WiFi, LAN, telephone control and cluster control. This various control methods make the management of the street light rod LED display more flexible and convenient.

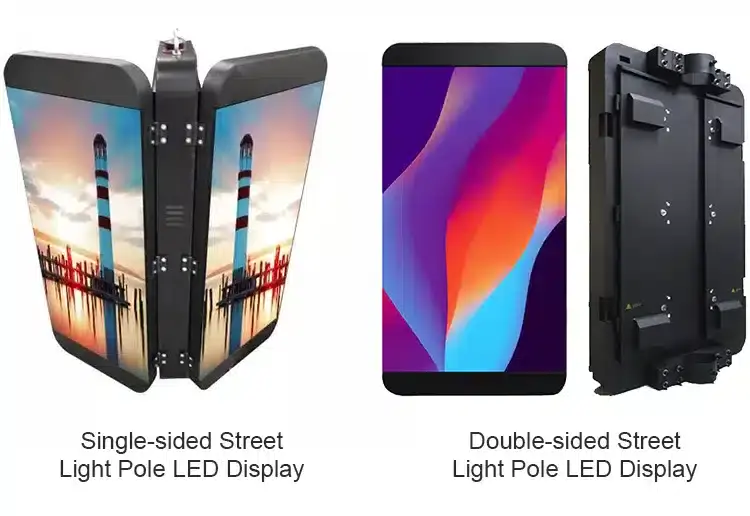

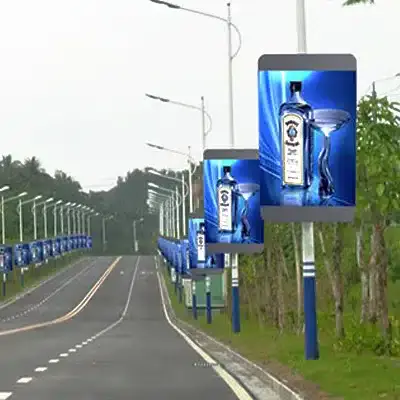

Single/double -sided Smart Light Rod LED Screen
Single or double display
This function is very important because it can increase the ratings of the content display on the LED screen. In essence, it is achieved by ensuring that the LED system has the back and front screen. This ensures that people from different sides of the street can see the content at the same time.
Automatic Brightness Adjustment
The screen brightness automatically adjusts as the brightness of the outside changes

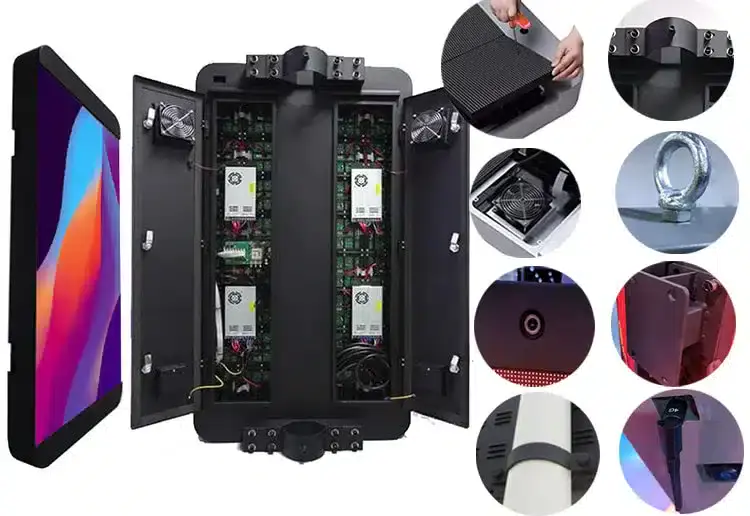

Unique Cabinet Design – Easy to Install & Transport
Side-open and back-open maintenance allow it more optional installation positions
The assembly module, power supply, receiving card, send card and other accessories feature a comprehensive set of components including easy installation hardware, automatic brightness adjustment, power delivery, SIM card support, optimal cabinet configuration, cooling, robust power supply, dust protection, circuit protection, lightning surge protection, and power control – all designed to enable reliable, high-performance operation.

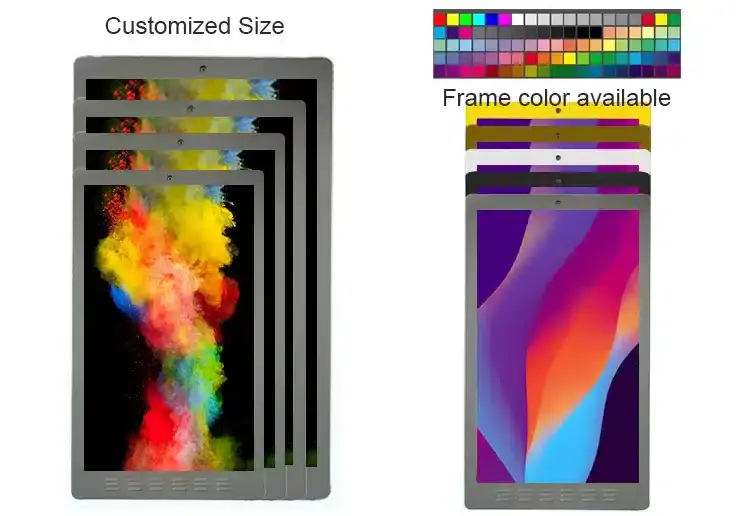

Customized LED Screen
Size and Pixel Pitch are customized
Cabinet Size 800x1600mm，960*1600mm or customized design needs. Module Size: 200*200mm, 320*160mm
Color Is Customized
The screen frame’s color is optional.meets different occasions to keep the same as the original environment design.
High Brightness, Suitable For Outdoor Viewing
The outdoor environment requires clear content. Therefore, the LED screen on the pole should have high brightness and luminescence. This is achieved by using high pixel density LED modules.
The brightness during the day cannot produce sufficient contrast, and it cannot be clearly seen as clearly as it is closed. Therefore, a high -brightness screen is required to improve visibility.

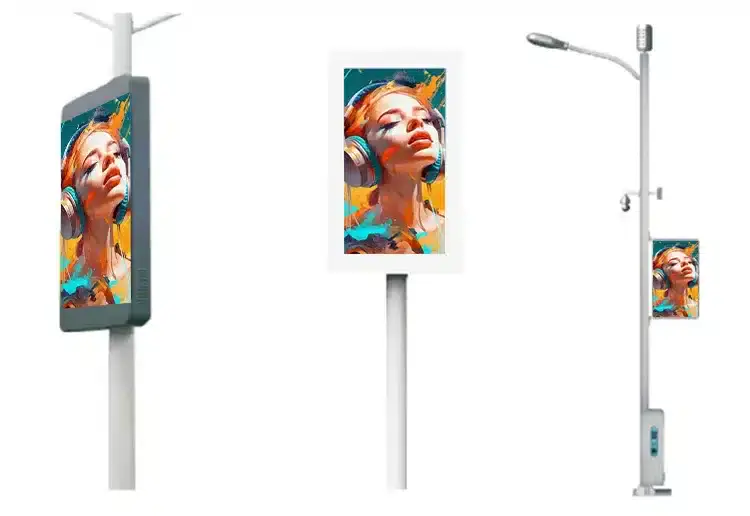

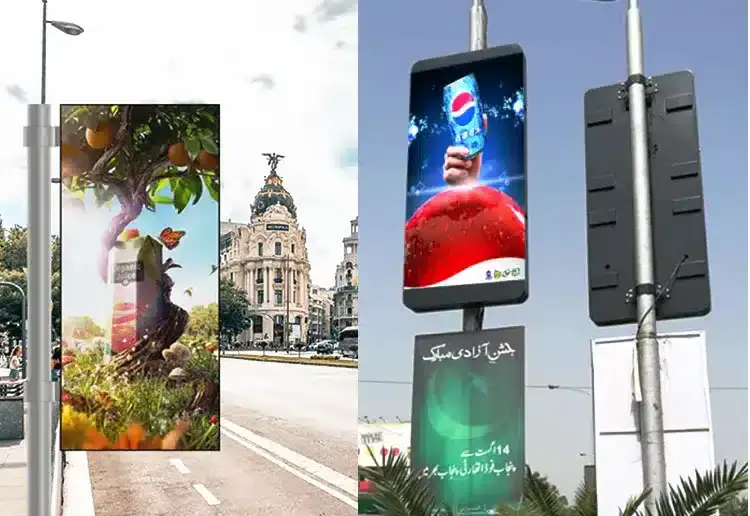

Street Pole LED Display Multiple Installation Methods
Street light pole LED display provides a variety of flexible installation methods, including side installation, mid -set installation, roof installation, wall -mounted installation, etc. Each installation method is simple to design, which saves time and cost, so that the smart light rod screen can easily adapt to various scenarios and provide users with greater flexibility.

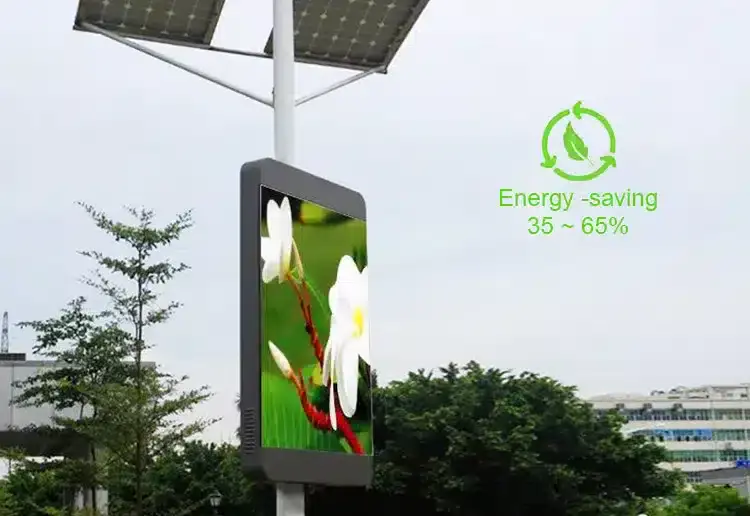

Energy -saving Technology
One of the main concerns of the world is energy consumption, especially in the main smart city. Therefore, consciously use energy to avoid the destructive effects of excessive consumption of non -renewable energy.
In this case, you will find that most street light rod LEDs use renewable energy such as wind and solar energy. These energy sources are cleaner and safer to the environment. If their access is limited, intelligent technology surveillance and control of unable renewable resources can be used to achieve the same goals.

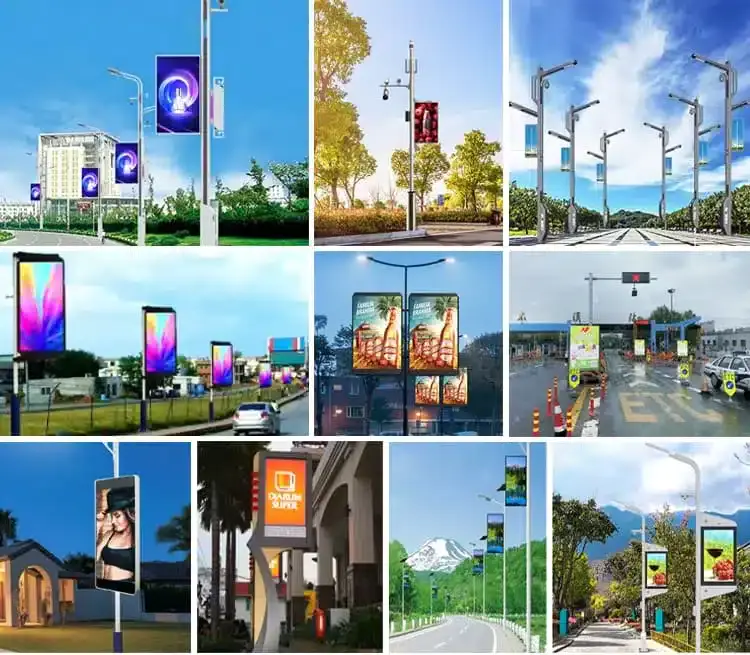

Street Pole Led Display Use Scene
The street light pole LED display system offers a versatile and impactful solution for both traffic safety and community advertising:
LED smart light pole screens can be widely used in urban arterial roads, pedestrian streets, subway entrances, airports, stations, shopping malls, communities, scenic spots and other areas. All specifications can be customized.
With a large information capacity, the displays can showcase rich, dynamic content on a flexible schedule – from real-time traffic instructions and emergency notifications, to commercial advertisements and community service announcements.
As a low-cost, environmentally-friendly option, these modular displays are widely deployed on outdoor street light infrastructure, providing high visibility and reach to passing vehicles and pedestrians.
For traffic safety, the displays relay critical real-time information to drivers and pedestrians, helping to avoid congestion and accidents. They can also instantly broadcast emergency alerts, prompting appropriate safety measures.
In the advertising realm, the displays enable targeted, time-based messaging – showcasing commercial ads, social communications, and community resources. This flexibility increases the exposure and impact of local businesses and services.
Overall, this comprehensive street light pole LED display system delivers a smart, cost-effective solution that enhances both public safety and community engagement.
Application Cases
Application and Installation Videos
Specifications
| Product name | P3 | P3.33 | P4 | P4 | P5 |
| Pixel Pitch(mm) | 3.00 | 3.33 | 4 | 4 | 5 |
| Physical Density (Pixels/rrf) | 105656 | 90180 | 62500 | 62500 | 40000 |
| Pixel specifications | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Encapsulation | SMD1921 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Module Size(mm) | L192xH192xT15 | L320xH160xT15 | L256xH128xT15 | L320xH160xT15 | L320xH160xT18 |
| Driving mode | 1/16S | 1/12S | 1/8S | 1/10S | 1/8S |
| Display resolution (dots) | 64×64=4096 | 96×48=4608 | 64×32=2048 | 80×40=3200 | 64×32=2048 |
| Brightness(cd/m*) | >5500 | >6000 | >6500 | >6000 | >5500 |
| Optimum Viewing Angle | H:160° V:140° | H:160° V:140° | H:160° V:140° | H:160° V:140° | H:160° V:140° |
| Refresh Frequency (Hz) | >3840 | >3840 | >3840 | >3840 | >3840 |
| Frame Frequency (Hz) | 60 | 60 | 60 | 60 | 60 |
| Module Working Voltage(V) | 4.8-5.2 | 4.8-5.2 | 4.8-5.2 | 4.8-5.2 | 4.8-5.2 |
| Module Consumption(W) | <32.5 | <32.5 | <32.5 | <32.5 | <24 |
| Max. Power Con sum ption (w/nf) | <900 | <900 | <900 | <900 | <950 |
| Gray Scale (bit) | 16 | 16 | 16 | 16 | 16 |
| Operating Temperature/Humidity(°C/RH) | -20°Cto +50°C/ 20% to 90% | -20°Cto +50°C/ 20% to 90% | -20°Cto +50°C/ 20% to 90% | -20°Cto +50°C/ 20% to 90% | -20°Cto +50°C/ 20% to 90% |
