Double Sided LED Display OES-DS Series

Double sided LED display-OES-DS seriesThis cabinet provides flexible access to your display, module, control system, power supply or any other component. Can be accessed from the front. It facilitates your maintenance and helps to make full use of the installation space.

Key Specifications

- P2.5, P4, P5, P6, P8 P10 option
- Front maintenance
- Super brightness
- Waterproof lP67/IP65
- Novastar/Huidu contoller option
- Support USB/CAT6/Wireless/4G

Commercial Terms

• Lead Time: 15-25 working days for standard models; 25-45 days for custom projects.
• MOQ: 1-5 sqm for indoor displays; 3-10 sqm for outdoor displays.
• Shipping: FOB Shenzhen/Guangzhou. Plywood flight cases for rental displays; wooden crates for fixed installations.
• After-Sales: Free remote technical support and spare parts within warranty period.
• Samples: Sample modules available for evaluation; sample cost deductible from bulk order.

Certifications

High-quality Double Sided LED Display Manufacturers

This cabinet provides a flexible way to access your screen, module, control system, power supply or any other component. double-sided LED screen can access it from the front. It facilitates your maintenance and helps to make full use of the installation space.

Although the double-sided front opening LED display brings many possibilities to different projects. But the thickness of the cabinet and the requirements for the installation environment also violate the demand of some projects. So a front maintenance module is produced to achieve the full front maintenance of the LED screen.

The double-sided transparent LED screen adopts a new structural design, and the common installation methods are wall-mounted or embedded. Usually, the average weight of a single box is only 10KG, which is light and portable and can be easily installed by one person. Within the load-bearing range, the two sides can display the same picture or different pictures.

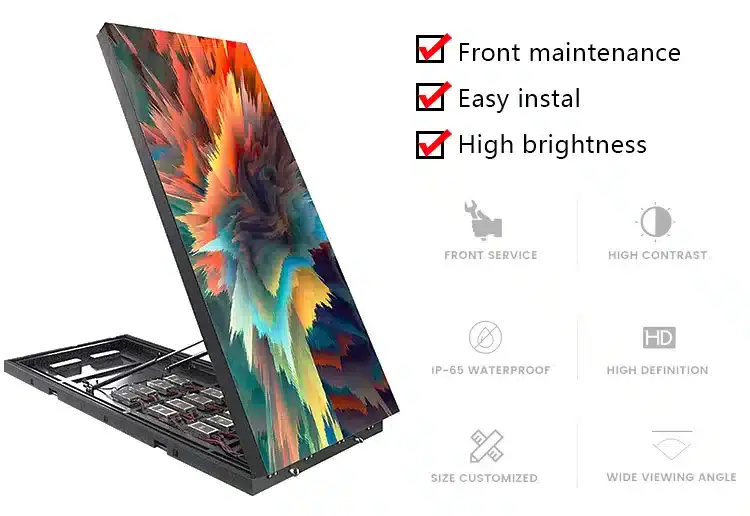

Front Service Double Sided LED Display Cabinet

Pixel Piitch :2.5mm 3mm 4mm 5mm 6mm 8mm 10mm

√ Easy to maintain
√ Saving Space
√ IP-65 Waterproof
√ Fixed or Rental Use
√ Size Customized

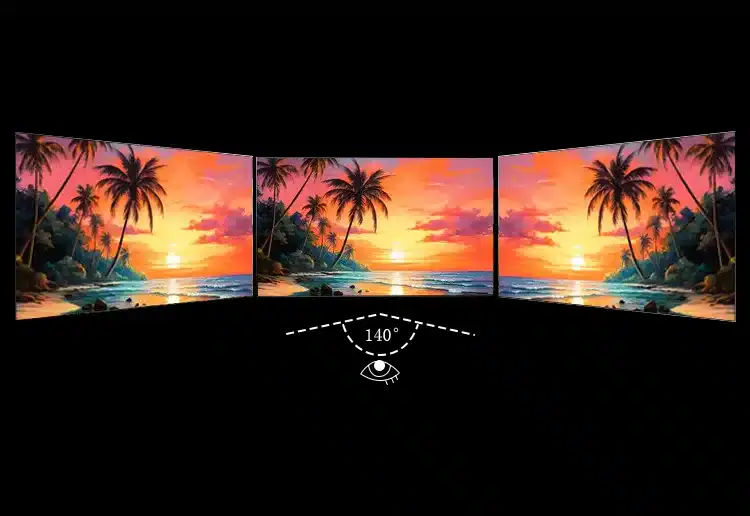

140-degree Wide Viewing Angle

The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

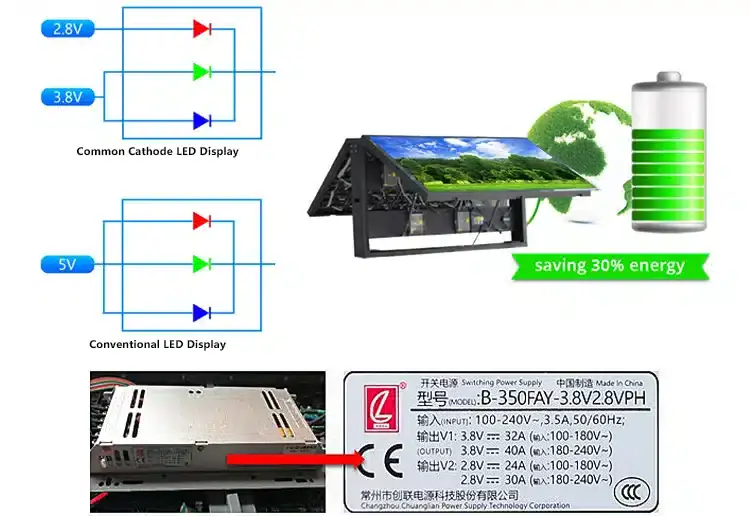

Outdoor Double-sided LED Display Energy Saving Cabinet

The double-sided LED screen, Advanced common cathode technology with highly efficient ICs can reduce 30%~60% power consumption than conventionalpanels.

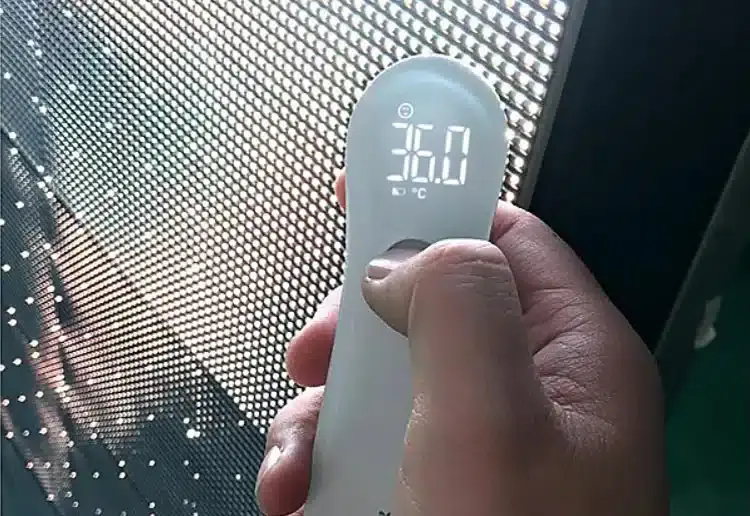

Super Cold and Heat Resistant

It will also greatly reduce the surface temperature lower to 36°, protecting all components from failure caused by high temperature.

Double Sided LED Display Lighter & Thinner

45~60kg/sqm, Lightweight design and safe on the wall no matter brick or cement wall.

Outdoor Double Sided LED Display Wide Applcations

Seamless Splicing Outdoor LED Video Panels

There wil be single front open and double-sided for options. Single one mainly for wall mounted, and double sided is best for billboard on poles.

Solid Reliability

Reinforcing ribadditional design to greatly improve the loading capacity.

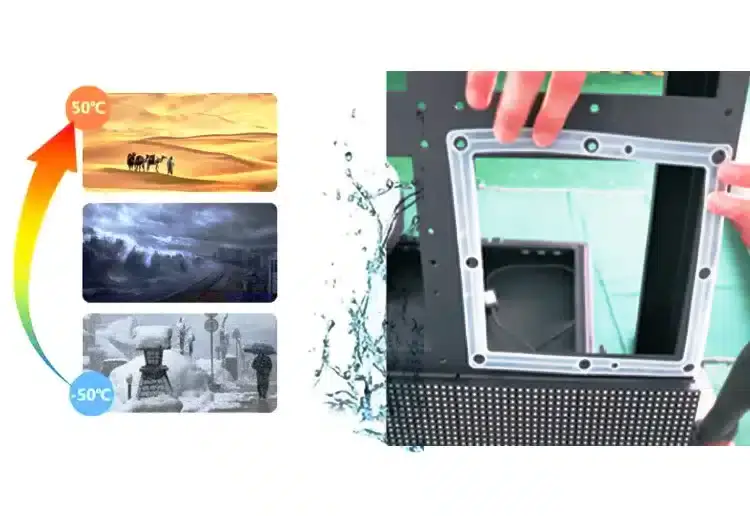

IP-65 Weather Rating

Special treatment of protection rating with IP65/lP54, fully waterproof panel. The ability to adapt to the environment is very strong, and it can work outdoors all day long.

Superb Visuals Outdoor Screen

P4 and p6 are recommended with more pixel density per sqm with outstanding image quality. Stunning full color video screens with high resolution.

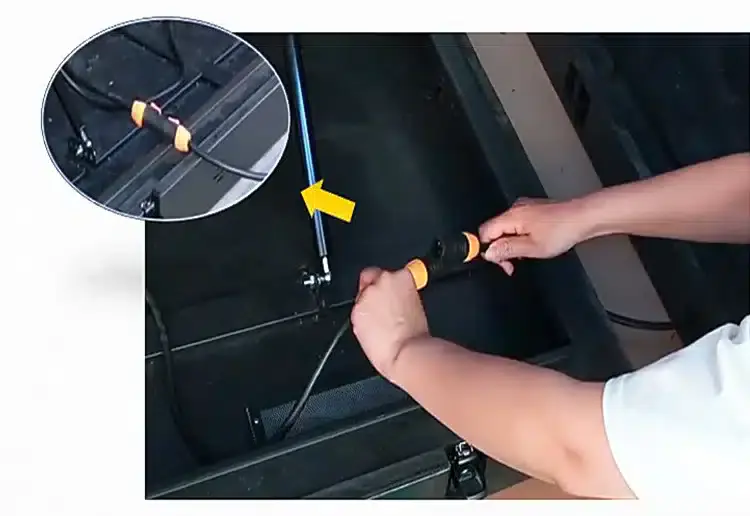

Outdoor Double-sided LED Display Fast Assembly

Power cable connector replacing the traditional power cable terminal connections. Fast assembly and will be safe from electric shock caused by improper operation.

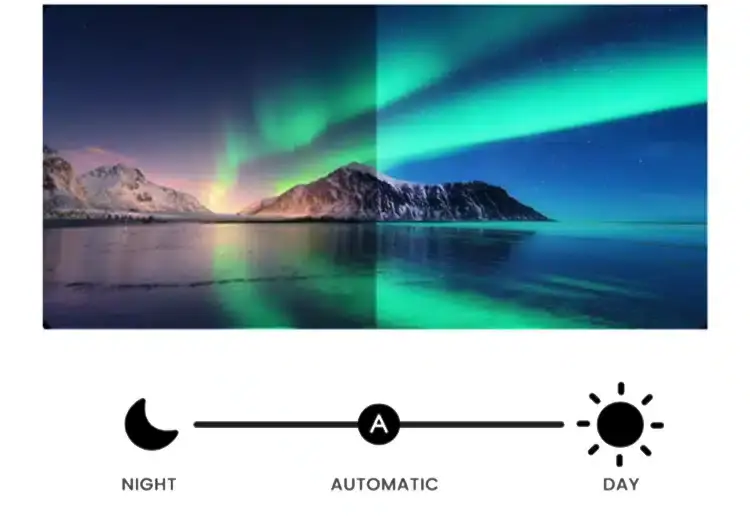

Adjustable Auto-brightness

√ matic adjustable brightness with light sensor, money-saving.
√ Offer comfortable vision experience.

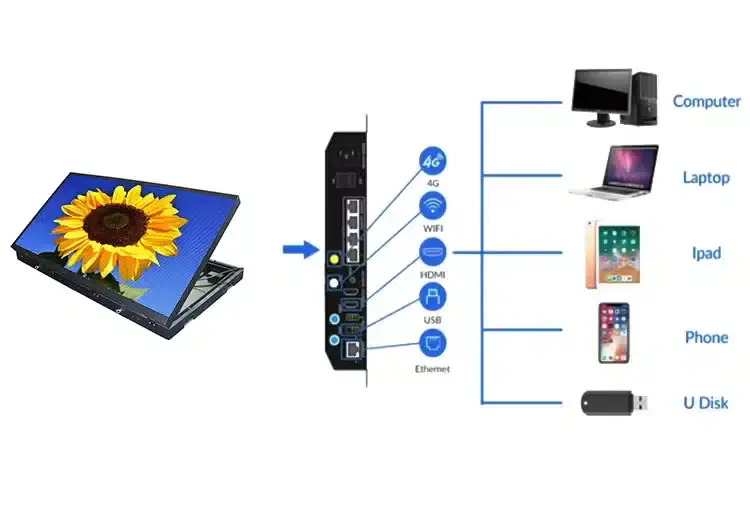

Easy Control Via WlF

Support PC, mobile phone, laptop, USB drive. Can be controlled wirelessly, easily configure your screen.

Applications

Allow customizing different sizes & right-angle splicing
OES-DS series LED panels support right-angle installation.
With the OES-DS series LED rounded corner panels, users can easily build outdoor 3D screens and deliver stunning video content to their audiences.

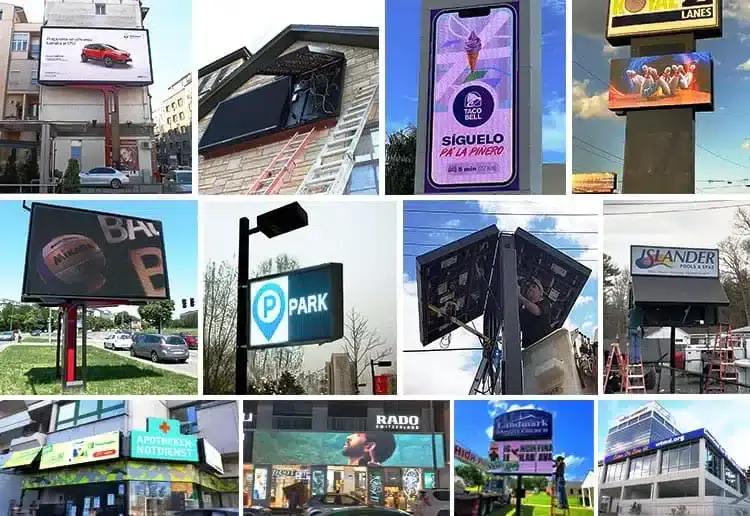

Application Cases

Application and Installation Videos

Specifications

Pitch	2.5mm	3mm	4mm	5mm	6mm
Module Size	320*160mm	192*192mm	256*128mm	320*160mm	192*192mm
Module Resolution	128*64	64*64	64*32	64*32	32*32
LED Type	SMD1415	SMD1921	SMD1921	SMD2727	SMD3535
Brightness	5000 Nits	5500 Nits	5500 Nits	6000 Nits	7000 Nits
Pixel Density/m2	160000	111111	62500	40000	27777
Driving Method	1/16 Scan	1/16 Scan	1/8 Scan	1/8 Scan	1/4 Scan
Optimal View Distance	2-8m	3-10m	4-13m	5-16m	6-20m
Avg. Power	430W/m2	460W/m2	500W/m2	310W/m2	350W/m2
Max. Power	950W/m2	980W/m2	1100W/m2	700W/m2	780W/m2
IC	MBI5124 / ICN2153
Refresh Rate	1920-3840Hz
Brightness Control	256 Grade/Each Color
View Angle	140°
Ingress Protection	IP65
Input Voltage	AC110/220V, 50/60Hz
Operating Temp.	-30℃~60℃
Gross Weight	50Kg/m2
Life Span	100000 Hours

Configuration
