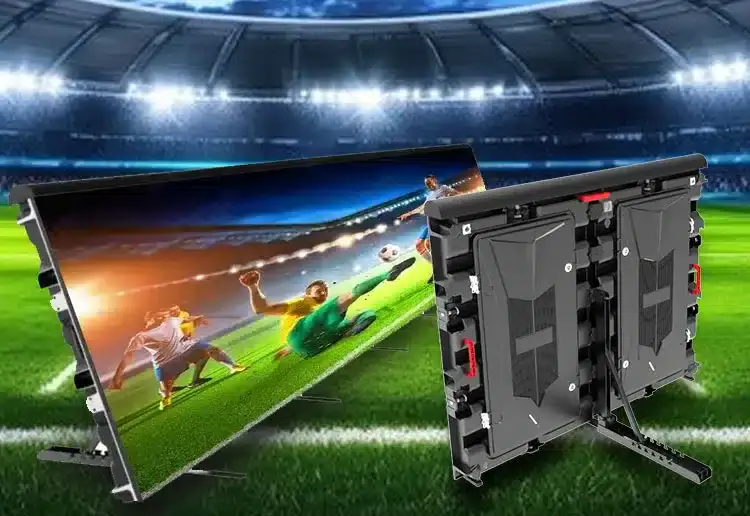

Stadium LED Displays LED Solutions, Crafted for You!
ReissDisplay’s high-performance stadium LED display perimeter systems deliver 5,500-6,000 nits brightness for crystal-clear visibility even in direct sunlight. Our 10mm pixel pitch solutions meet strict UEFA standards, making them ideal for professional sporting venues and pitchside installations.
Featuring rugged IP65 waterproof construction and 140° wide viewing angles, these stadium LED screens maintain perfect visibility from any seat in the stadium. The durable design withstands harsh weather conditions while delivering consistent, vibrant visuals event after event.
Our systems ship as easy-to-install modular panels that connect seamlessly to create displays of any size. Each complete set includes intuitive control software, simplifying operation for venue staff and ensuring quick content updates.
While optimized for outdoor stadium use, we also offer indoor perimeter systems and large-format advertising displays. All solutions maintain our commitment to broadcast-grade quality, making them perfect for television coverage and high-impact digital signage.
Customize The Surrounding Stadium LED Display Solution For You
· Pixel pitch 3mm / 4mm / 5mm / 6.67mm / 8mm / 10mm
· Module size 320 × 160 mm
· 1280 × 960 mm / 960 × 960 mm / 640 × 960 mm cabinet
· High brightness, high refresh rate.
· Novastar/HuiDu/Linsn outdoor control system
· Support all signal model inputs such as phone, computer, wireless network, live broadcast, etc.
· Specialized for seamless connection, high contrast, high refresh rate, 16-bit high grayscale.
1. IP65 waterproof, anti-powder, windproof, shockproof
2. Adjustable base structure to ensure viewing of games from different viewing angles
3. MG alloy casting cabinet, thin and lightweight foam, can be used for rental stage LED screen.
4. Soft film protection, protect the athlete’s body from injury, and the LED light will not break
The sports field LED screen is very suitable for crowded places, especially for football or basketball courts. Its high-resolution image and wide viewing angle ensure the best quality pictures and videos with every corner of the stadium LED displays.
Stadium LED Displays High IP Level & Safe & Reliable

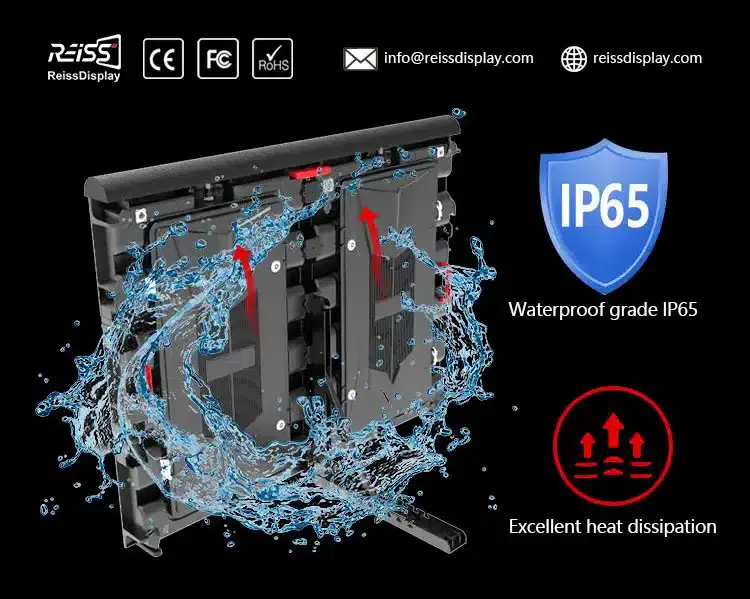

IP65 Waterproof
The fully sealed cabinet has an inlet protection of up to IP65, which is dust, dust and moisture proof, bringing the inlet protection of stadium LED displays to a new level.

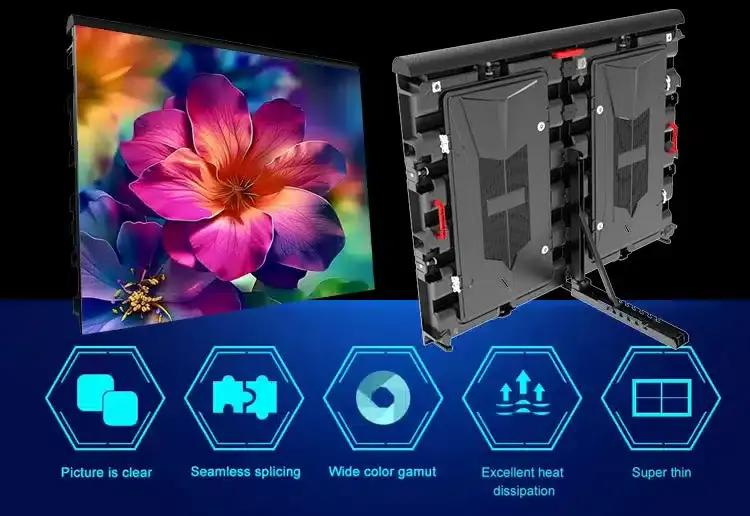

Excellent Heat Dissipation Performance
The new door can dissipate heat with the door or the fan.

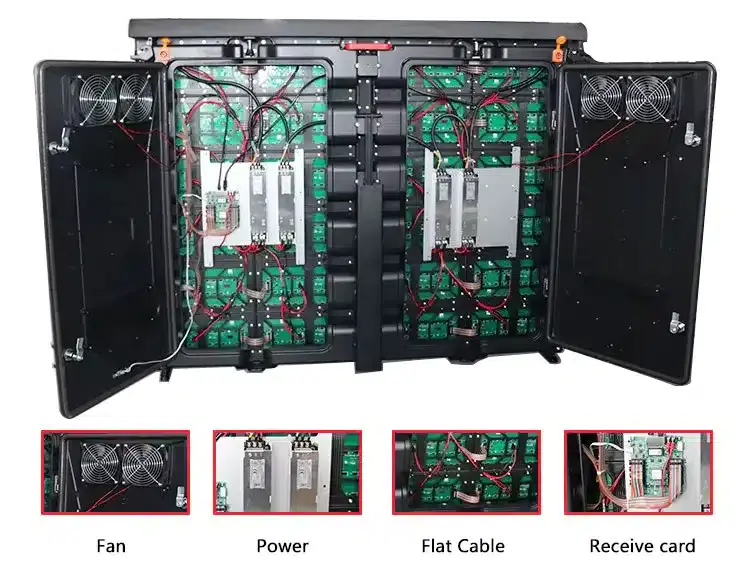

Openable Back Cover
The OES-MX series LED display has a compact structure, and the back cover can be quickly opened for maintenance operations.

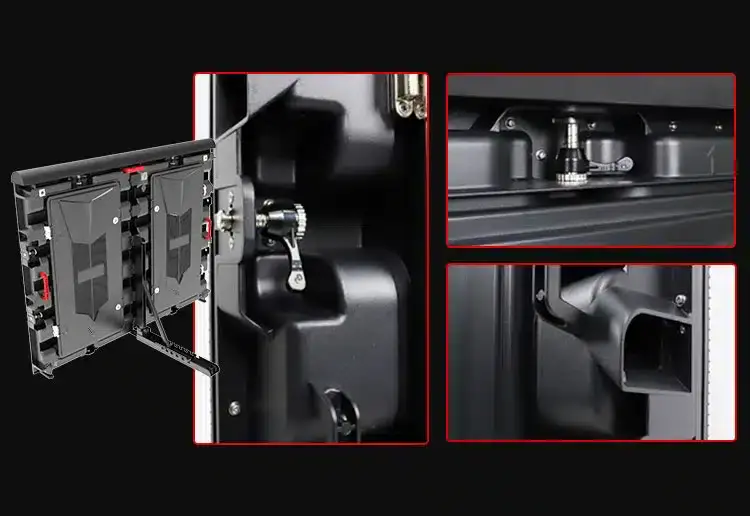

Easy To Install
The OES-MX series cabinet has two quick locks on the top and left side to support quick installation. The cables between cabinets are connected through the holes on the side of the cabinet.
Stadium Perimeter LED Display Safety Cabinet Design

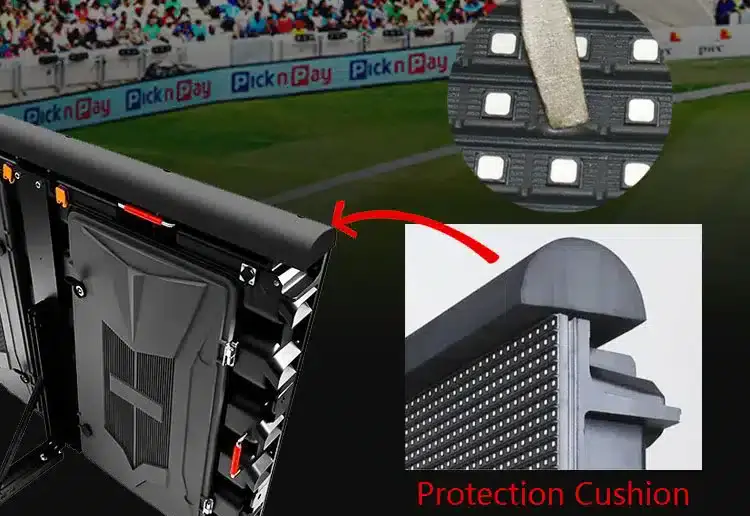

Special EVA protective pads on the top of the ReissDisplay perimeter LED screen cabinet to protect football players from injuries during the game. The silicone rubber mask is soft and flexible to protect players and balls from injuries. The stable body protects the display from any damage, even high-speed balls or footballs.
Independent Support Structure Perimeter LED Screen

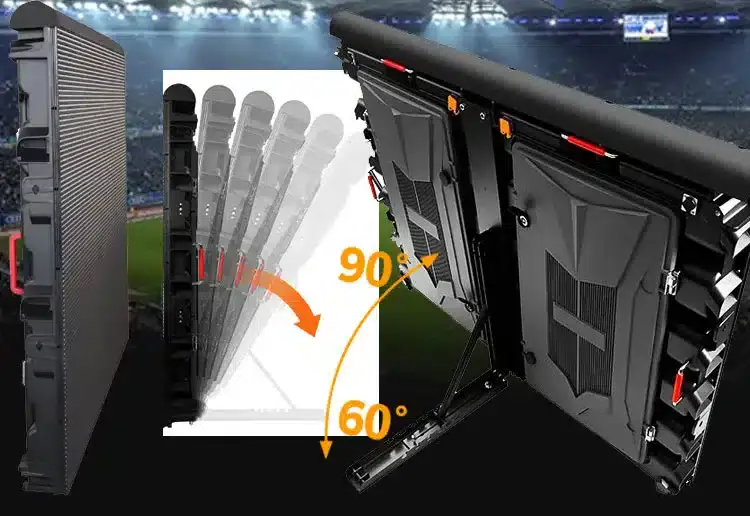

The ReissDisplay perimeter LED screen cabinet has a viewing angle range of 60 to 90 degrees, which is highly flexible.
The OES-MX series features an innovative support structure engineered for exceptional durability. Its robust design absorbs both front and rear impacts while maintaining rock-solid stability. The cabinet support angle adapts to real-world installation conditions, allowing precise adjustments for any environment. This intelligent engineering combines impact resistance with flexible positioning to deliver reliable performance in diverse settings.
The perimeter LED screen can be adjusted to optimize the viewing effect and improve the visibility of the viewer.
Customized For Your Project

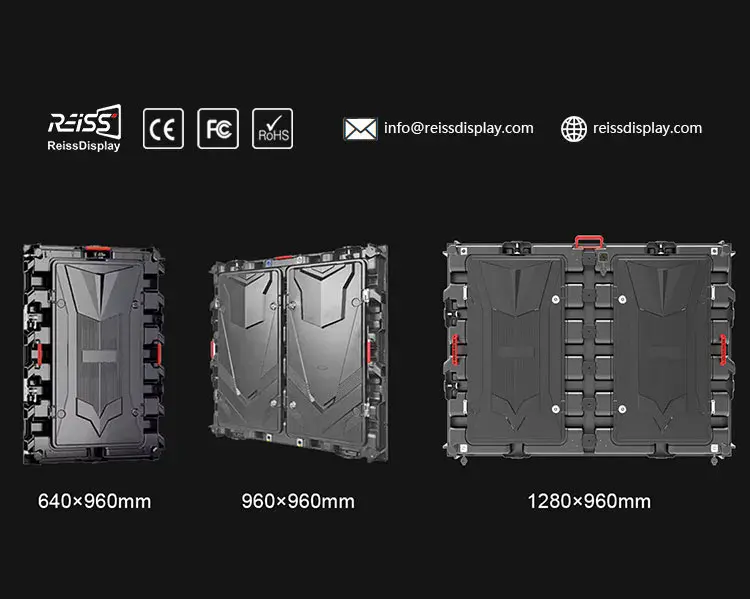

1280 × 960 mm, 960 × 960 mm, 640 × 960 mm cabinet optional.
Customized For Stadiums
The OES-MX series stadium LED display is specially designed for use around stadiums. Its eye-catching display and wide field of view allow people to enjoy exciting content.
Energy-Saving 30-60% Outdoor Screen
Outdoor energy – saving LED displays are designed to provide high – quality visual output while minimizing energy consumption. These displays are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.
Automatic Adjustable High Brightness Of Stadium LED Display Screen
OES-MX series will adjust the brightness according to the environment, thus saving power consumption.
Seamless With Good Alignment Stadium LED Displays
· Product is high brightness, high refresh rate, high lP rating, applicable for indoor and outdoor sports stadium in different countries:
· Back-up solution is available;
· Magnesium alloy cabinet design makes the installation, transportation and maintenance easier:
· All models in OES-MX series, have same cabinets and modules design, so in the future upgrading, only some parts need to be changed.

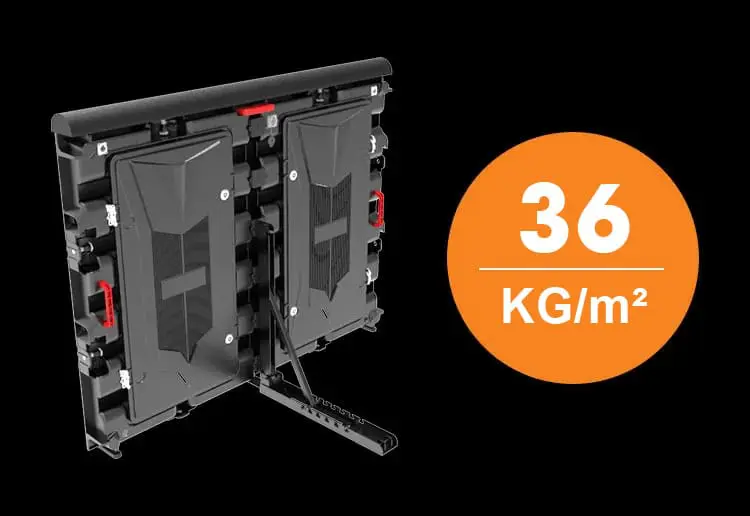

· Magnesium alloy material,ultra lightweight,only 36KG

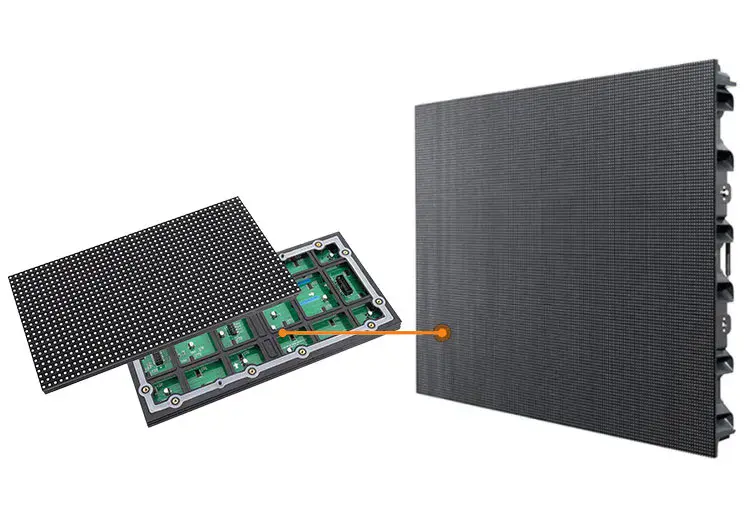

Standard LED Modules
Universalmodule size:320mmx160mm.

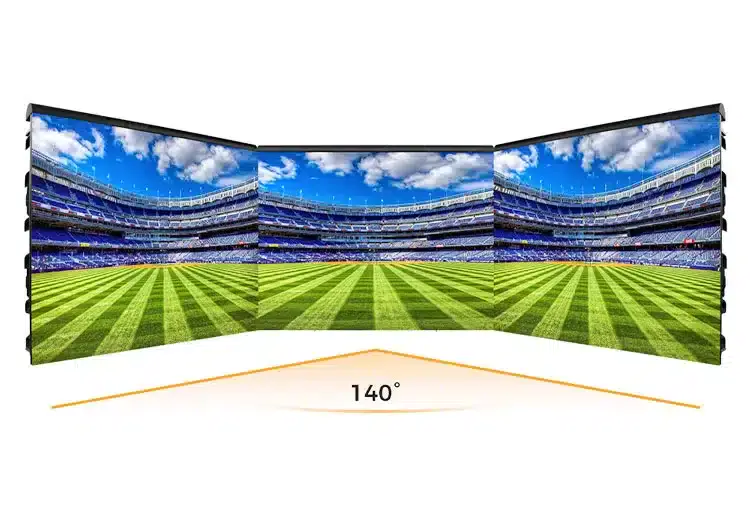

Large Viewing Angle
Full RGB color will produce vivid pictures. Providing 160°/140° ultra-wide horizontal and vertical viewing can enable maximum audience participation at a short distance.
Application Cases
Application and Installation Videos
Specifications
| Stadium Perimeter LED Display Parameter | ||||
|---|---|---|---|---|
| Pixel Pitch | P6.67 | P8 | P10 (2S) | P10 (4S) |
| Model | P6.67 | P8 | P10 | P10 |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 22,478 | 15,625 | 10,000 | 10,000 |
| Module Resolution (Pixel) | 48 × 24 | 40 × 20 | 32 × 16 | 32 × 16 |
| Module Size (mm) | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Driving Mode (Duty) | 1/6 | 1/5 | 1/2 | 1/4 |
| Cabinet Size (mm) | 1280 × 960 / 960 × 960 | 1280 × 960 / 960 × 960 | 1280 × 960 / 960 × 960 | 1280 × 960 / 960 × 960 |
| Cabinet Weight (KG) | 36 | 36 | 36 | 36 |
| Brightness (CD/㎡) | 6000 | 5500 | 5800 | 4500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 892 | 600 | 850 | 540 |
| Avg. Power Consumption (W/㎡) | 298 | 200 | 285 | 180 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP65(front),IP54(rear) | IP65(front),IP54(rear) | IP65IP65(front),IP54(rear) | IP65(front),IP54(rear) |
